Cooling Fan: Notes

WARNING: This page is about a different car, the 2012 Scion xD. However, it is still accessible from the selected car via links, so may be relevant.

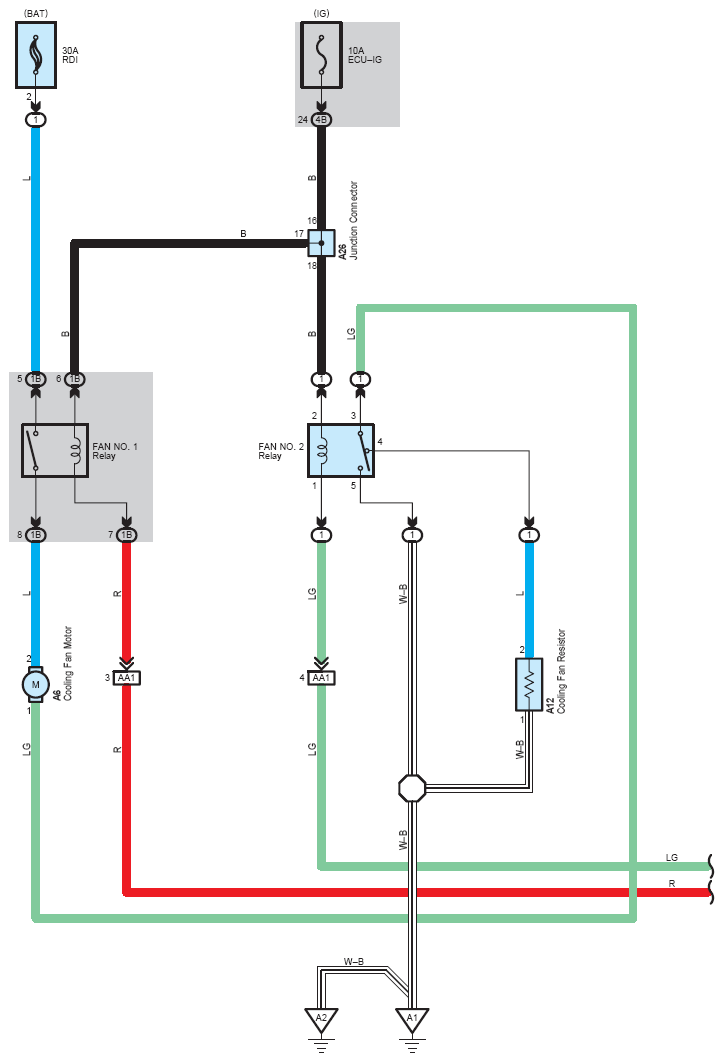

Fig 1: Cooling Fan System Wiring Diagram (1 Of 2)
G08761247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

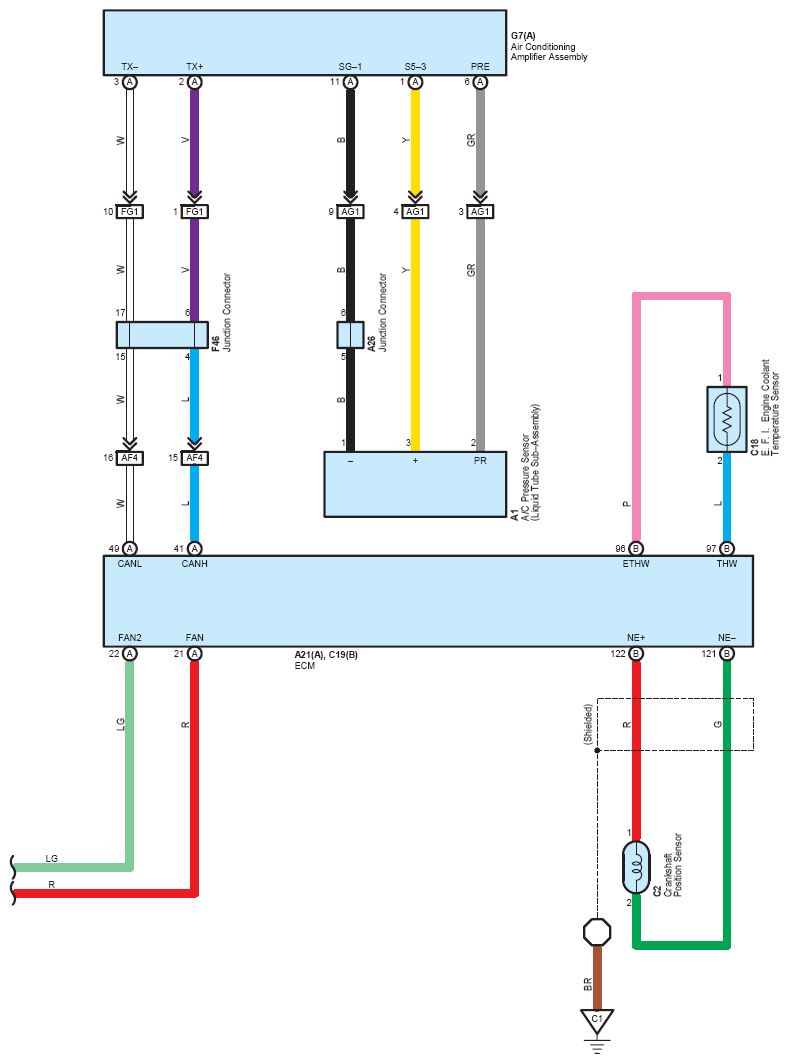

Fig 2: Cooling Fan System Wiring Diagram (2 Of 2)
G08761248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
