ABS, TRAC and VSC: Notes

WARNING: This page is about a different car, the 2012 Scion xD. However, it is still accessible from the selected car via links, so may be relevant.

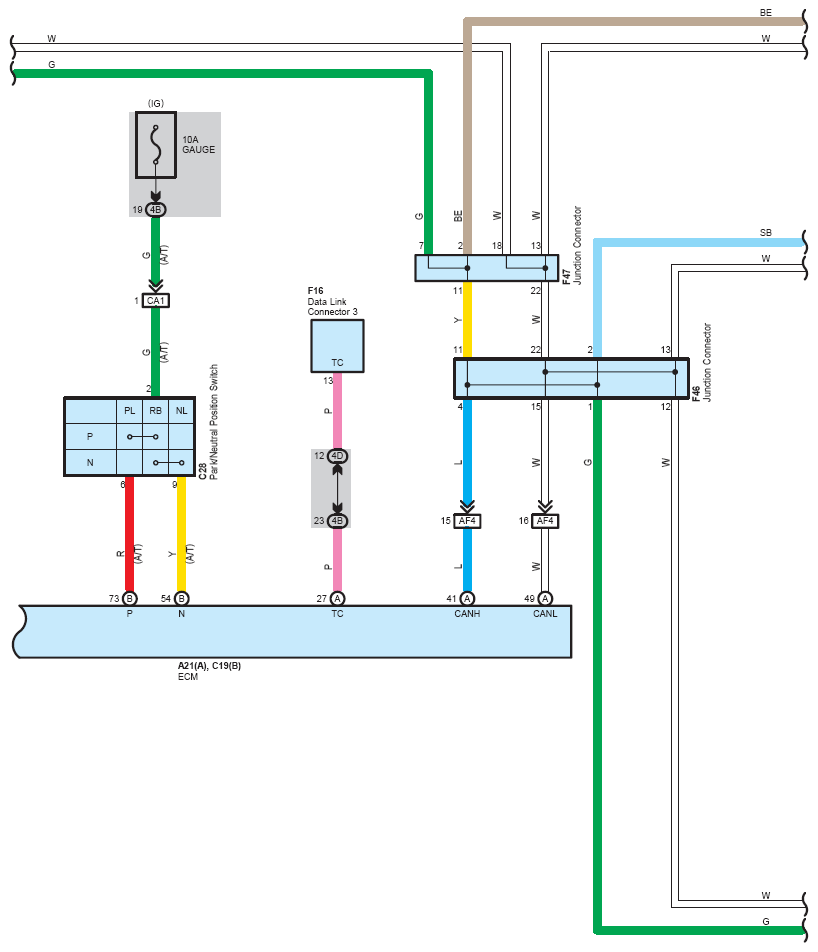

Fig 1: ABS, TRAC And VSC System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

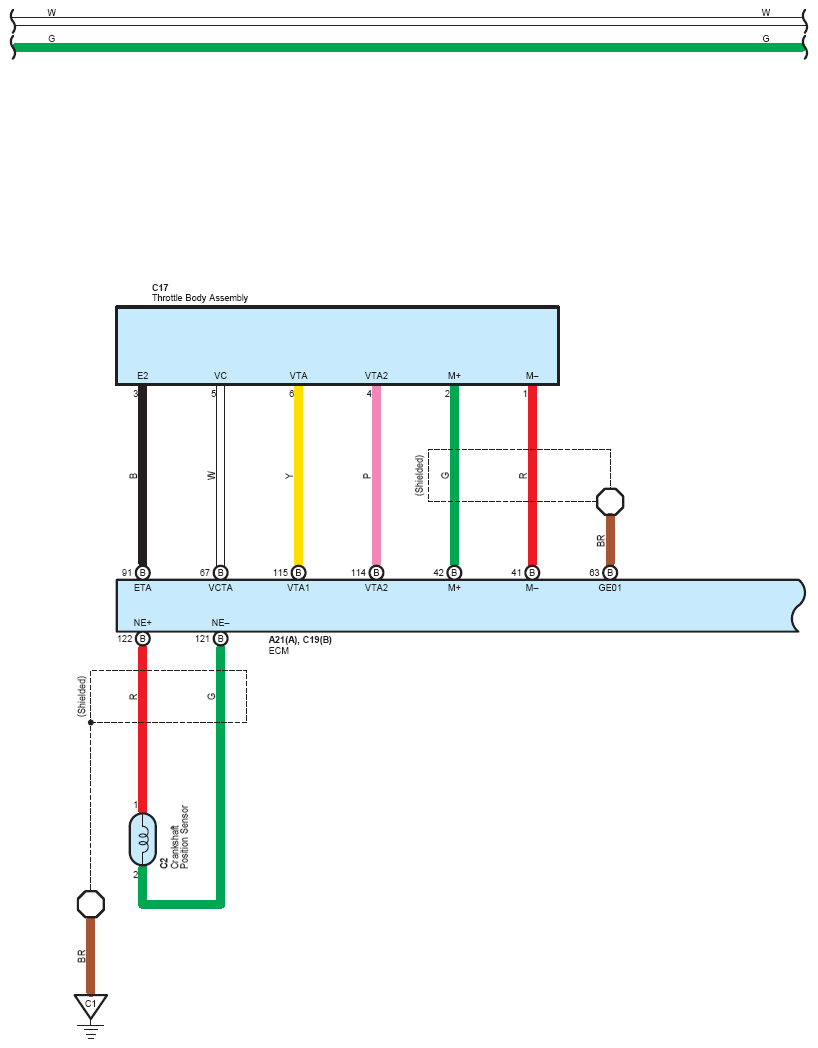

Fig 2: ABS, TRAC And VSC System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

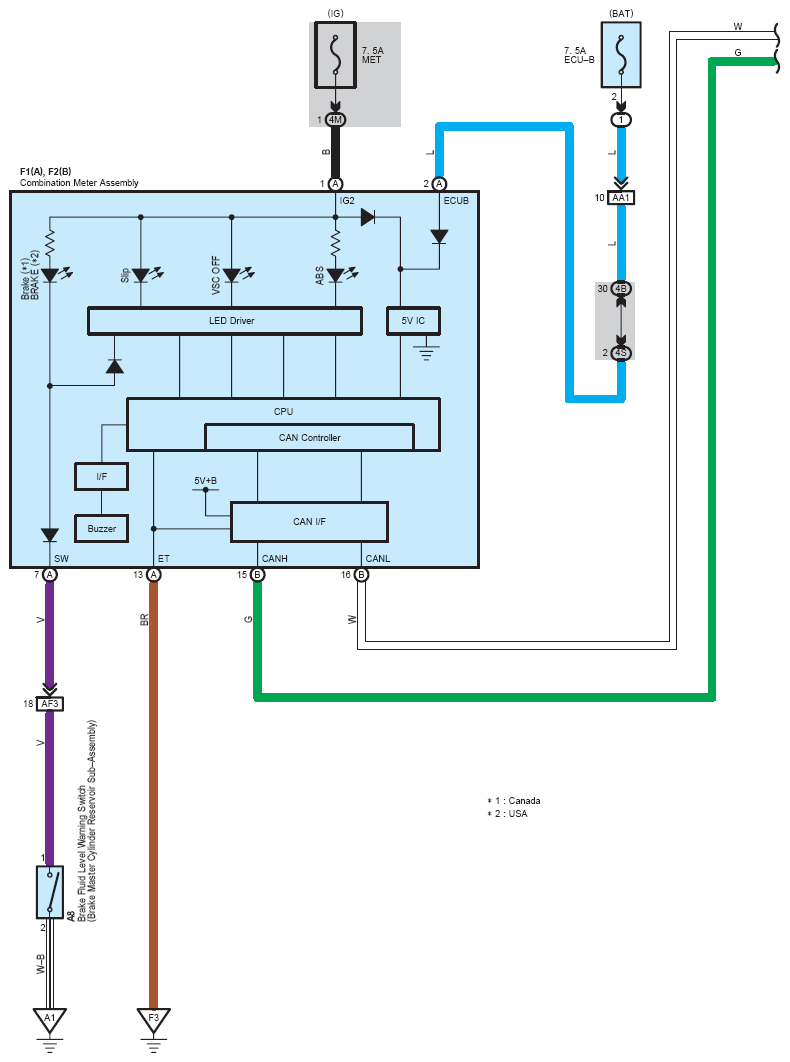

Fig 3: ABS, TRAC And VSC System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

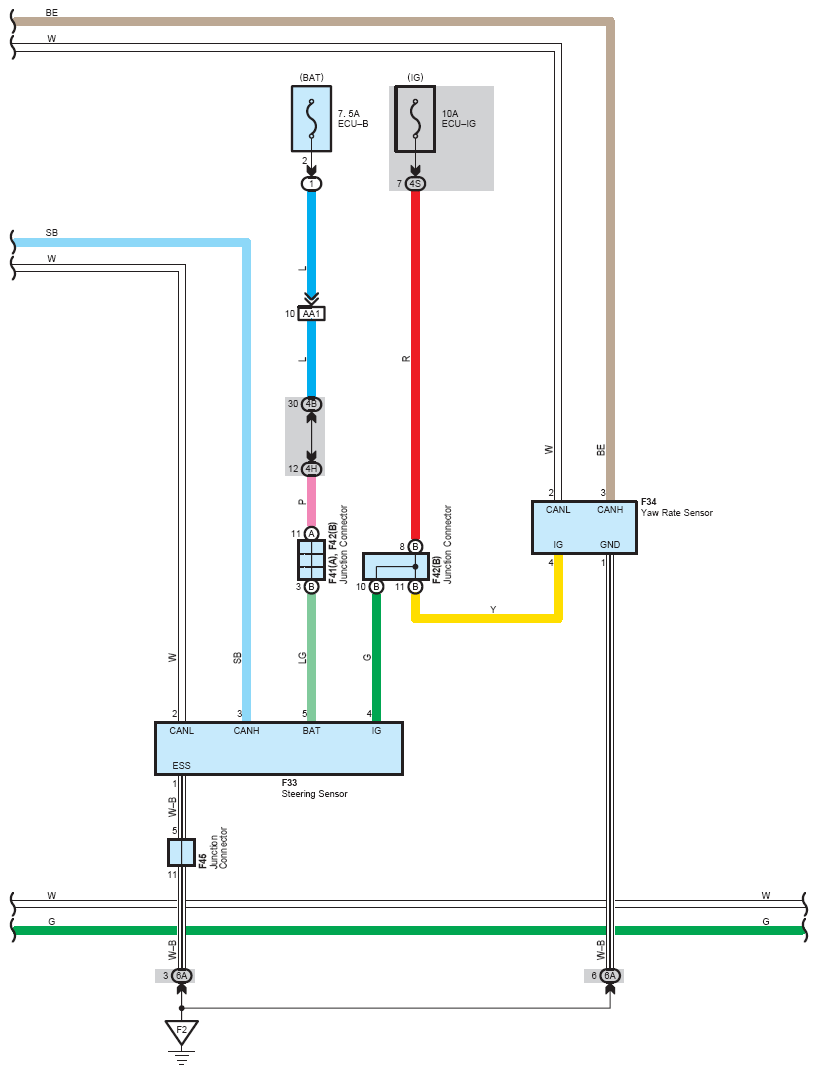

Fig 4: ABS, TRAC And VSC System Wiring Diagram (4 Of 5)

Fig 5: ABS, TRAC And VSC System Wiring Diagram (5 Of 5)
