Lower Instrument Panel: Removal

  1. BOLT, SCREW AND NUT TABLE

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

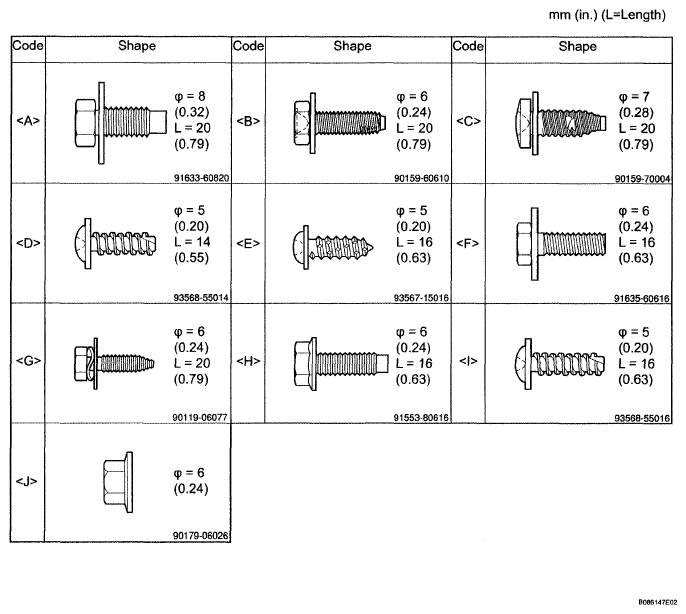

    Fig 1: Identifying Lower Instrument Panel Bolt, Screw And Nut Reference Chart
    G04867486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the upper instrument panel (see REMOVAL  ).
  4. REMOVE STEERING WHEEL PAD ASSEMBLY (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  7. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY (See  REMOVAL  )
  8. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
    1. Detach the 7 claws and remove the console upper rear panel.
      Fig 2: Identifying Claws For Console Upper Rear Panel
      G04867487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Disconnect the connector.
    2. Remove the console box carpet.
      Fig 3: Identifying Rear Console Box
      G04867488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Manual transaxle:

      Remove the 2 screws.

    4. Automatic transaxle:

      Remove the 4 screws.

    5. Remove the 2 bolts.
    6. Remove the clamp and console box, and disconnect the connector.
    Fig 4: Identifying Rear Console Box Bolts And Screws
    G04867489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the driver side knee airbag (see REMOVAL ).
  12. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Detach the 2 claws.
    2. Remove the instrument panel under cover, as shown in the illustration.
      Fig 5: Removing Instrument Panel Under Cover
      G04867490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Detach the 12 claws and remove the front door scuff plate.
      2. Fig 6: Identifying Claws For Front Door Scuff Plate
      G04867491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
    2. Remove the 2 clips and cowl side trim.
      3. Fig 7: Identifying Clips And Cowl Side Trim
      G04867492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

  17. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 3 clips, and No. 2 heater to register duct.
      2. Fig 8: Identifying Lower Instrument Panel Assembly Screws, Bolts And Nuts
      G04867493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
    1. Disconnect the hood lock control cable.
    2. Remove the 3 screws, 2 bolts and 2 nuts.
    3. Remove the 2 clips.
    4. Detach the 7 wire harness clamps.
    5. Disconnect the 3 connectors.
    6. Pull the lower instrument panel toward the rear of the vehicle, and check that the wire harnesses are not caught, and then remove the lower instrument panel.

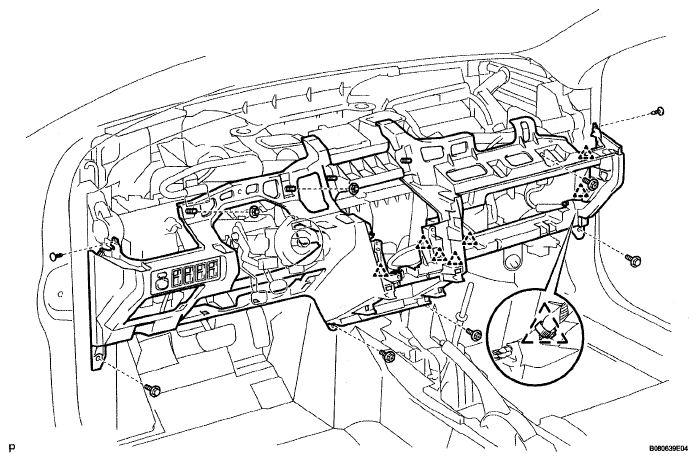

      Fig 9: Identifying Lower Instrument Panel Bolts And Nuts
      G04867494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
