Radiator Fan and Condenser Fan
>>
Notes
Radiator Fan and Condenser Fan: Notes

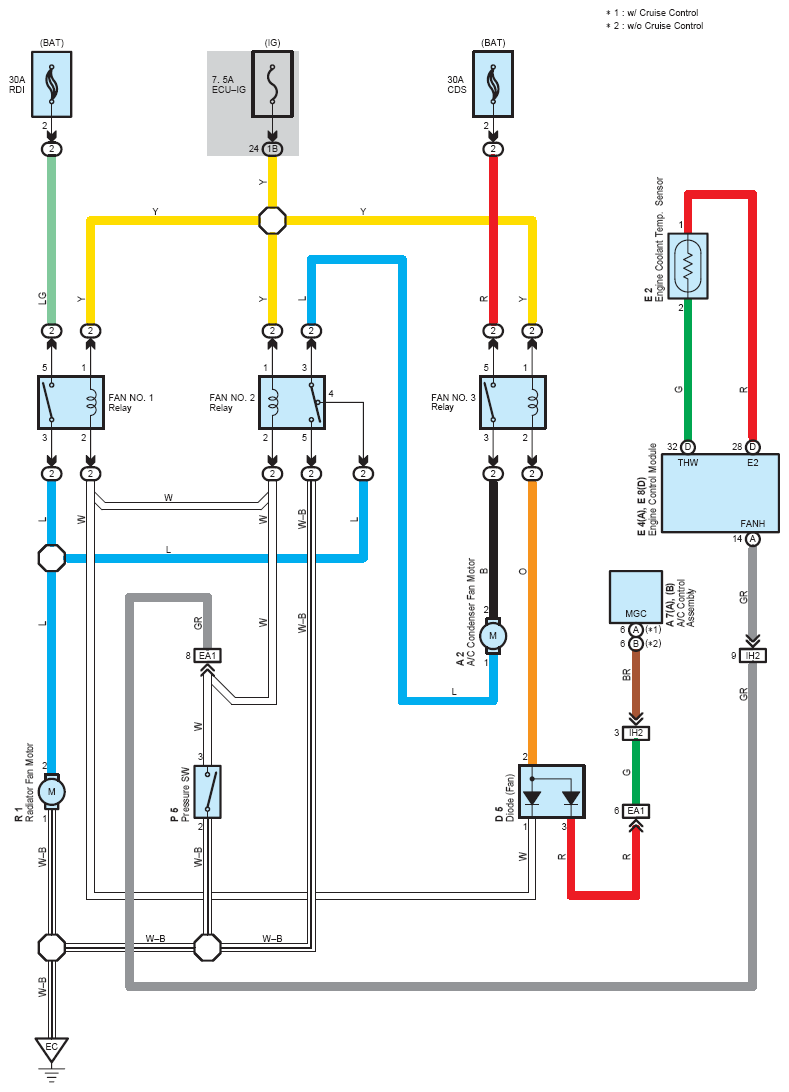

Fig 1: Radiator Fan And Condenser Fan System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
