Ground Point: Notes

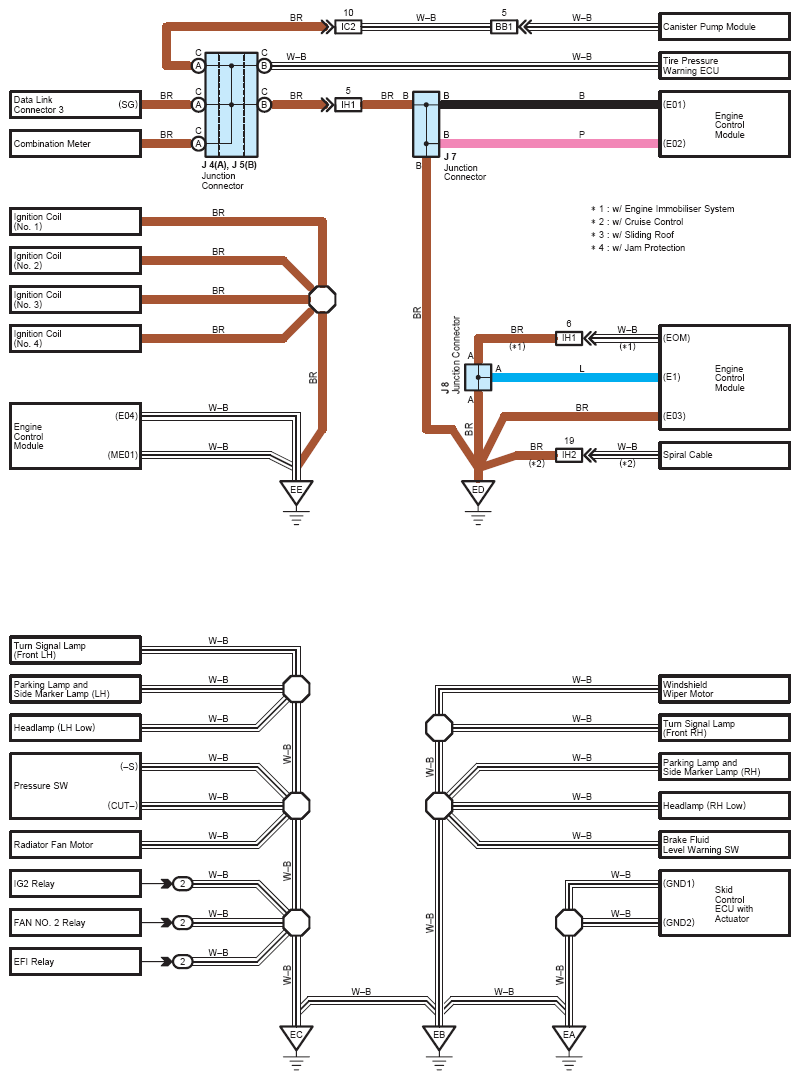

Fig 1: Ground Point System Wiring Diagram (1 Of 3)
G08759443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ground Point System Wiring Diagram (2 Of 3)
G08759444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

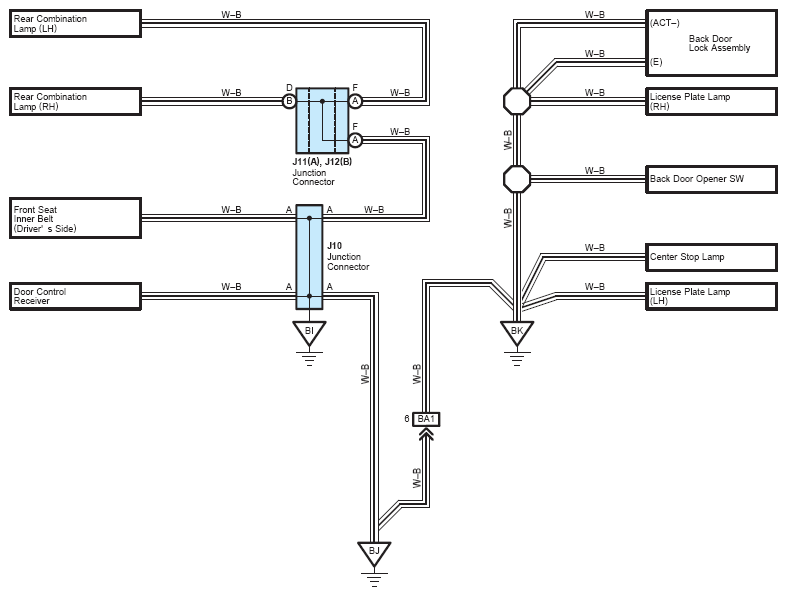

Fig 3: Ground Point System Wiring Diagram (3 Of 3)
G08759445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
