Output Shaft: Components

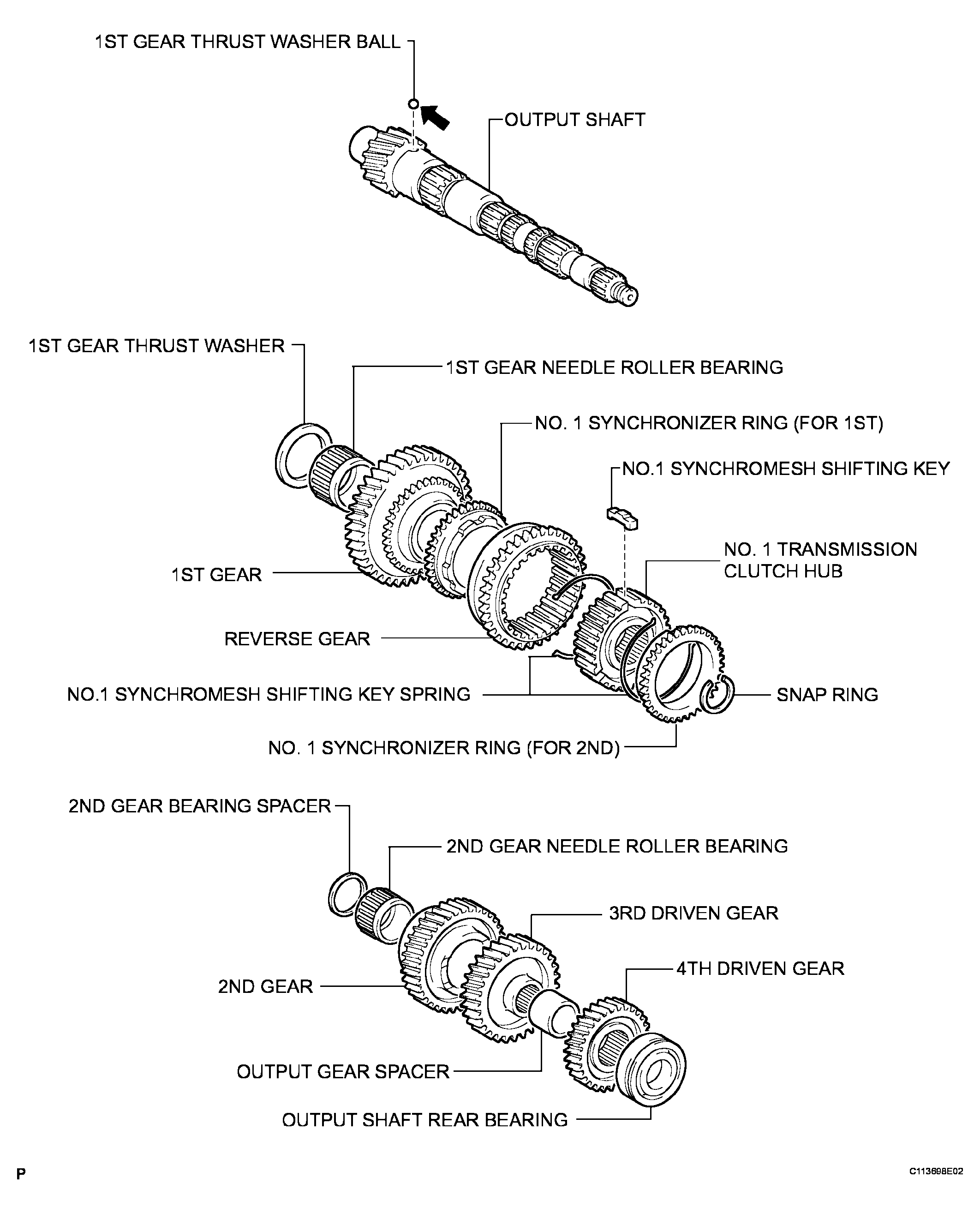

Fig 1: Identifying Output Shaft Components

G04228296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
