Manual Transaxle Unit: Reassembly

INSTALL OUTPUT SHAFT COVER

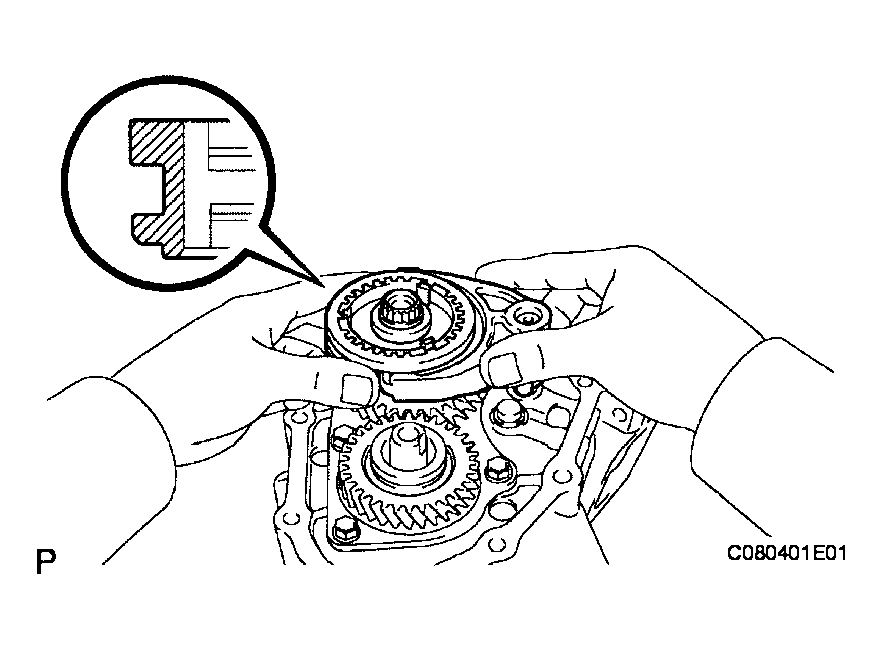

1. Coat the output shaft cover with MP grease, and install it to the front transaxle case.

  Fig 1: Installing Output Shaft Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Install the output shaft cover projection into the case hole.

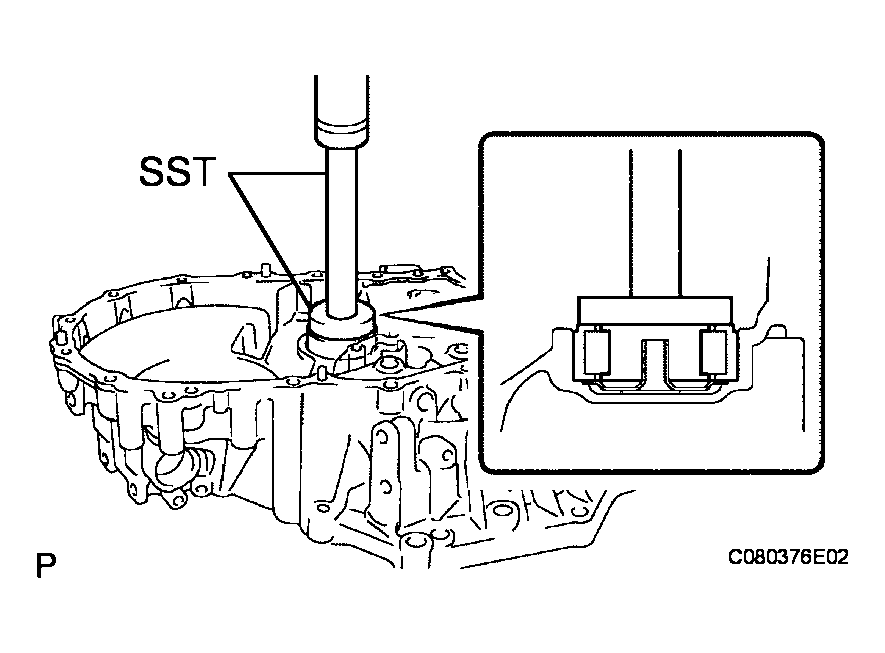

INSTALL OUTPUT SHAFT FRONT BEARING
1. Coat a new front bearing with gear oil.
2. Using SST and a press, press it into the front transaxle case.

  Fig 2: Pressing Front Bearing Into Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60010 (09951-00550), 09950-70010 (09951-07150)
  NOTE:
  - Be sure to install the bearing in the correct direction, as shown in the illustration.
  - When replacing the output shaft front bearing, also replace the front bearing inner race.
INSTALL FRONT TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, press in a new front transaxle case oil seal to the front transaxle case.
  SST 09950-60010 (09951-00370), 09950-70010 (09951-07150)

  Standard depth: 15.6 to 16.0 mm (0.6141 to 0.6299 in.)
2. Coat the lip of the front transaxle case oil seal with MP grease.

  Fig 3: Installing Front Transaxle Case Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

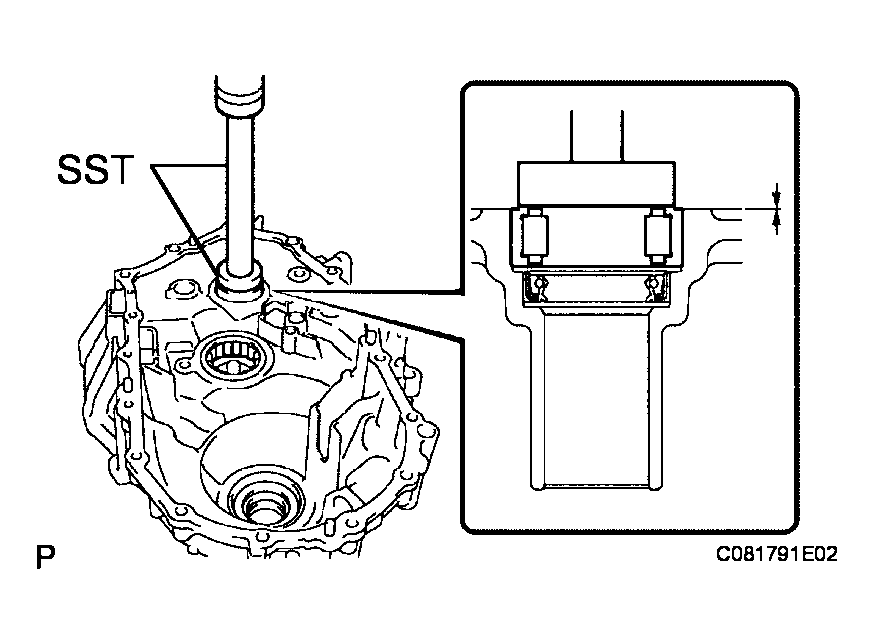

INSTALL INPUT SHAFT FRONT BEARING
1. Coat a new input shaft front bearing with gear oil.
2. Using SST and a press, press it into the front transaxle case.
  SST 09950-60010 (09951-00420), 09950-70010 (09951-07150)

  Standard depth: 0 to 0.3 mm (0 to 0.012 in.)

  Fig 4: Pressing Front Transaxle Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

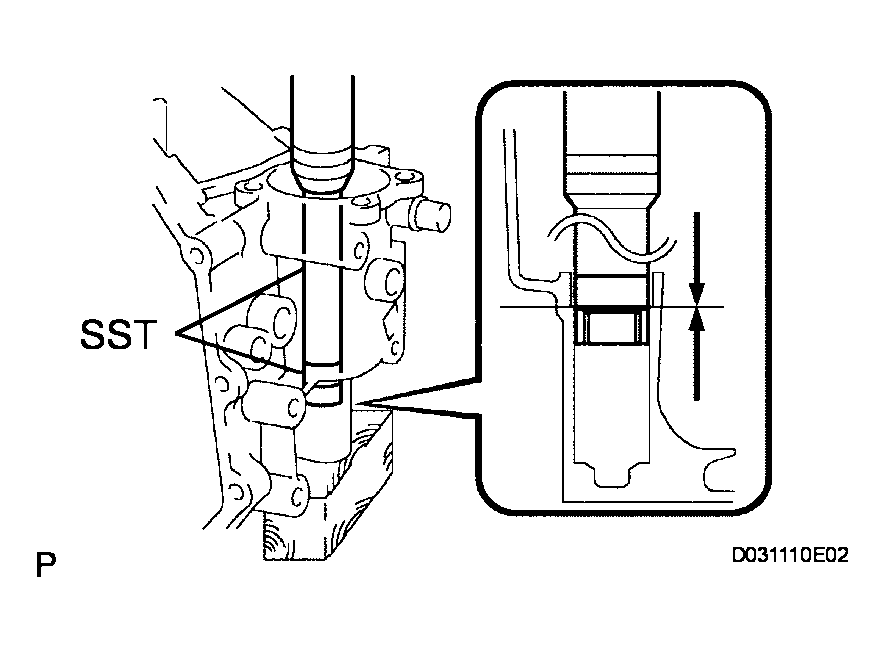

INSTALL SHIFT AND SELECT LEVER SHAFT BIMETAL FORMED BUSH
1. Using SST and a press, press in a new bush to the transmission case.
  SST 09950-60010 (09951-00220), 09950-70010 (09951-07100)

  Standard depth: 0 to 0.5 mm (0 to 0.020 in.)

  Fig 5: Pressing Bush To Transmission Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
1. Using SST and a press, press in the front tapered roller bearing (inner race) to the front differential case.
  SST 09950-60020 (09951-00680), 09950-70010 (09951-07150)

  Fig 6: Pressing Front Tapered Roller Bearing (Inner Race) To Front Differential Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, press in the front tapered roller bearing (outer race) with plate washer to the front transaxle case.

  Fig 7: Pressing Front Tapered Roller Bearing (Outer Race) With Plate Washer To Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09350-32014 (09351-32120), 09950-60010 (09951-00530)
INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

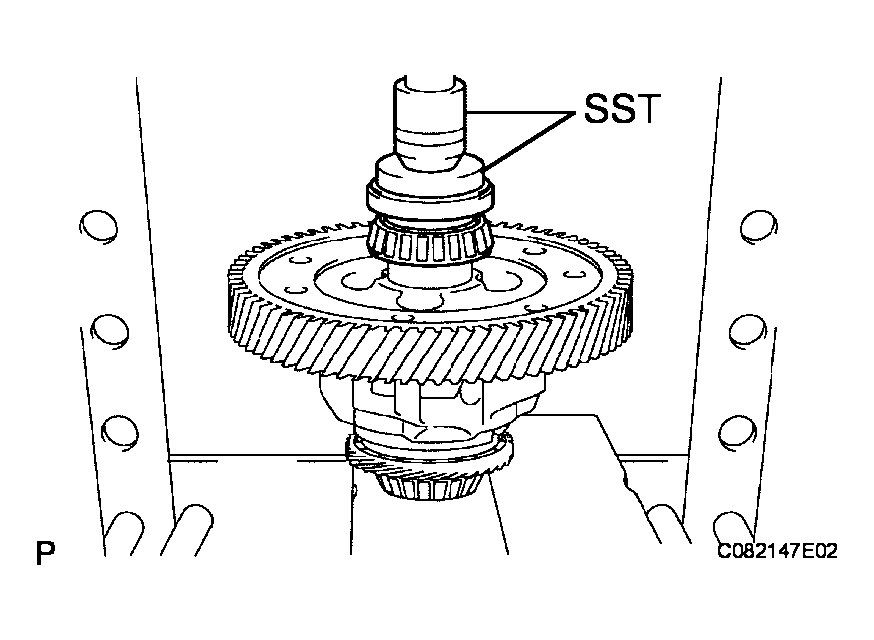

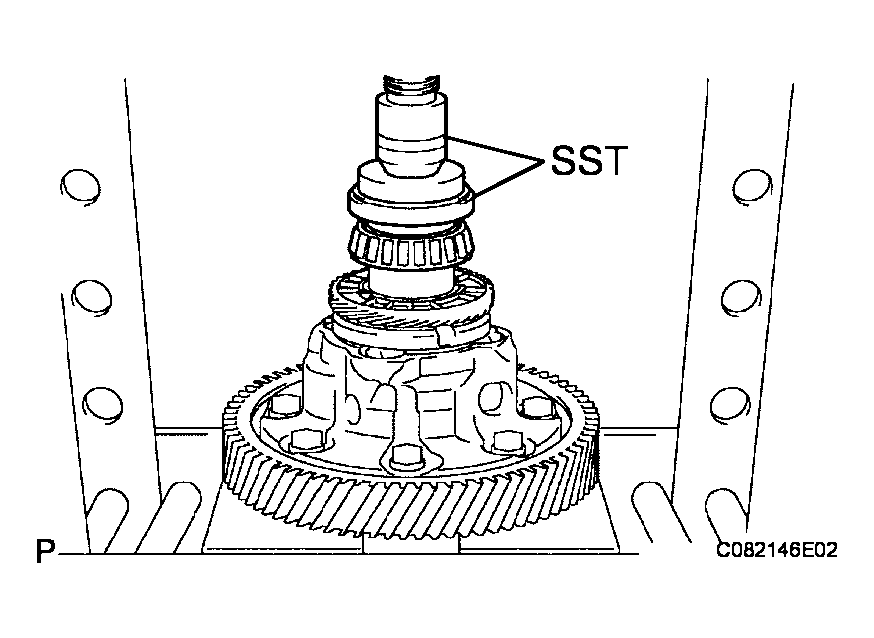

1. Using SST and a press, press in the rear tapered roller bearing (inner race) to the differential case.

  Fig 8: Pressing Rear Tapered Roller Bearing (Inner Race) To Differential Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09350-32014 (09351-32120), 09950-60010 (09951-00530)
2. Using SST and a press, press in the rear tapered roller bearing (outer race) with plate washer to the transmission case.

  Fig 9: Pressing Rear Tapered Roller Bearing (Outer Race) With Plate Washer To Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09309-36010, 09950-60020 (09951-00710), 09950-70010 (09951-07150)

  HINT:

  Use a plate washer with the same thickness as the removed one.

ADJUST DIFFERENTIAL SIDE BEARING PRELOAD

Coat the differential case with gear oil, and install it to the front transaxle case.

Fig 10: Installing Transmission Case With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the transmission case with the 16 bolts.
Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

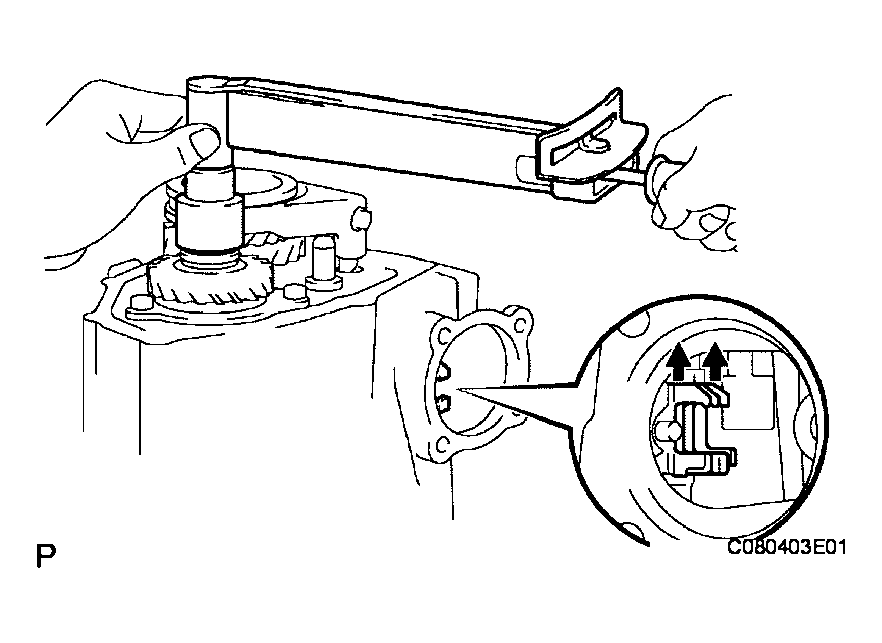

Using SST and a torque wrench, turn the differential case to the right and left 2 or 3 times to allow the bearings to settle.

Fig 11: Turning Differential Case To Right And Left Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09564-32011

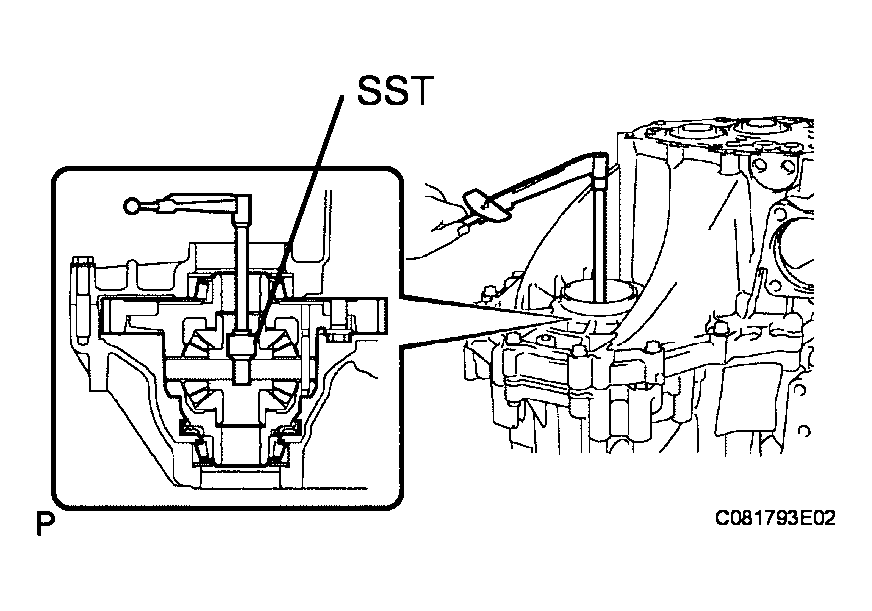

Using SST and a torque wrench, measure the preload.

Standard preload (at starting)

TORQUE SPECIFICATION

Item	Specified Condition
New bearing	0.78 to 1.57 Nm (7.95 to 16.0 kgfcm, 6.9 to 13.89 in.*lbf)
Reused bearing	0.49 to 0.98 Nm (5.0 to 10.0 kgfcm, 4.34 to 8.67 in.*lbf)

If the preload is not within the specification, select another plate washer.

Standard plate washer thickness

WASHER THICKNESS SPECIFICATION

Mark	Thickness mm (in.)
AA	2.10 (0.0827)
BB	2.15 (0.0846)
CC	2.20 (0.0866)
DD	2.25 (0.0886)
EE	2.30 (0.0906)
FF	2.35 (0.0925)
GG	2.40 (0.0945)
HH	2.45 (0.0965)
JJ	2.50 (0.0984)
KK	2.55 (0.1004)
LL	2.60 (0.1024)
MM	2.65 (0.1043)
NN	2.70 (0.1063)
PP	2.75 (0.1083)
QQ	2.80 (0.1102)
RR	2.85 (0.1122)
SS	2.90 (0.1142)
TT	2.95 (0.1161)
UU	3.00 (0.1181)

HINT:

The preload will change by about 0.3 to 0.4 N*m (3 to 4 kgf*cm, 2.6 to 3.5 in.*lbf) corresponding to a change of 0.05 mm (0.0020 in.) in plate washer thickness.

Remove the 16 bolts and transmission case.
Remove the differential case from the front transaxle case.

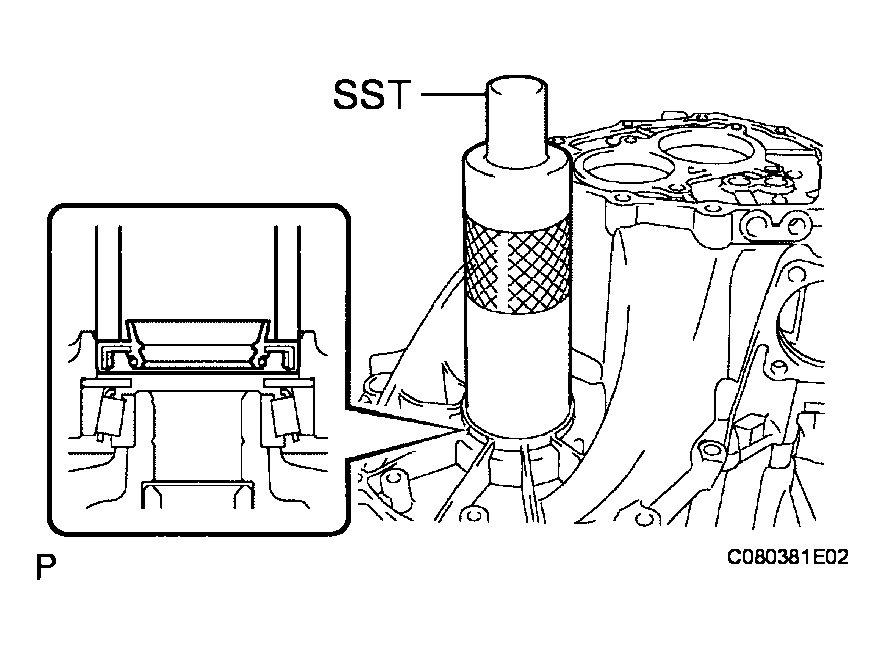

INSTALL TRANSMISSION CASE OIL SEAL

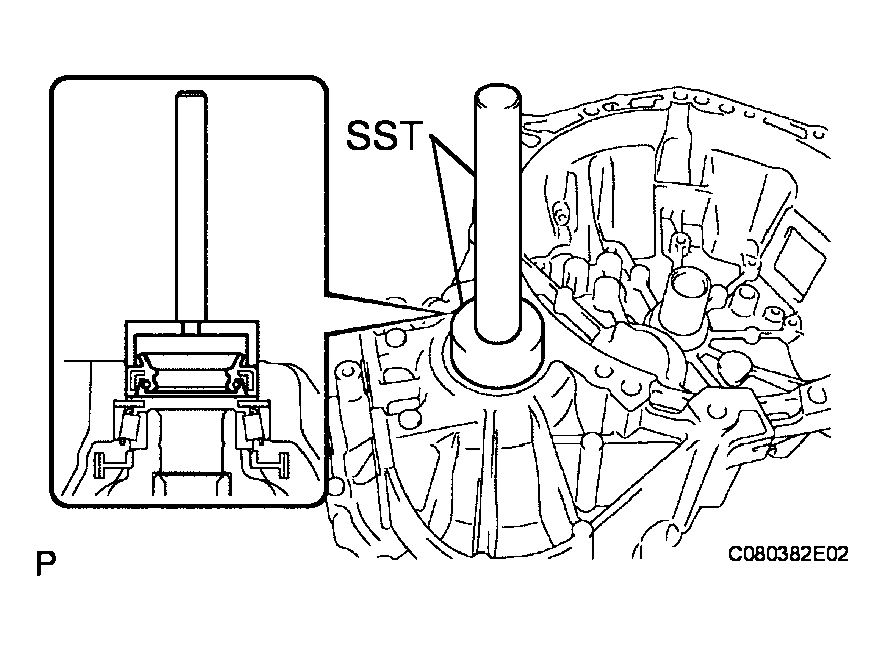

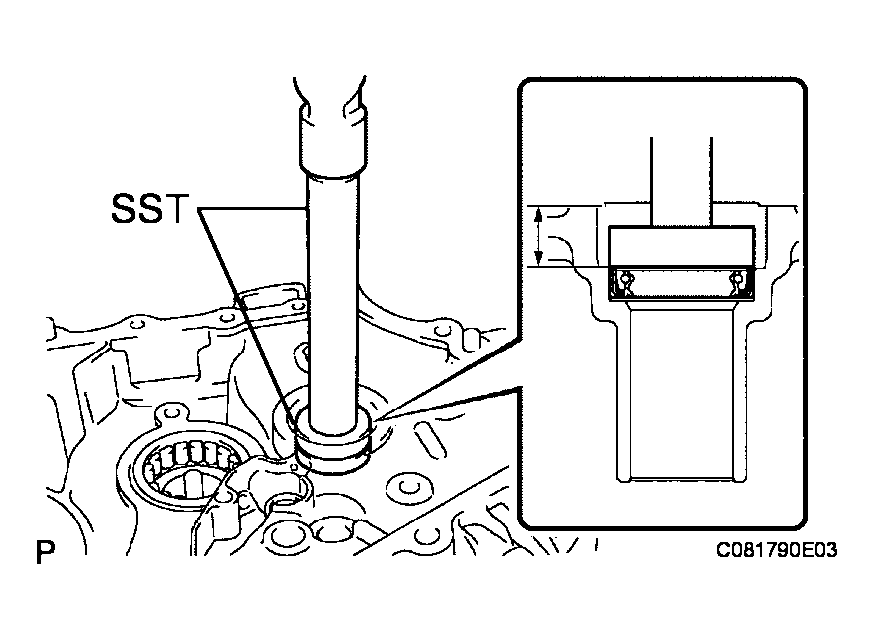

1. Using SST and a hammer, tap in a new transmission case oil seal to the transmission case.
  SST 09316-60011 (09316-00011)

  Standard drive depth: 2.1 to 2.7 mm (0.083 to 0.106 in.)
2. Coat the lip of the front transmission case oil seal with MP grease.

  Fig 12: Tapping Transmission Case Oil Seal To Transmission Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, tap in a new oil seal to the front transaxle case.

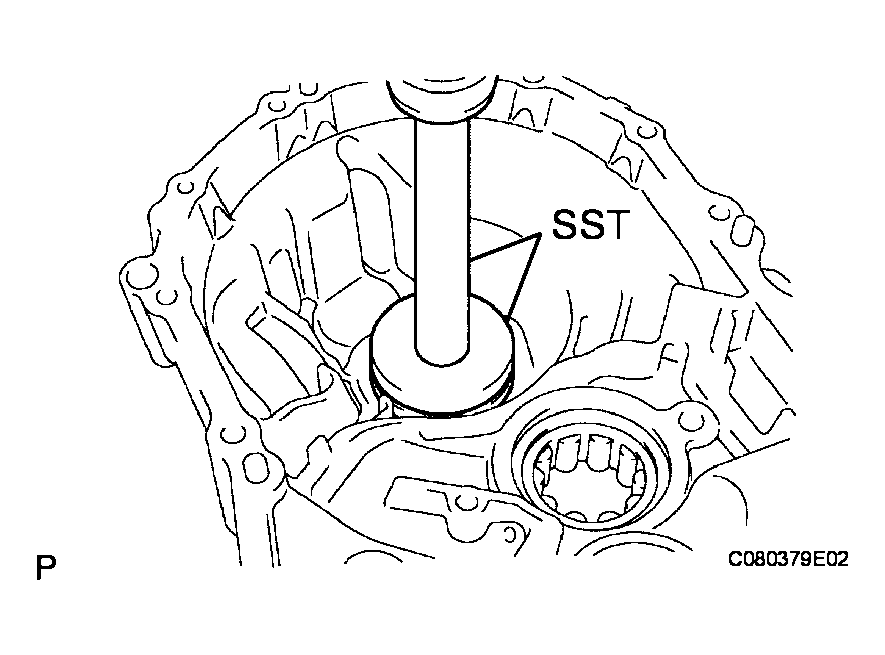

  Fig 13: Tapping Oil Seal To Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09710-20011 (09710-06071), 09950-70010 (09951-07150)

  Standard depth: 1.6 to 2.2 mm (0.063 to 0.087 in.)
2. Coat the lip of the oil seal with MP grease.
INSTALL TRANSMISSION MAGNET

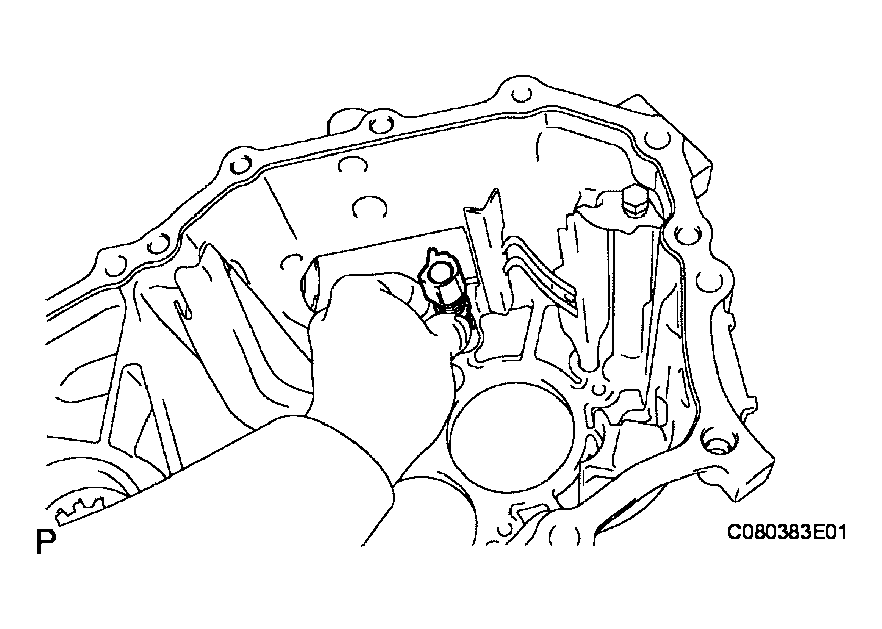

1. Clean the transmission magnet, and install it to the front transaxle case.

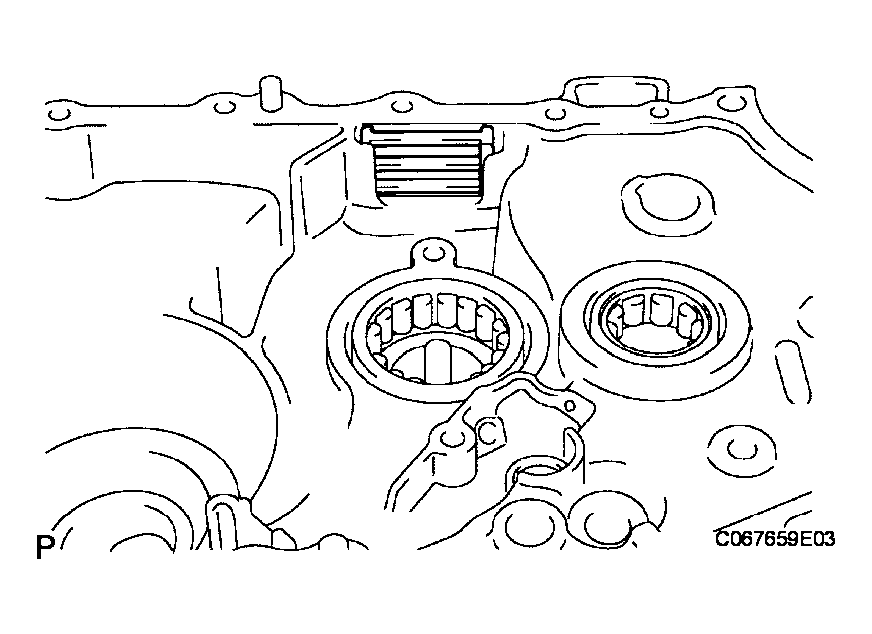

  Fig 14: Installing Transmission Magnet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

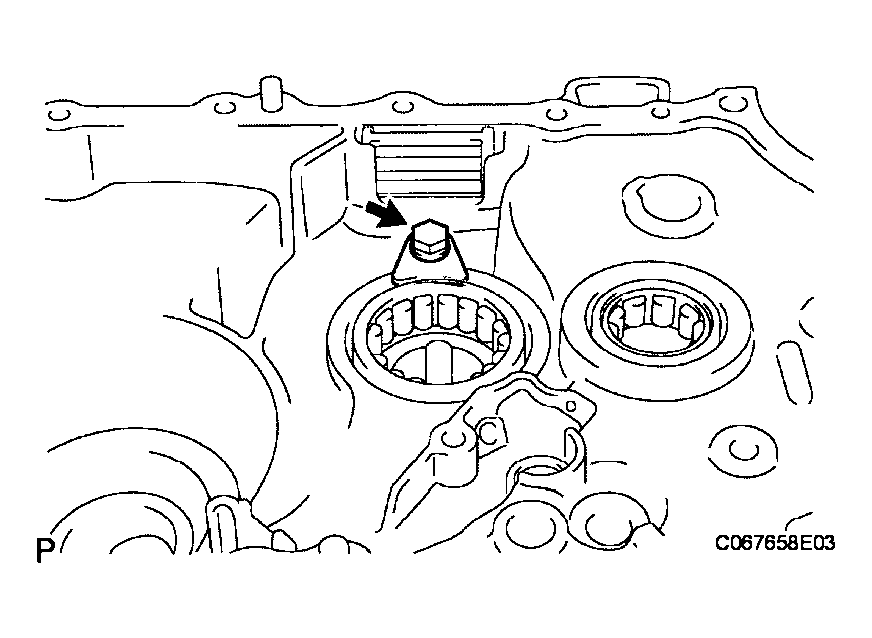

INSTALL BEARING LOCK PLATE

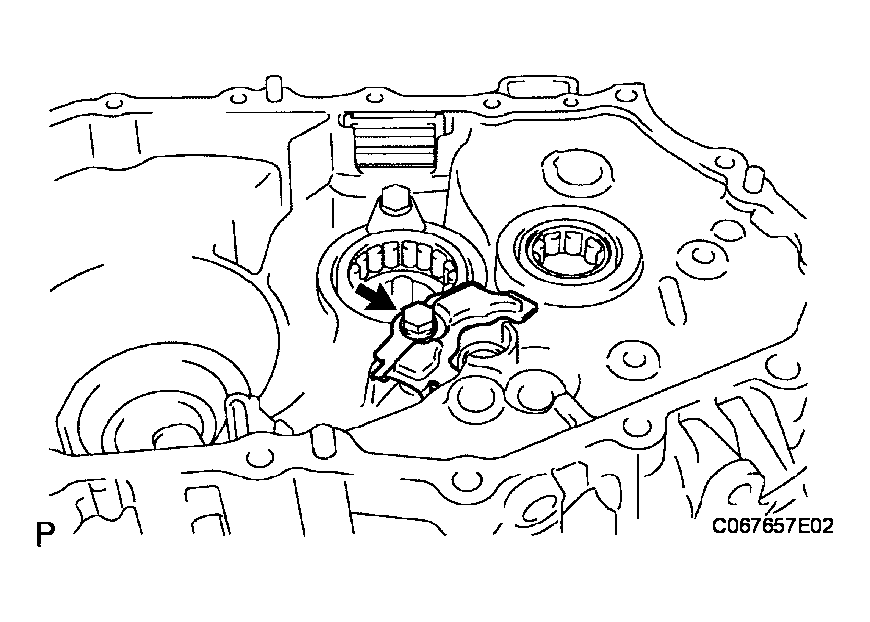

1. Install the bearing lock plate to the front transaxle case with the bolt.

  Fig 15: Installing Bearing Lock Plate To Front Transaxle Case With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (115 kgf*cm, 8.3 ft.*lbf)
INSTALL NO. 1 OIL RECEIVER PIPE
1. Install the No. 1 oil receiver pipe to the transmission case with the bolt.

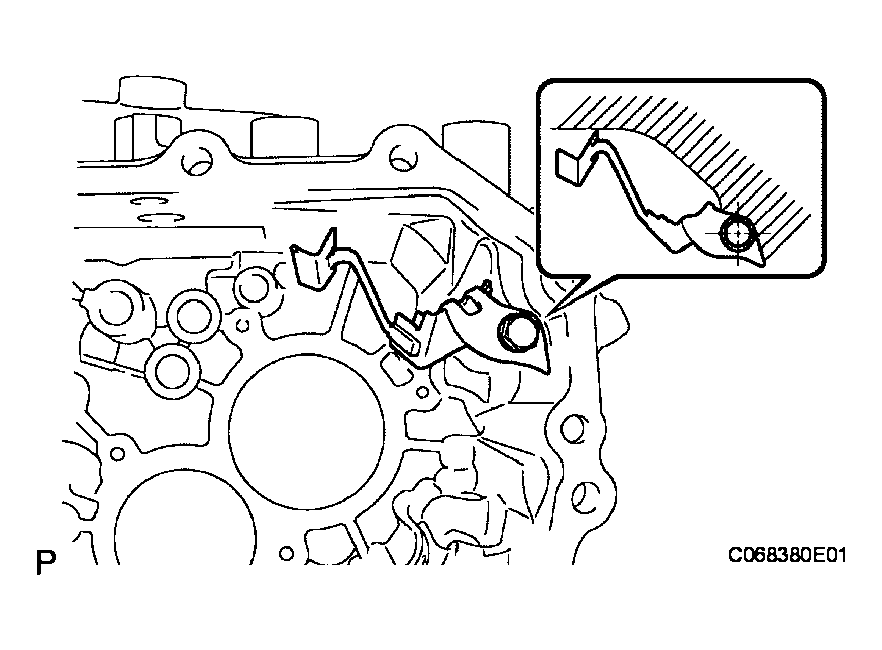

  Fig 16: Installing Oil Receiver Pipe To Transmission Case With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 17 N*m (175 kgf*cm, 13 ft.*lbf)
  NOTE:
  - Prevent the No. 1 oil receiver pipe from being deformed.
  - Install the No. 1 oil receiver pipe while placing it against the transmission case, as shown in the illustration.
INSTALL NO. 2 OIL RECEIVER PIPE
1. Install the No. 2 oil receiver pipe to the transmission case with the bolt.

  Fig 17: Installing Oil Receiver Pipe To Transmission Case With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 17 N*m (175 kgf*cm, 13 ft.*lbf)
  NOTE:
  - Prevent the No. 2 oil receiver pipe from being deformed.
  - Install the No. 2 oil receiver pipe while placing it against the transmission case, as shown in the illustration.
INSTALL REVERSE RESTRICT PIN ASSEMBLY

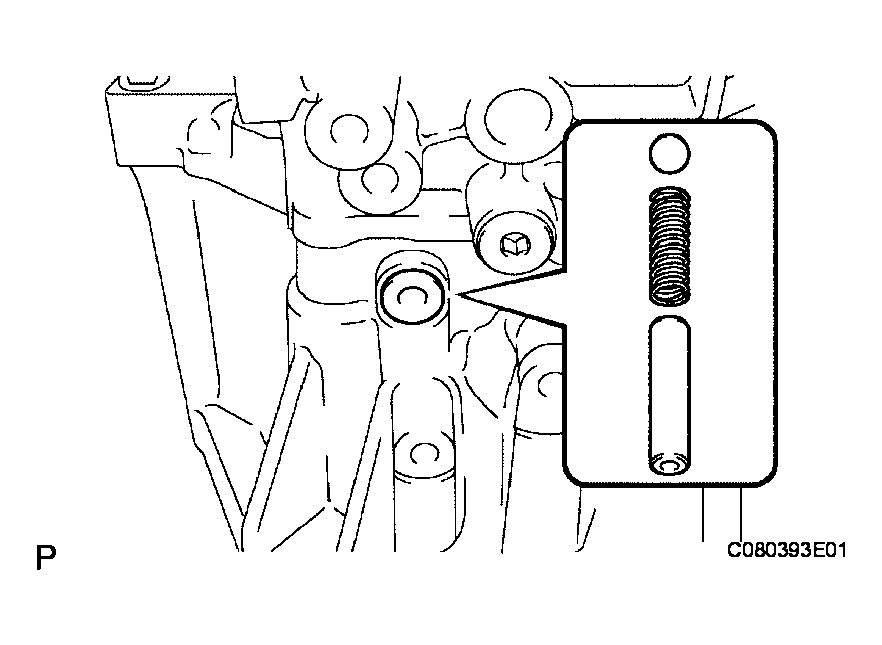

1. Install the reverse restrict pin to the manual transmission case.

  Fig 18: Installing Reverse Restrict Pin To Manual Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be sure to set the reverse restrict pin in the correct orientation.
2. Using a 5 mm pin punch and hammer, tap in the slotted pin to the reverse restrict pin.

  Fig 19: Tapping Slotted Pin To Reverse Restrict Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard depth: 16.0 to 17.0 mm (0.6299 to 0.6693 in.)
3. Apply sealant to the reverse restrict pin plug.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

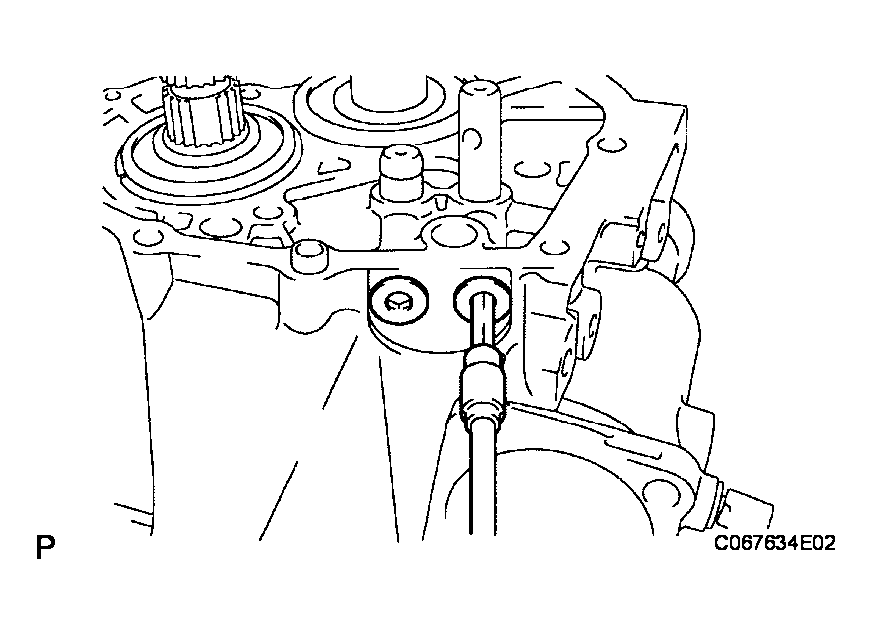

  Fig 20: Installing Reverse Restrict Pin Plug To Transmission Case Using Hexagon Wrench And Torque Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

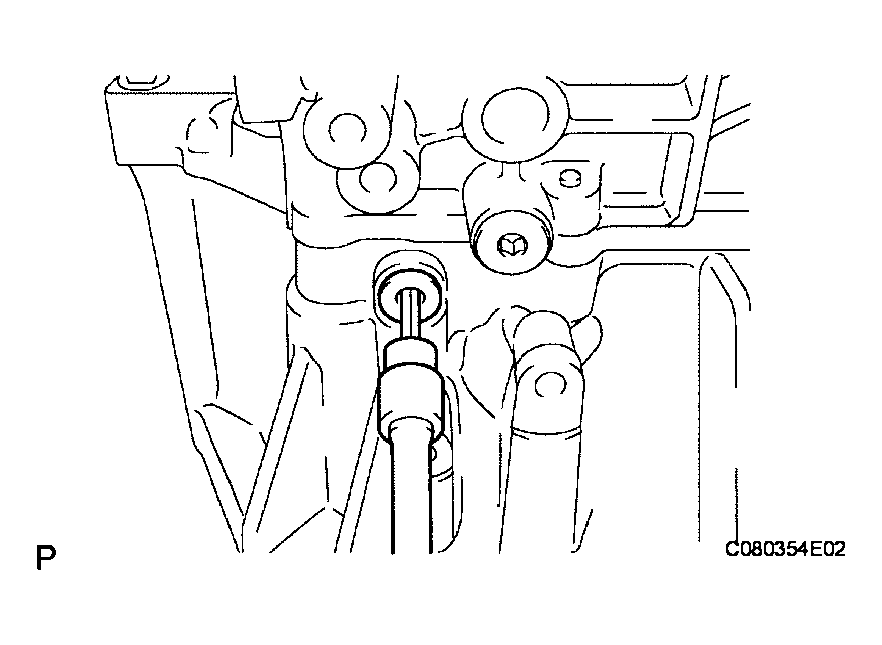

4. Using a hexagon wrench and torque wrench, install the reverse restrict pin plug to the transmission case.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
INSTALL MANUAL TRANSAXLE CASE RECEIVER
1. Install the transaxle case receiver to the front transaxle case with the bolt.

  Fig 21: Installing Transaxle Case Receiver To Front Transaxle Case With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

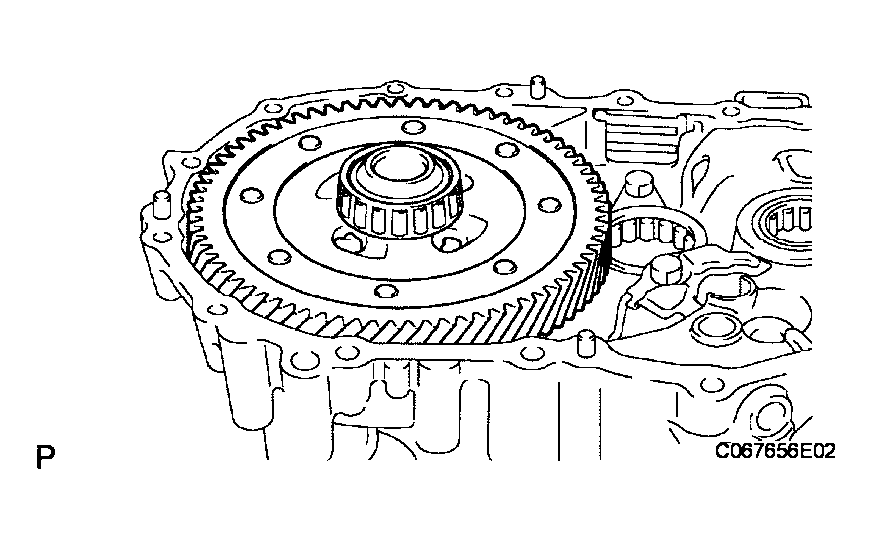

INSTALL DIFFERENTIAL CASE ASSEMBLY
1. Coat the differential case tapered roller bearing with gear oil, and install the differential case to the front transaxle case.

  Fig 22: Installing Differential Case Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INPUT SHAFT ASSEMBLY

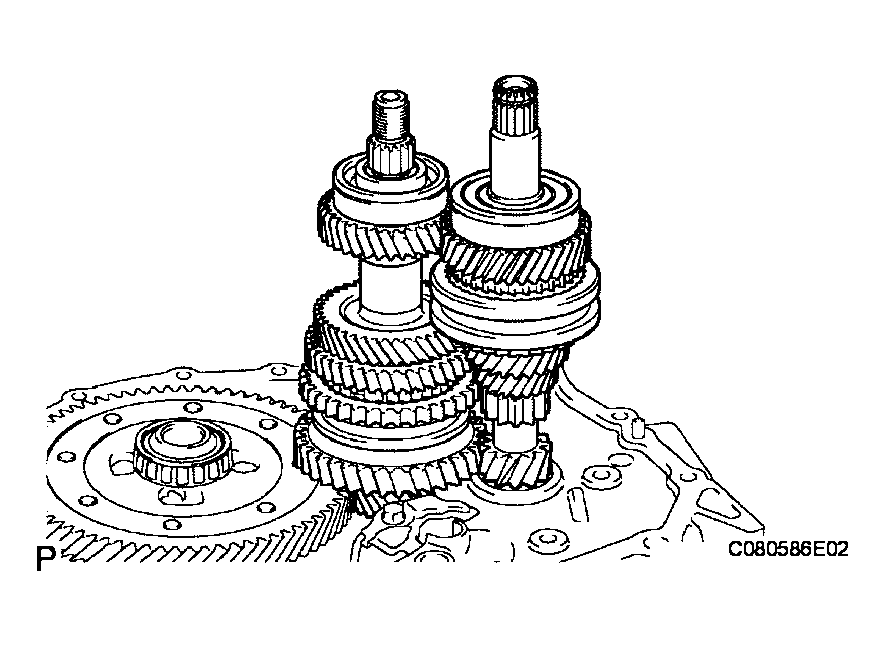

1. Coat the sliding and rotating surface of the input and output shafts with gear oil, and install them to the transaxle case.

  Fig 23: Installing Input Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE IDLER GEAR SUB-ASSEMBLY
1. Coat the reverse idler gear, thrust washer and reverse idler gear shaft with gear oil, and install them as shown in the illustration.

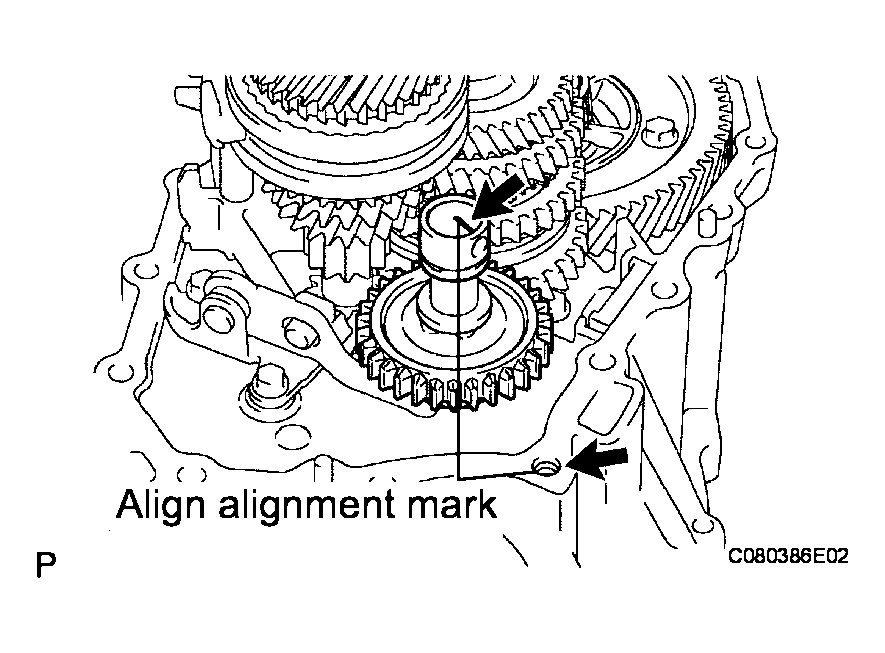

  Fig 24: Aligning Mark On Reverse Idler Gear Shaft With Bolt Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Align the mark on the reverse idler gear shaft with the bolt hole, as shown in the illustration.
INSTALL NO. 1 GEAR SHIFT FORK SHAFT

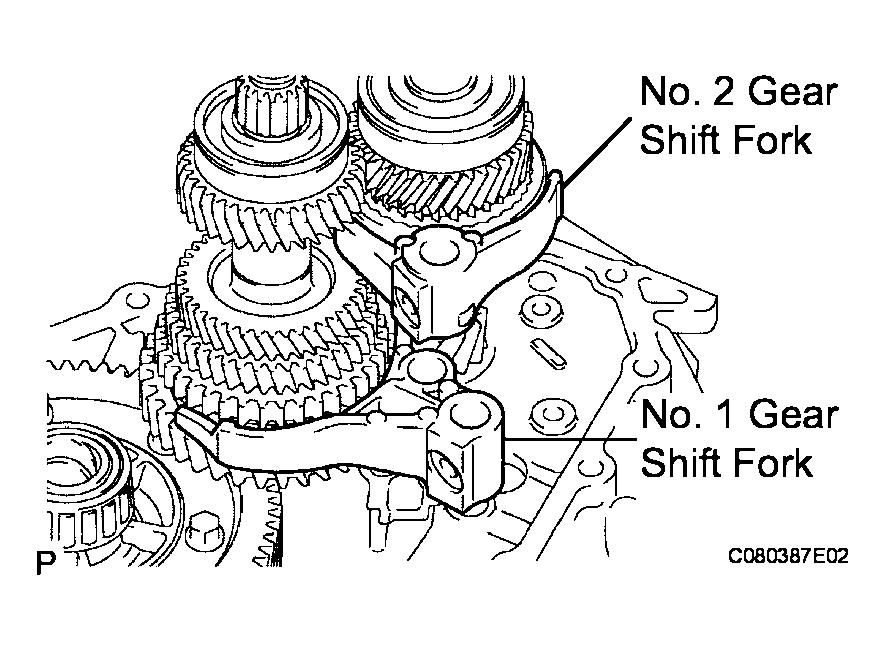

1. Coat the No. 1 gear shift fork and No. 2 gear shift fork with gear oil, and install them.

  Fig 25: Identifying Gear Shift Fork And Gear Shift Fork With Gear Oil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

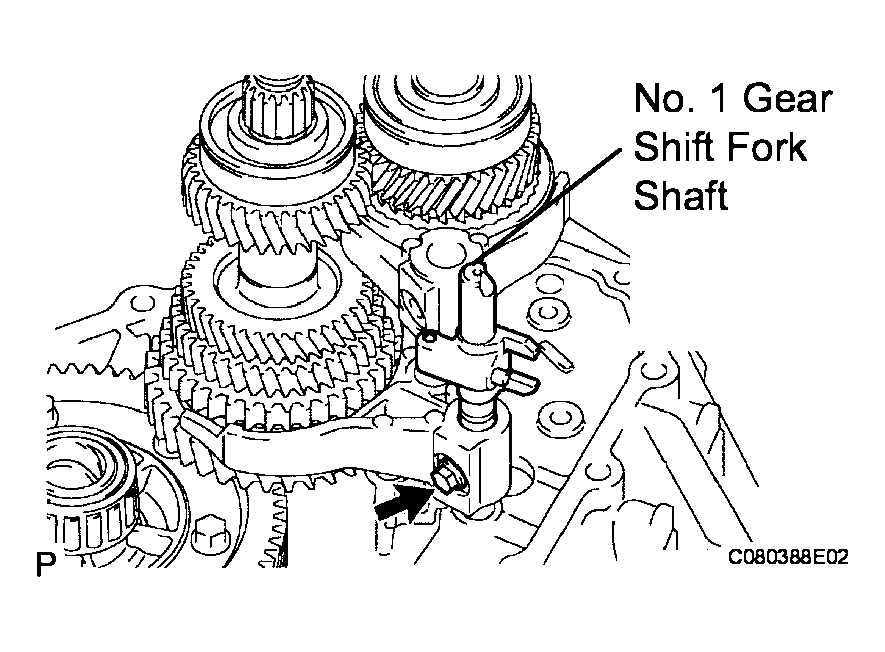

2. Coat the No. 1 gear shift fork shaft with gear oil, and install it.
3. Apply sealant to the shift fork set bolt.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
4. Install the shift fork set bolt.

  Fig 26: Installing Shift Fork Set Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

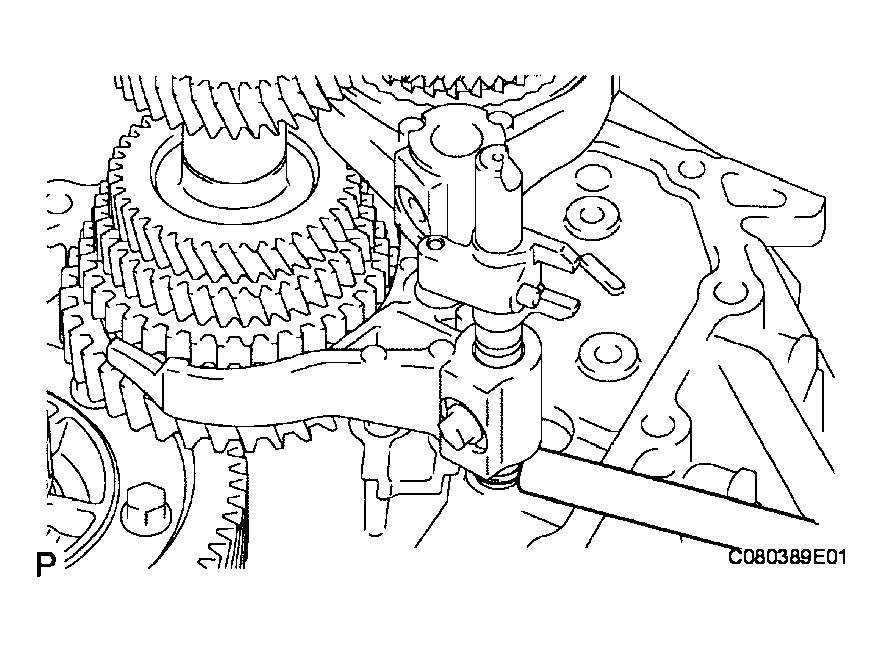

5. Using a brass bar and hammer, tap in a new shaft snap ring to the No. 1 gear shift fork shaft.

  Fig 27: Tapping Shaft Snap Ring To Gear Shift Fork Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 GEAR SHIFT FORK SHAFT

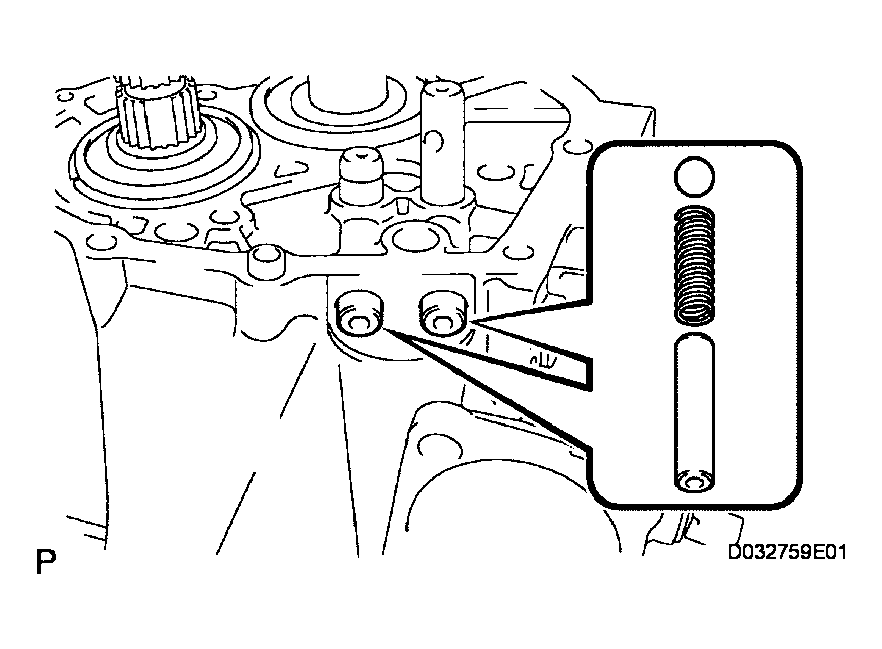

1. Coat the 2 shift fork balls with MP grease, and install them to the reverse shift fork.
2. Install the reverse shift fork to the No. 3 gear shift fork shaft.

  Fig 28: Installing Gear Shift Fork Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a brass bar and hammer, tap in 2 new shift fork shaft snap rings to the No. 3 shift fork shaft.

  Fig 29: Tapping Shift Fork Shaft Snap Rings To Shift Fork Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Coat the No. 3 gear shift fork shaft with gear oil, and install it.

  Fig 30: Identifying Gear Shift Fork Shaft With Gear Oil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 GEAR SHIFT FORK SHAFT

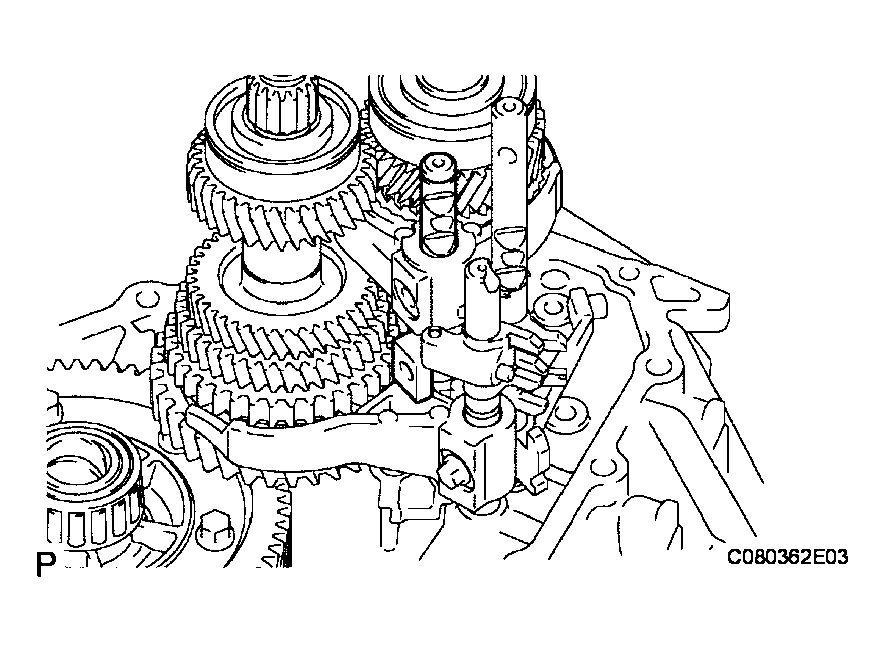

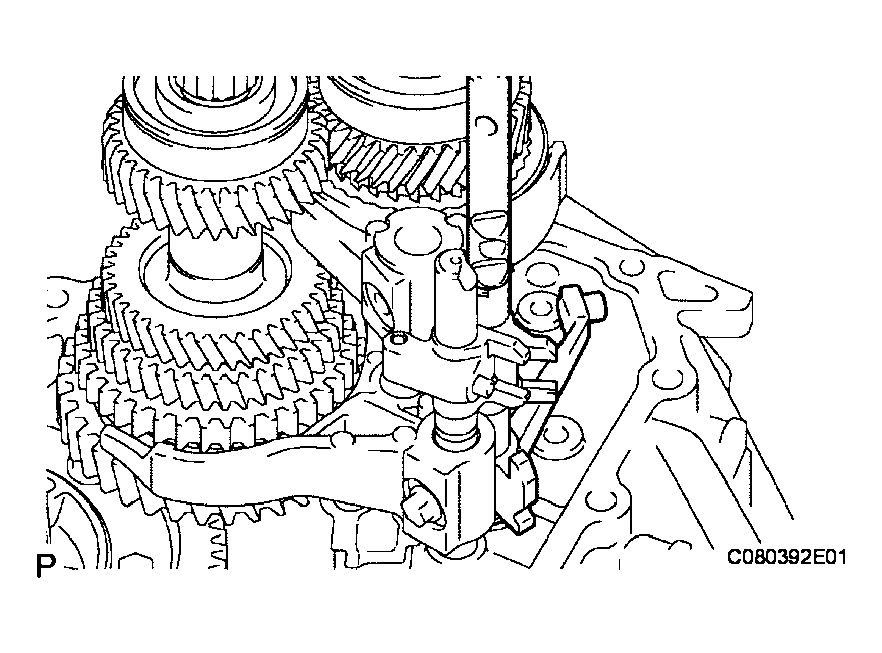

Fig 31: Installing Gear Shift Fork Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat the No. 1 gear shift head and No. 2 gear shift fork shaft with gear oil, and install them.
  NOTE: To avoid the interference of the 2 shift fork balls, lift up the No. 3 gear shift fork shaft to the position shown in the illustration.

  Fig 32: Lifting Gear Shift Fork Shaft To Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

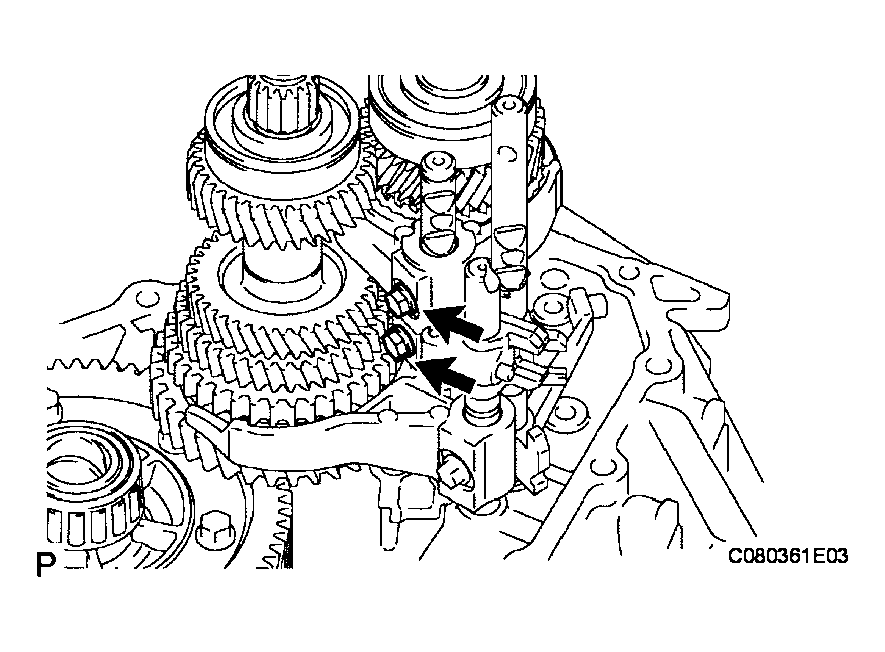

2. Coat the 2 shift lock bolts with sealant, and install them to the No. 2 gear shift fork and No. 1 shift head.

  Fig 33: Installing Bolts To Gear Shift Fork And Shift Head
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)
INSTALL REVERSE SHIFT ARM BRACKET ASSEMBLY

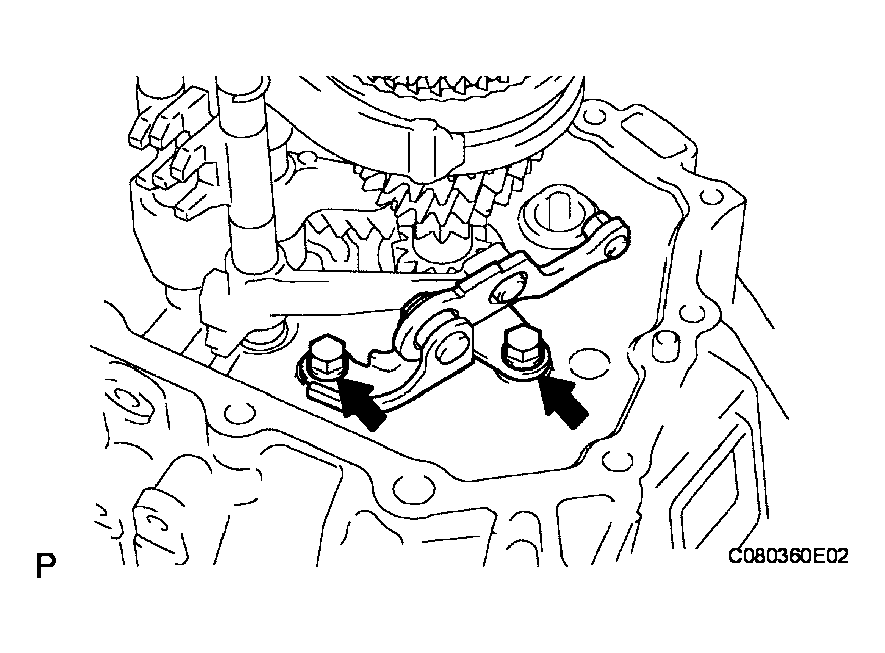

1. Install the reverse shift arm bracket to the front transaxle case with 2 bolts.

  Fig 34: Installing Reverse Shift Arm Bracket To Front Transaxle Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 17 N*m (175 kgf*cm, 13 ft.*lbf)
INSTALL MANUAL TRANSMISSION CASE

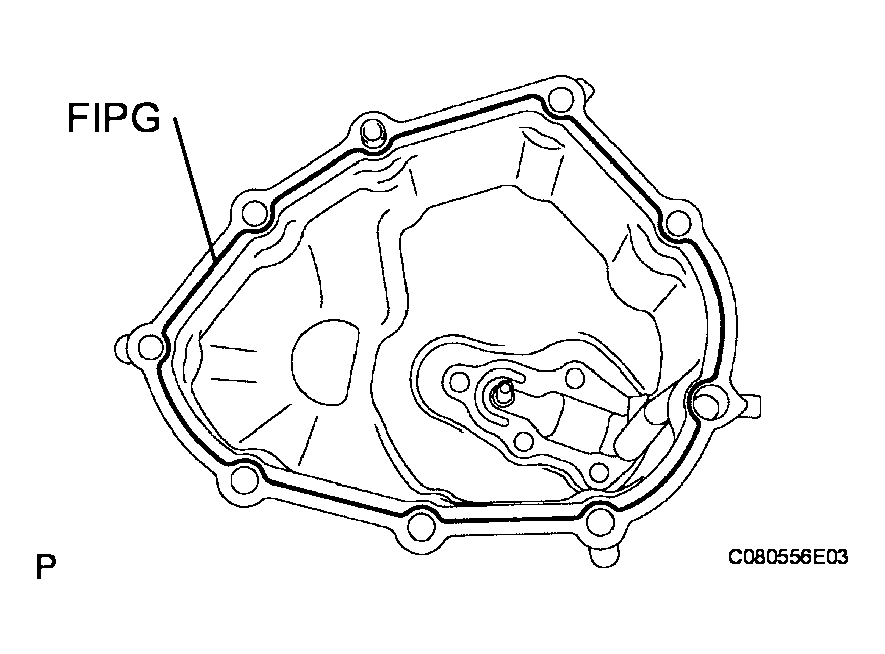

1. Apply FIPG to the transmission case, as shown in the illustration.

  Fig 35: Applying FIPG To Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent

  NOTE: Parts must be assembled within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.

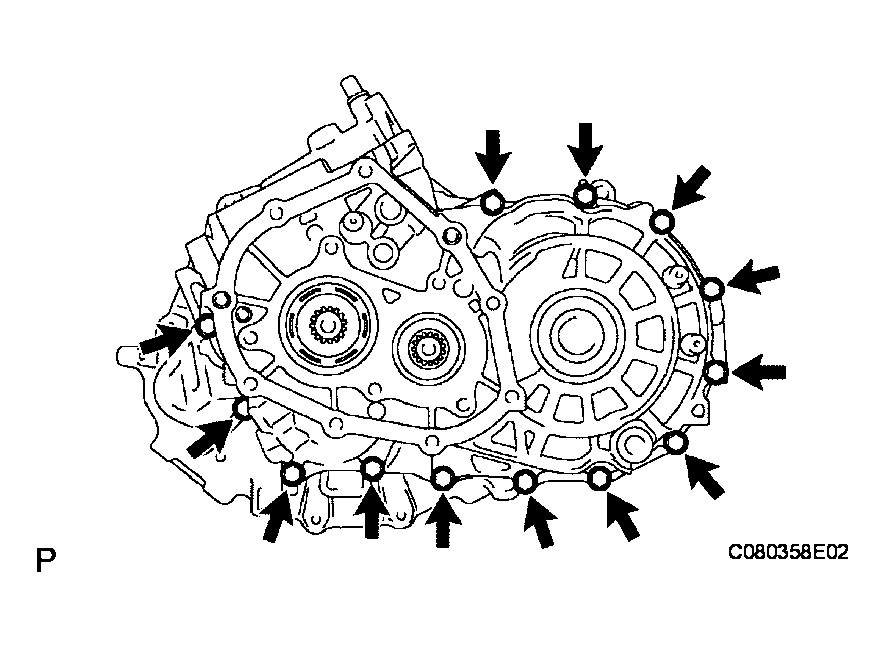

2. Coat the 13 bolts with sealant, and install them to the transmission case.

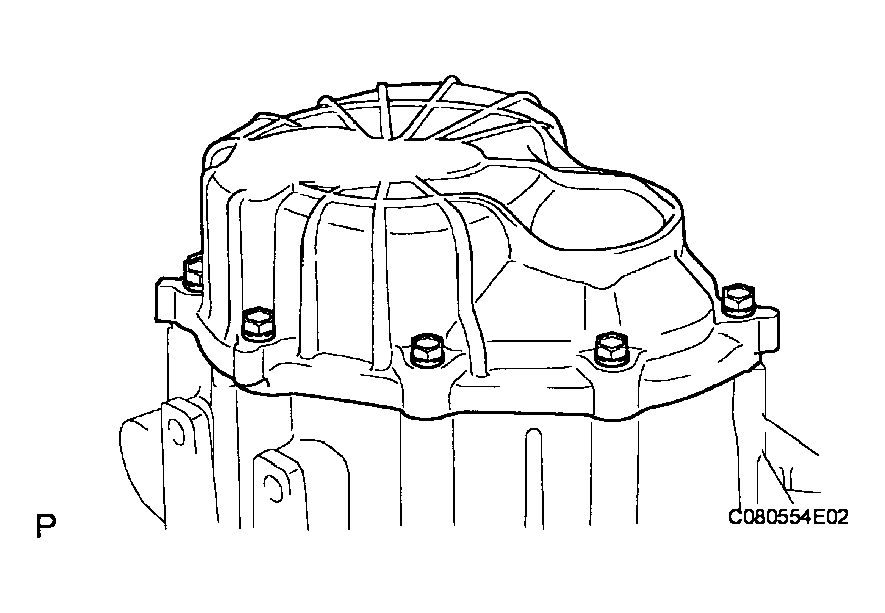

  Fig 36: Installing Bolts To Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

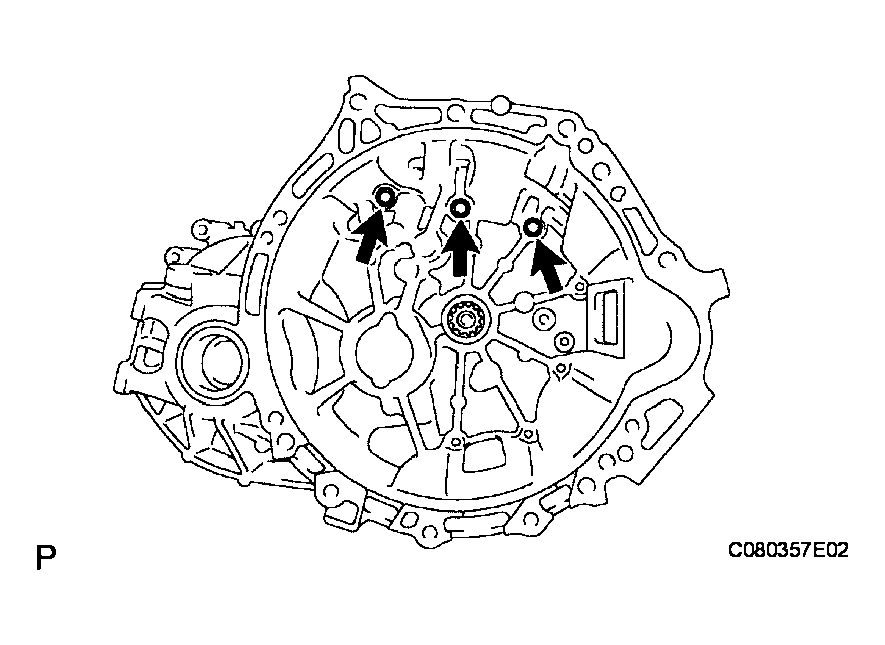

3. Coat the 3 bolts with sealant, and install them to the front transaxle case.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

  Fig 37: Installing Bolts To Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE IDLER GEAR SHAFT BOLT
1. Coat the reverse idler gear shaft bolt with sealant, and install it with a new gasket.

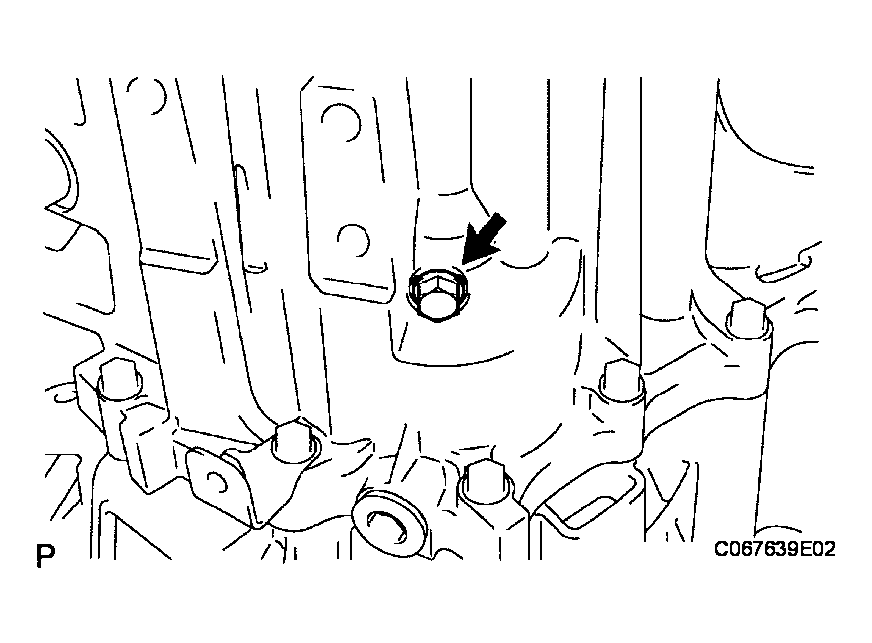

  Fig 38: Installing Reverse Idler Gear Shaft Bolt With Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)
INSTALL NO. 2 LOCK BALL ASSEMBLY
1. Coat the No. 2 lock ball with sealant, and install it with a hexagon wrench.

  Fig 39: Installing Lock Ball With Hexagon Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)
INSTALL SHIFT DETENT BALL
1. Install the 2 shift detent balls, 2 shift detent ball springs with 2 No. 1 shift detent ball spring seats to the manual transmission case.

  Fig 40: Installing Shift Detent Balls, Shift Detent Ball Springs With Shift Detent Ball Spring Seats
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the 2 shift detent ball plugs with sealant, and install them with a hexagon wrench.

  Fig 41: Installing Shift Detent Ball Plugs With Hexagon Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)
3. Install the shift detent ball, shift detent ball compression spring and No. 1 shift detent ball spring seat to the front transaxle case.

  Fig 42: Installing Shift Detent Ball, Shift Detent Ball Compression Spring And Shift Detent Ball Spring Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Coat the shift detent ball plug with sealant, and install it with a hexagon wrench.

  Fig 43: Installing Shift Detent Ball Plug With Hexagon Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

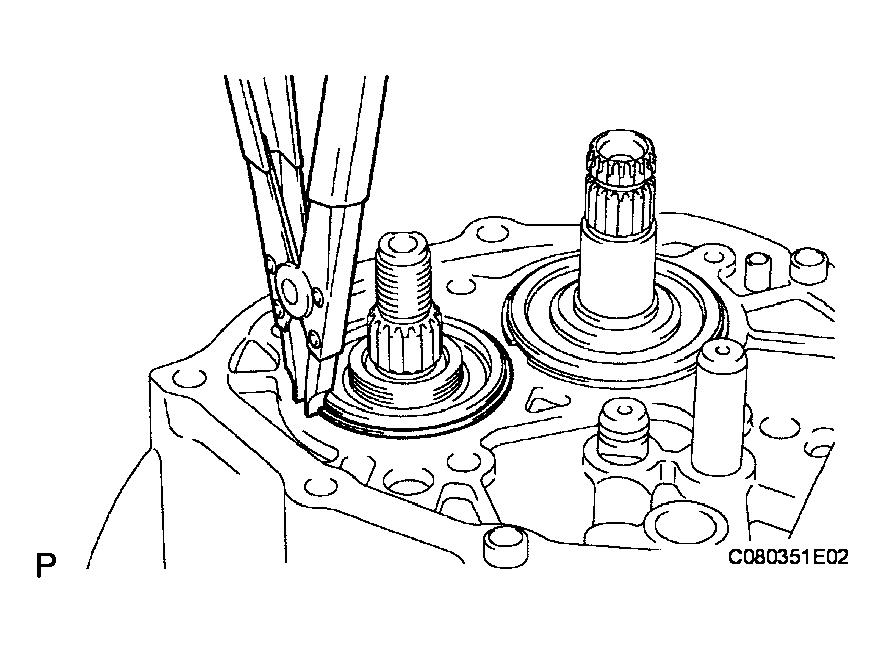

INSTALL INPUT SHAFT REAR BEARING HOLE SNAP RING
1. Using a snap ring expander, install a new hole snap ring to the input shaft.

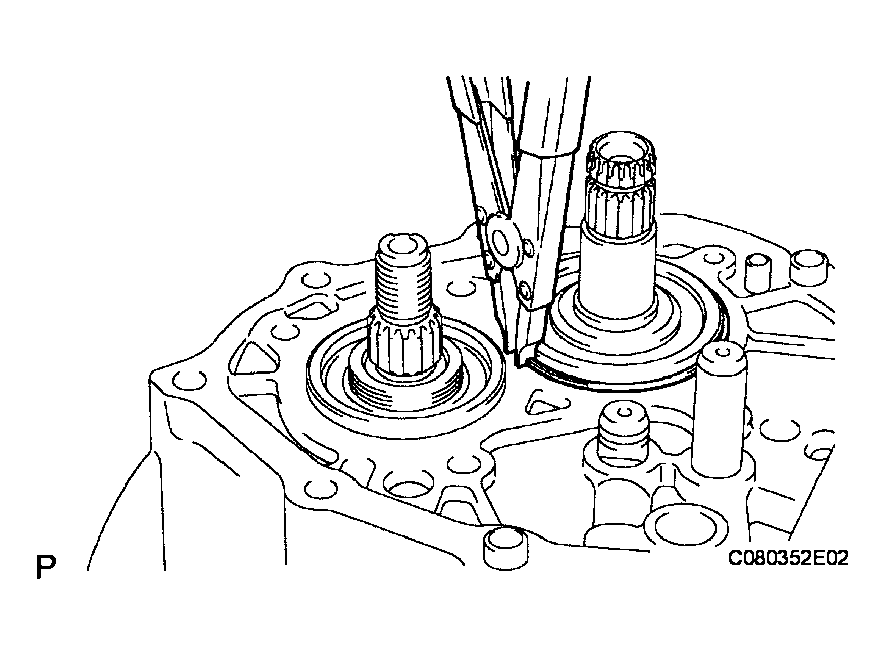

  Fig 44: Installing Hole Snap Ring To Input Shaft Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTPUT SHAFT REAR BEARING HOLE SNAP RING
1. Using a snap ring expander, install a new hole snap ring to the output shaft.

  Fig 45: Installing Hole Snap Ring To Output Shaft Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT FORK SHAFT SNAP RING
1. Using a brass bar and hammer, tap in a new shift fork shaft snap ring to the No. 2 shift fork shaft.

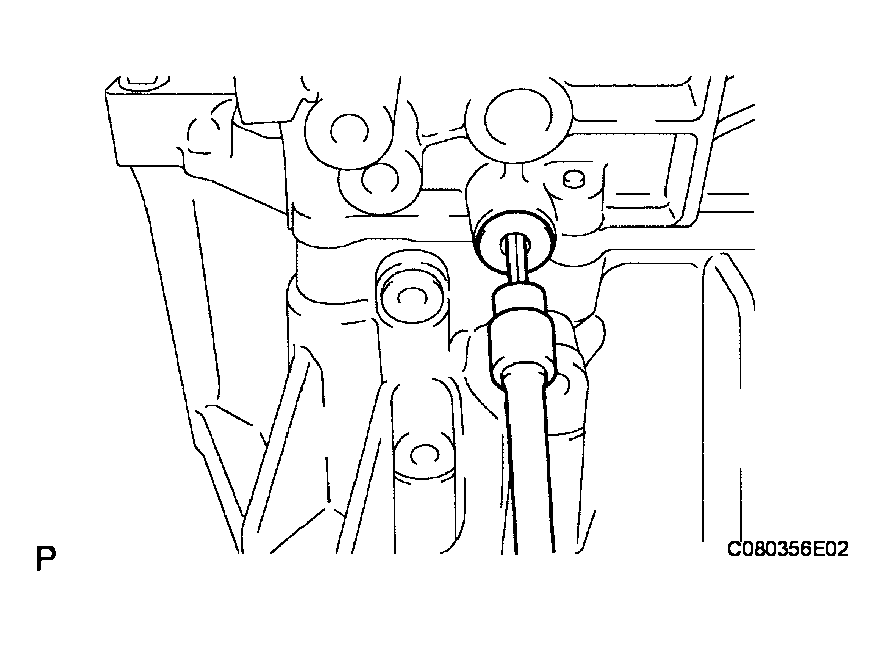

  Fig 46: Tapping Shift Fork Shaft Snap Ring To Shift Fork Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BEARING RETAINER
1. Coat the 5 bolts with sealant, and install the rear bearing retainer to the transmission case with the 5 bolts.

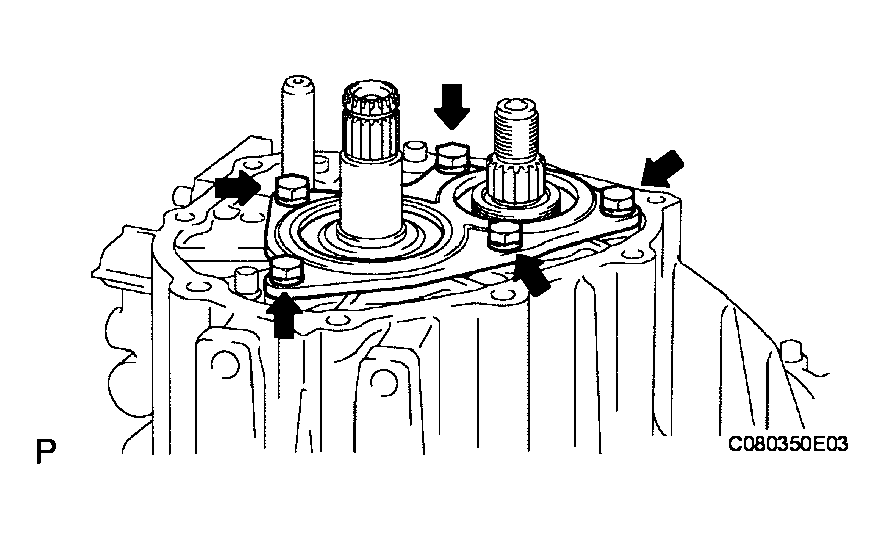

  Fig 47: Installing Rear Bearing Retainer To Transmission Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 27 N*m (280 kgf*cm, 20 ft.*lbf)

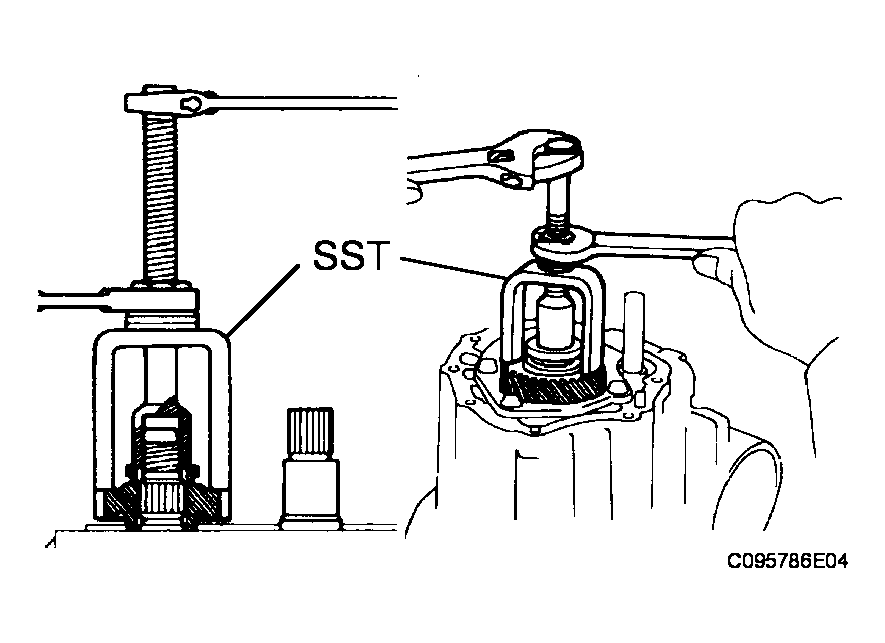

INSTALL 5TH DRIVEN GEAR
1. Using SST, install the 5th driven gear to the output shaft.

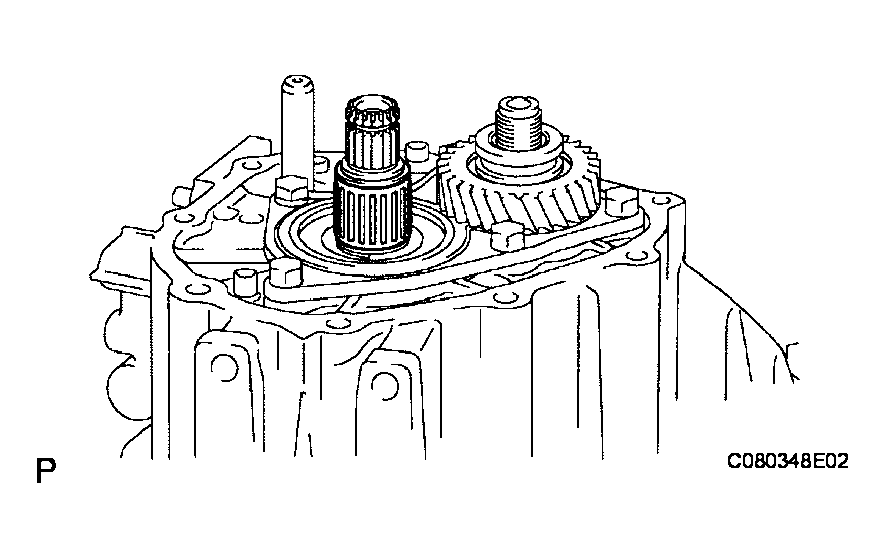

  Fig 48: Installing Driven Gear To Output Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09309-12020
INSTALL 5TH GEAR NEEDLE ROLLER BEARING
1. Coat the 5th gear needle roller bearing and 5th gear bearing spacer with gear oil, and install them to the input shaft.

  Fig 49: Installing Gear Needle Roller Bearing And Gear Bearing Spacer To Input Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

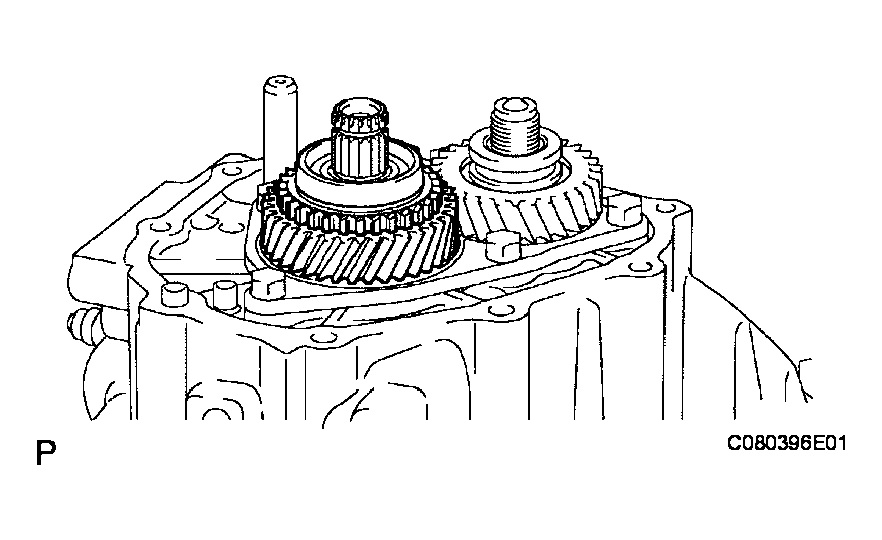

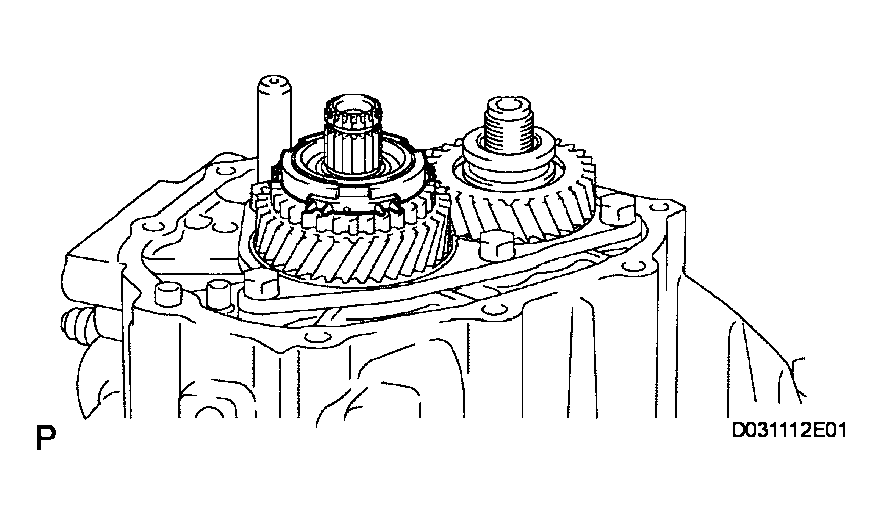

INSTALL 5TH GEAR
1. Coat the 5th gear with gear oil, and install it to the input shaft.

  Fig 50: Installing Gear To Input Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 SYNCHRONIZER RING
1. Coat the No. 3 synchronizer ring with gear oil, and install it to the 5th gear.

  Fig 51: Installing Synchronizer Ring To Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

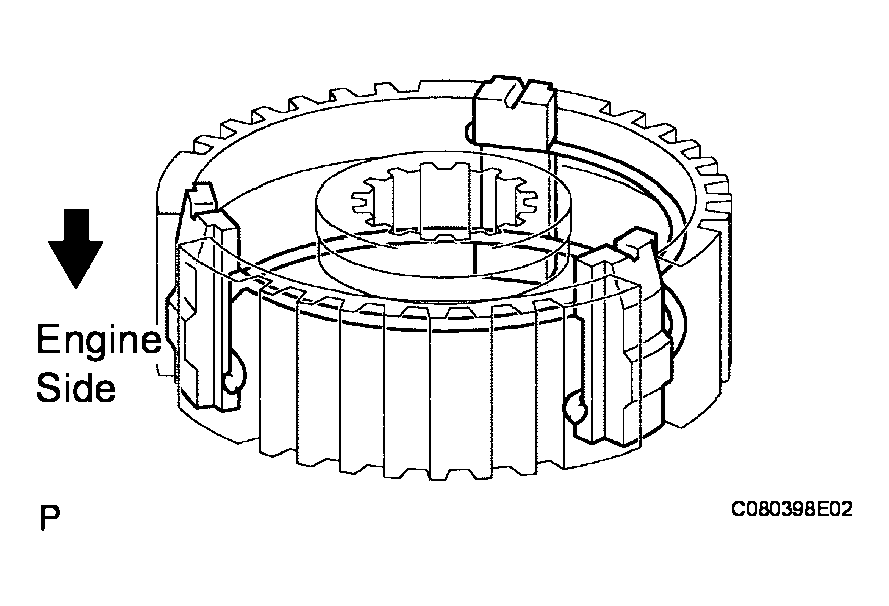

INSTALL NO. 3 TRANSMISSION CLUTCH HUB

Install the 3 synchromesh shifting keys and 2 synchromesh shifting key springs to the No. 3 transmission clutch hub as shown in the illustration.

Fig 52: Installing Transmission Clutch Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not set both openings of the shifting key springs in the same position.

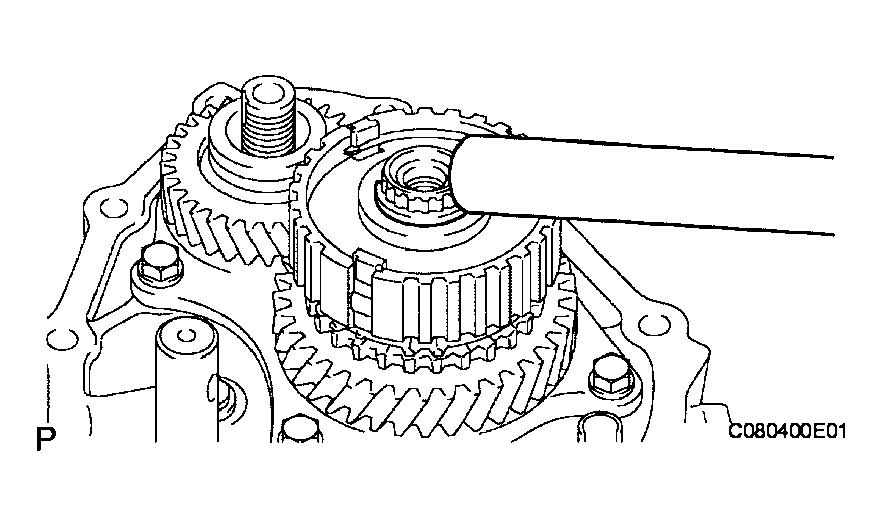

Using SST and a hammer, tap in the No. 3 clutch hub to the input shaft.

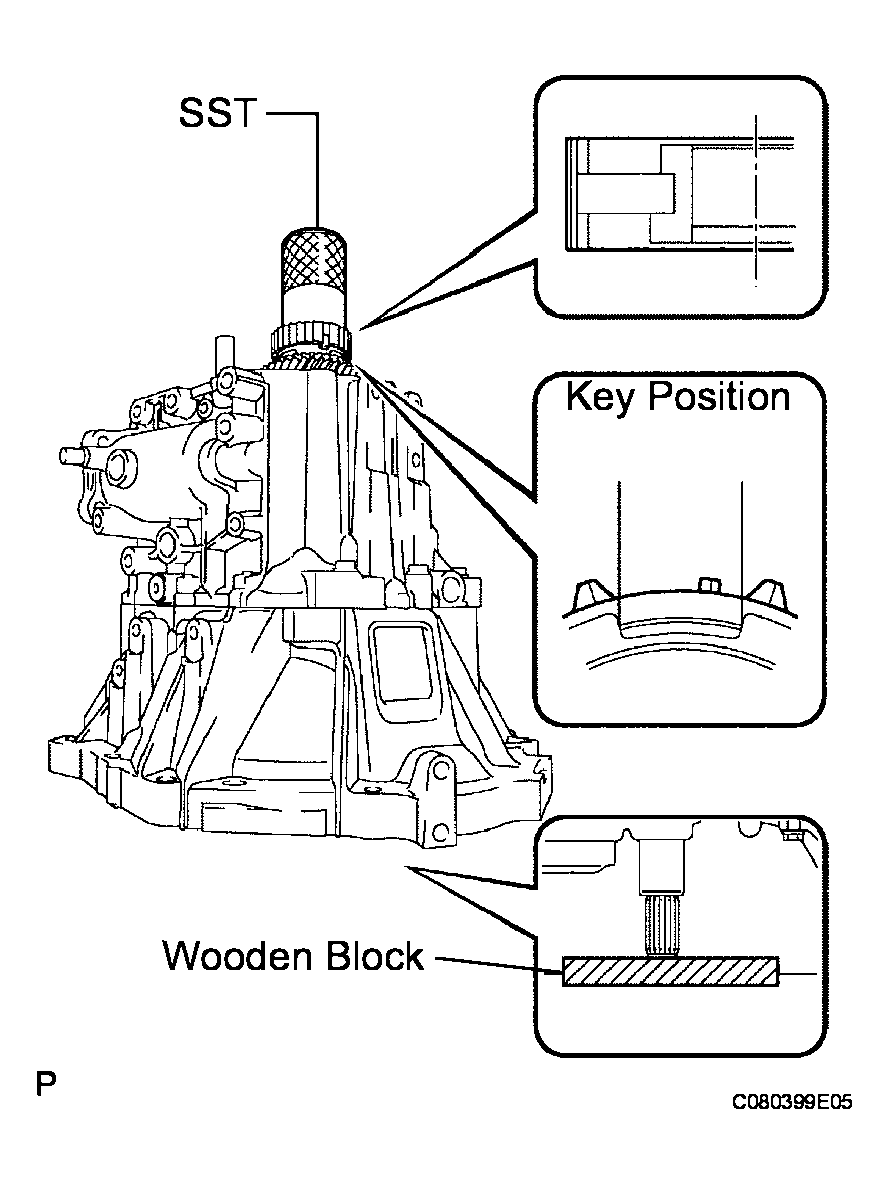

Fig 53: Tapping Clutch Hub To Input Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09636-20010
NOTE:
- Do not install the No. 3 transmission clutch hub with it facing in the wrong direction.
- Install the No. 3 transmission clutch hub, checking the positions of the No. 3 synchronizer ring key groove and the No. 3 synchromesh shifting key.
- Check that the 5th gear is rotating.
- Place a suitable sized wooden block to support the input shaft.

Select a No. 3 clutch hub shaft snap ring that will allow minimum axial play.

Standard clearance: 0.1 mm (0.004 in.) or less

Standard snap ring thickness

SNAP RING THICKNESS SPECIFICATION

Mark	Thickness mm (in.)
A	2.25 (0.0886)
B	2.31 (0.0909)
C	2.37 (0.0933)
D	2.43 (0.0957)
E	2.49 (0.0980)
F	2.55 (0.1004)
G	2.61 (0.1028)

Using a brass bar and hammer, tap the snap ring onto the input shaft.

Fig 54: Tapping Snap Ring Onto Input Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

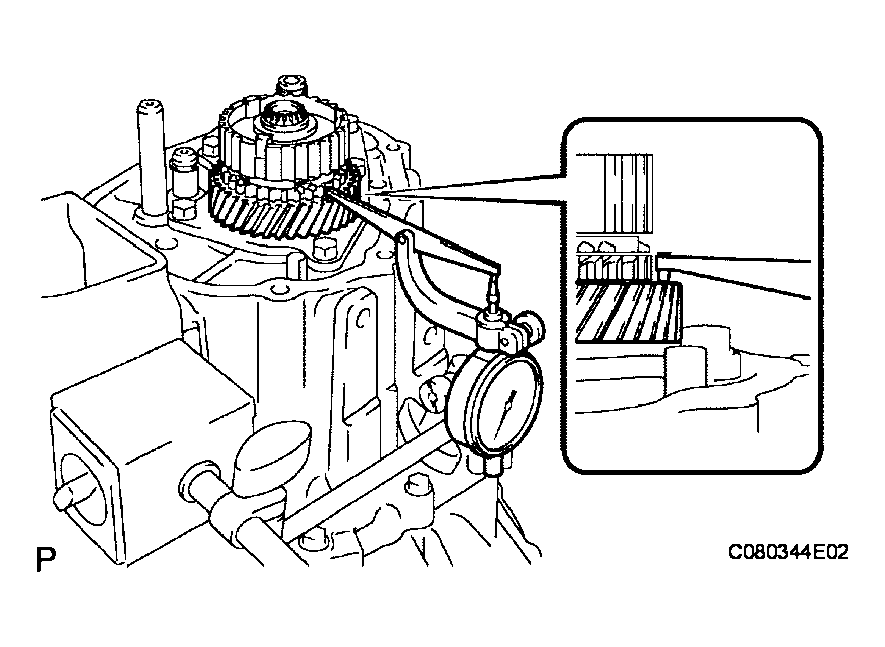

INSPECT 5TH GEAR THRUST CLEARANCE

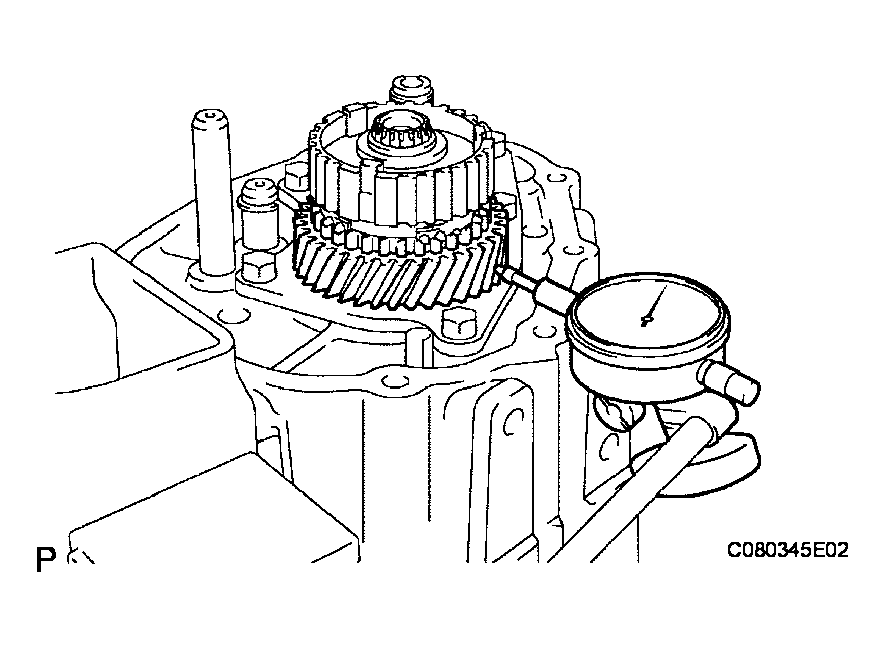

1. Using a dial indicator, measure the thrust clearance.

  Fig 55: Measuring Thrust Clearance Using Dial Indicator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance: 0.1 to 0.57 mm (0.0039 to 0.0224 in.)

  Maximum clearance: 0.57 mm (0.0224 in.)

  If the clearance is greater than the maximum, replace the gear, needle roller bearing or shaft.

INSPECT 5TH GEAR RADIAL CLEARANCE

Using a dial indicator, measure the radial clearance.

Fig 56: Measuring Radial Clearance Using Dial Indicator

Standard clearance

GEAR RADIAL CLEARANCE REFERENCE

Item	Specified Condition
KOYO made	0.015 to 0.058 mm (0.0006 to 0.0023 in.)
NSK made	0.015 to 0.056 mm (0.0006 to 0.0022 in.)

Maximum clearance

GEAR RADIAL CLEARANCE REFERENCE

Item	Specified Condition
KOYO made	0.058 mm (0.0023 in.)
NSK made	0.056 mm (0.0022 in.)

If the clearance is greater than the maximum, replace the gear, needle roller bearing or shaft.

INSTALL NO. 3 GEAR SHIFT FORK
1. Coat the No. 3 transmission clutch hub sleeve with gear oil, and install it and the No. 3 gear shift fork to the No. 3 transmission clutch hub.

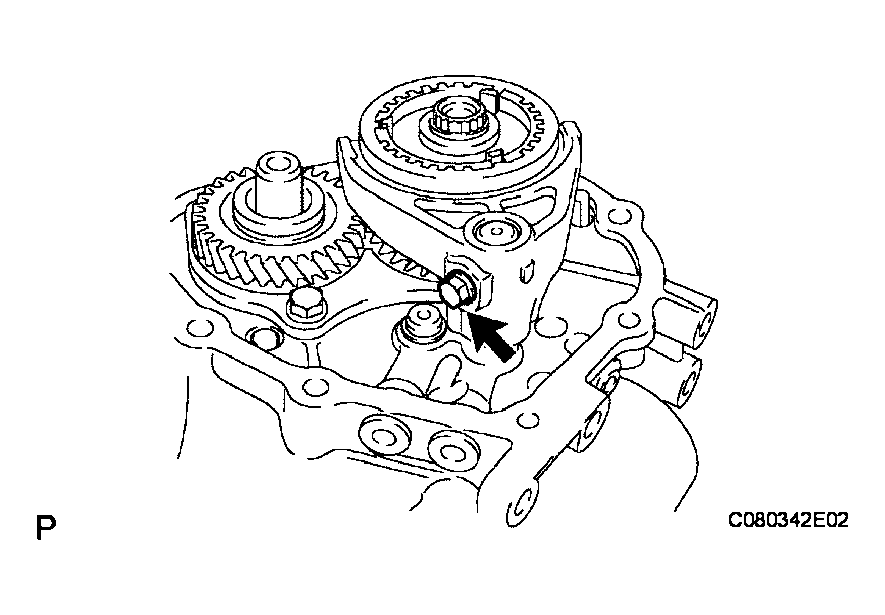

  Fig 57: Installing Gear Shift Fork
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Be sure to set the No. 3 transmission clutch hub in the correct orientation.
2. Coat the gear shift fork lock bolt with sealant, and install it to the No. 3 gear shift fork.

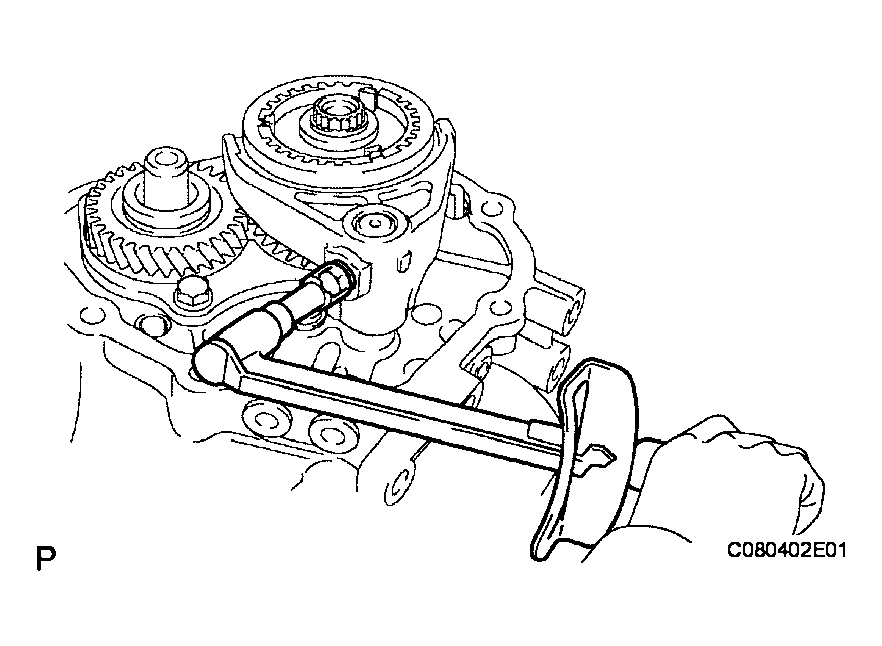

  Fig 58: Installing Gear Shift Fork Lock Bolt To Gear Shift Fork
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)
INSTALL MANUAL TRANSMISSION OUTPUT SHAFT REAR SET NUT
1. Engage the 2 gears simultaneously to lock the transmission.
2. Install a new set nut.
  Torque: 118 N*m (1200 kgf*cm, 87 ft.*lbf)

  Fig 59: Installing Manual Transmission Output Shaft Rear Set Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

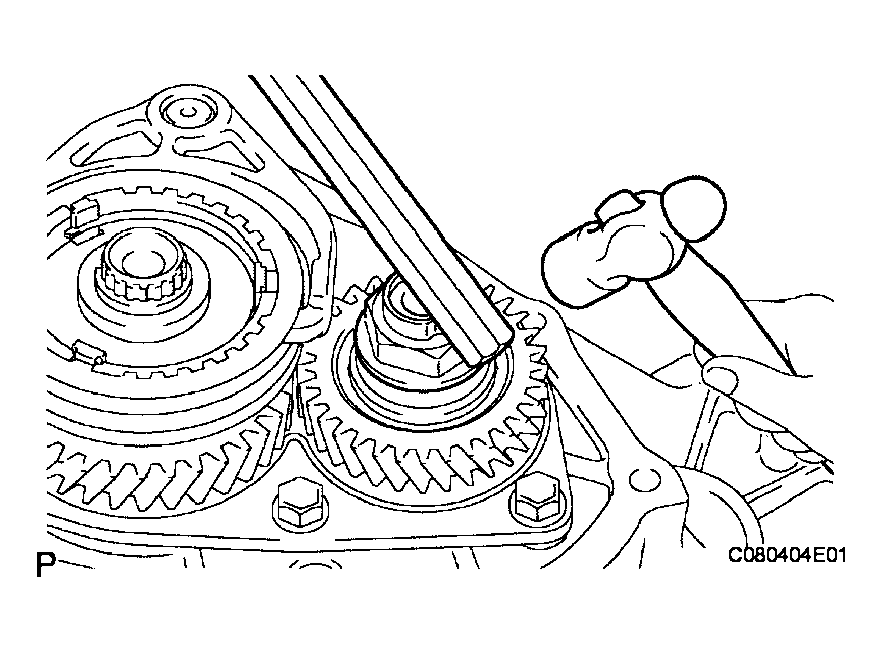

3. Using a chisel and hammer, stake the set nut.
4. Disengage the 2 gears.

  Fig 60: Staking Set Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MANUAL TRANSMISSION CASE COVER SUB-ASSEMBLY
1. Apply FIPG to the transaxle case cover as shown in the illustration.

  Fig 61: Applying FIPG To Transaxle Case Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  FIPG: Part No. 08826-00090, THREE BOND 1281

  NOTE: Parts must be assembled within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.
2. Install the transmission case cover to the transmission case with the 9 bolts.

  Fig 62: Installing Transmission Case Cover To Transmission Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (185 kgf*cm, 14 ft.*lbf)
INSTALL SHIFT AND SELECT LEVER SHAFT ASSEMBLY
1. Coat the 4 bolts with sealant and install a new gasket and lever shaft to the transmission case with the 4 bolts.

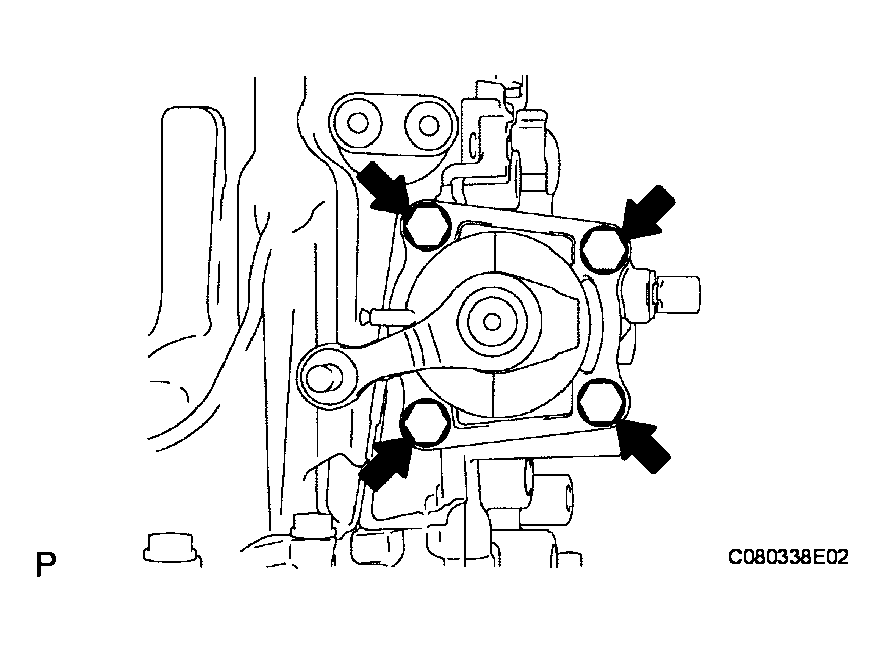

  Fig 63: Installing Bolts With Gasket And Lever Shaft To Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

  NOTE: Set the claws of the shift interlock plate into the shift head part of the gear shift fork shaft securely.
INSTALL NO. 1 LOCK BALL ASSEMBLY
1. Coat the No. 1 lock ball with sealant, and install it to the transmission case.

  Fig 64: Installing Lock Ball To Transmission Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)
INSTALL SELECTING BELLCRANK ASSEMBLY
1. Install the selecting bellcrank with control shift lever bush to the transmission case with the 2 bolts.

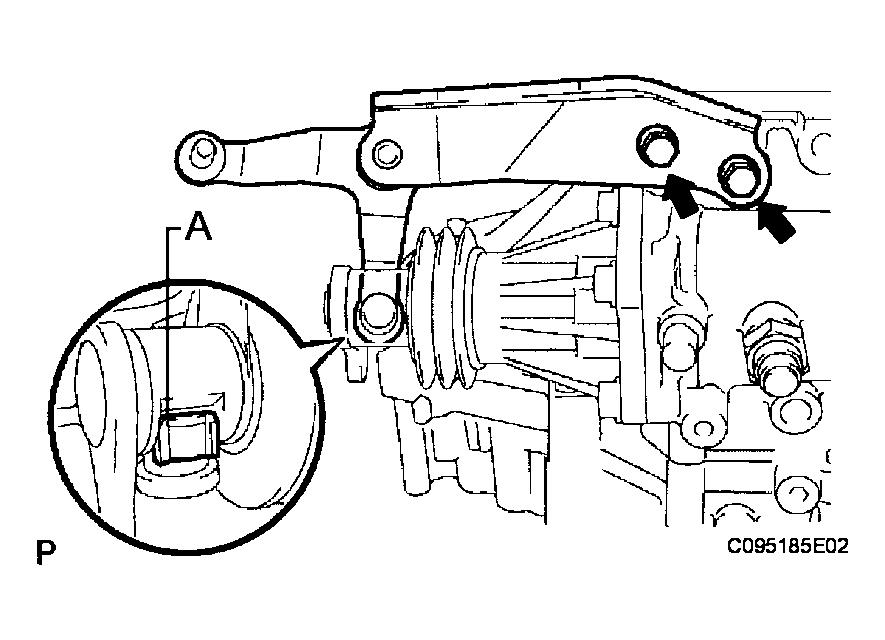

  Fig 65: Installing Selecting Bellcrank With Control Shift Lever Bush To Transmission Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

  NOTE: Apply MP grease to the inside circumferential surface of the control shift lever bush (A).
INSTALL FLOOR SHIFT CONTROL LEVER HOUSING SUPPORT BRACKET
1. Install the floor shift control lever housing support bracket to the front transaxle case with the 3 bolts.

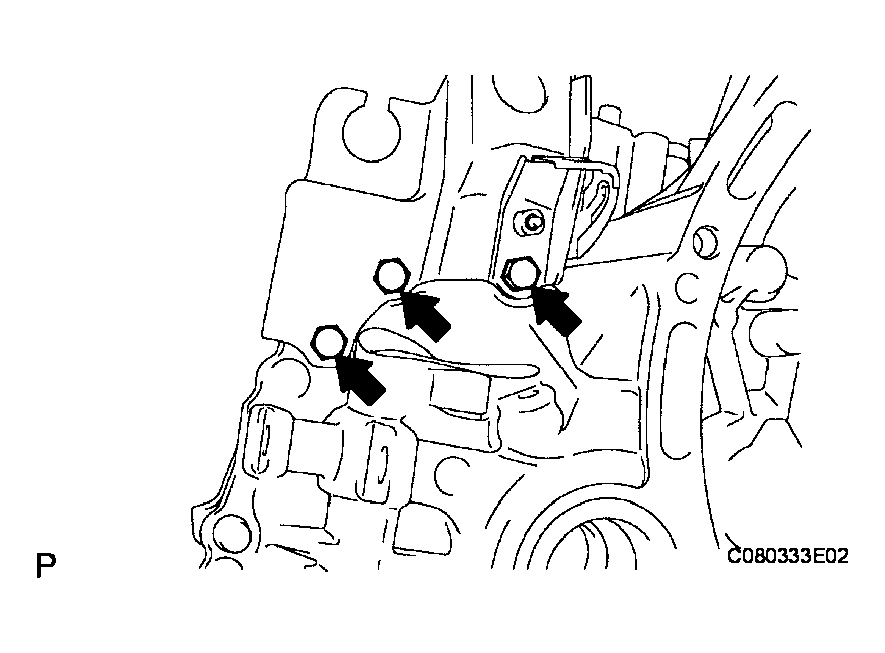

  Fig 66: Installing Floor Shift Control Lever Housing Support Bracket To Front Transaxle Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (188 kgf*cm, 14 ft.*lbf)
INSTALL BACK-UP LIGHT SWITCH ASSEMBLY

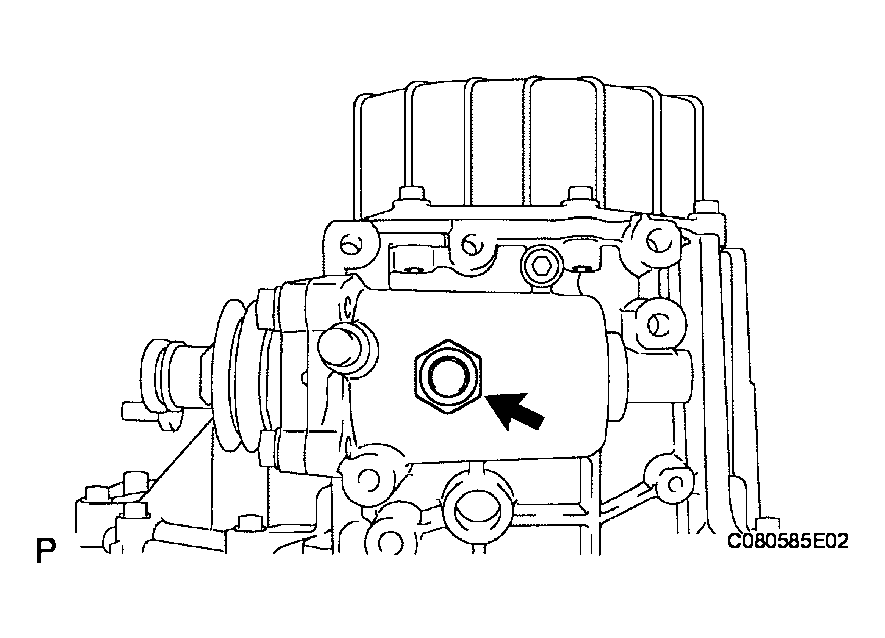

1. Using SST, install the back-up light switch to the transmission case with a new gasket.

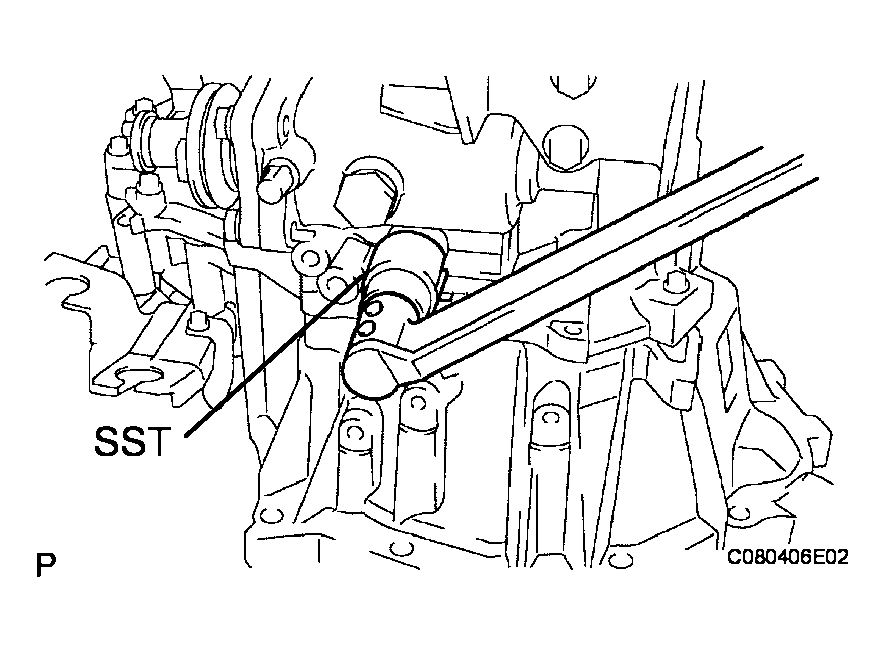

  Fig 67: Installing Back-Up Light Switch To Transmission Case With Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09817-16011

  Torque: 40 N*m (410 kgf*cm, 30 ft.*lbf)
INSTALL RELEASE FORK SUPPORT

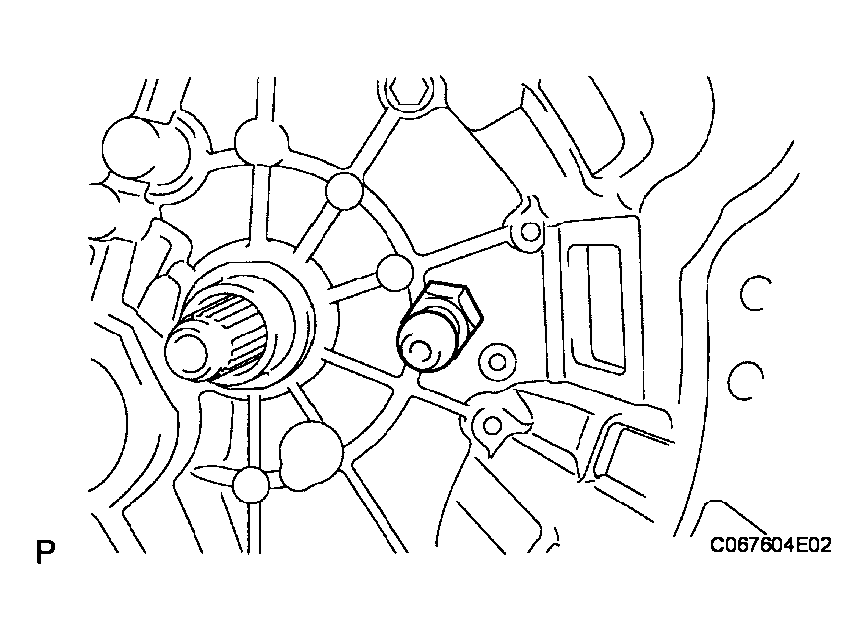

1. Install the release fork support to the front transaxle case.

  Fig 68: Installing Release Fork Support To Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 37 N*m (375 kgf*cm, 25 ft.*lbf)
INSTALL CLUTCH RELEASE FORK BOOT
1. Install the clutch release fork boot to the front transaxle case.

  Fig 69: Installing Clutch Release Fork Boot To Front Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH RELEASE BEARING ASSEMBLY
1. Coat the clutch release bearing with release hub grease, and install it to the clutch release fork with the clutch release fork bearing hub clip.

  Fig 70: Installing Clutch Release Bearing Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Release hub grease: Part No. 08887-01806, RELEASE HUB GREASE or equivalent
INSTALL CLUTCH RELEASE FORK SUB-ASSEMBLY

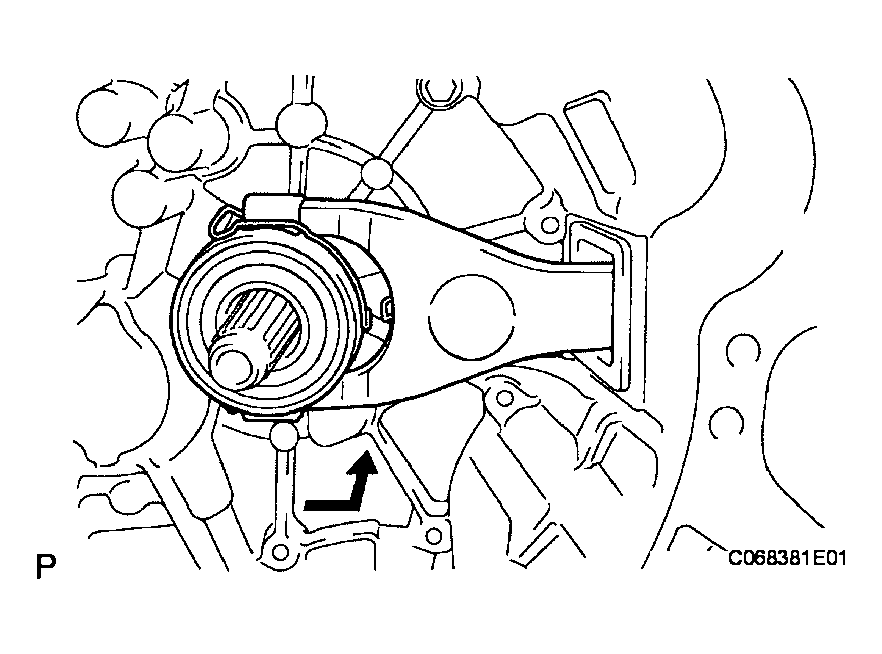

1. Install the clutch release fork to the input shaft.
2. Apply clutch spline grease to the spline of the input shaft.

  Fig 71: Installing Clutch Release Fork To Input Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Clutch spline grease: Part No. 08887-01806, CLUTCH SPLINE GREASE or equivalent
INSTALL SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
1. Install a new O-ring to the driven hole cover.
2. Install the driven hole cover to the transaxle case with the bolt.
  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

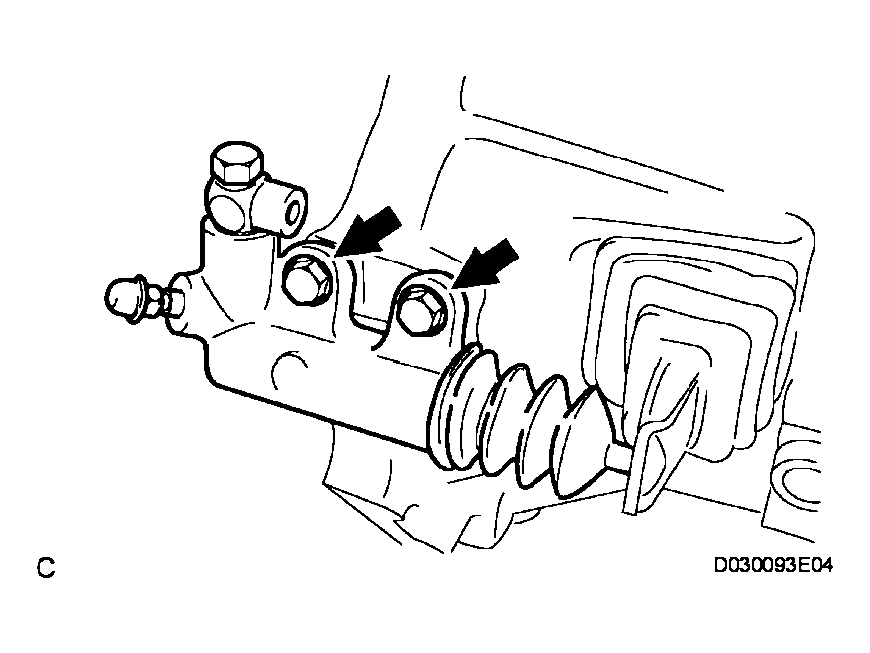

INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY
1. Install the clutch release cylinder to the transmission case with the 2 bolts.

  Fig 72: Installing Clutch Release Cylinder To Transmission Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 12 N*m (120 kgf*cm, 9 ft.*lbf)
INSTALL MANUAL TRANSMISSION FILLER PLUG
1. Install the transmission filler plug to the transmission case with a new gasket.

  Fig 73: Installing Transmission Filler Plug To Transmission Case With Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

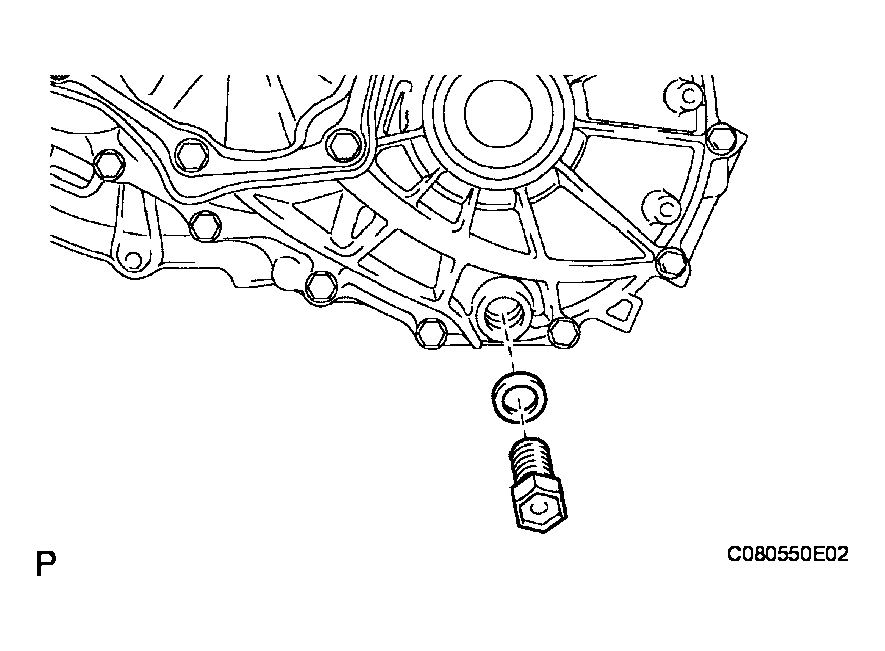

INSTALL DRAIN PLUG SUB-ASSEMBLY
1. Install the drain plug to the transmission case with a new gasket.

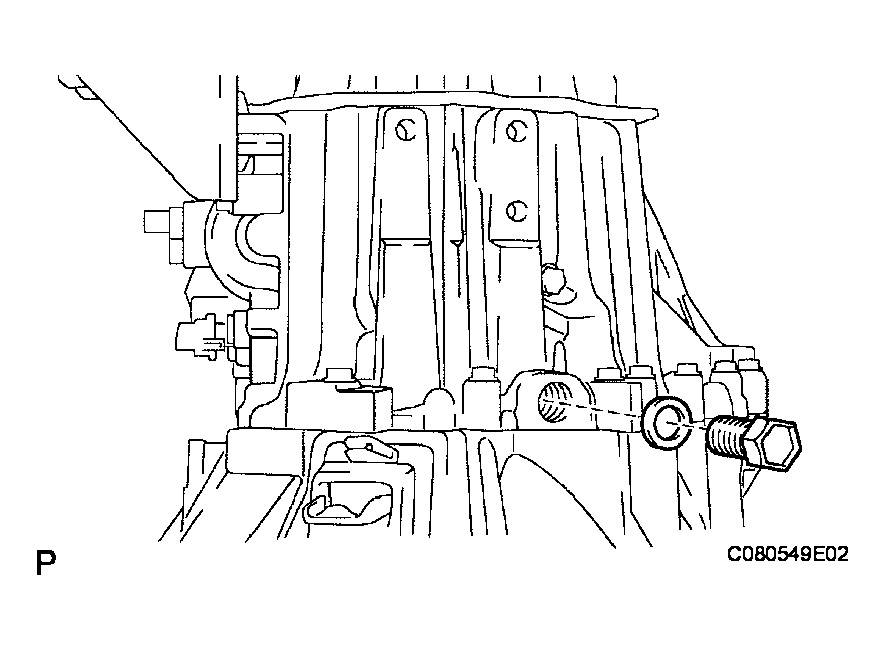

  Fig 74: Installing Drain Plug To Transmission Case With Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)
