Manual Transaxle Unit: Disassembly

  1. REMOVE MANUAL TRANSMISSION FILLER PLUG
    1. Remove the transmission filler plug and gasket from the transmission case.
      Fig 1: Removing Transmission Filler Plug And Gasket From Transmission Case
      G04228107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

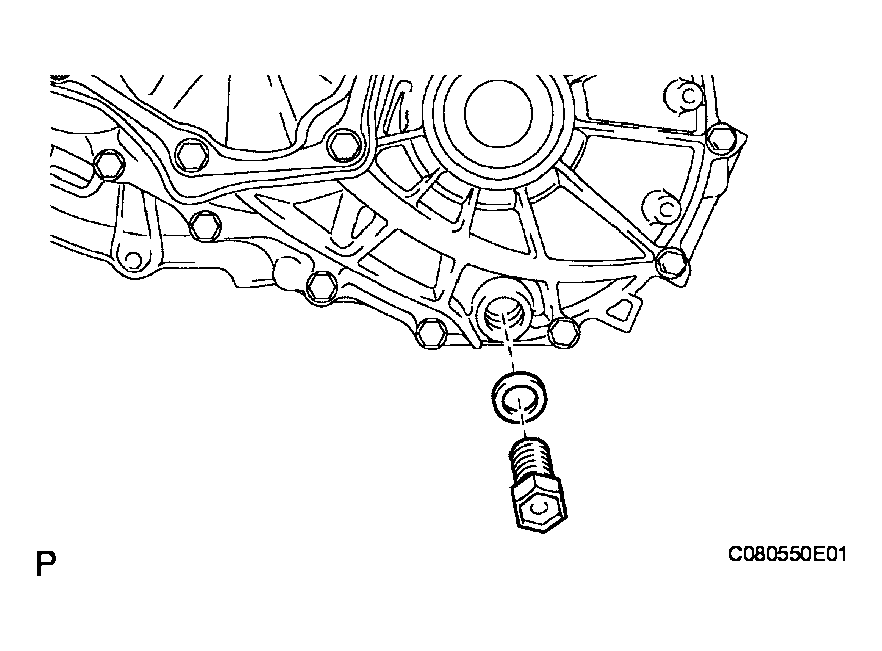

  2. REMOVE DRAIN PLUG SUB-ASSEMBLY
    1. Remove the drain plug and gasket from the transmission case.

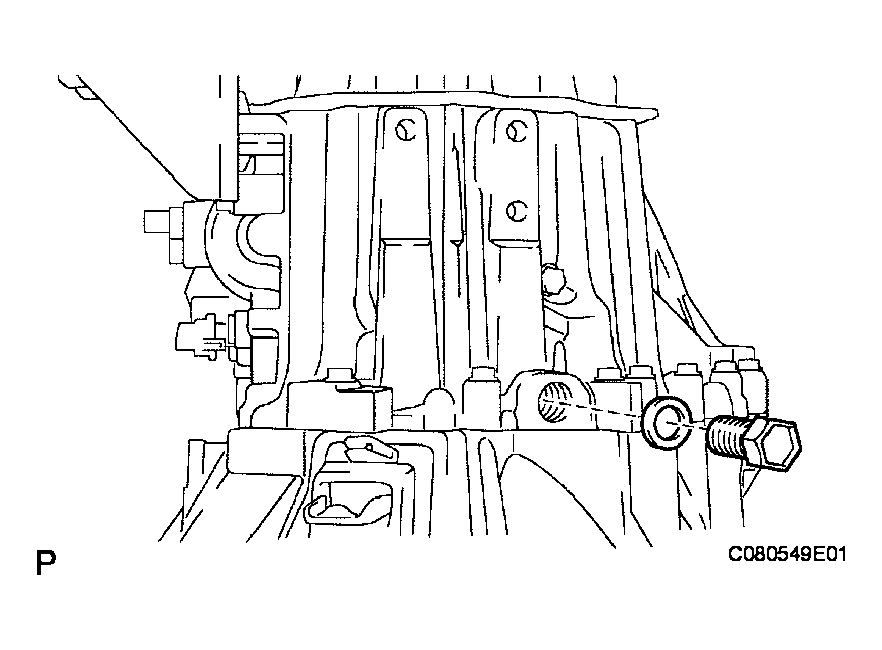

      Fig 2: Removing Drain Plug And Gasket From Transmission Case
      G04228108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY
    1. Remove the 2 bolts and clutch release cylinder.
  4. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Remove the bolt and driven hole cover from the transaxle case.
    2. Remove the O-ring from the driven hole cover.

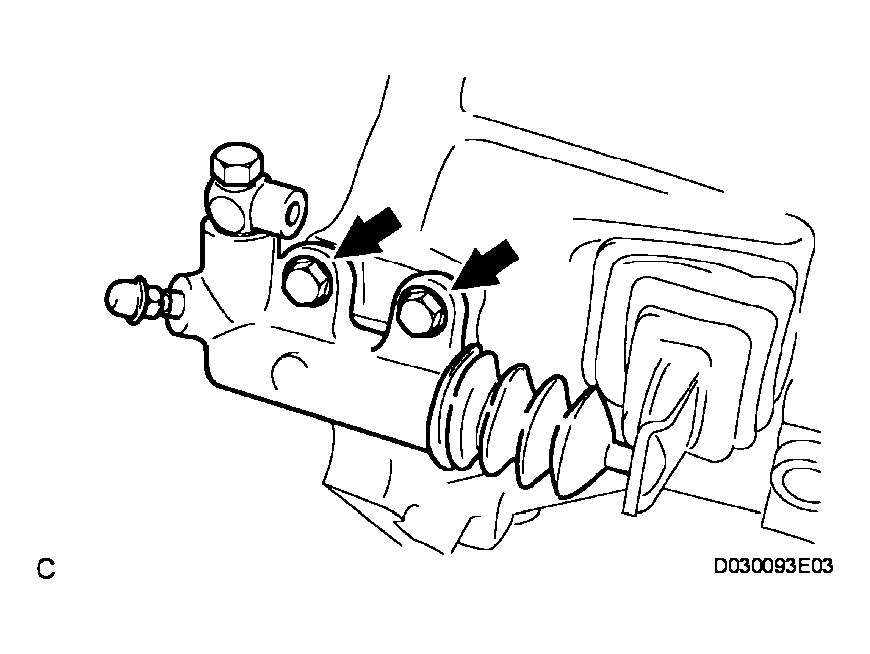

      Fig 3: Removing Bolts And Clutch Release Cylinder
      G04228109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY

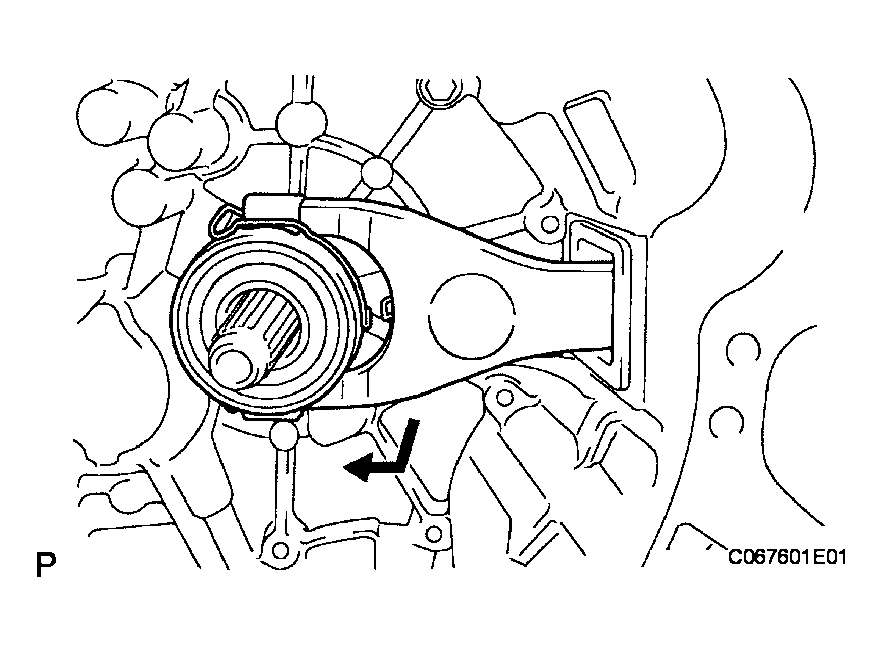

    1. Remove the clutch release fork with clutch release bearing from the front transaxle case.
      Fig 4: Removing Clutch Release Fork With Clutch Release Bearing From Front Transaxle Case
      G04228110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CLUTCH RELEASE BEARING ASSEMBLY
    1. Remove the clutch release fork bearing hub clip and clutch release bearing from the clutch release fork.
      Fig 5: Removing Clutch Release Fork Bearing Hub Clip
      G04228111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RELEASE FORK SUPPORT
    1. Remove the clutch release fork support from the front transaxle case.

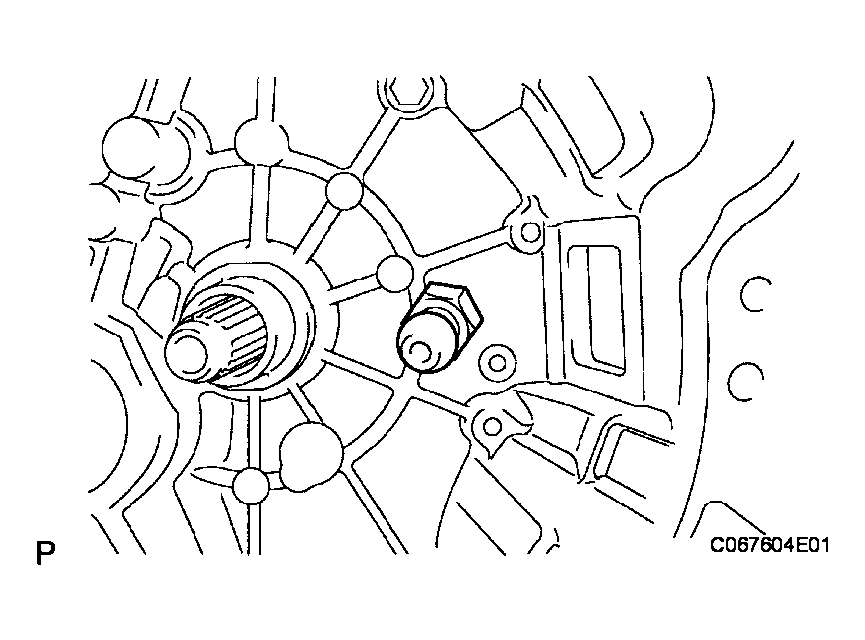

      Fig 6: Removing Clutch Release Fork Support From Front Transaxle Case
      G04228112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CLUTCH RELEASE FORK BOOT
    1. Remove the clutch release fork boot from the front transaxle case.
      Fig 7: Removing Clutch Release Fork Boot From Front Transaxle Case
      G04228113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

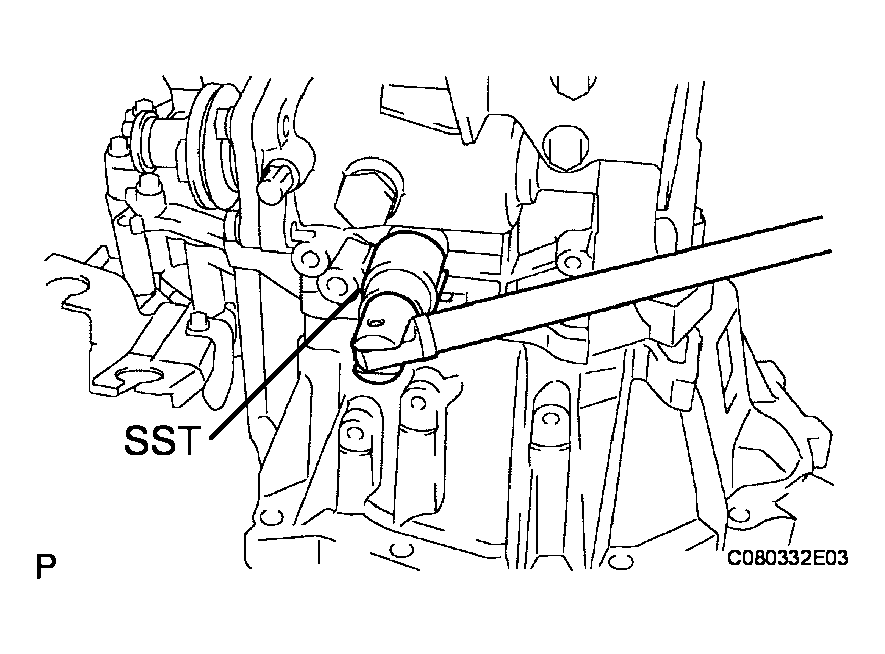

    1. Using SST, remove the back-up light switch and gasket from the transmission case.
      Fig 8: Removing Back-Up Light Switch And Gasket From Transmission Case
      G04228114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09817-16011

  10. REMOVE FLOOR SHIFT CONTROL LEVER HOUSING SUPPORT BRACKET

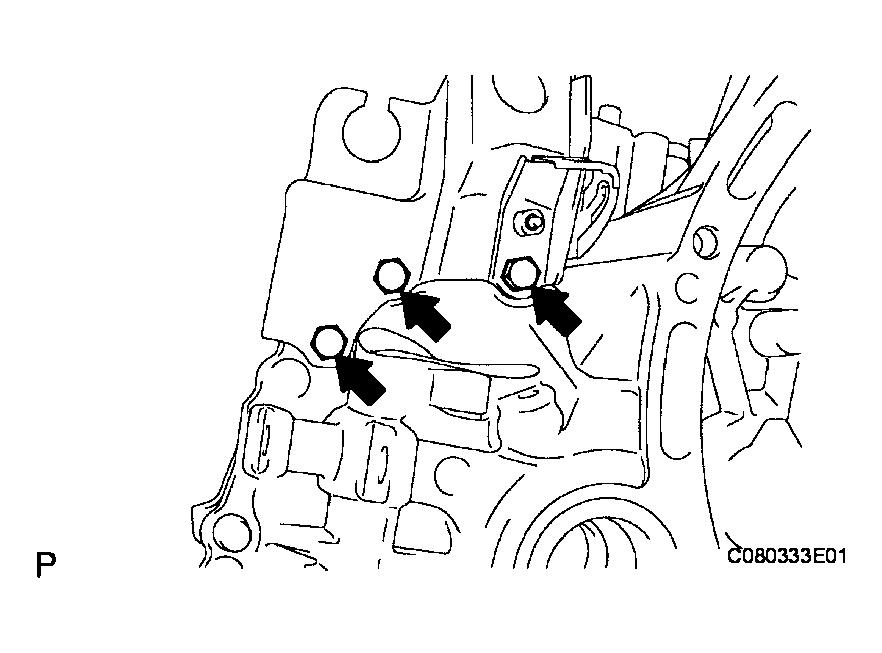

    1. Remove the 3 bolts and floor shift control lever housing support bracket from the front transaxle case.
      Fig 9: Removing Bolts And Floor Shift Control Lever Housing Support Bracket From Front Transaxle Case
      G04228115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SELECTING BELLCRANK ASSEMBLY
    1. Remove the 2 bolts and selecting bellcrank from the transmission case.
    2. Remove the control shift lever bush.

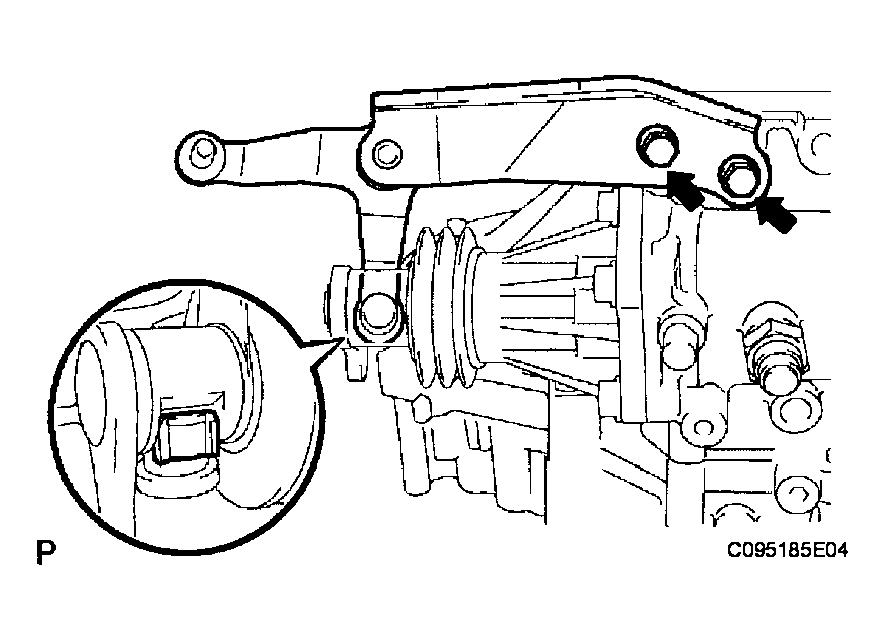

      Fig 10: Removing Bolts And Selecting Bellcrank From Transmission Case
      G04228116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

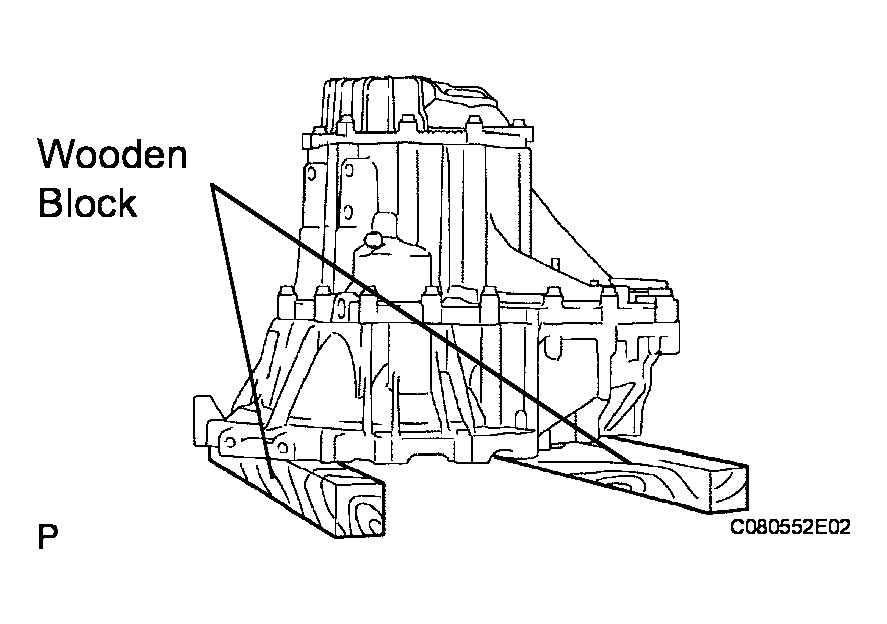

  12. FIX MANUAL TRANSAXLE ASSEMBLY
    1. Place the transaxle on wooden blocks.
      Fig 11: Placing Transaxle On Wooden Blocks
      G04228117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 LOCK BALL ASSEMBLY
    1. Remove the lock ball from the transmission case.
      Fig 12: Removing Lock Ball From Transmission Case
      G04228118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

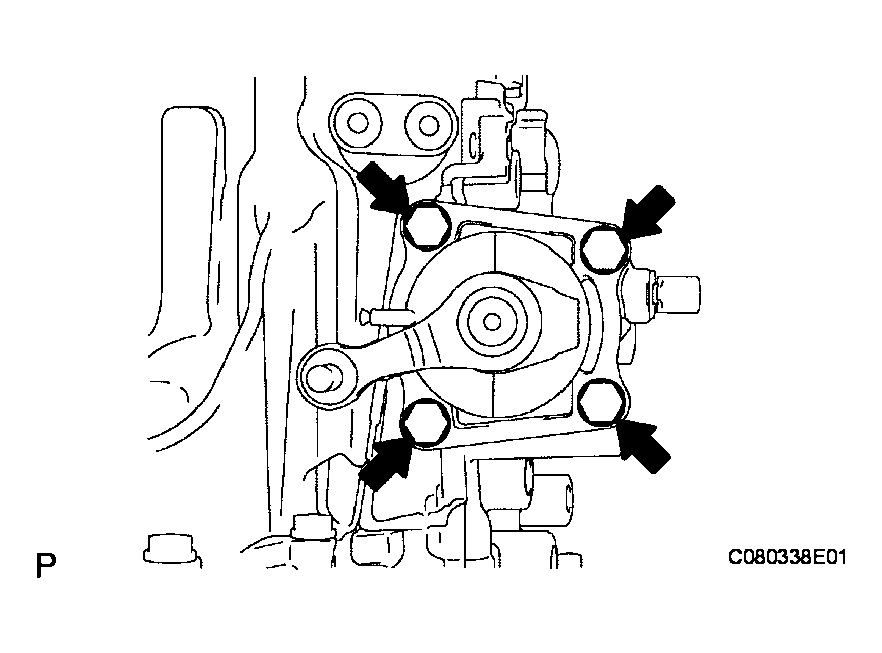

  14. REMOVE SHIFT AND SELECT LEVER SHAFT ASSEMBLY
    1. Remove the 4 bolts, lever shaft and gasket from the transmission case.
      Fig 13: Removing Bolts, Lever Shaft And Gasket From Transmission Case
      G04228119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE MANUAL TRANSMISSION CASE COVER SUB-ASSEMBLY
    1. Remove the 9 bolts.

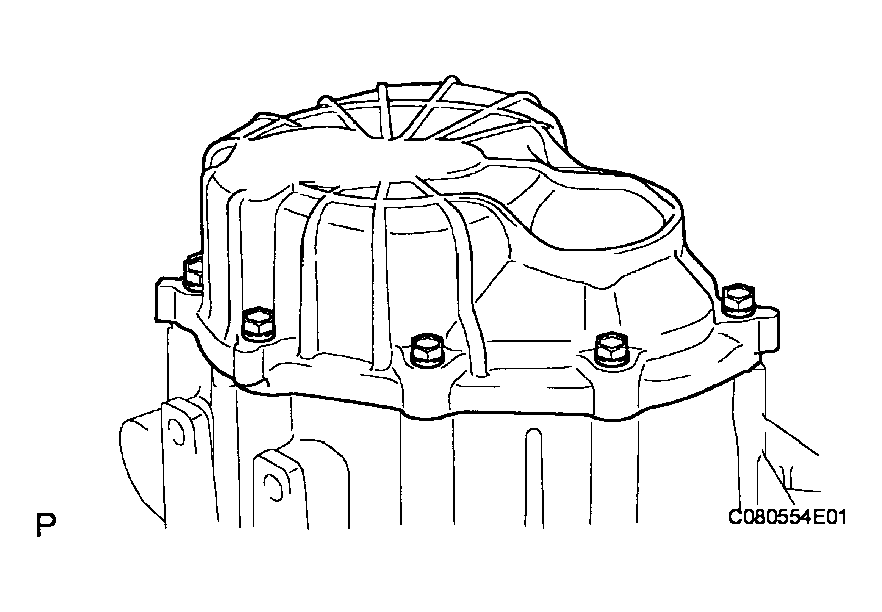

      Fig 14: Removing Bolts
      G04228120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

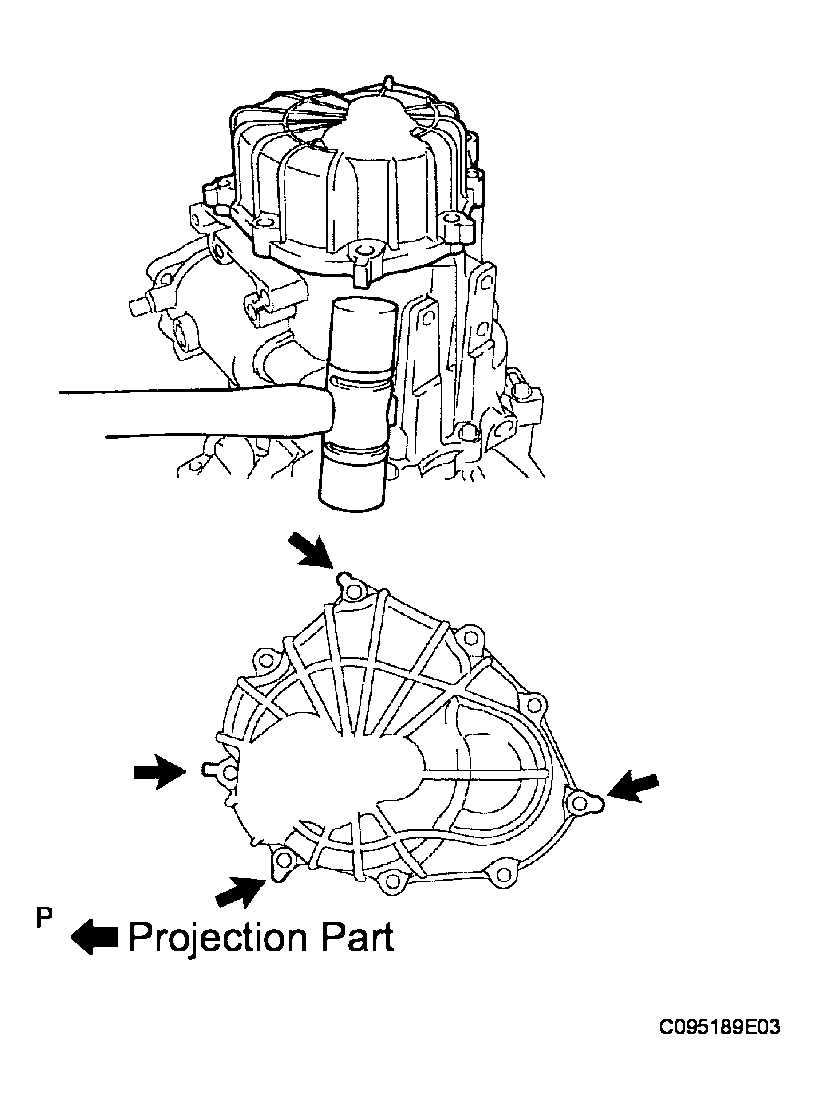

    2. Using a plastic-faced hammer, carefully tap the projection of the manual transmission case cover to remove it from the transmission case.
      Fig 15: Tapping Projection Of Manual Transmission Case Cover
      G04228121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not damage the transmission case.
  16. REMOVE MANUAL TRANSMISSION REAR OUTPUT SHAFT SET NUT
    1. Using a chisel and hammer, loosen the staked part of the set nut.
      Fig 16: Loosening Staked Part Of Set Nut
      G04228122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 gears simultaneously to lock the transmission.
    3. Remove the transmission output shaft rear set nut.
    4. Disengage the 2 gears.
      Fig 17: Disengaging Gears
      G04228123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 3 GEAR SHIFT FORK
    1. Remove the gear shift fork lock bolt from the No. 3 gear shift fork.

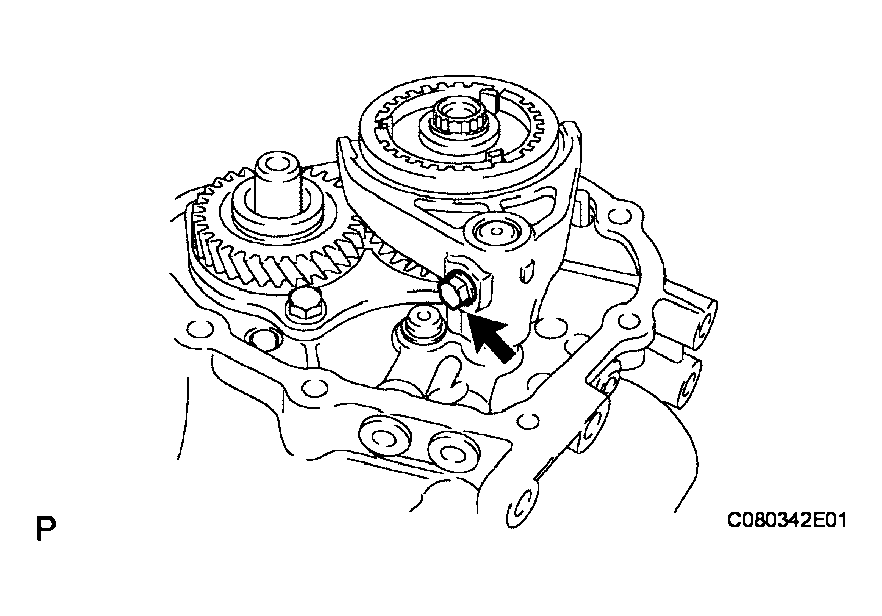

      Fig 18: Removing Gear Shift Fork Lock Bolt From Gear Shift Fork
      G04228124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 3 transmission hub sleeve with No. 3 gear shift fork from the No. 3 transmission clutch hub.
      Fig 19: Removing Transmission Hub Sleeve With Gear Shift Fork From Transmission Clutch Hub
      G04228125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSPECT 5TH GEAR THRUST CLEARANCE

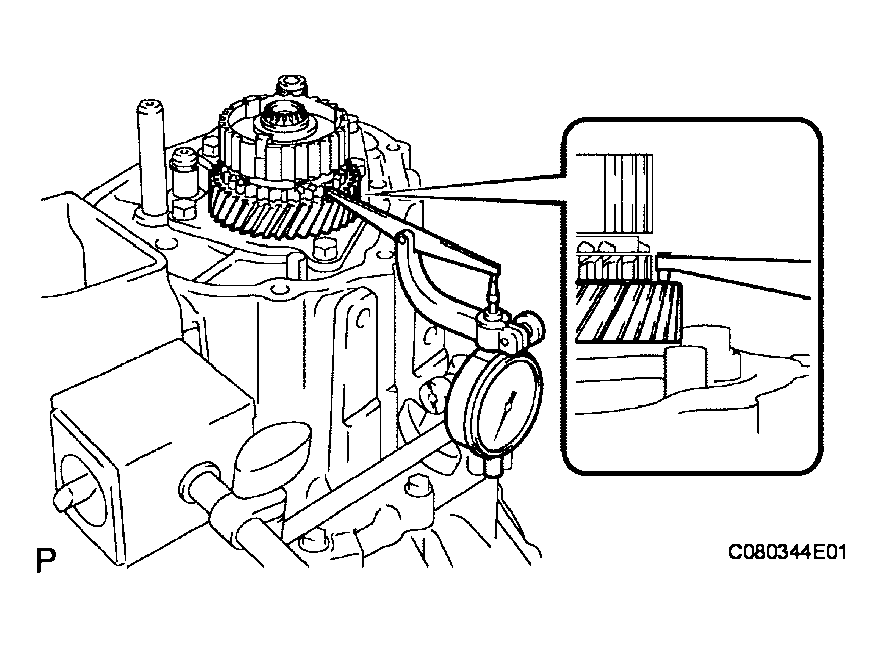

    1. Using a dial indicator, measure the thrust clearance.
      Fig 20: Measuring Thrust Clearance Using Dial Indicator
      G04228126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard clearance: 0.10 to 0.57 mm (0.0039 to 0.0224 in.)

      Maximum clearance: 0.57 mm (0.0224 in.)

      If the clearance is greater than the maximum, replace the 5th gear needle roller bearing or input shaft.

  19. INSPECT 5TH GEAR RADIAL CLEARANCE

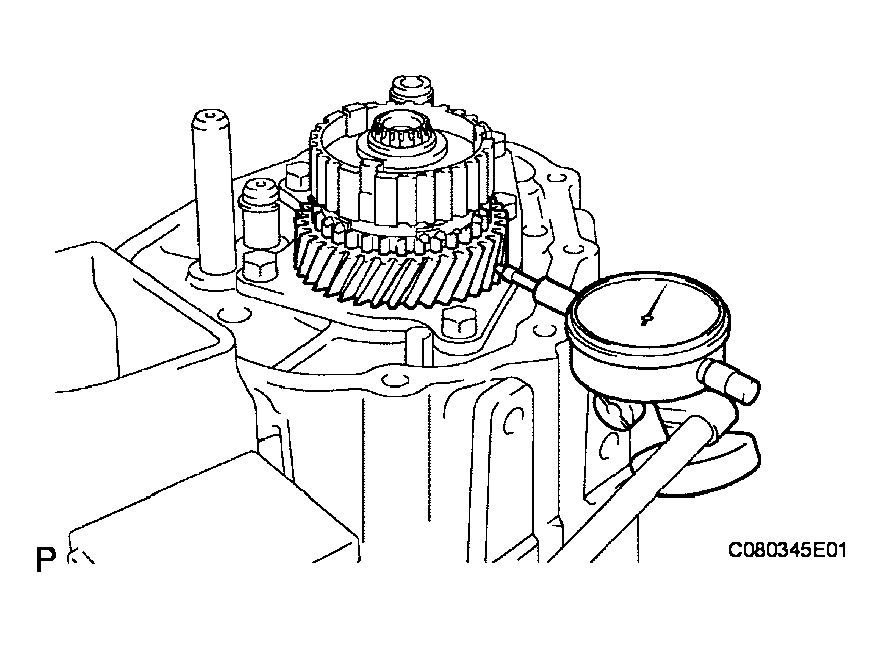

    1. Using a dial indicator, measure the 5th gear radial clearance.
      Fig 21: Measuring Gear Radial Clearance Using Dial Indicator
      G04228127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard clearance

      GEAR RADIAL CLEARANCE REFERENCE

      Item Specified Condition
      KOYO made 0.015 to 0.058 mm (0.0006 to 0.0023 in.)
      NSK made 0.015 to 0.056 mm (0.0006 to 0.0022 in.)

      Maximum clearance

      CLEARANCE REFERENCE

      Item Specified Condition
      KOYO made 0.058 mm (0.0023 in.)
      NSK made 0.056 mm (0.0022 in.)

      If the clearance is greater than the maximum, replace the gear, needle roller bearing or shaft.

  20. REMOVE NO. 3 TRANSMISSION CLUTCH HUB
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

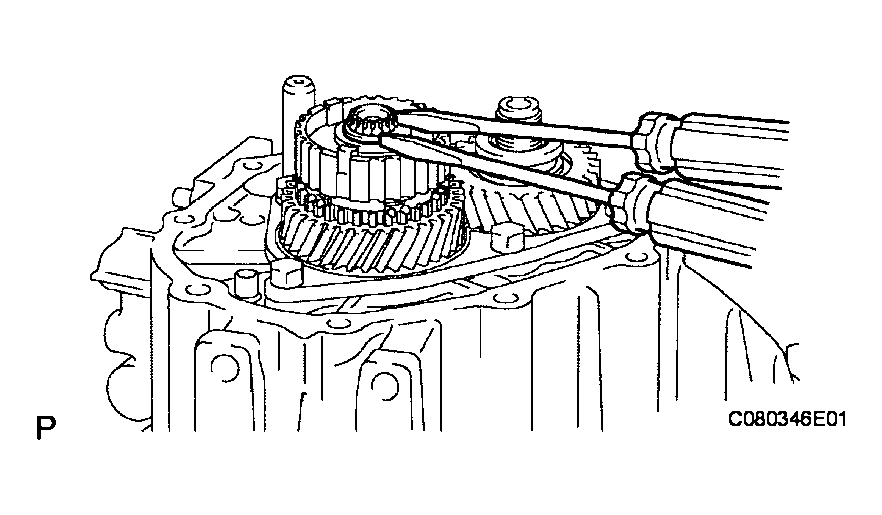

      Fig 22: Tapping Snap Ring Using Screwdrivers
      G04228128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use a cloth to keep the snap ring from springing away.

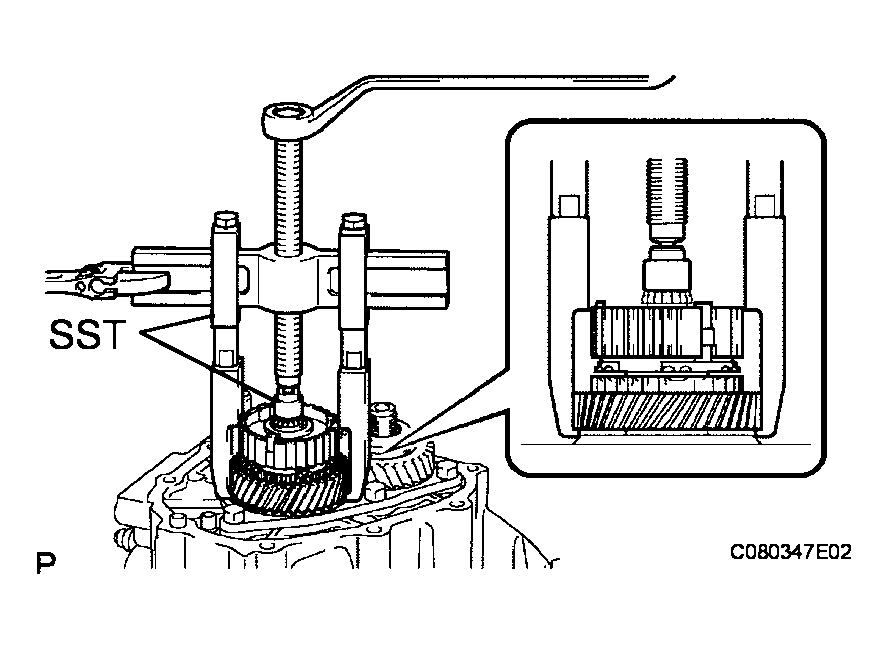

    2. Using SST, remove the No. 3 transmission clutch hub, 5th gear and No. 3 synchronizer ring from the input shaft.
      Fig 23: Removing Transmission Clutch Hub, Gear And Synchronizer Ring From Input Shaft
      G04228129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-40011 (09951-04020, 09952-04010,

      09953-04030, 09954-04010, 09955-04071,

      09957-04010), 09950-60010 (09951-00200)

    3. Remove the 3 synchromesh shifting keys and 2 synchromesh shifting key springs from the No. 3 transmission clutch hub.
      Fig 24: Removing Synchromesh Shifting Keys And Synchromesh Shifting Key Springs From Transmission Clutch Hub
      G04228130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE 5TH GEAR NEEDLE ROLLER BEARING

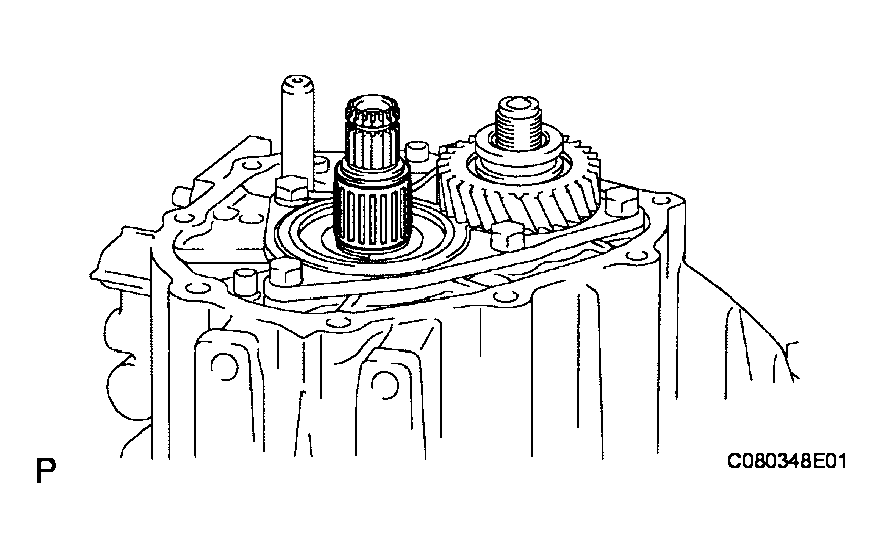

    1. Remove the 5th gear needle roller bearing and 5th gear bearing spacer from the input shaft.
      Fig 25: Removing Gear Needle Roller Bearing
      G04228131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE 5TH DRIVEN GEAR

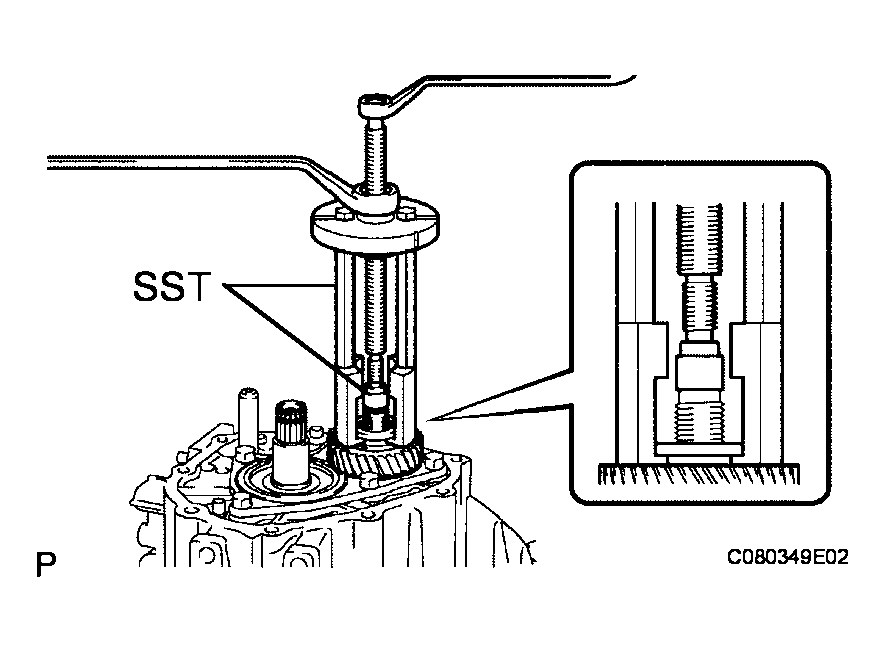

    1. Using SST, remove the 5th driven gear from the output shaft.
      Fig 26: Removing Driven Gear From Output Shaft
      G04228132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-30012 (09951-03010, 09953-03010,

      09954-03010, 09955-03011, 09957-04010),

      09950-60010 (09951-00190)

  23. REMOVE REAR BEARING RETAINER

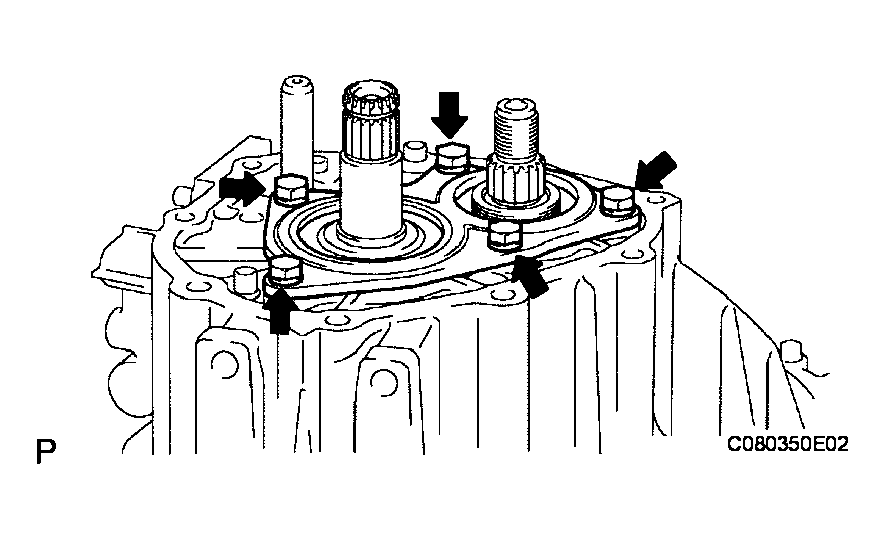

    1. Remove the 5 bolts and bearing retainer from the manual transmission case.
      Fig 27: Removing Bolts And Bearing Retainer From Manual Transmission Case
      G04228133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE OUTPUT SHAFT REAR BEARING HOLE SNAP RING

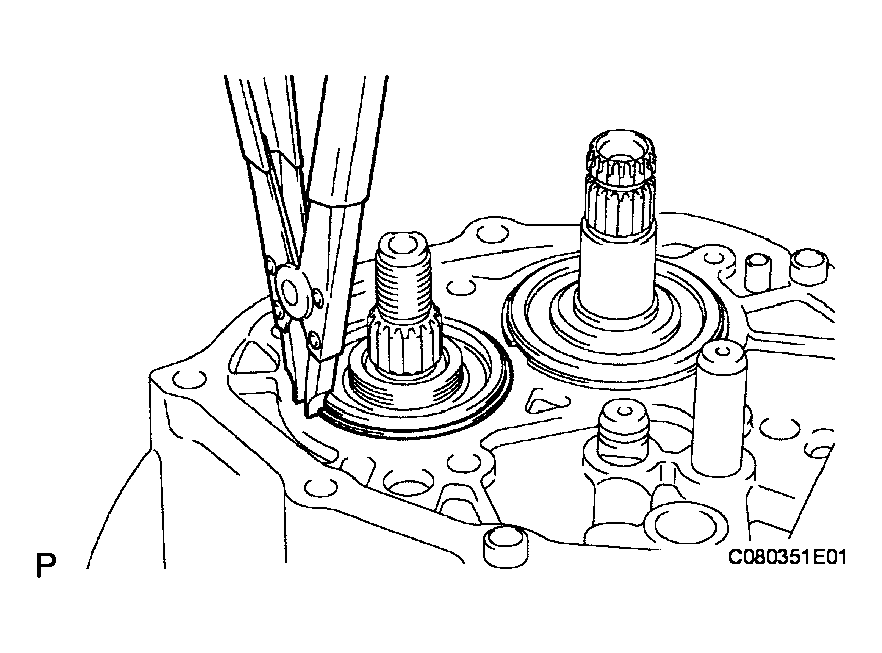

    1. Using a snap ring expander, remove the hole snap ring from the output shaft.
      Fig 28: Removing Hole Snap Ring From Output Shaft Using Snap Ring Expander
      G04228134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE INPUT SHAFT REAR BEARING HOLE SNAP RING

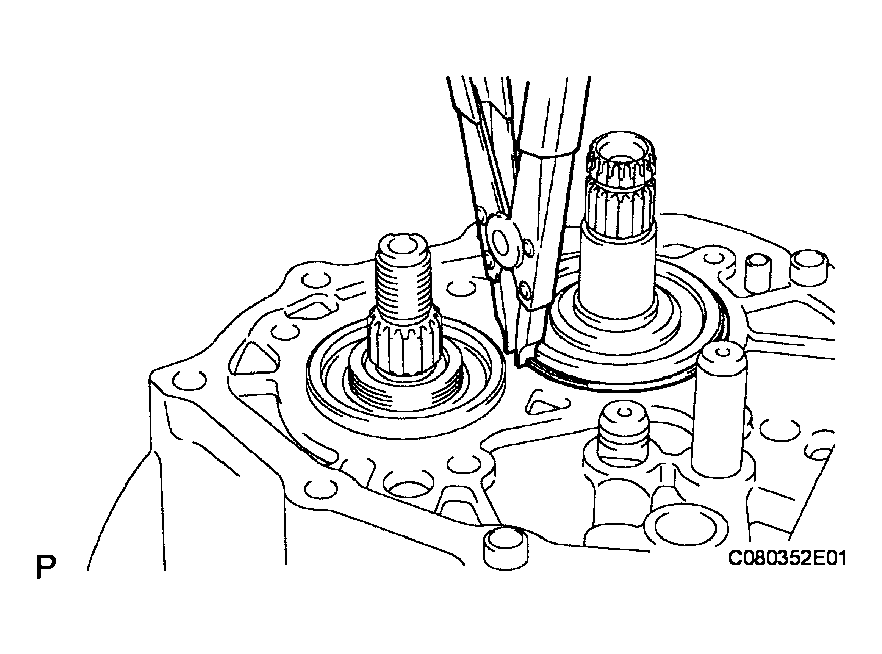

    1. Using a snap ring expander, remove the hole snap ring from the input shaft.
      Fig 29: Removing Hole Snap Ring From Input Shaft Using Snap Ring Expander
      G04228135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

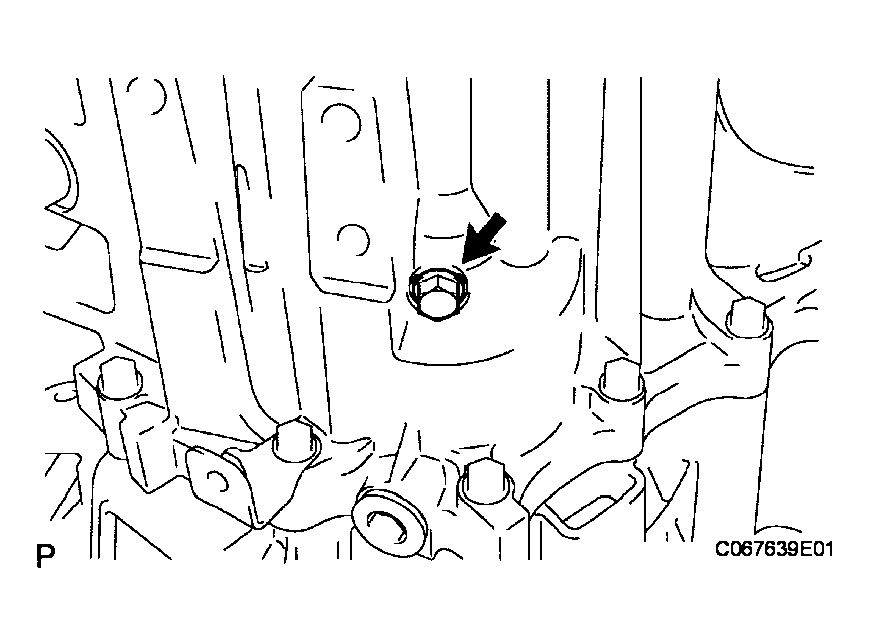

  26. REMOVE REVERSE IDLER GEAR SHAFT BOLT
    1. Remove the shaft bolt and gasket from the transmission case.
      Fig 30: Removing Shaft Bolt And Gasket From Transmission Case
      G04228136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SHIFT FORK SHAFT SNAP RING

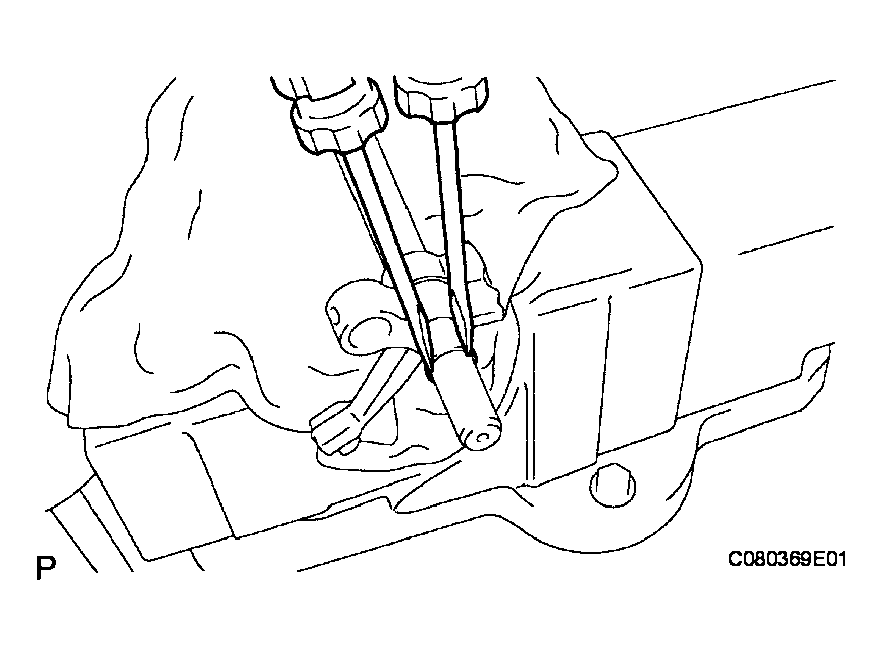

    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 2 gear shift fork shaft.
      Fig 31: Tapping Snap Ring From Gear Shift Fork Shaft
      G04228137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use a cloth to keep the snap ring from springing away.
  28. REMOVE SHIFT DETENT BALL
    1. Using a hexagon wrench, remove the 2 shift detent ball plugs from the transmission case.

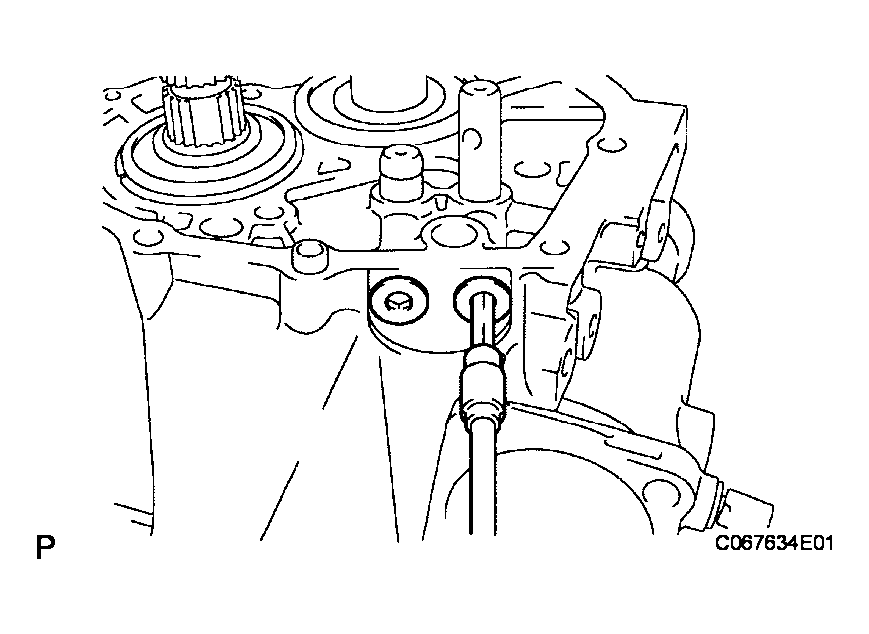

      Fig 32: Removing Shift Detent Ball Plugs From Transmission Case
      G04228138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

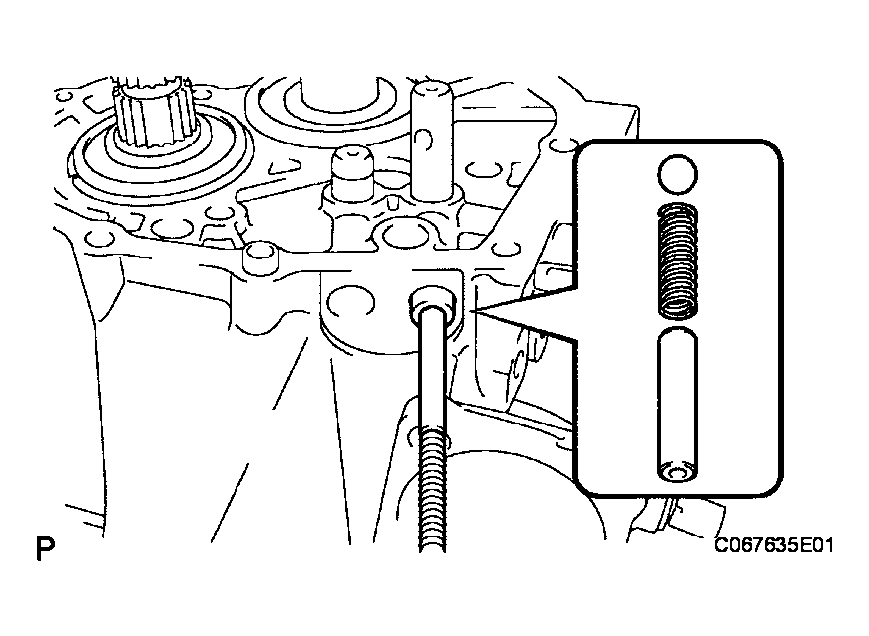

    2. Using a magnetic finger, remove the 2 No. 1 shift detent ball spring seats, 2 shift detent ball springs and 2 shift detent balls from the transmission case.
      Fig 33: Removing Shift Detent Ball Spring Seats, Shift Detent Ball Springs And Shift Detent Balls
      G04228139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

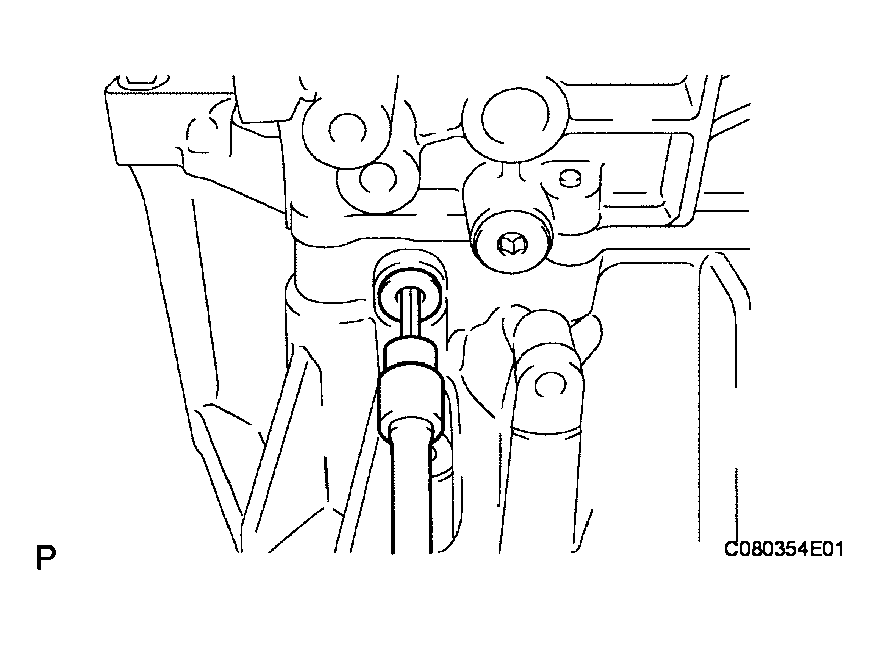

    3. Using a hexagon wrench, remove the shift detent ball plug from the front transaxle case.
      Fig 34: Removing Shift Detent Ball Plug From Front Transaxle Case
      G04228140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

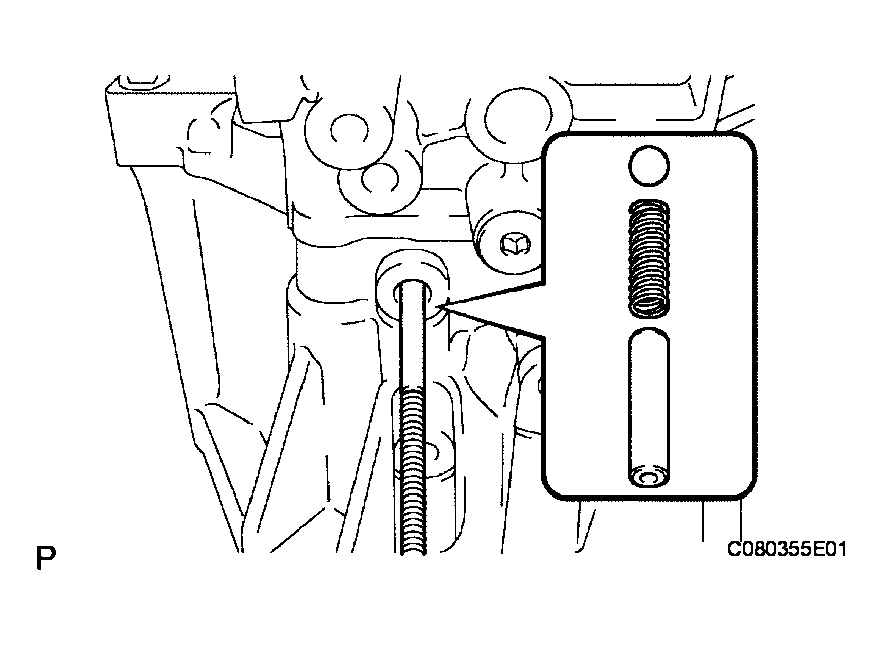

    4. Using a magnetic finger, remove the seat, spring and ball from the front transaxle case.
      Fig 35: Removing Seat, Spring And Ball From Front Transaxle Case Using Magnetic Finger
      G04228141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 2 LOCK BALL ASSEMBLY

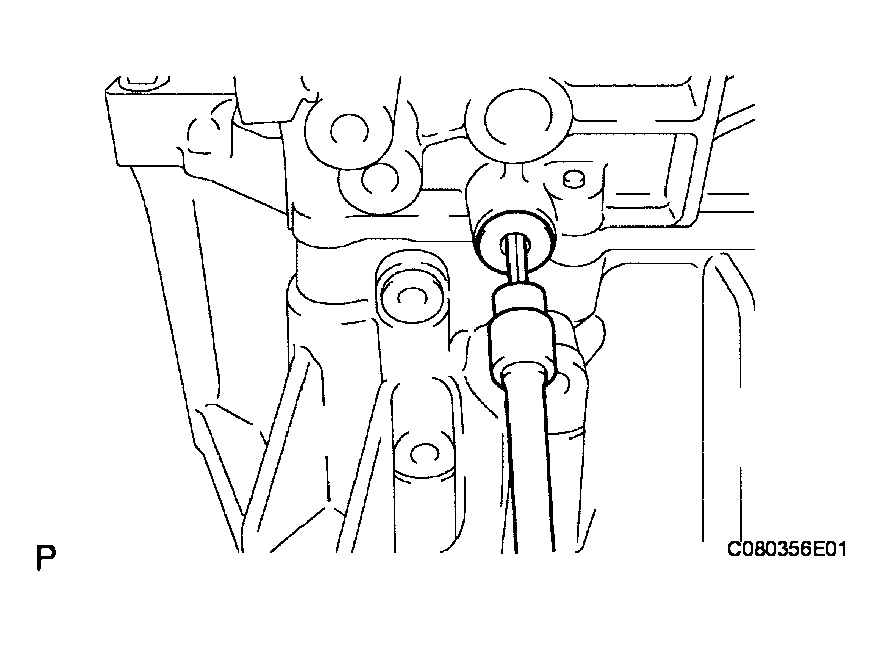

    1. Using a hexagon wrench, remove the No. 2 lock ball from the transmission case.
      Fig 36: Removing Lock Ball From Transmission Case
      G04228142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE MANUAL TRANSMISSION CASE
    1. Remove the 3 bolts from the front transaxle case.

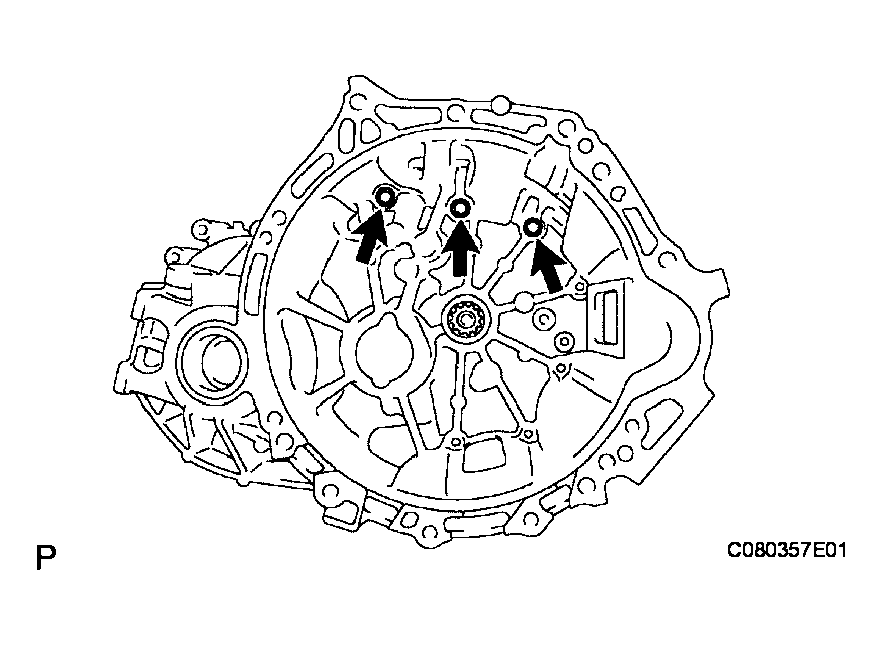

      Fig 37: Removing Bolts From Front Transaxle Case
      G04228143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 13 bolts from the transmission case.

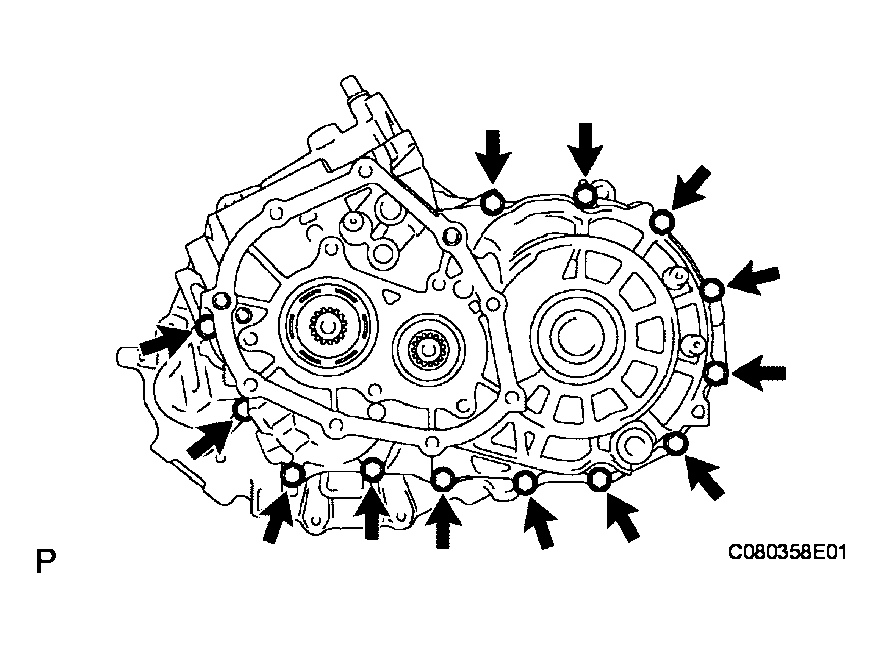

      Fig 38: Removing Bolts From Transmission Case
      G04228144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brass bar and hammer, carefully tap the projection of the transmission case to remove it from the transaxle case.

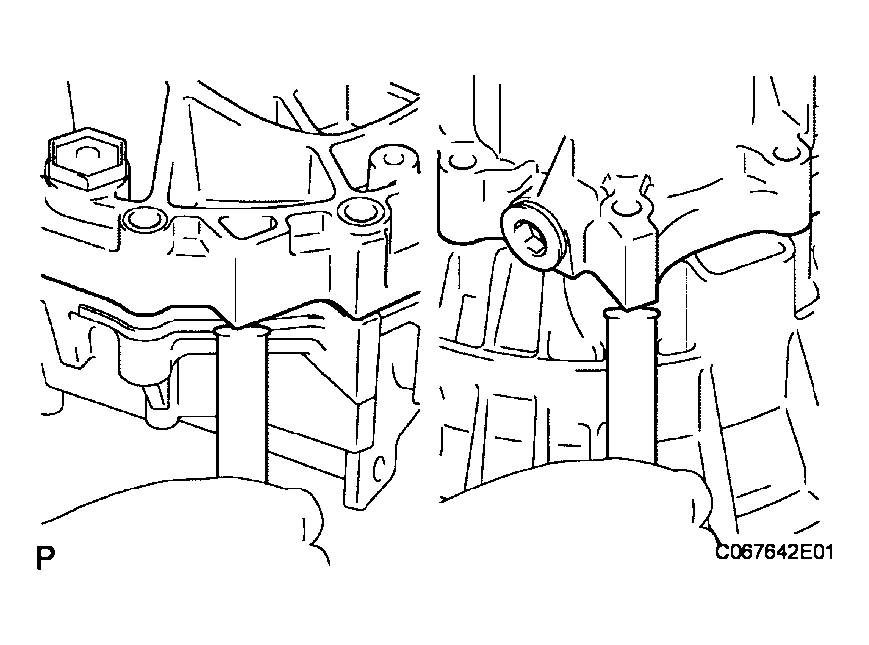

      Fig 39: Tapping Projection Of Transmission Case
      G04228145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not damage the transmission case and transaxle case.
  31. REMOVE REVERSE IDLER GEAR SUB-ASSEMBLY

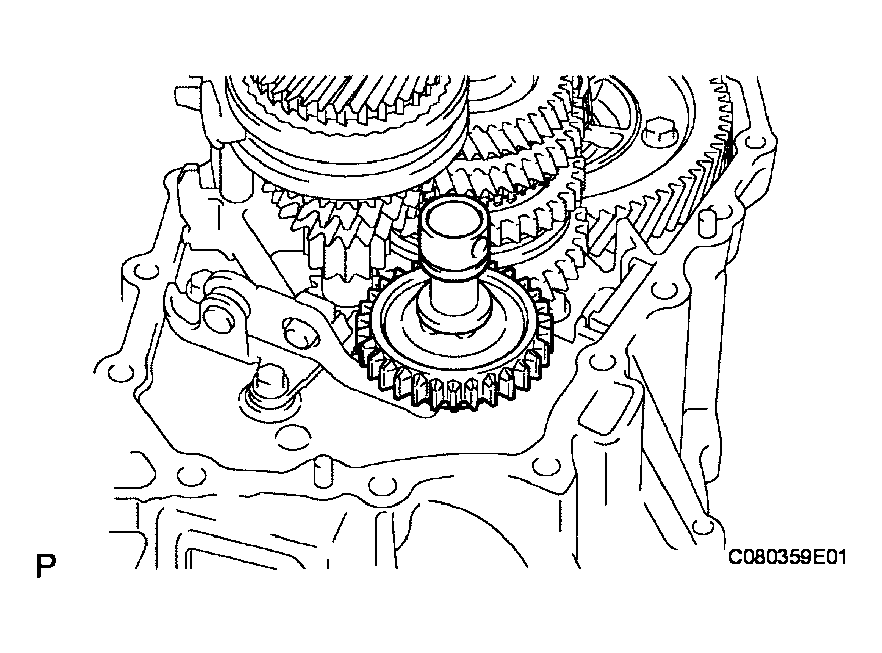

    1. Remove the reverse idler gear, thrust washer and reverse idler gear shaft from the front transaxle case.
      Fig 40: Removing Reverse Idler Gear, Thrust Washer And Reverse Idler Gear Shaft
      G04228146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REVERSE SHIFT ARM BRACKET ASSEMBLY

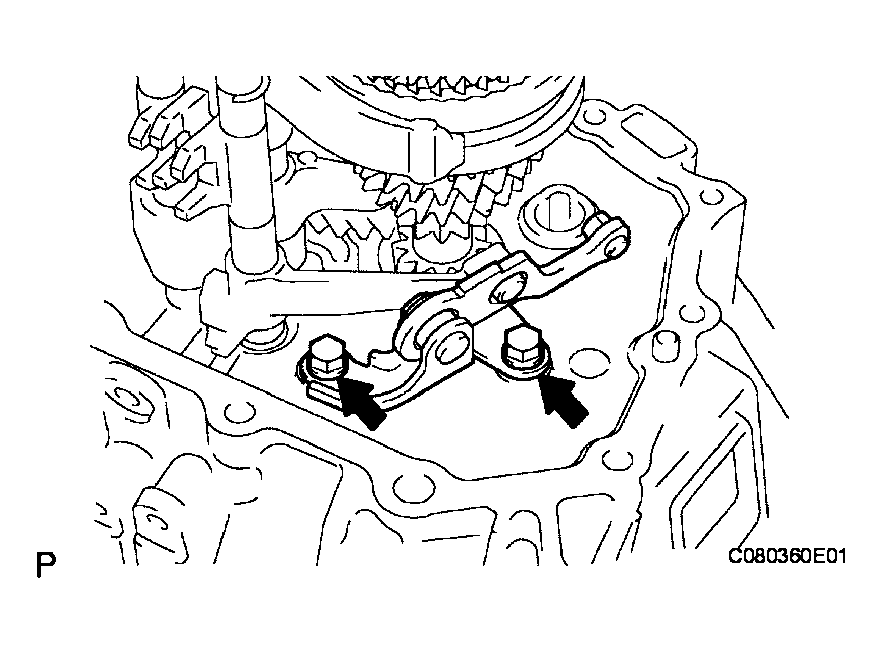

    1. Remove the 2 bolts and reverse shift arm bracket from the front transaxle case.
      Fig 41: Removing Bolts And Reverse Shift Arm Bracket From Front Transaxle Case
      G04228147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

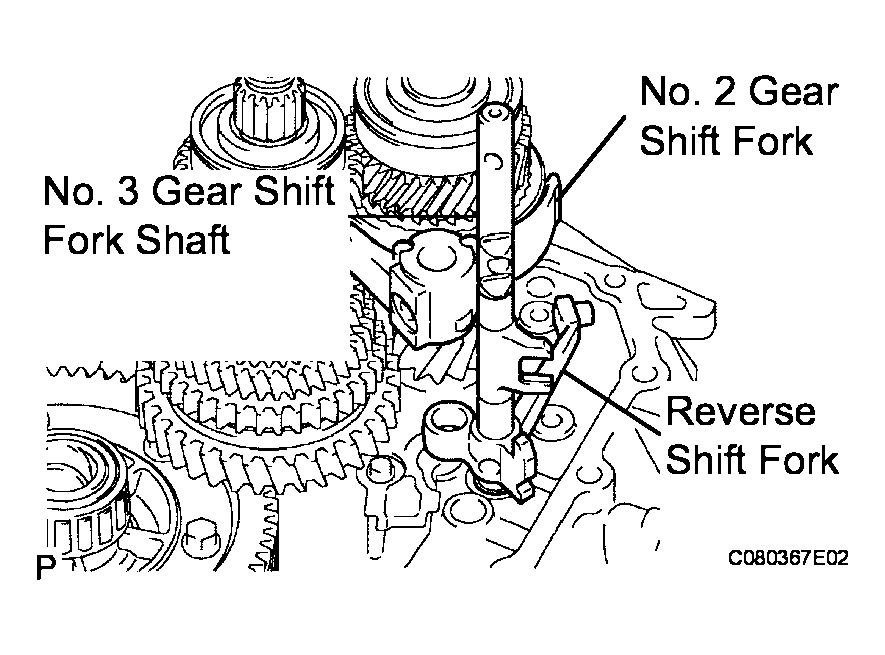

  33. REMOVE NO. 2 GEAR SHIFT FORK SHAFT
    1. Remove the 2 bolts from the No. 2 gear shift fork and No. 1 gear shift head.

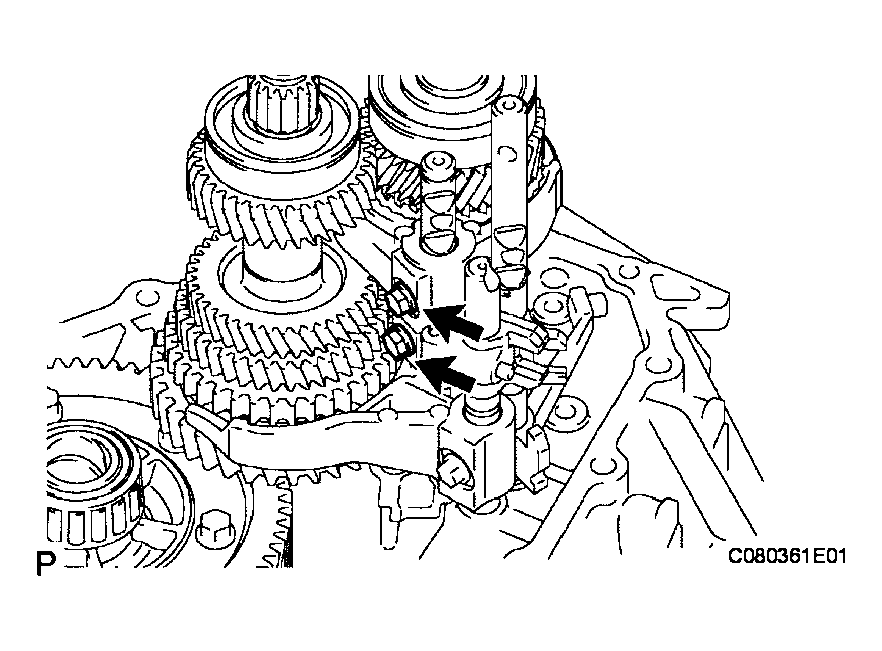

      Fig 42: Removing Bolts From Gear Shift Fork And Gear Shift Head
      G04228148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 gear shift fork shaft and No. 1 gear shift head from the front transaxle case.

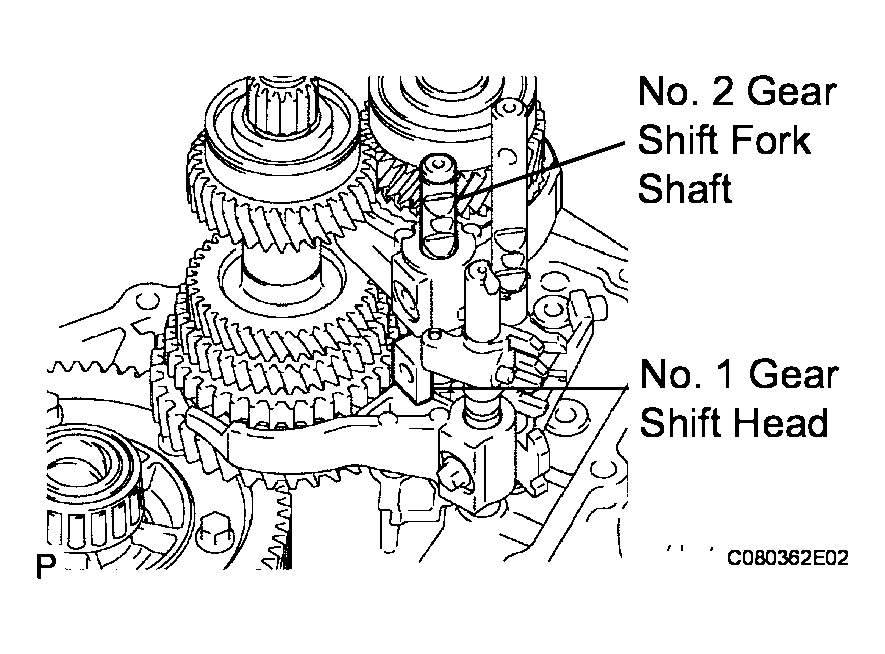

      Fig 43: Removing Gear Shift Fork Shaft And Gear Shift Head From Front Transaxle Case
      G04228149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 1 GEAR SHIFT FORK SHAFT

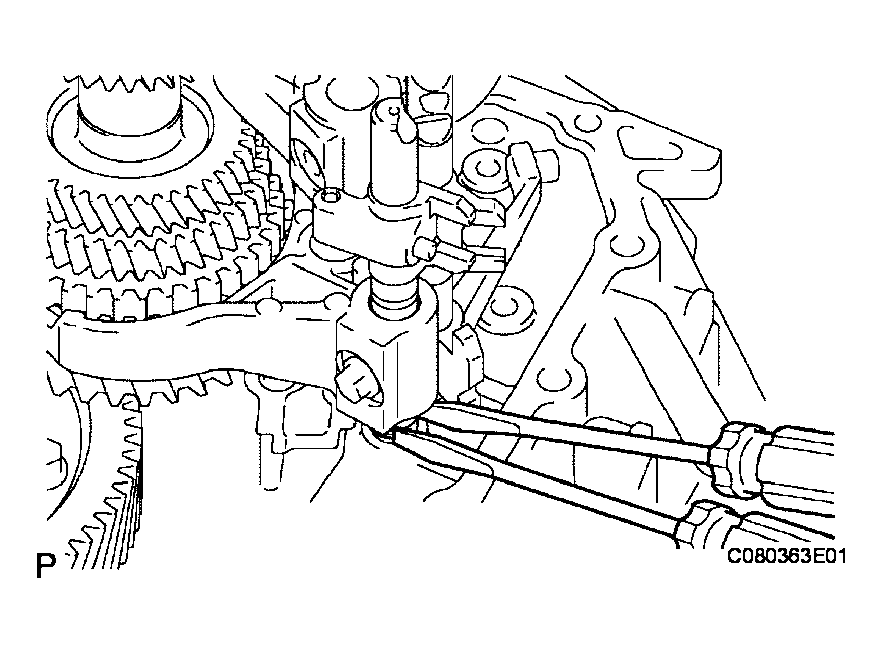

    1. Using 2 screwdrivers and a hammer, tap out the snap ring.
      Fig 44: Tapping Snap Ring
      G04228150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use a cloth to keep the snap ring from springing away.

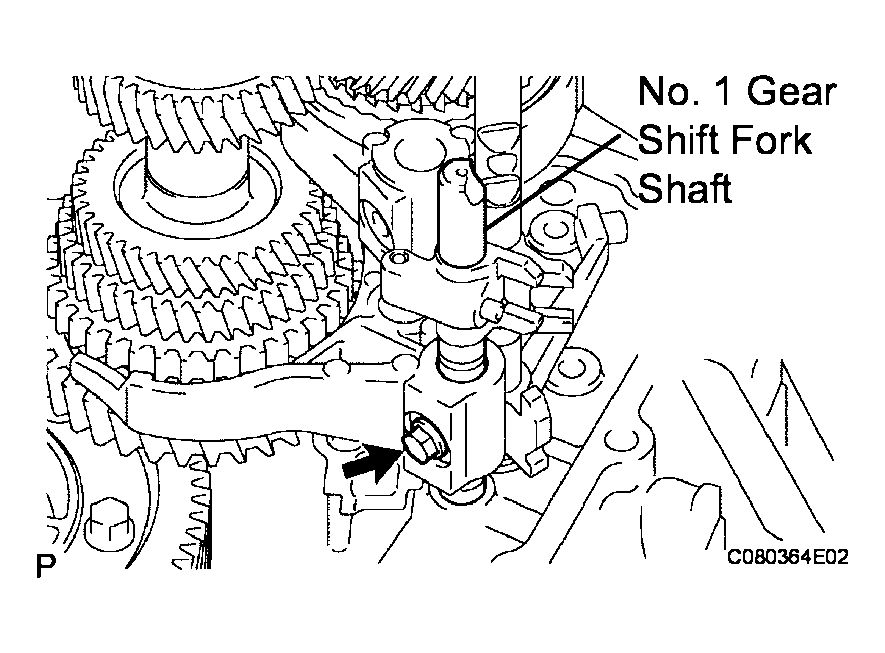

    2. Remove the shift fork set bolt and No. 1 gear shift fork shaft from the No. 1 gear shift fork.
      Fig 45: Tapping Snap Ring
      G04228151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 gear shift fork.

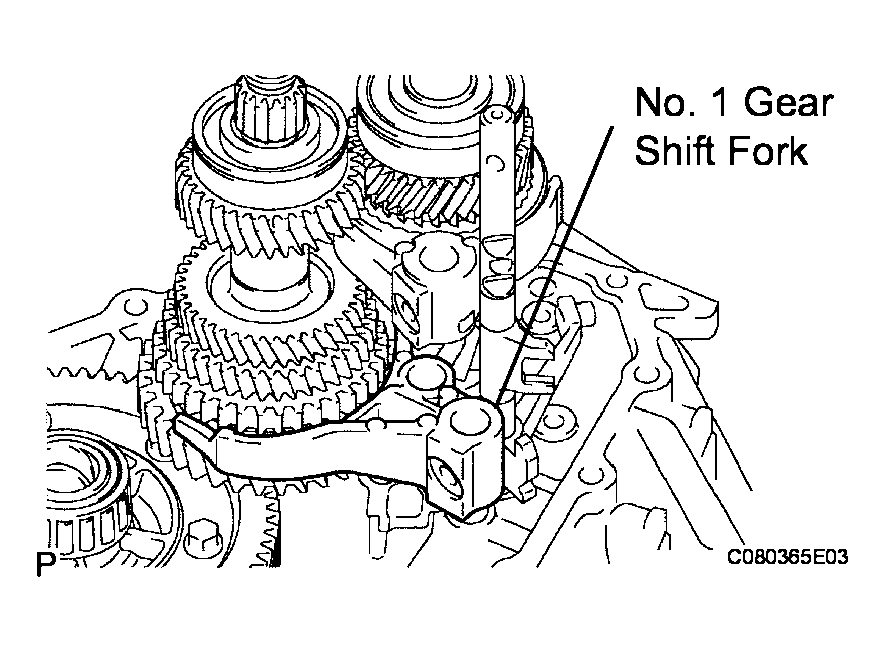

      Fig 46: Removing Gear Shift Fork
      G04228152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

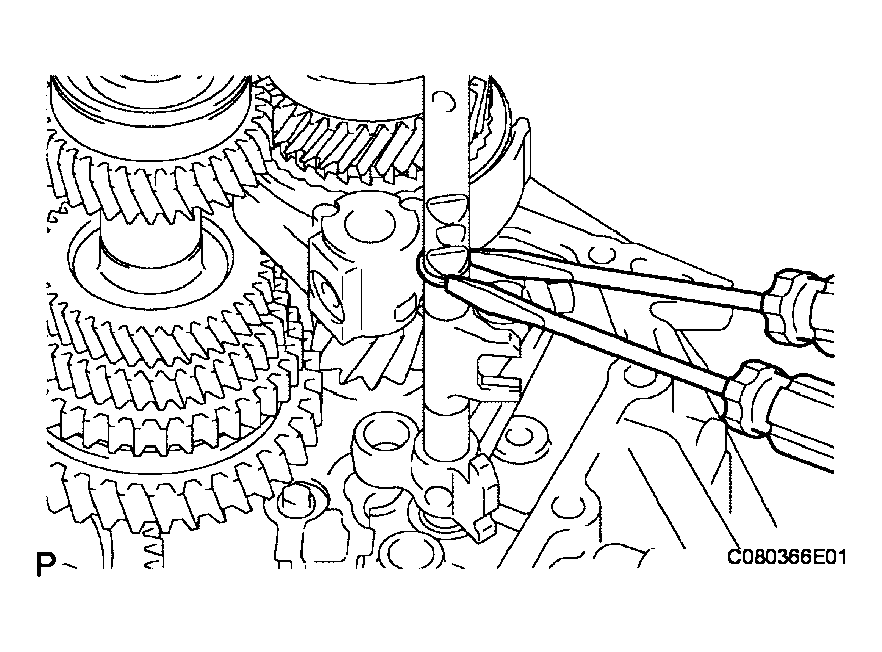

  35. REMOVE NO. 3 GEAR SHIFT FORK SHAFT
    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 3 gear shift fork shaft.
      Fig 47: Tapping Snap Ring From Gear Shift Fork Shaft
      G04228153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use a cloth to keep the snap ring from springing away.
    2. Remove the No. 3 gear shift fork shaft with reverse shift fork and No. 2 gear shift fork from the transaxle case.
      Fig 48: Removing Gear Shift Fork Shaft With Reverse Shift Fork And Gear Shift Fork
      G04228154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a magnetic finger, remove the 2 reverse shift fork balls from the reverse shift fork.
      Fig 49: Removing Reverse Shift Fork Balls From Reverse Shift Fork
      G04228155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 3 shift fork shaft.
      Fig 50: Tapping Snap Ring From Shift Fork Shaft
      G04228156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use a cloth to keep the snap ring from springing away.
    5. Remove the reverse shift fork from the No. 3 gear shift fork shaft.
  36. REMOVE INPUT SHAFT ASSEMBLY
    1. Remove the input shaft and output shaft from the front transaxle case.

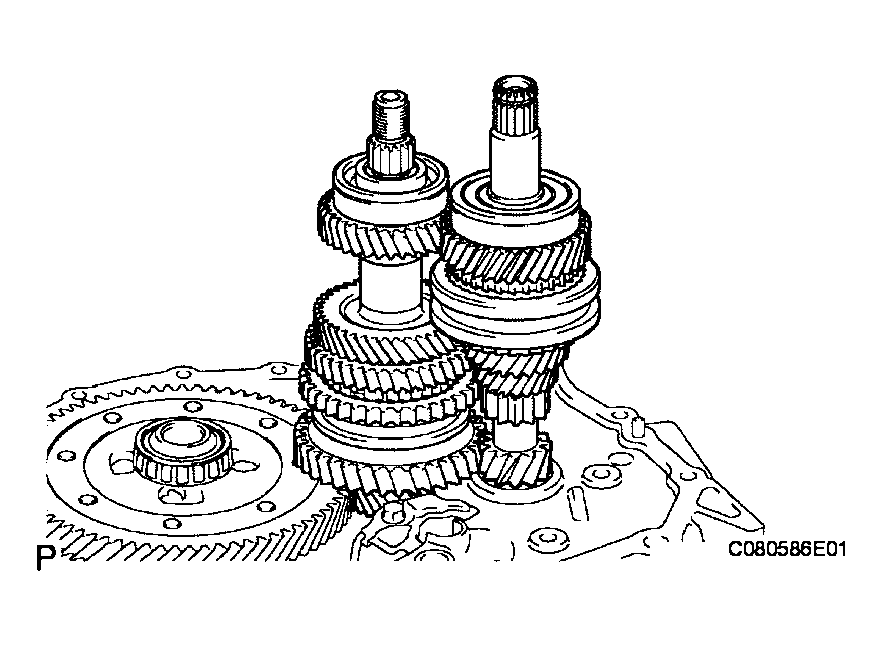

      Fig 51: Removing Input Shaft And Output Shaft From Front Transaxle Case
      G04228157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE DIFFERENTIAL CASE ASSEMBLY
    1. Remove the differential case from the front transaxle case.

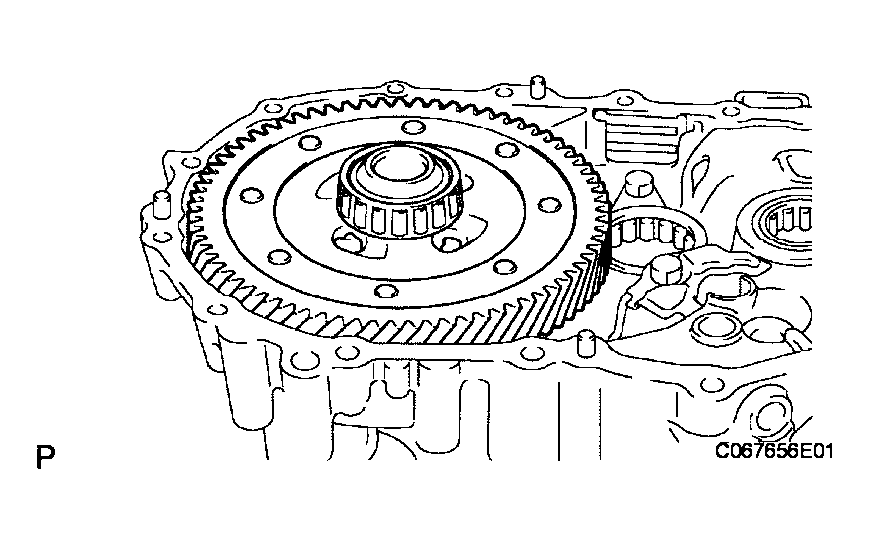

      Fig 52: Removing Differential Case From Front Transaxle Case
      G04228158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE MANUAL TRANSAXLE CASE RECEIVER
    1. Remove the bolt and transaxle case receiver from the front transaxle case.

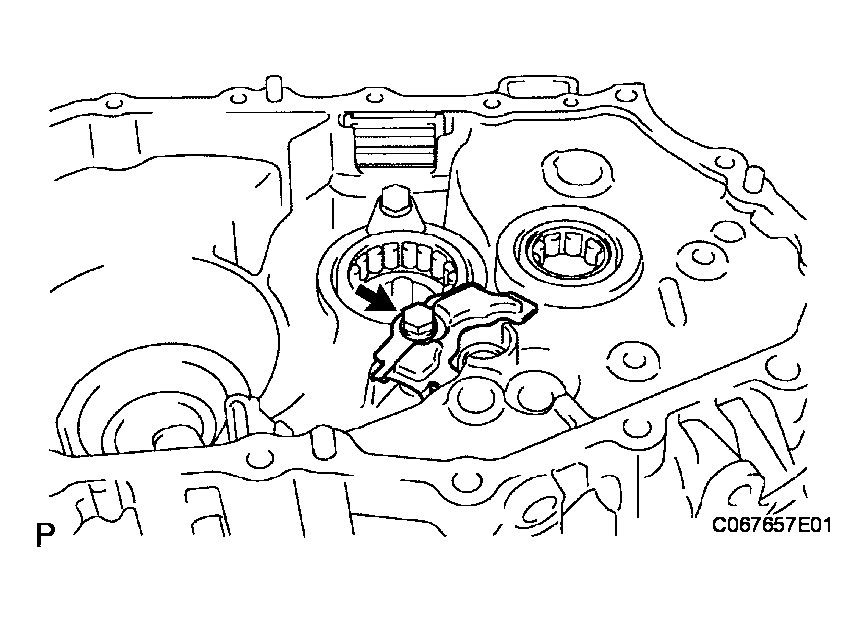

      Fig 53: Removing Bolt And Transaxle Case Receiver From Front Transaxle Case
      G04228159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REVERSE RESTRICT PIN ASSEMBLY
    1. Using a hexagon wrench, remove the reverse restrict pin plug from the transmission case.

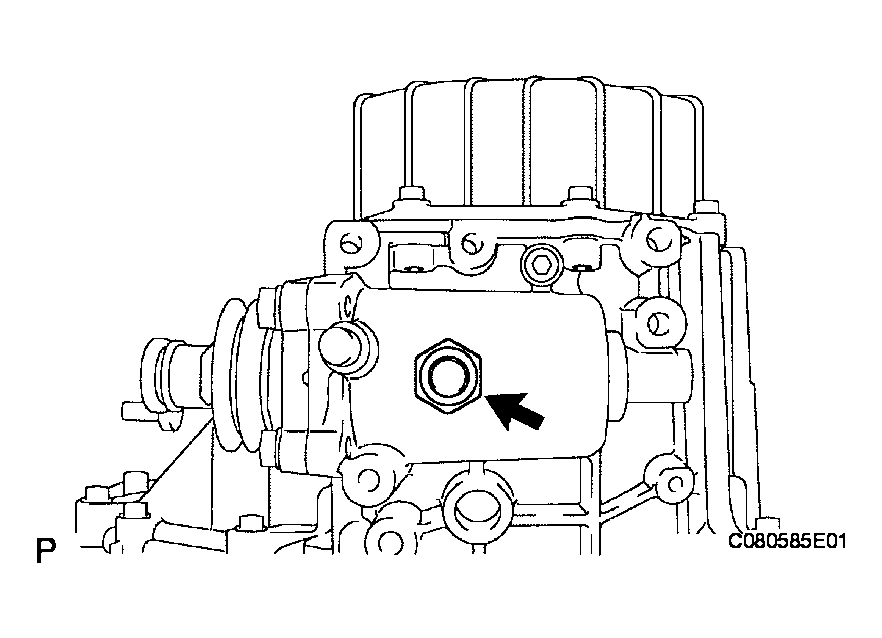

      Fig 54: Removing Reverse Restrict Pin Plug From Transmission Case
      G04228160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 5 mm pin punch and hammer, tap out the slotted spring pin and remove the reverse restrict pin from the transmission case.
      Fig 55: Tapping Slotted Spring Pin
      G04228161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 1 OIL RECEIVER PIPE
    1. Remove the bolt and No. 1 oil receiver pipe from the transmission case.

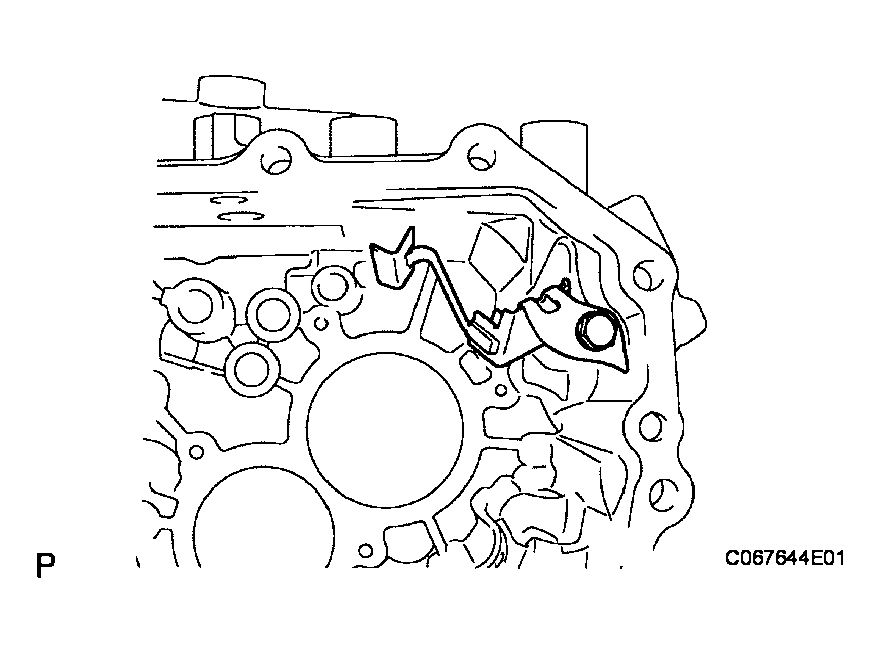

      Fig 56: Removing Bolt And Oil Receiver Pipe From Transmission Case
      G04228162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to damage the No. 1 oil receiver pipe.
  41. REMOVE NO. 2 OIL RECEIVER PIPE
    1. Remove the bolt and No. 2 oil receiver pipe from the transmission case.

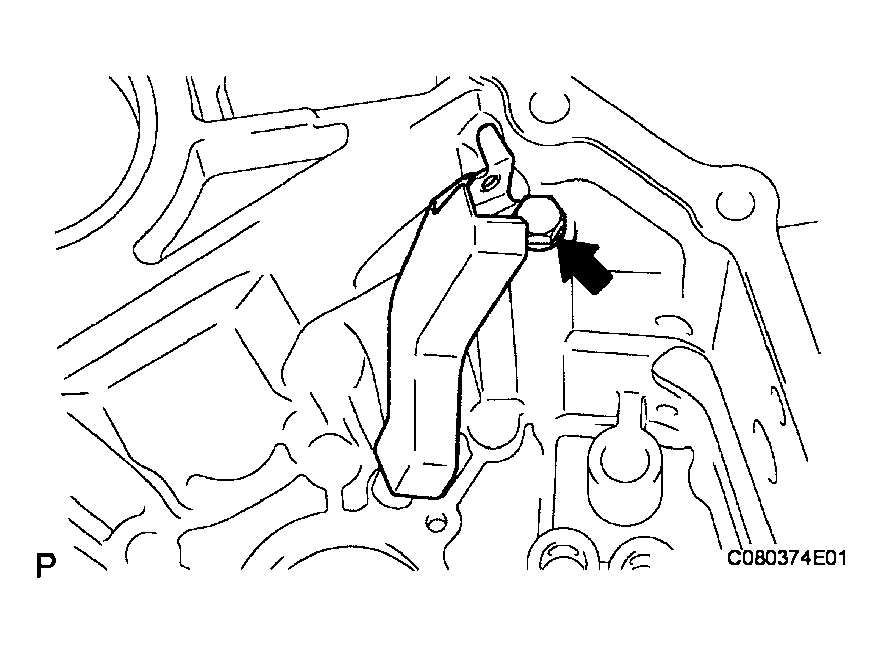

      Fig 57: Removing Bolt And Oil Receiver Pipe From Transmission Case
      G04228163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to damage the No. 2 oil receiver pipe.
  42. REMOVE BEARING LOCK PLATE
    1. Remove the bolt and bearing lock plate from the front transaxle case.

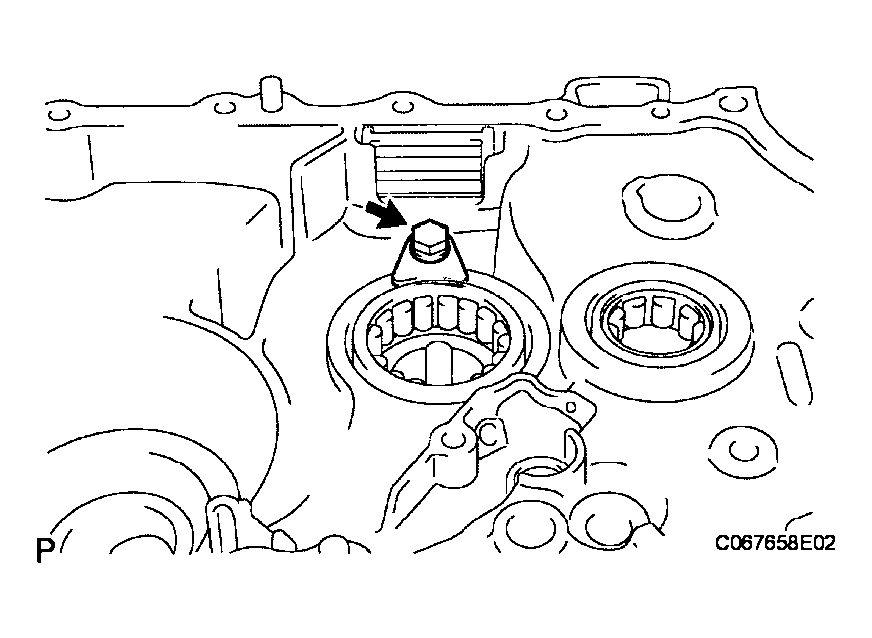

      Fig 58: Removing Bolt And Bearing Lock Plate From Front Transaxle Case
      G04228164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE TRANSMISSION MAGNET
    1. Remove the transmission magnet from the front transaxle case.

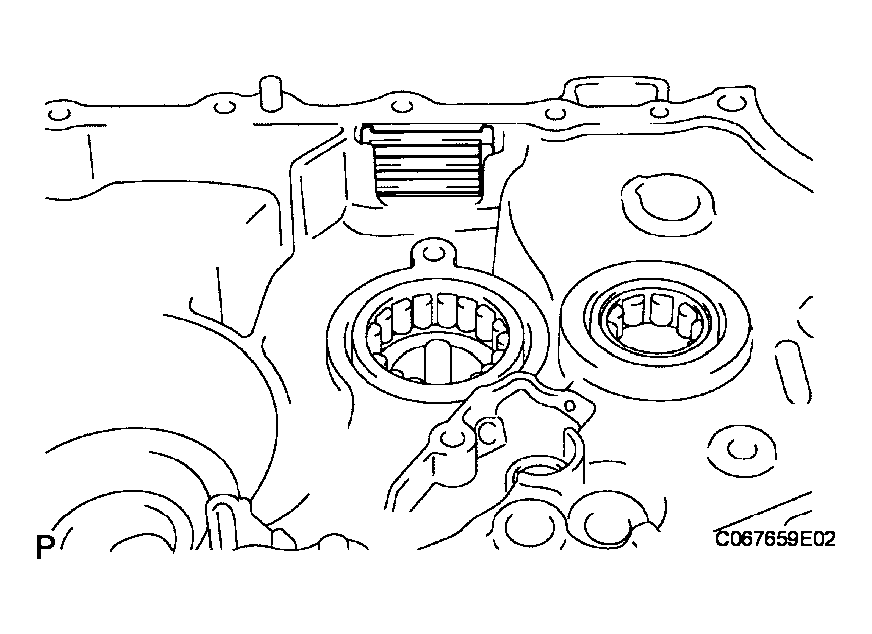

      Fig 59: Removing Transmission Magnet From Front Transaxle Case
      G04228165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE INPUT SHAFT FRONT BEARING
    1. Using SST, remove the front bearing from the front transaxle case.
      Fig 60: Removing Front Bearing From Front Transaxle Case
      G04228166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09612-65014 (09612-01050, 09612-01060)

  45. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    1. Using a screwdriver, pry out the front transaxle case oil seal from the transaxle case.

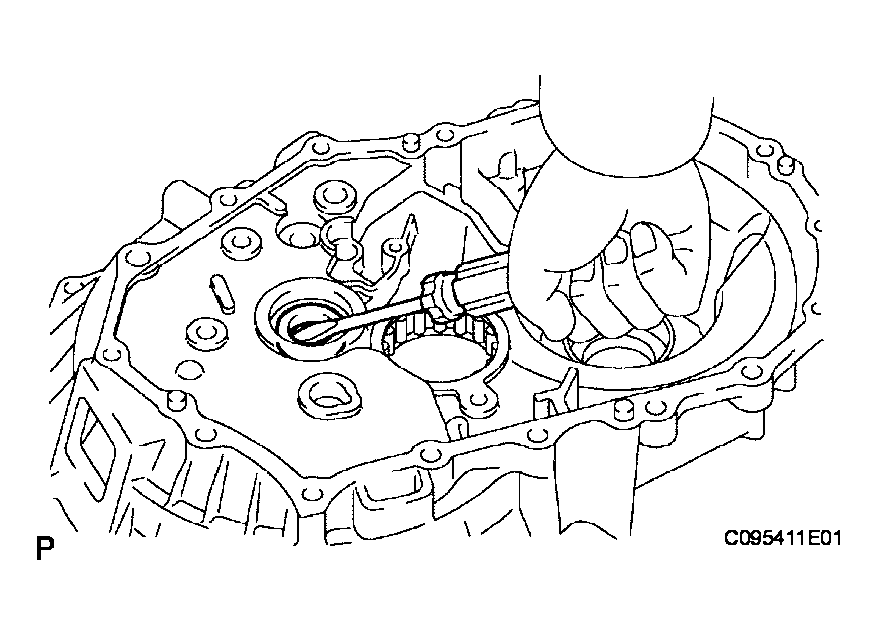

      Fig 61: Prying Front Transaxle Case Oil Seal From Transaxle Case
      G04228167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE OUTPUT SHAFT FRONT BEARING
    1. Using SST, remove the front bearing from the front transaxle case.
      Fig 62: Removing Front Bearing From Front Transaxle Case
      G04228168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09308-00010

      NOTE: Do not apply excessive force to the front transaxle case when installing SST.
  47. REMOVE OUTPUT SHAFT COVER
    1. Remove the output shaft cover from the front transaxle case.
      Fig 63: Removing Output Shaft Cover From Front Transaxle Case
      G04228169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case front tapered roller bearing (outer race) and plate washer from the front transaxle case.

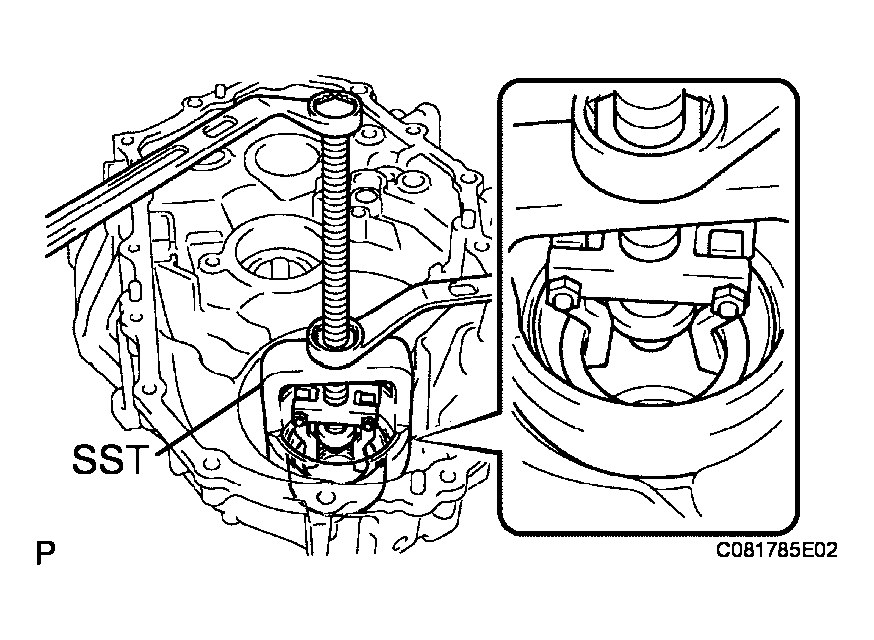

      Fig 64: Removing Front Differential Case Front Tapered Roller Bearing And Plate Washer
      G04228170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09612-65014 (09612-01040, 09612-01050)

    2. Using SST, remove the front differential case front tapered roller bearing (inner race) from the differential case assembly.
      Fig 65: Removing Front Differential Case Front Tapered Roller Bearing From Differential Case Assembly
      G04228171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-00020, 09950-00030, 09950-40011

      (09957-04010), 09950-60010 (09951-00360)

      NOTE: Be careful not to damage the bearing.
  49. REMOVE TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, tap out the transaxle case oil seal from the front transaxle case.
      Fig 66: Tapping Transaxle Case Oil Seal From Front Transaxle Case
      G04228172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-60010 (09951-00530), 09950-70010 (09951-07150)

  50. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
    1. Using SST, remove the rear tapered roller bearing (outer race) and plate washer from the transmission case.
      Fig 67: Removing Rear Tapered Roller Bearing (Outer Race) And Plate Washer From Transmission Case
      G04228173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09612-65014 (09612-01040, 09612-01050)

    2. Using SST, remove the rear tapered roller bearing (inner race) from the front differential case.

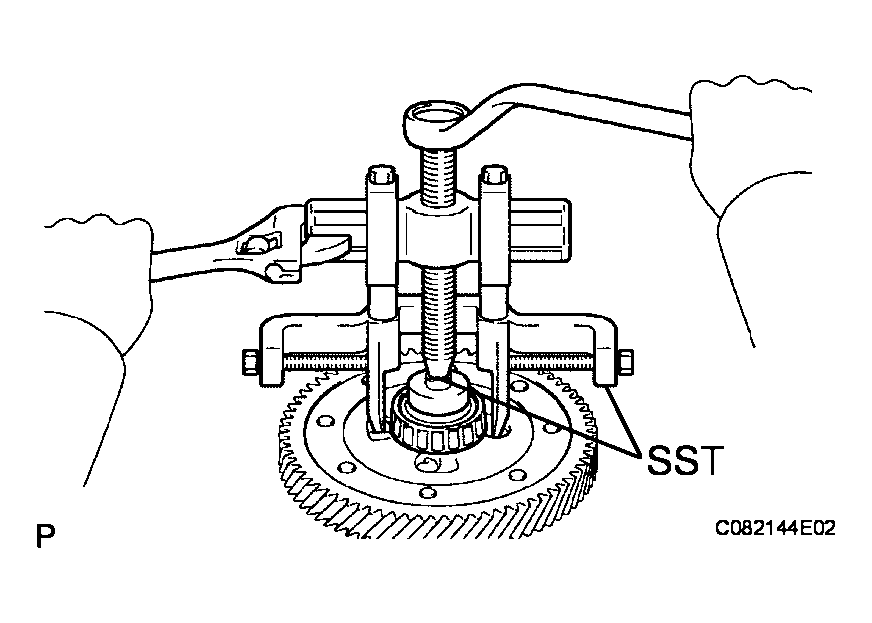

      Fig 68: Removing Rear Tapered Roller Bearing (Inner Race) From Front Differential Case
      G04228174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-40011 (09951-04010, 09952-04010,

      09953-04020, 09954-04010, 09955-04061,

      09957-04010, 09958-04011), 09950-60010 (09951-00360)

      NOTE: Be careful not to damage the bearing.
  51. REMOVE TRANSMISSION CASE OIL SEAL
    1. Using SST and a hammer, tap out the transmission case oil seal from the transmission case.

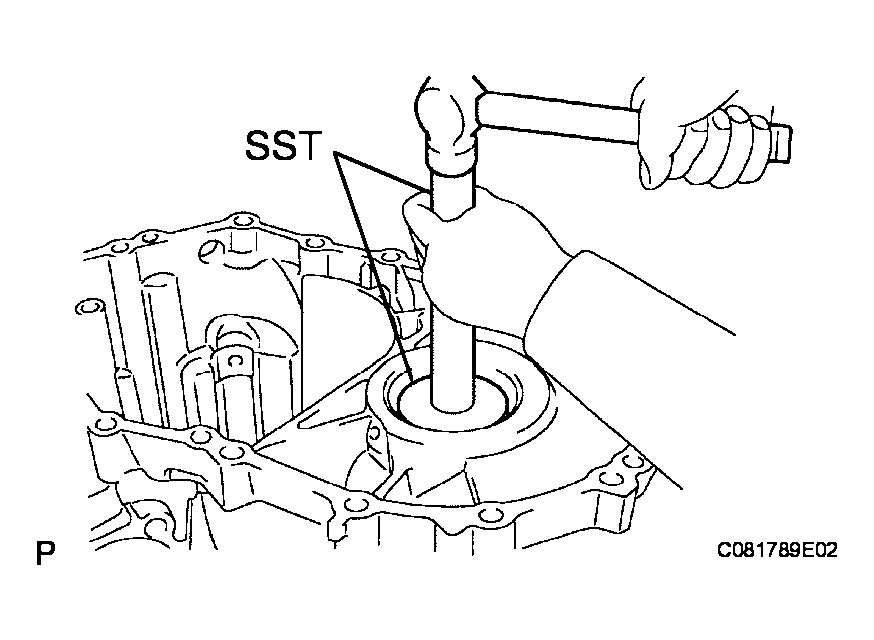

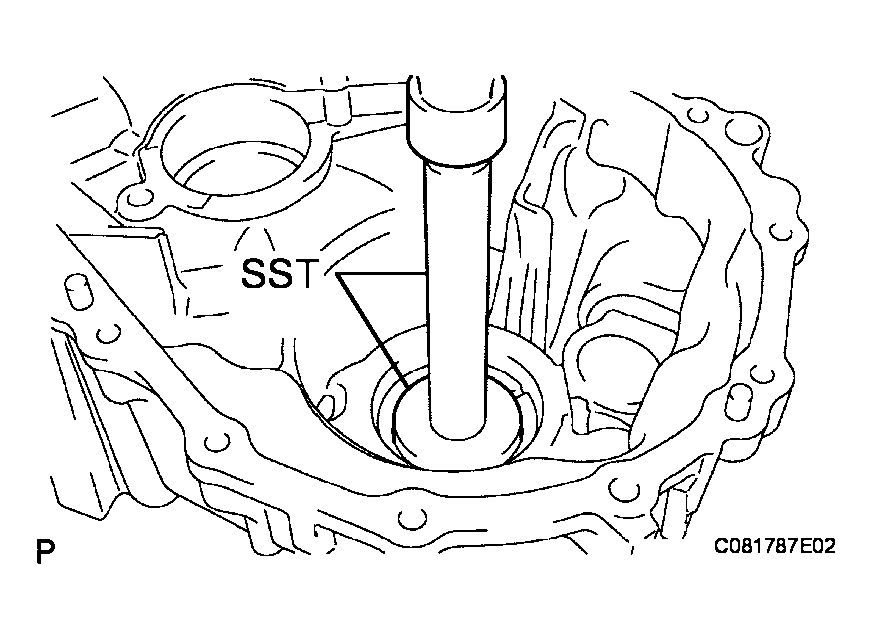

      Fig 69: Tapping Transmission Case Oil Seal From Transmission Case
      G04228175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-60010 (09951-00530), 09950-70010 (09951-07150)

  52. REMOVE SHIFT AND SELECT LEVER SHAFT BIMETAL FORMED BUSH
    1. Using SST, remove the bush.

      SST 09319-60020

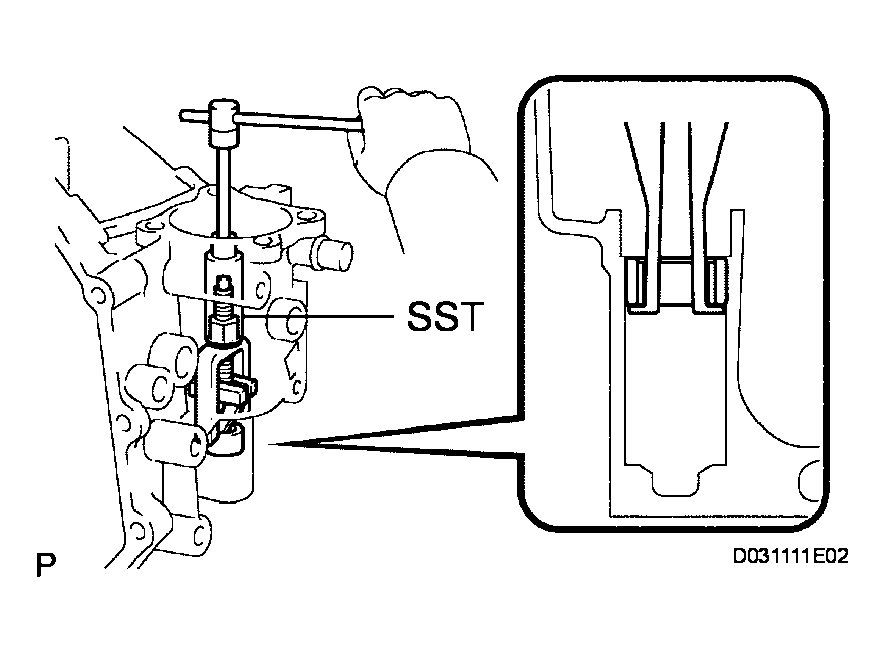

      Fig 70: Removing Bush
      G04228176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
