Rear Seat Inner Belt Assembly: Components

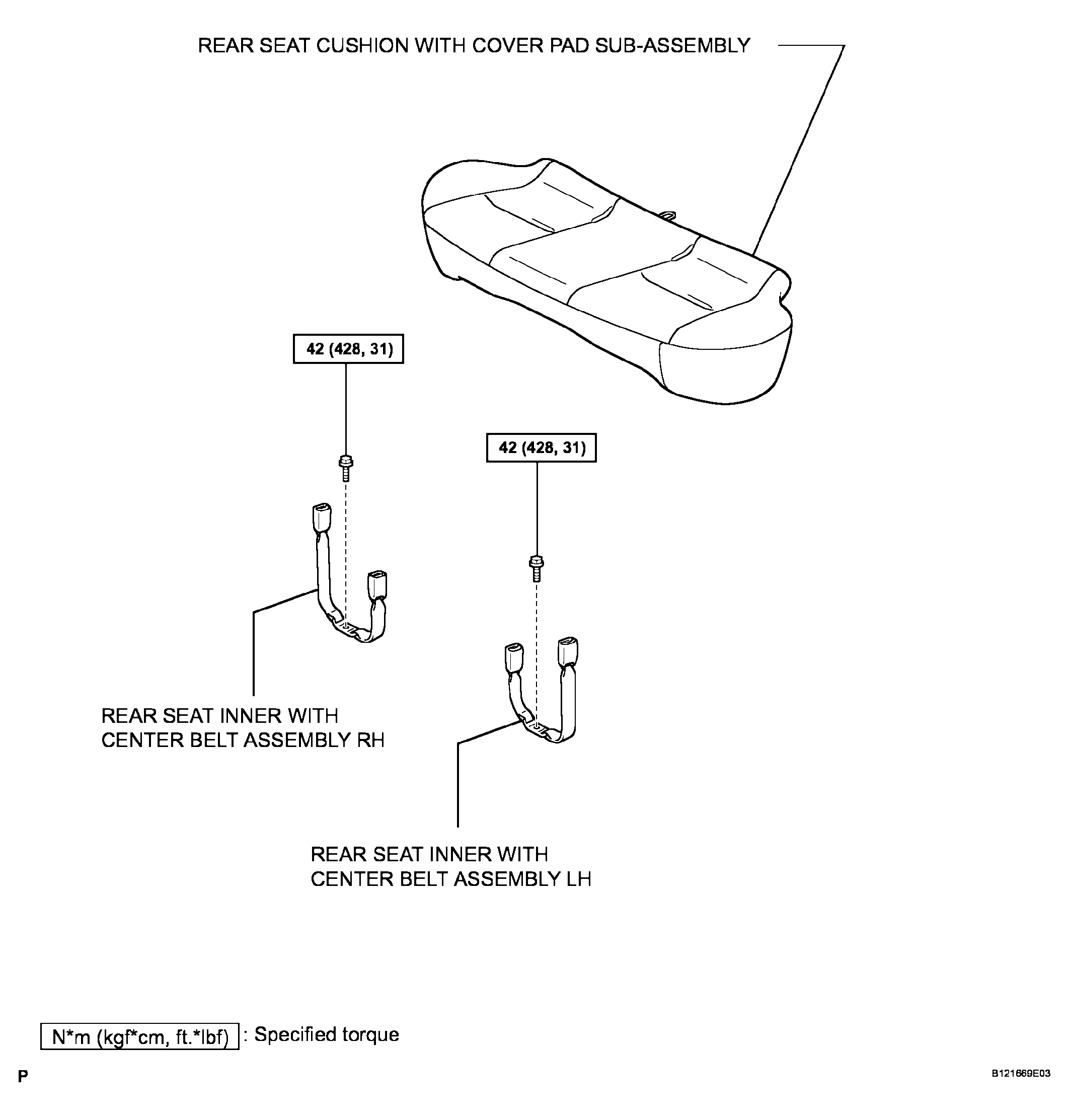

Fig 1: Identifying Rear Seat Inner Belt Assembly Components (1 Of 2)
G04229125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Seat Inner Belt Assembly Components (2 Of 2)
G04229126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
