Charging (1NZ-FE): SST

1NZ-FE CHARGING SST CHART

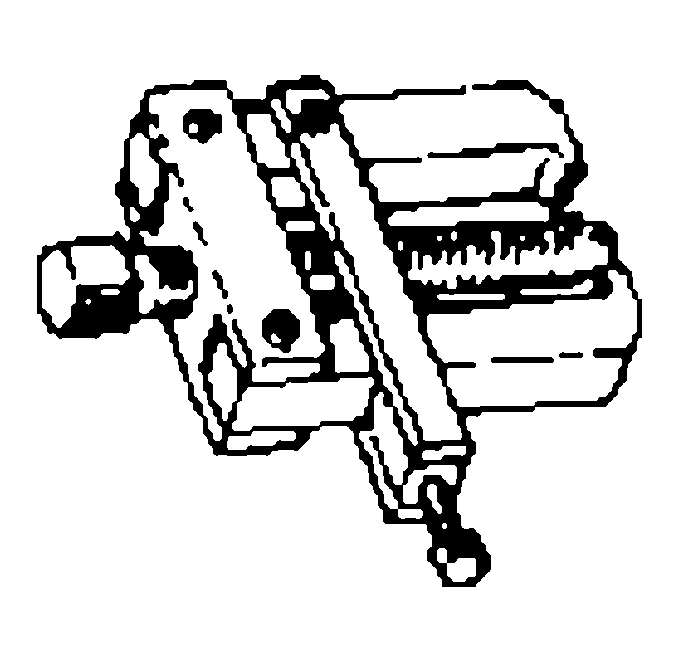

G04225018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09286-46011 Injection Pump Spline Shaft Puller -

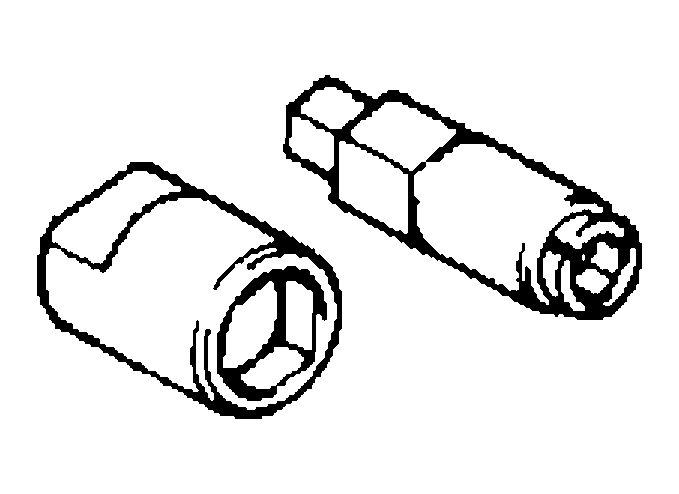

G04225019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09820-63010 Alternator Pulley Set Nut Wrench Set -

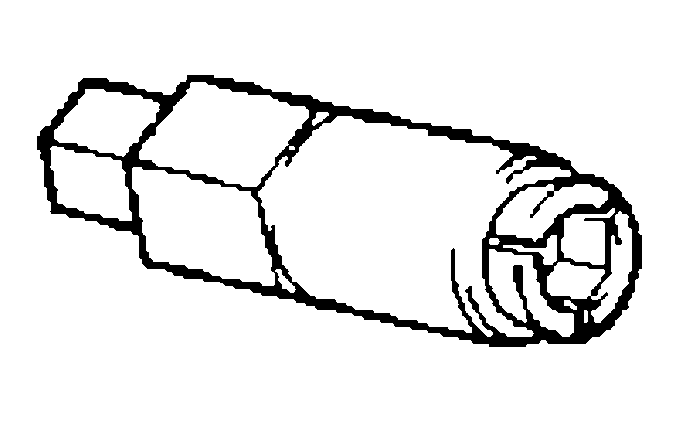

G04225020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09820-06010) Alternator Rotor Shaft Wrench -

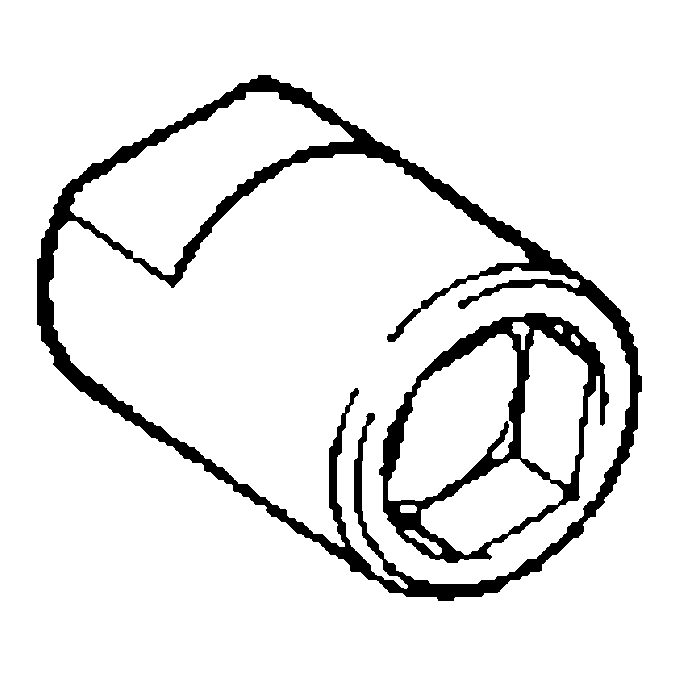

G04225021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09820-06020) Alternator Pulley Set Nut 22 mm Wrench -
