Fuel Tank: Components

Fig 1: Identifying Fuel Tank Components (1 Of 6)
G04227148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

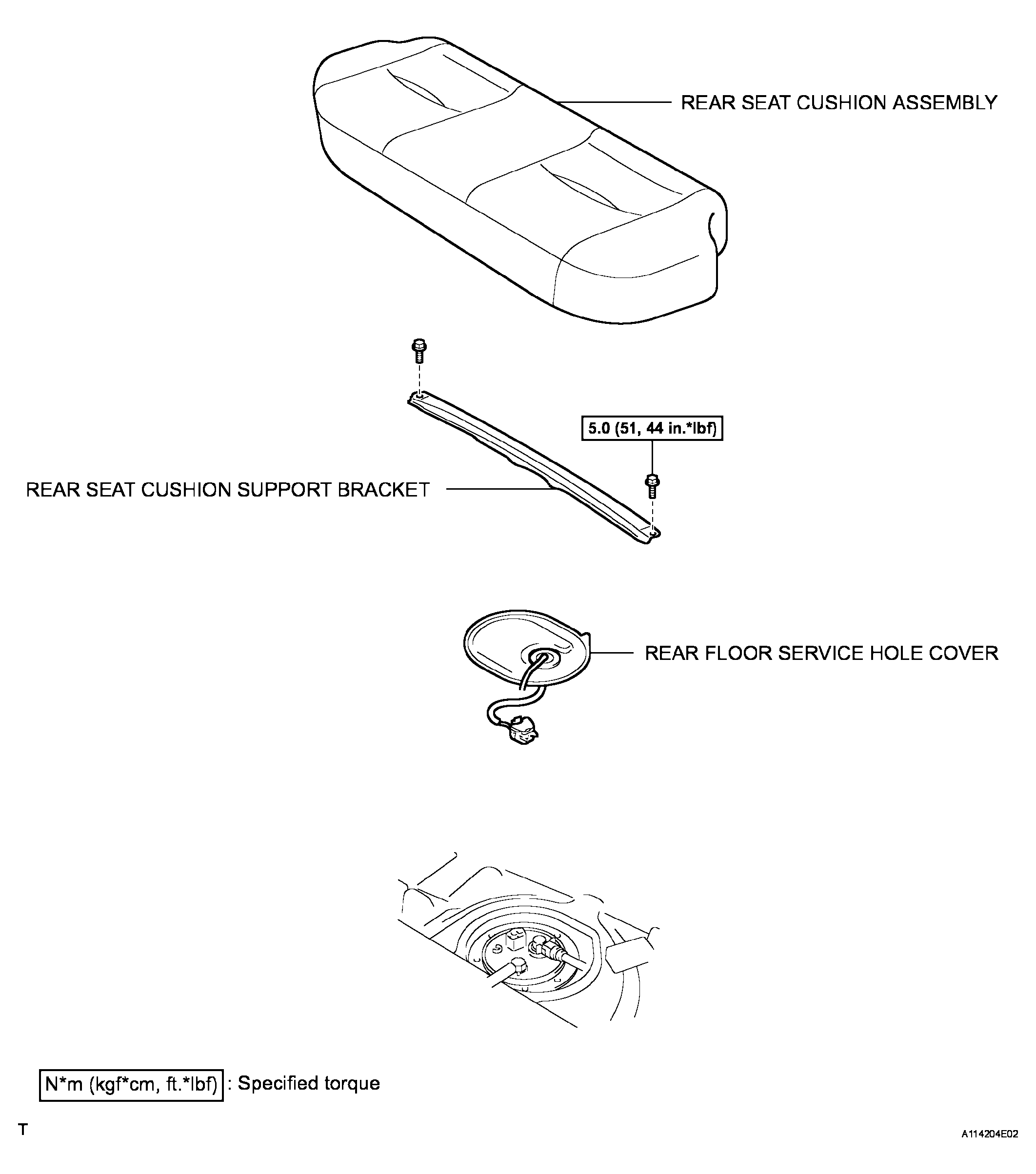

Fig 2: Identifying Fuel Tank Components (2 Of 6)
G04227149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

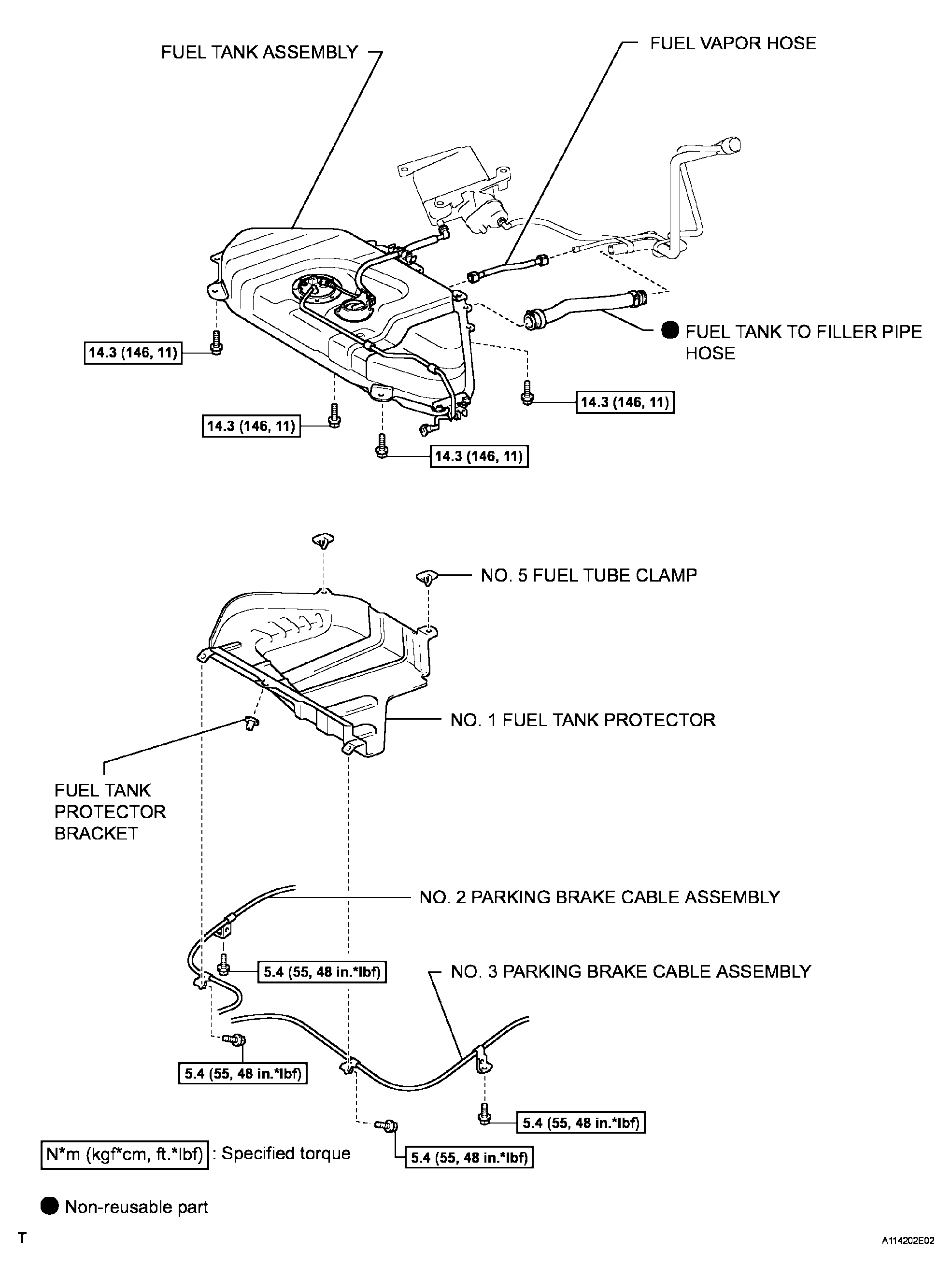

Fig 3: Identifying Fuel Tank Components (3 Of 6)
G04227150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Tank Components (4 Of 6)
G04227151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

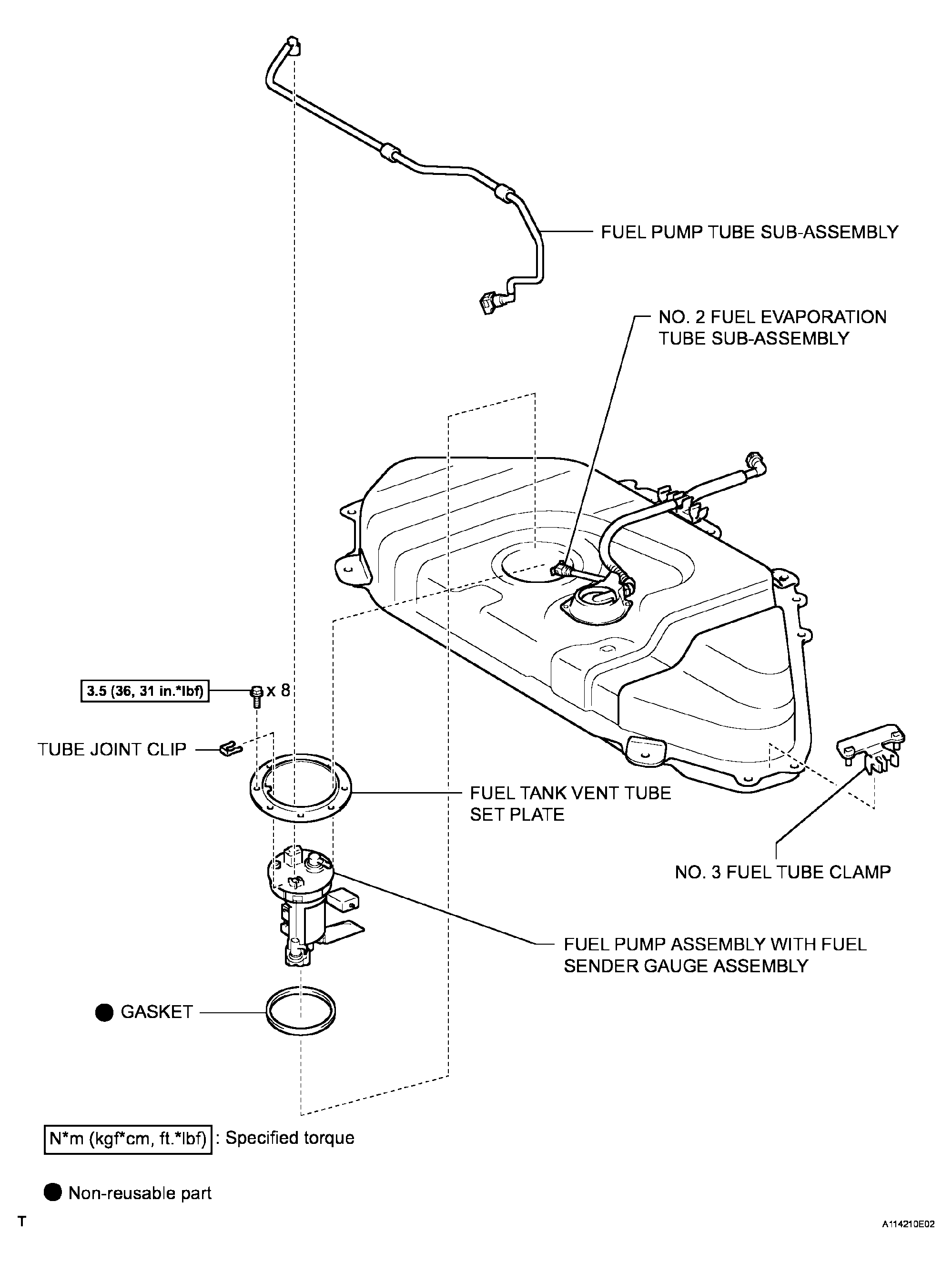

Fig 5: Identifying Fuel Tank Components (5 Of 6)
G04227152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

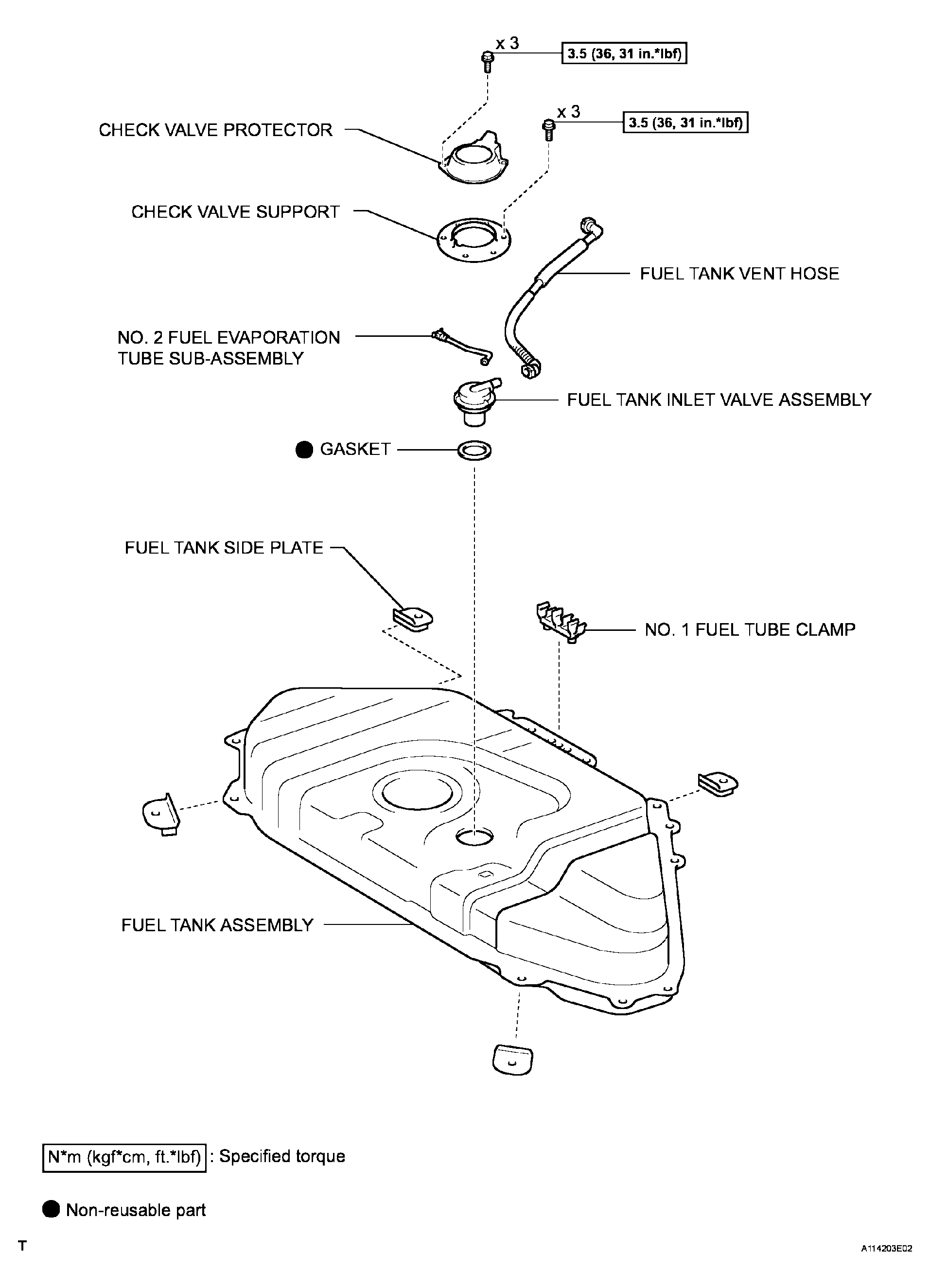

Fig 6: Identifying Fuel Tank Components (6 Of 6)
G04227153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
