Fuel Pump: Components

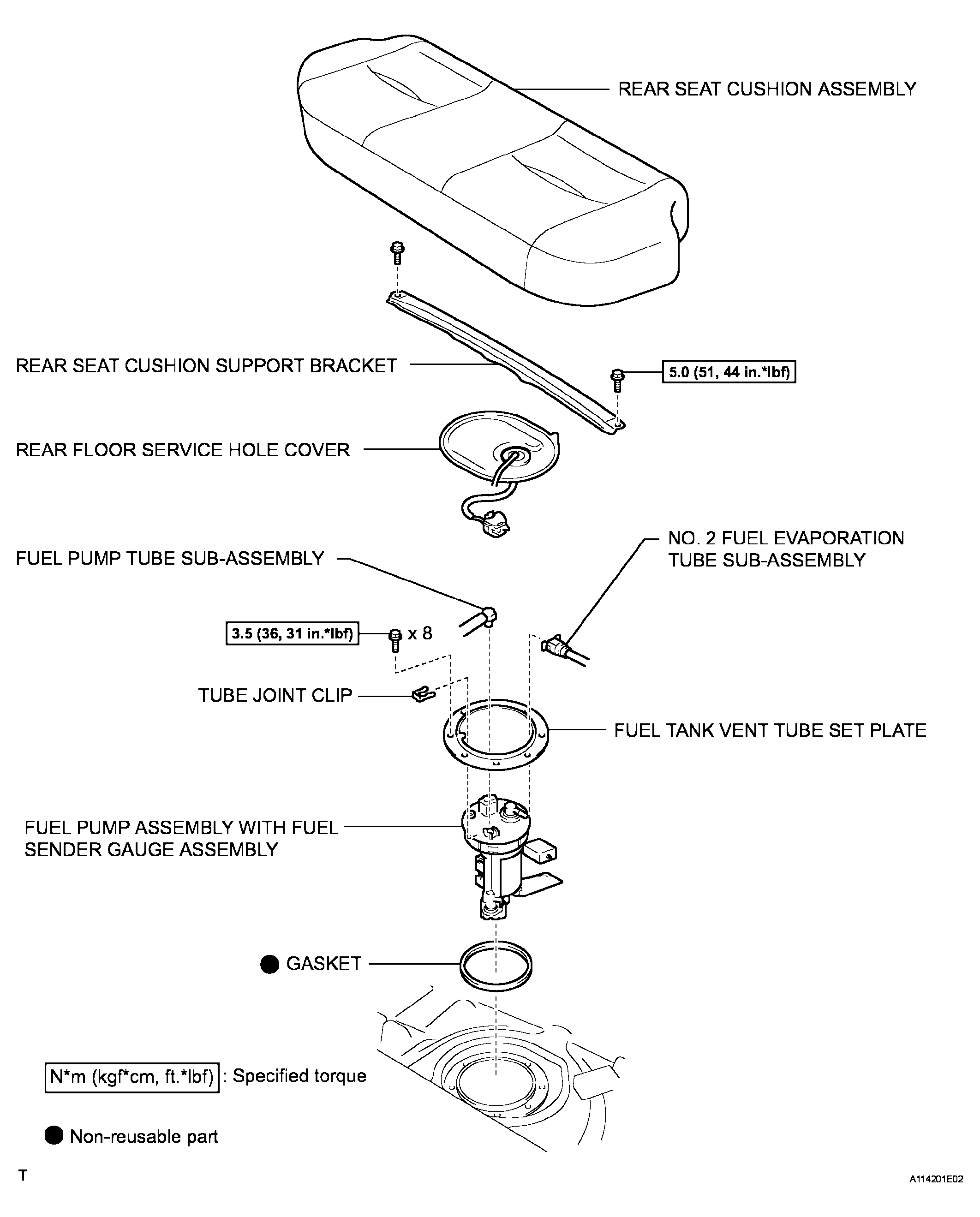

Fig 1: Identifying Fuel Pump Components (1 Of 2)
G04227120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

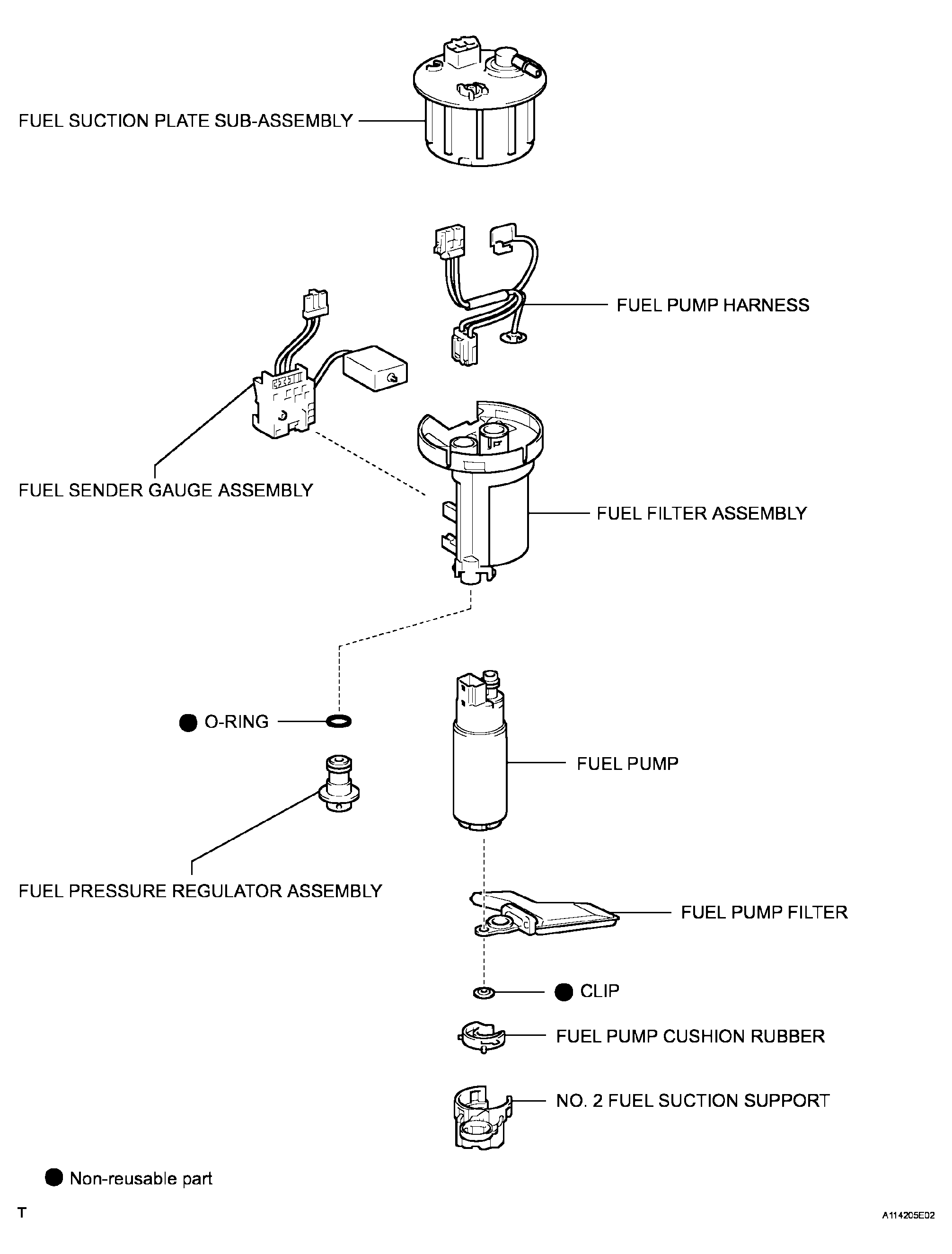

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G04227121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
