Upper Instrument Panel: Installation

INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
1. Install the instrument panel.
2. Connect the connectors.
3. Attach the 7 clips and 3 claws.
4. Install the 6 screws.

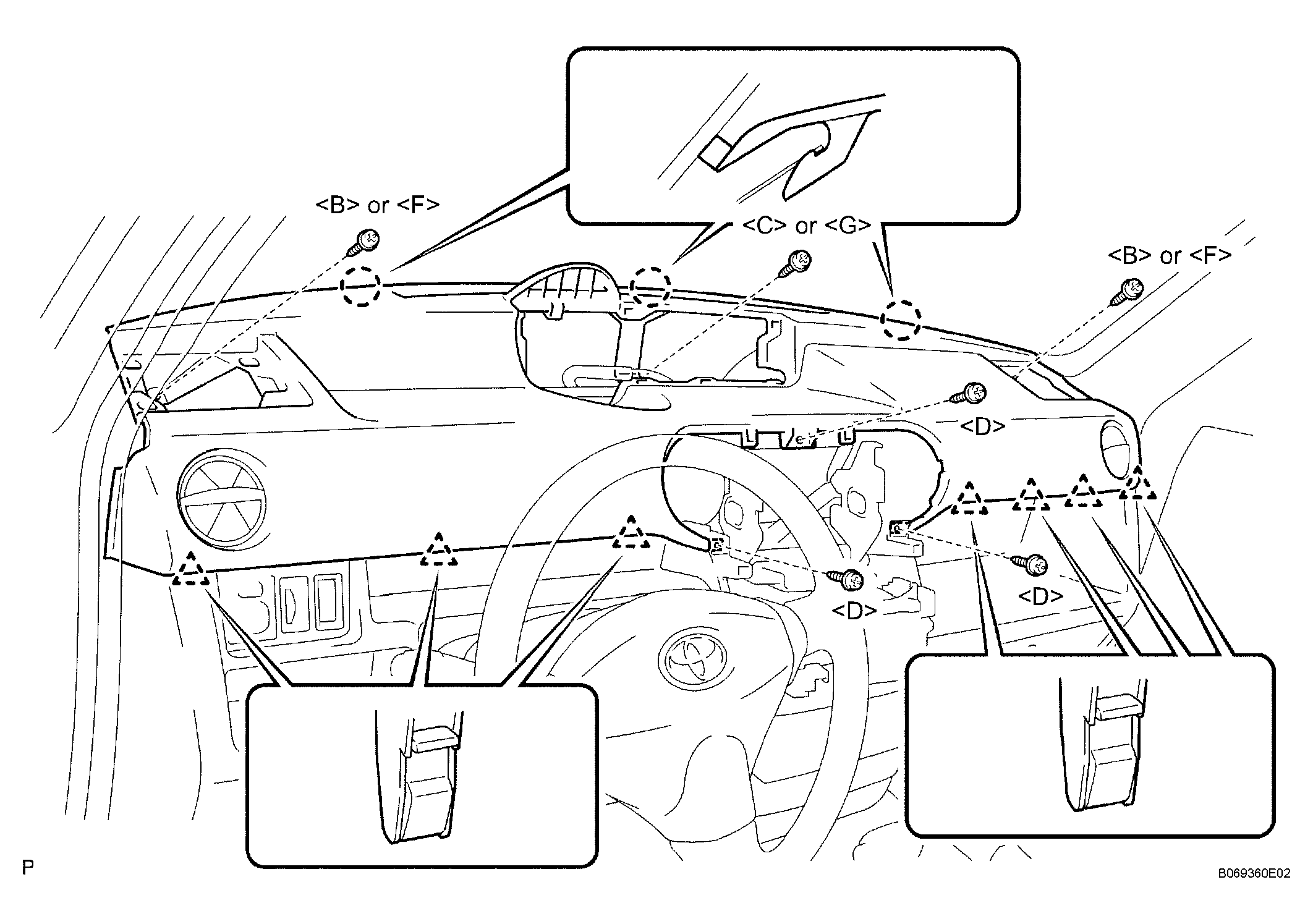

  Fig 1: Installing Instrument Panel Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the bolt.
CONNECT PASSENGER AIRBAG CONNECTOR

Fig 2: Installing Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 INSTRUMENT PANEL HOLE COVER
1. Attach the 4 claws to install the instrument panel hole cover.

  Fig 3: Attaching Claws To Install Instrument Panel Hole Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH LH
1. Attach the 2 clips to install the front pillar garnish.
INSTALL FRONT PILLAR GARNISH RH
HINT:

Use the same procedures for the RH side and LH side.

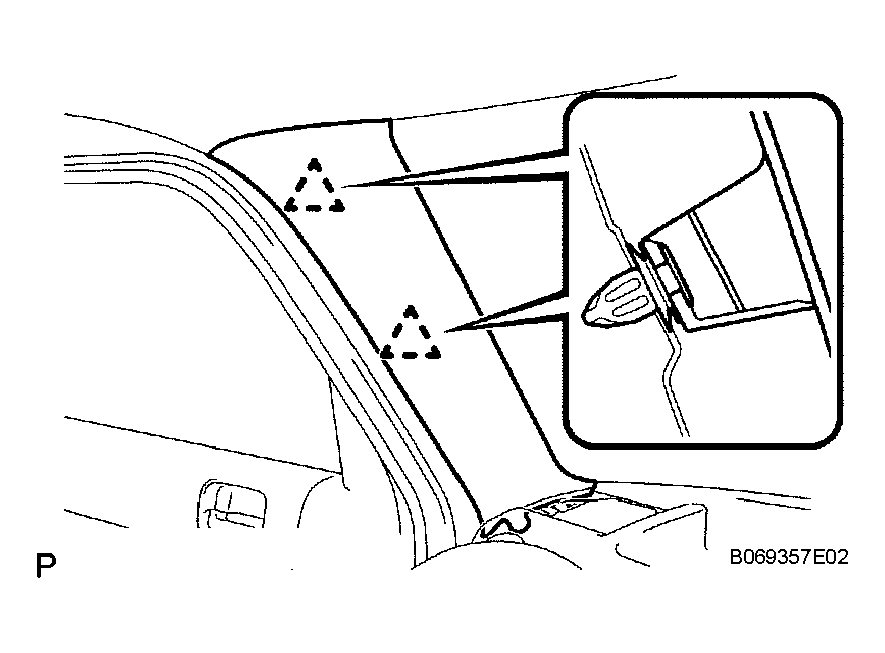

Fig 4: Attaching Clips To Install Front Pillar Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO BRACKET
1. Install the radio bracket with the 2 screws.
INSTALL NO. 2 RADIO BRACKET
1. Install the radio bracket with the 2 screws.

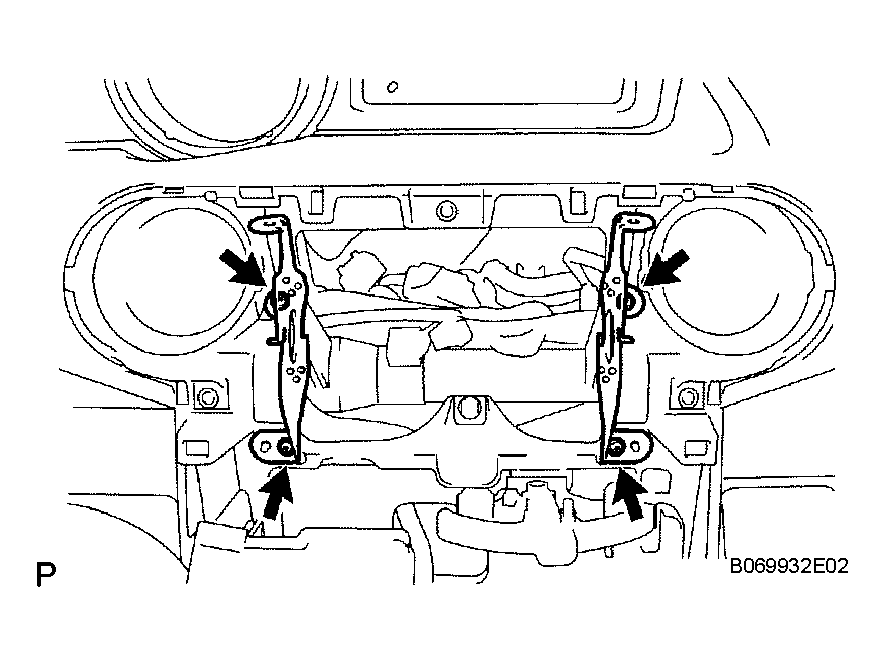

  Fig 5: Installing Radio Bracket With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER
1. Attach the 8 clips and 6 claws to install the instrument cluster finish panel.

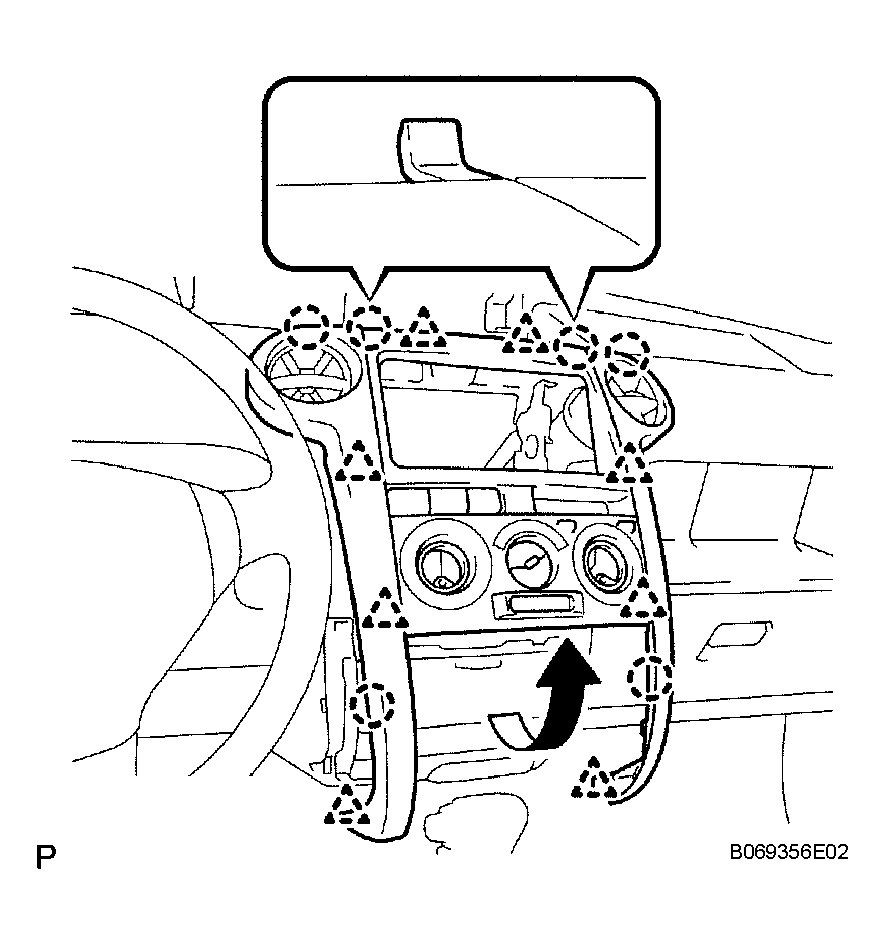

  Fig 6: Attaching Clips And Claws To Install Instrument Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

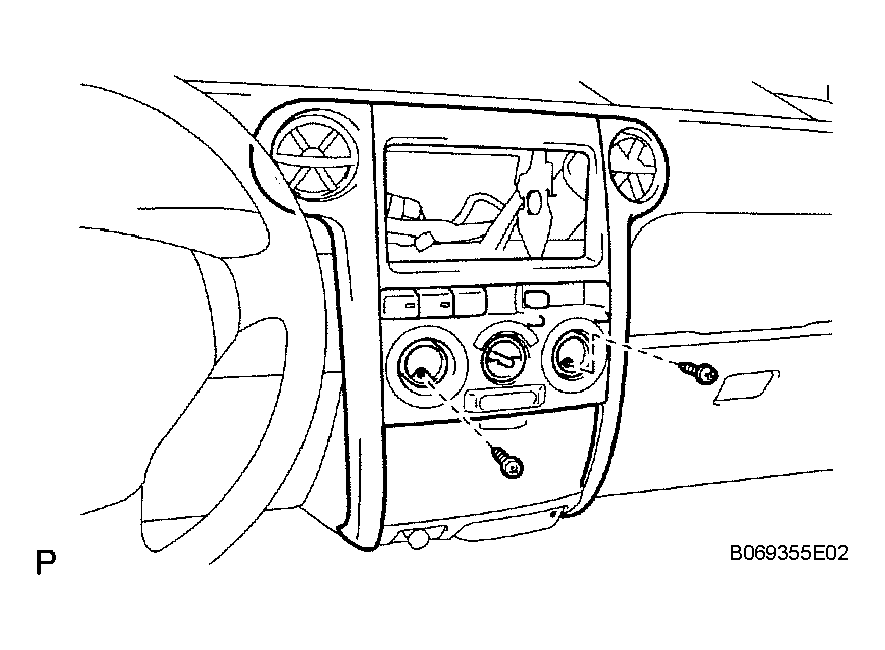

2. Install the 2 screws.

  Fig 7: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL KNOB
1. Install the 3 heater control knobs.
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
1. Attach the 5 claws to install the speaker panel.
INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:

Use the same procedures described for the No. 1 instrument panel speaker panel.

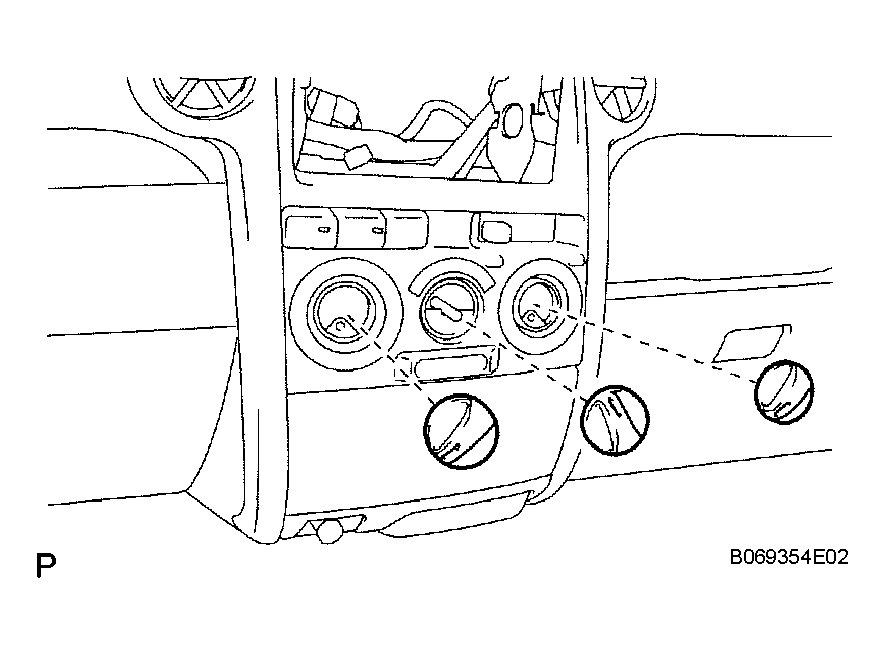

Fig 8: Installing Heater Control Knobs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Install the combination meter with the 3 screws.

  Fig 9: Installing Combination Meter With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL
1. Attach the 7 claws and 2 clips to install the instrument cluster finish panel.
2. Install the clip.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see PROBLEM SYMPTOMS TABLE ).

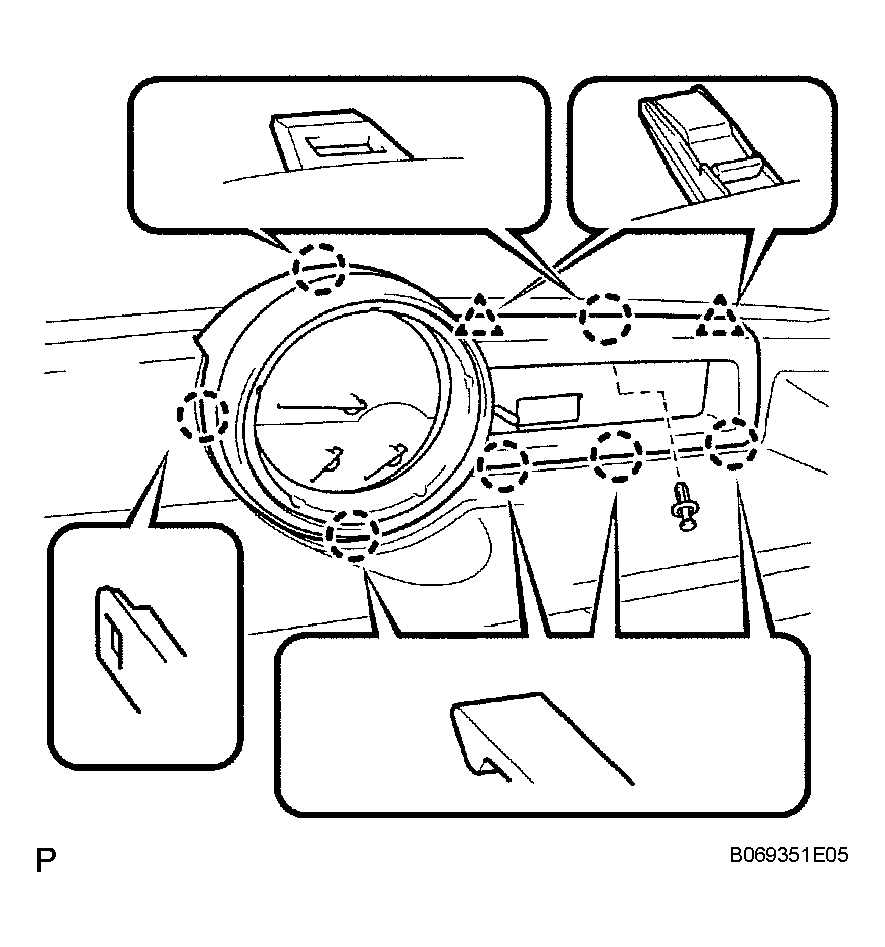

  Fig 10: Attaching Claws And Clips To Install Instrument Cluster Finish Panel
