Front Axle Hub: Components

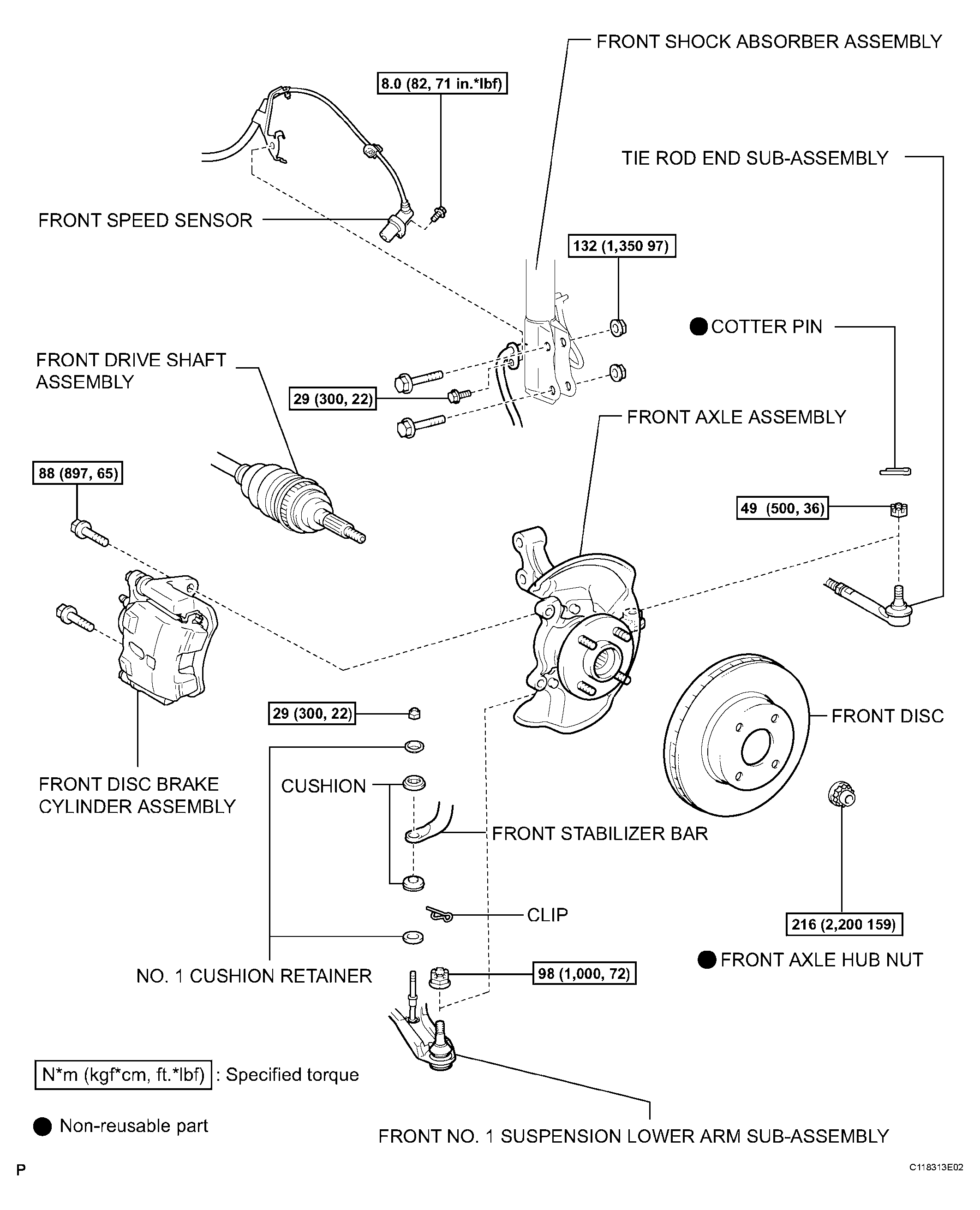

Fig 1: Identifying Front Axle Hub Components (1 Of 2)
G04225816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

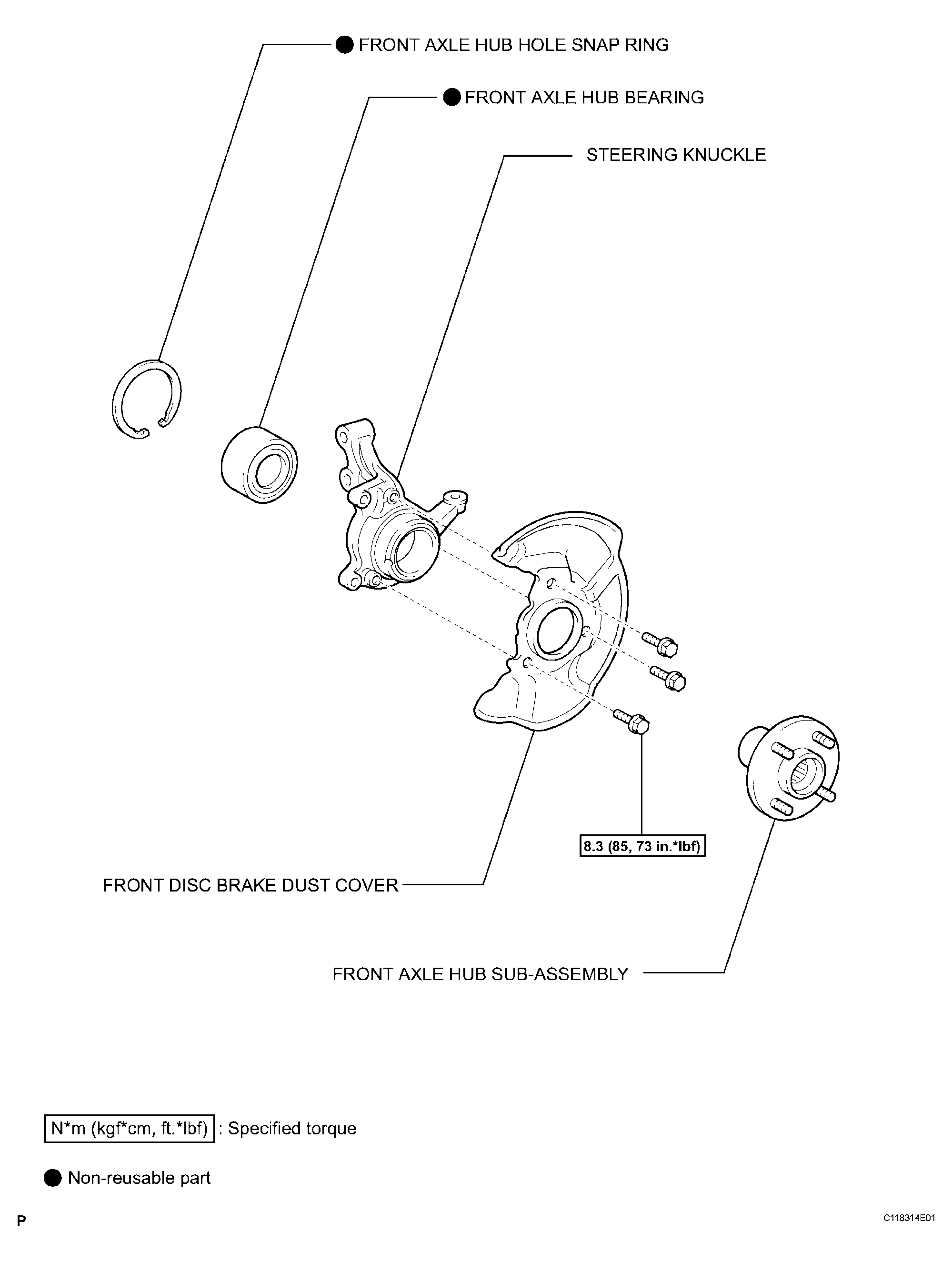

Fig 2: Identifying Front Axle Hub Components (2 Of 2)
G04225817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
