Diagnosis System
- CHECK INDICATOR
- Check the warning lights.
- Release the parking brake lever.

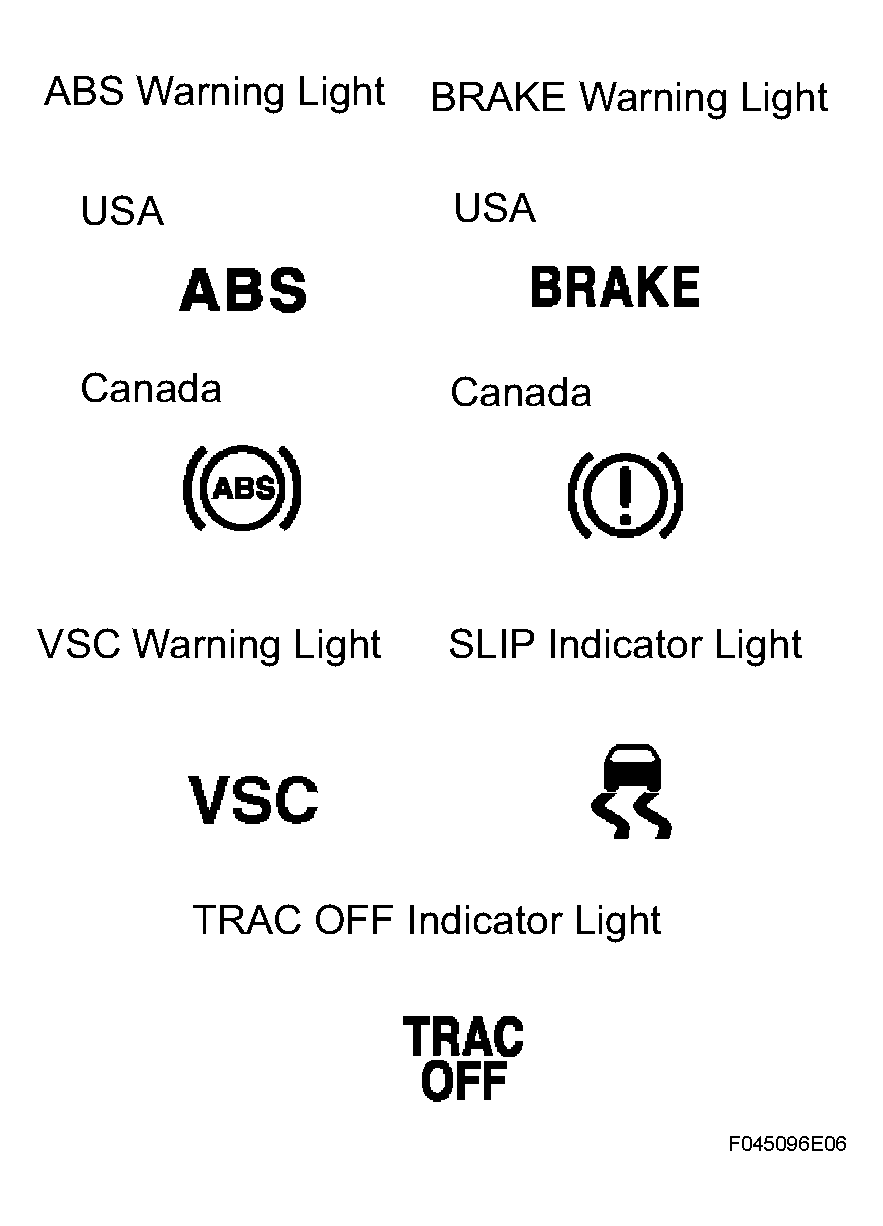

- When the ignition switch ON, check that the ABS warning light, VSC warning light, TRAC OFF indicator light, brake warning light and SLIP indicator light illuminate for approximately 3 seconds.
HINT:
- When the parking brake is applied or brake fluid level is low, the brake warning light illuminates.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light, VSC warning light, TRAC OFF indicator light, brake warning light and SLIP indicator light circuit.
If the indicator remains on, proceed to troubleshooting for the light circuit below.
TROUBLE AREA INDEX REFERENCETrouble Area ABS WARNING LIGHT CIRCUIT VSC WARNING LIGHT CIRCUIT BRAKE WARNING LIGHT CIRCUIT TRAC OFF WARNING LIGHT CIRCUIT SLIP INDICATOR LIGHT CIRCUIT
- Check the warning lights.
