Valve Body: Reassembly

INSTALL MANUAL VALVE
1. Coat the manual valve with ATF and install it to the valve body.

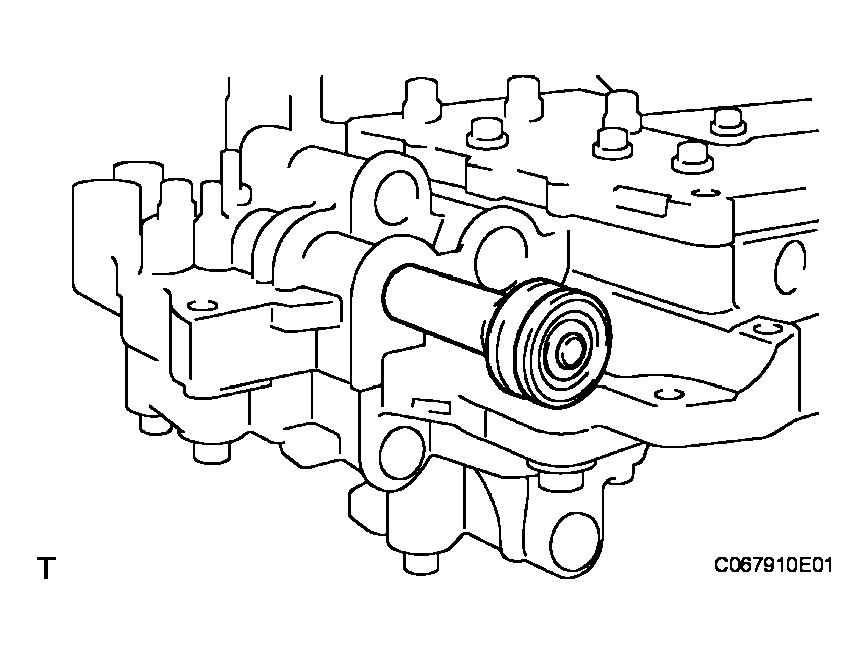

  Fig 1: Installing Manual Valve To Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S1
1. Install the 3-way solenoid with the bolt.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 2: Installing Shift Solenoid Valve S1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S2
1. Install the 3-way solenoid with the bolt.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 3: Installing Shift Solenoid Valve S2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL
1. Install the solenoid with the bolt.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 4: Installing Shift Solenoid Valve Sl
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE ST
1. Install the 3-way solenoid with the bolt.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 5: Installing Shift Solenoid Valve St
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLT
1. Install the solenoid with the bolt.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 6: Installing Shift Solenoid Valve Slt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
