Valve Body: Inspection

  1. INSPECT SHIFT SOLENOID VALVE SLT
    1. Measure the resistance of the solenoid valve.

      Standard resistance: 5.0 to 5.6 Ω at 20°C (68°F)

    2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and then check the movement of the valve.
    3. Check the operating noise of terminal 1 of the solenoid valve.
      Fig 1: Measuring Resistance Of Solenoid Valve
      G04227944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT SHIFT SOLENOID VALVE ST
    1. Measure the resistance of the solenoid valve.

      Standard resistance: 11 to 15 Ω at 20°C (68°F)

    2. Connect the battery's positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
    3. Check the operating noise of the solenoid valve.

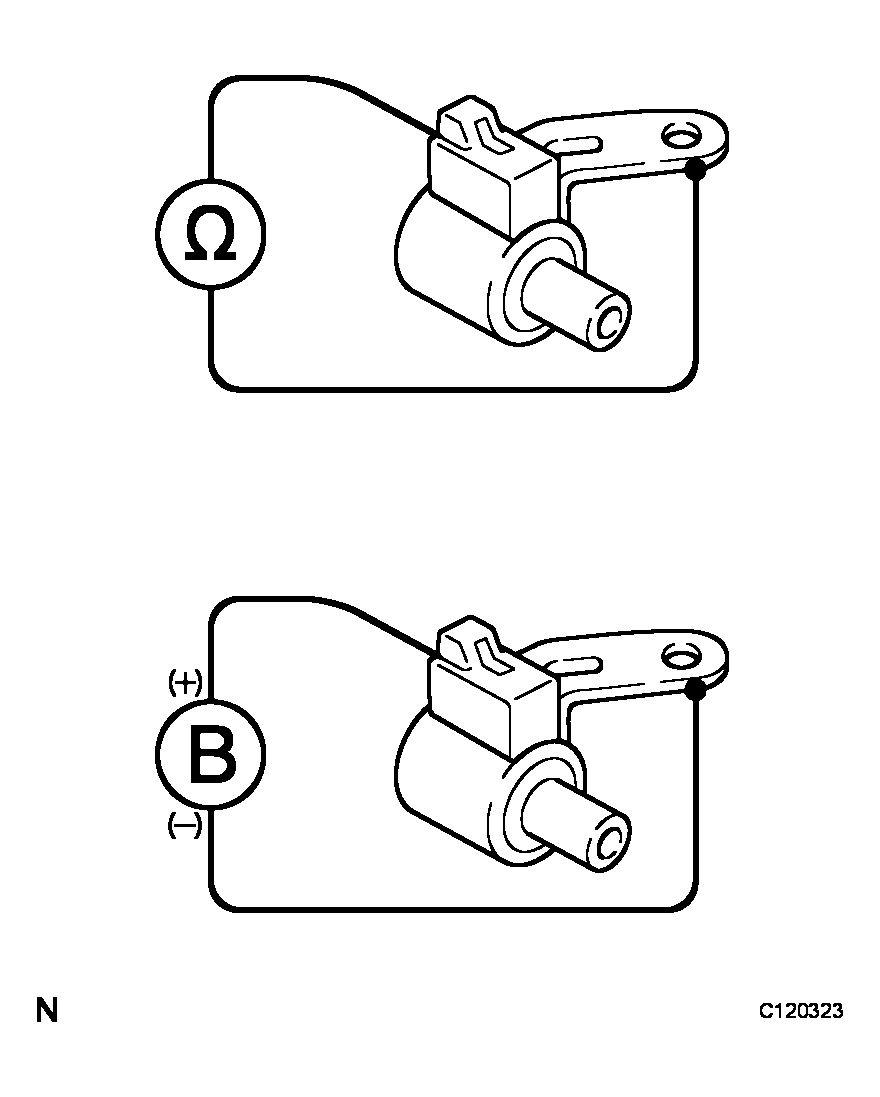

      Fig 2: Inspecting Shift Solenoid Valve St
      G04227945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT SHIFT SOLENOID VALVE SL
    1. Measure the resistance of the solenoid valve.

      Standard resistance: 11 to 15 Ω at 20°C (68°F)

    2. Connect the battery's positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
    3. Check the operating noise of the solenoid valve.
      Fig 3: Inspecting Shift Solenoid Valve Sl
      G04227946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT SHIFT SOLENOID VALVE S2
    1. Measure the resistance of the solenoid valve.

      Standard resistance: 11 to 15 Ωat 20°C (68°F)

    2. Connect the battery's positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
    3. Check the operating noise of the solenoid valve.
      Fig 4: Inspecting Shift Solenoid Valve S2
      G04227947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT SHIFT SOLENOID VALVE S1
    1. Measure the resistance of the solenoid valve.

      Standard resistance: 11 to 15 Ω at 20°C (68°F)

    2. Connect the battery's positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
    3. Check the operating noise of the solenoid valve.
      Fig 5: Inspecting Shift Solenoid Valve S1
      G04227948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
