Valve Body: Disassembly

  1. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, and pull out the solenoid.
      Fig 1: Removing Shift Solenoid Valve Slt
      G04227938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE ST
    1. Remove the bolt, and pull out the solenoid.
      Fig 2: Removing Shift Solenoid Valve St
      G04227939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE SL
    1. Remove the bolt, and pull out the solenoid.
      Fig 3: Removing Shift Solenoid Valve Sl
      G04227940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt, and pull out the 3-way solenoid.
      Fig 4: Removing Shift Solenoid Valve S2
      G04227941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt, and pull out the 3-way solenoid.
      Fig 5: Removing Shift Solenoid Valve S1
      G04227942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE MANUAL VALVE
    1. Remove the manual valve from the valve body.

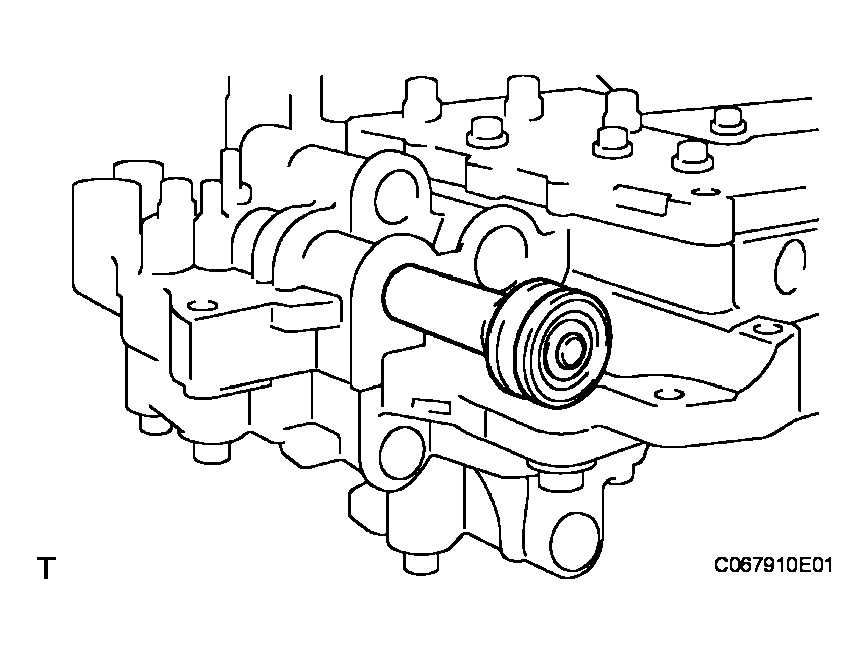

      Fig 6: Removing Manual Valve From Valve Body
      G04227943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
