Transmission Wire: Installation

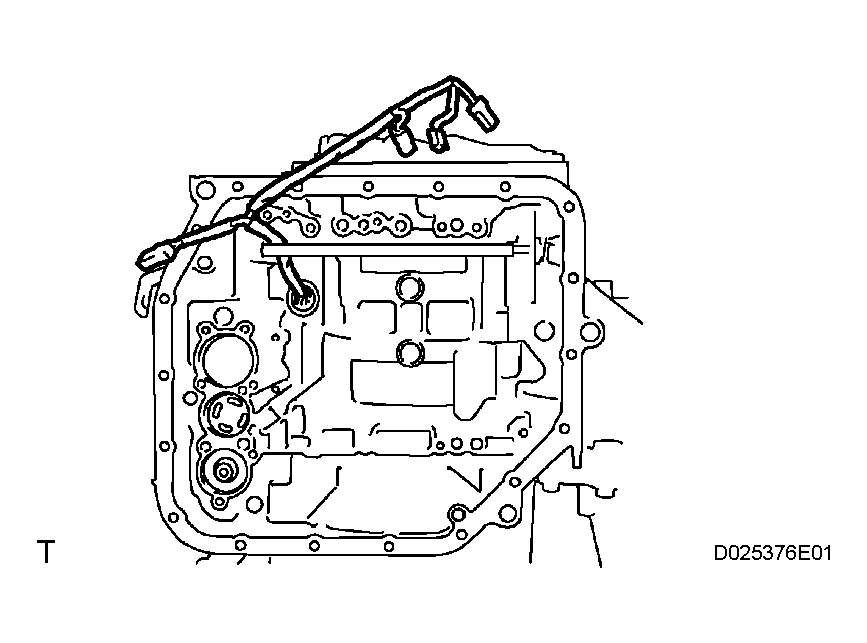

1. Coat an O-ring with ATF.
2. Install the transmission wire.
   Fig 1: Installing Transmission Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

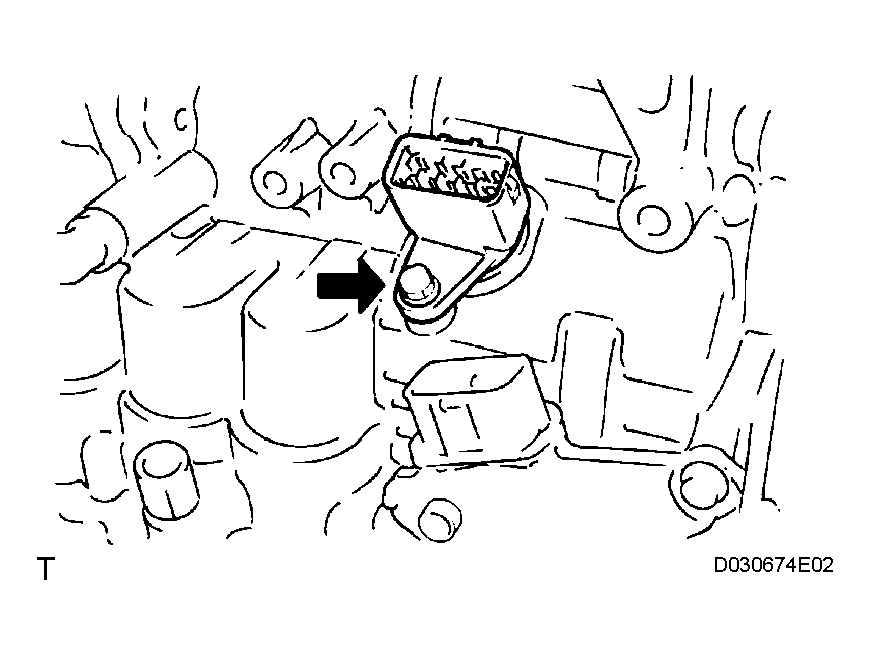

3. Install the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

   Fig 2: Installing Transmission Connector Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the groove of the manual valve with the pin of the manual valve lever.

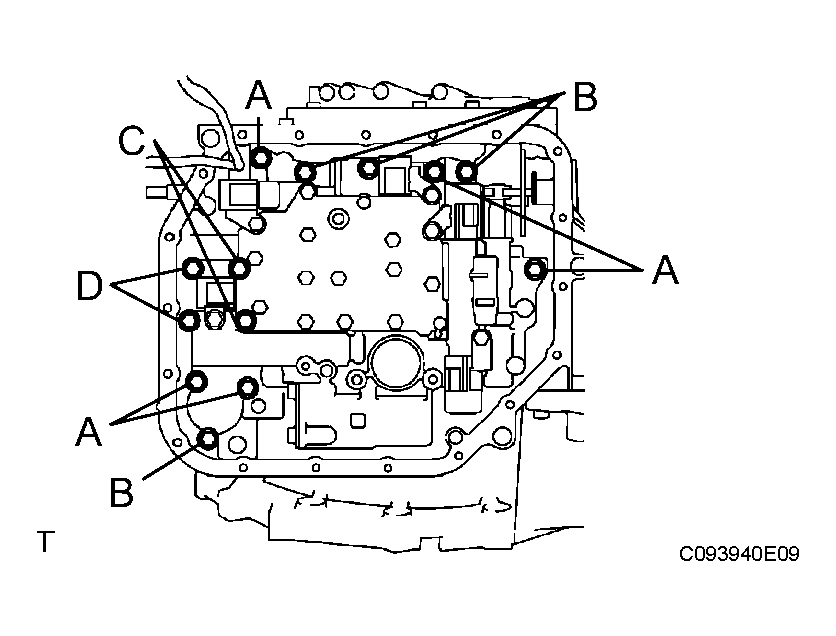

2. Temporarily install the valve body with the 13 bolts.

   HINT:

   Bolt length:

   32 mm (1.26 in.) for bolt A

   22 mm (0.87 in.) for bolt B

   55 mm (2.17 in.) for bolt C

   45 mm (1.77 in.) for bolt D

   Fig 3: Installing Valve Body With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

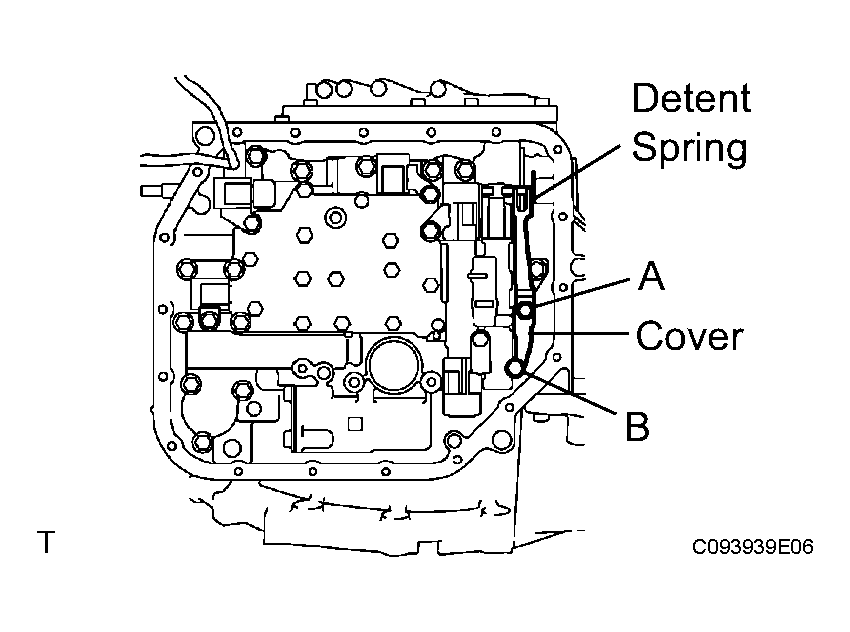

3. Temporarily install the detent spring and cover with the 2 bolts.

   HINT:

   Bolt length:

   14 mm (0.55 in.) for bolt A

   45 mm (1.77 in.) for bolt B

   Fig 4: Installing Detent Spring And Cover With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check that the manual valve lever contacts the center of the roller at the tip of the detent spring.
5. Tighten the 15 bolts.

   Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

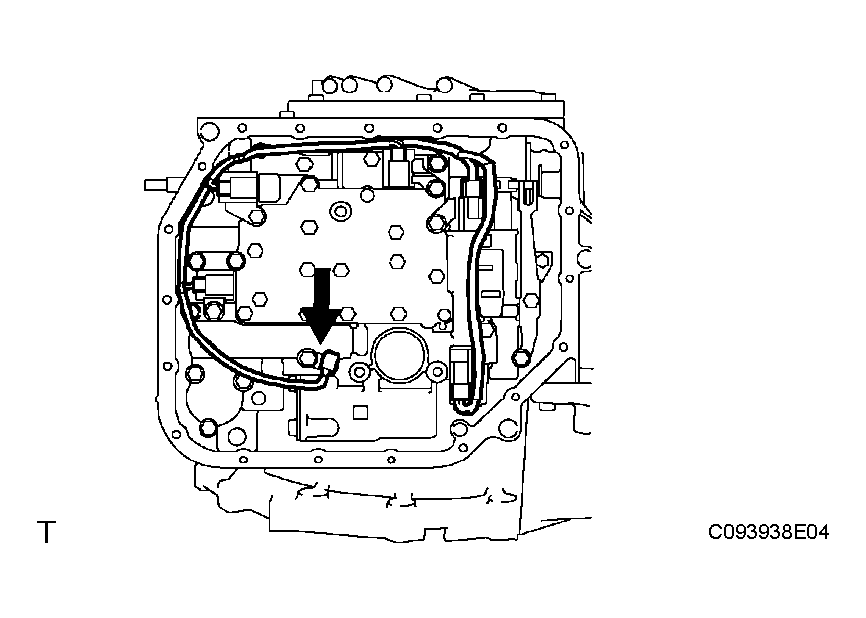

6. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

7. Connect the 5 shift solenoid valve connectors.
   Fig 5: Installing ATF Temperature Sensor With Lock Plate And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new O-ring with ATF.
2. Install the O-ring on the oil strainer.
   Fig 6: Installing O-Ring On Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

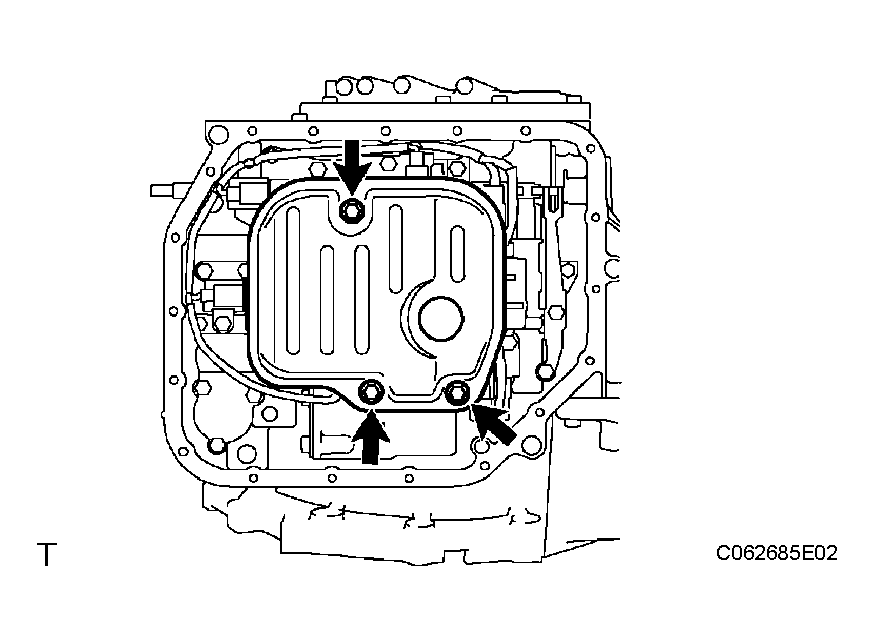

3. Install the oil strainer with the 3 bolts.

   Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 7: Installing Oil Strainer With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 magnets in the oil pan, as shown in the illustration.
   Fig 8: Installing Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

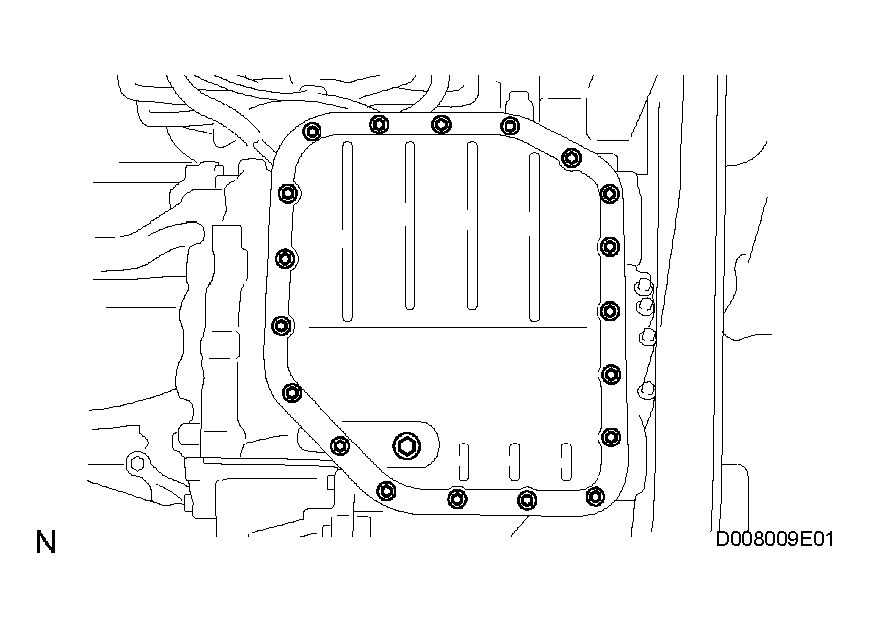

2. Install a new gasket and the oil pan with the 19 bolts.

   Torque: 7.8 N*m (8 kgf*cm, 69 in.*lbf)

   Fig 9: Tightening Oil Pan Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fluid type: Toyota Genuine ATF TYPE T-IV

Standard capacity: 2.9 liters (3.1 US qts, 2.6 Imp. qts)

1. Inspect the automatic transaxle fluid (see AUTOMATIC TRANSAXLE FLUID  ).
