Transmission Revolution Sensor: Removal

  1. REMOVE AIR CLEANER ASSEMBLY
    1. Remove the air cleaner (see REMOVAL ).
  2. REMOVE AIR CLEANER BRACKET
    1. Disconnect the wire harness clamp.
    2. Remove the 2 bolts and air cleaner bracket.

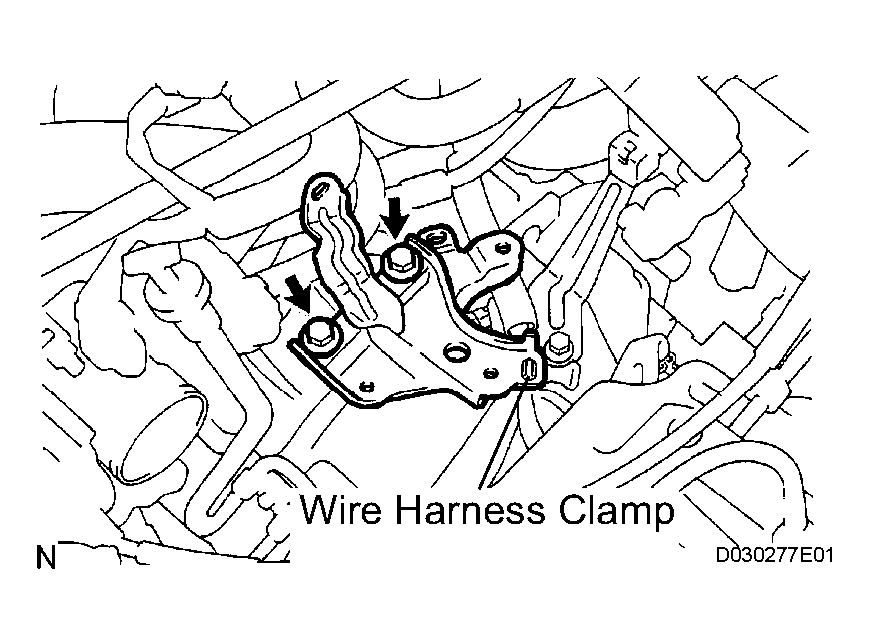

      Fig 1: Removing Bolts And Air Cleaner Bracket
      G04227474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the sensor.

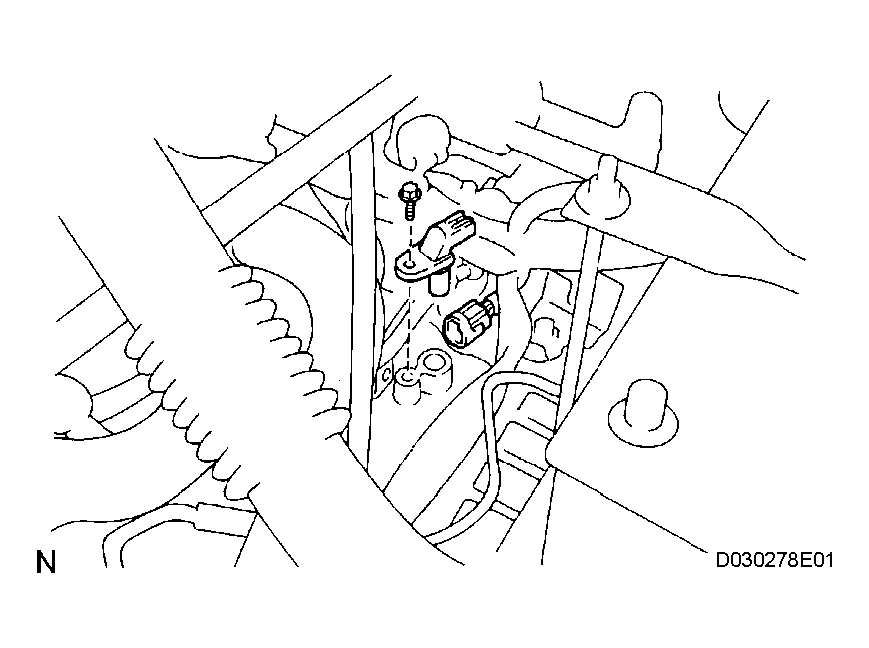

      Fig 2: Removing Bolt And Transmission Revolution Sensor
      G04227475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
