Transmission Revolution Sensor: Installation

  1. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat a new O-ring with ATF.
    2. Install the O-ring to the transmission revolution sensor.
    3. Install the sensor with the bolt.

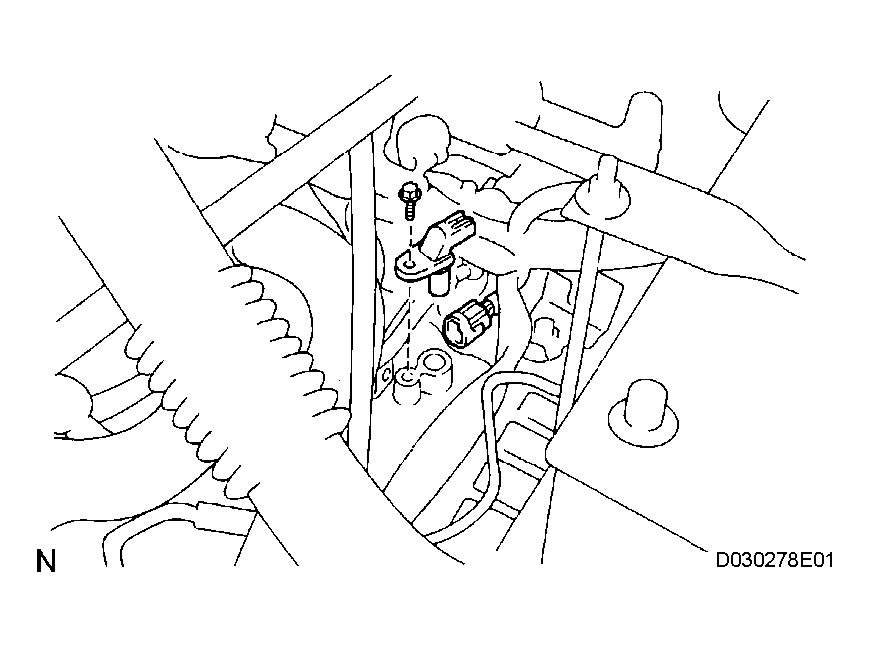

      Fig 1: Installing Transmission Revolution Sensor And Bolts
      G04227477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    4. Connect the connector.
  2. INSTALL AIR CLEANER BRACKET
    1. Install the air cleaner bracket with the 2 bolts.

      Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

    2. Connect the wire harness clamp to the air cleaner bracket.

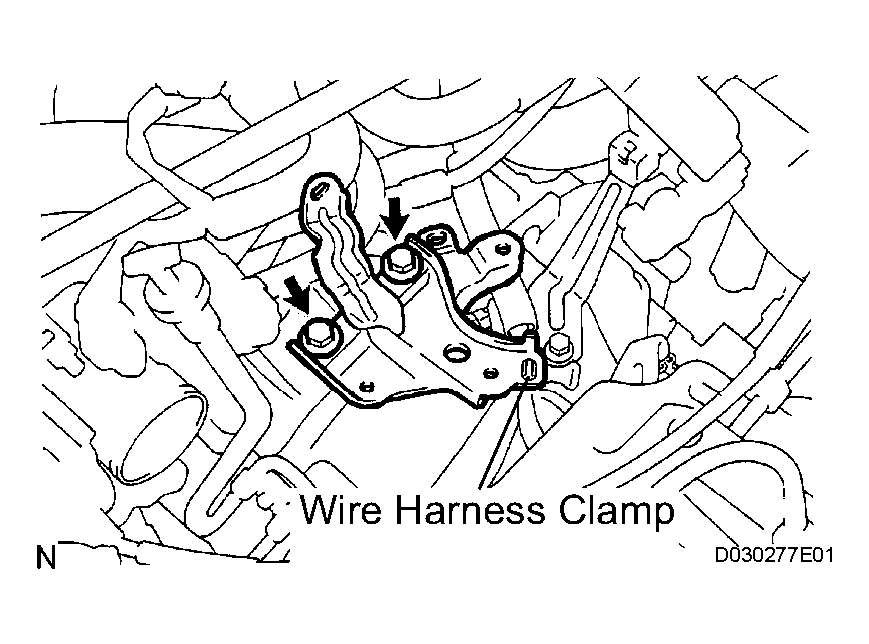

      Fig 2: Installing Air Cleaner Bracket With Bolts
      G04227478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CLEANER ASSEMBLY
    1. Install the air cleaner (see INSTALLATION ).
