Transaxle Rear Cover: Reassembly

INSTALL TRANSAXLE REAR COVER NEEDLE ROLLER BEARING
1. Using SST and a press, press in the new bearing to the transaxle rear cover.
  SST 09950-60010 (09951-00190, 09952-06010), 09950-70010 (09951-07100)

  Standard clearance A: 25.2 mm (0.992 in.)

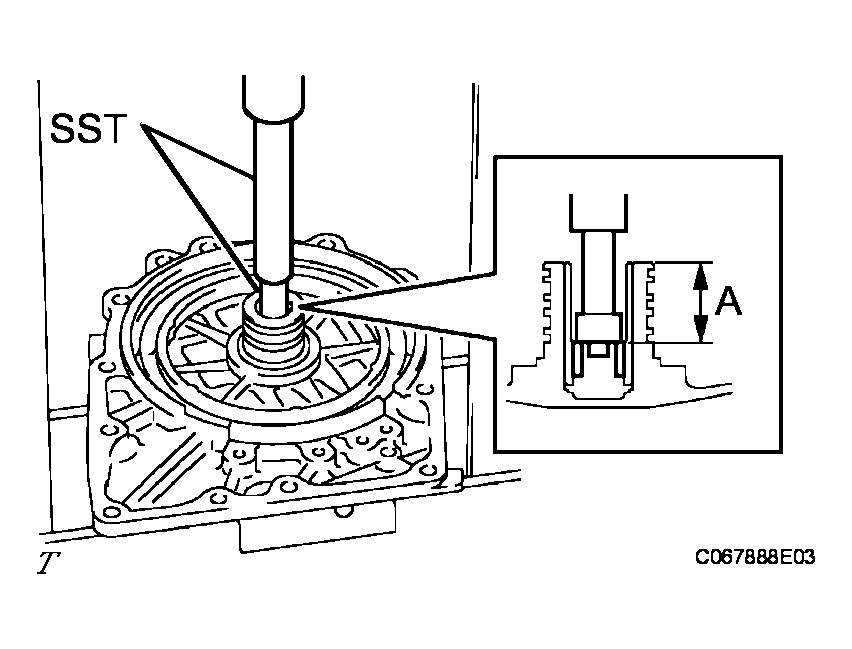

  Fig 1: Pressing Bearing To Transaxle Rear Cover Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH DRUM OIL SEAL RING
1. Compress the oil seal ring from both sides to reduce dimension A.
  Standard dimension A: 5.0 mm (0.197 in.)
2. Coat the oil seal ring with ATF and install it to the transaxle rear cover.

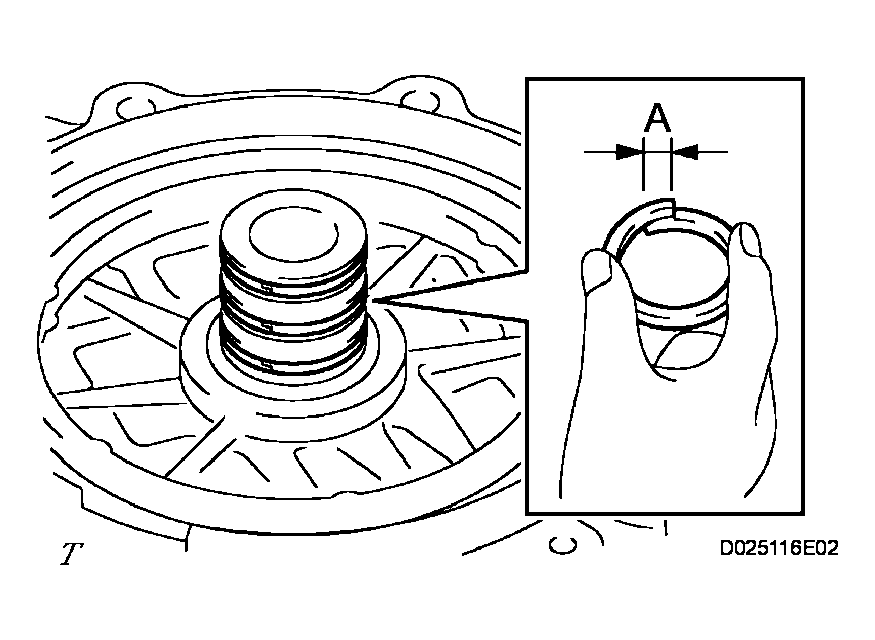

  Fig 2: Compressing Oil Seal Ring From Both Sides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL 2ND COAST AND OVERDRIVE O-RING
1. Coat 2 new O-rings with ATF, and install them to the transaxle rear cover.
  NOTE: Be careful not to damage the lip of the oil seal.

  Fig 3: Installing 2Nd Coast And Overdrive O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL 2ND COAST AND OVERDRIVE BRAKE PISTON
1. Coat the piston with ATF, and install it to the transaxle rear cover.
  NOTE: Be careful not to damage the lip of the oil seal.

  Fig 4: Installing 2Nd Coast And Overdrive Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OVERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY
1. Using SST and a press, press in the overdrive brake return spring and snap ring to the transaxle rear cover.
  SST 09387-00070

  NOTE: Stop the press when the overdrive brake piston is lowered to 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove, preventing the overdrive brake piston from being deformed.

  Fig 5: Pressing In Overdrive Brake Return Spring And Snap Ring To Transaxle Rear Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE REAR COVER PLUG
1. Install 4 new O-rings and the 4 cover plugs to the transaxle rear cover.
  Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

  NOTE: Be careful not to damage the lip of the oil seal.

  Fig 6: Installing Cover Plugs To Transaxle Rear Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
