Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U340E Automatic Transaxle >> Shift Lock System >> Parts Location

Parts Location

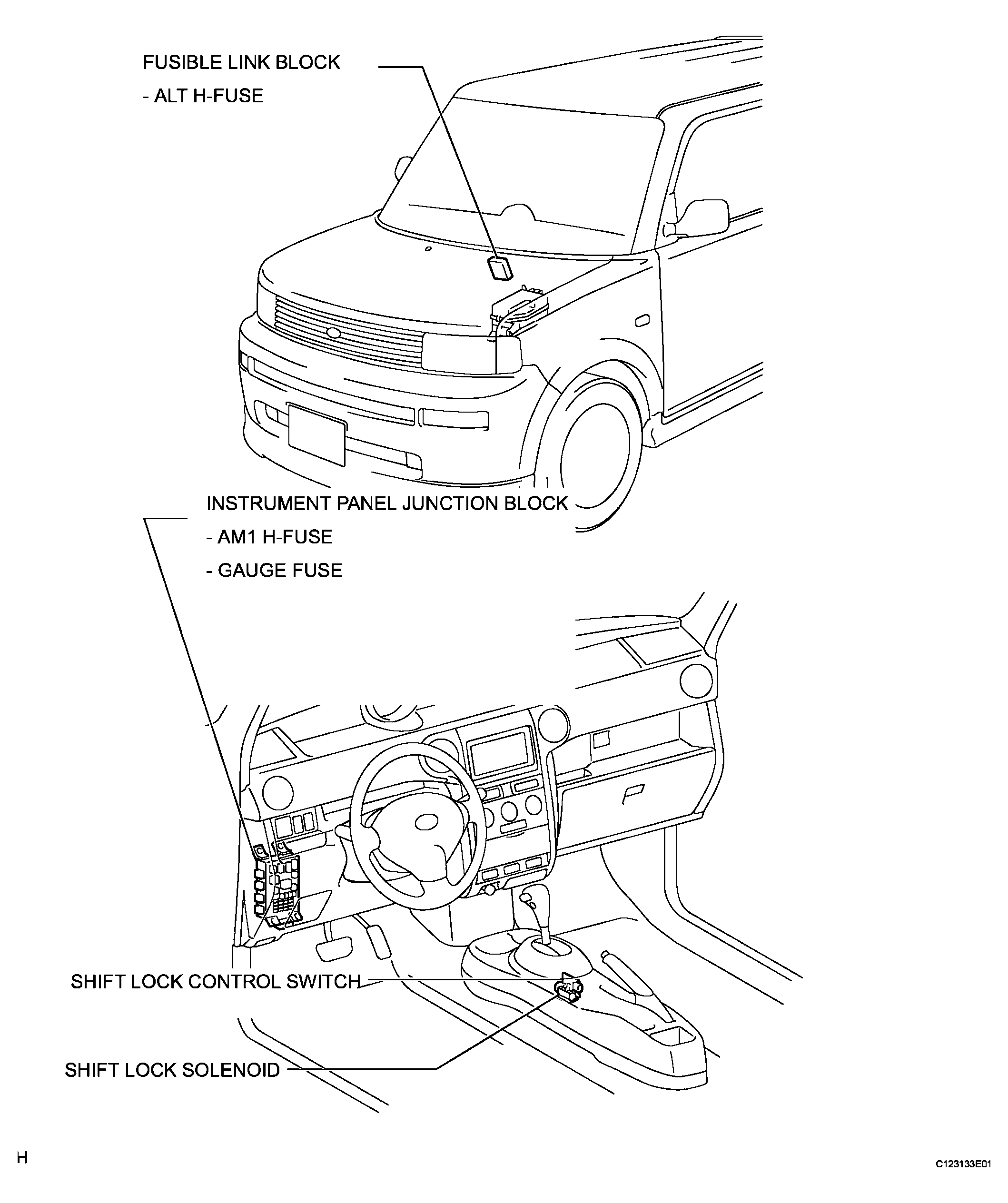

Fig 1: Identifying Shift Lock System Location

G04227533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
