Oil Pump: Disassembly

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump.
INSPECT STATOR SHAFT ASSEMBLY (See INSPECTION )

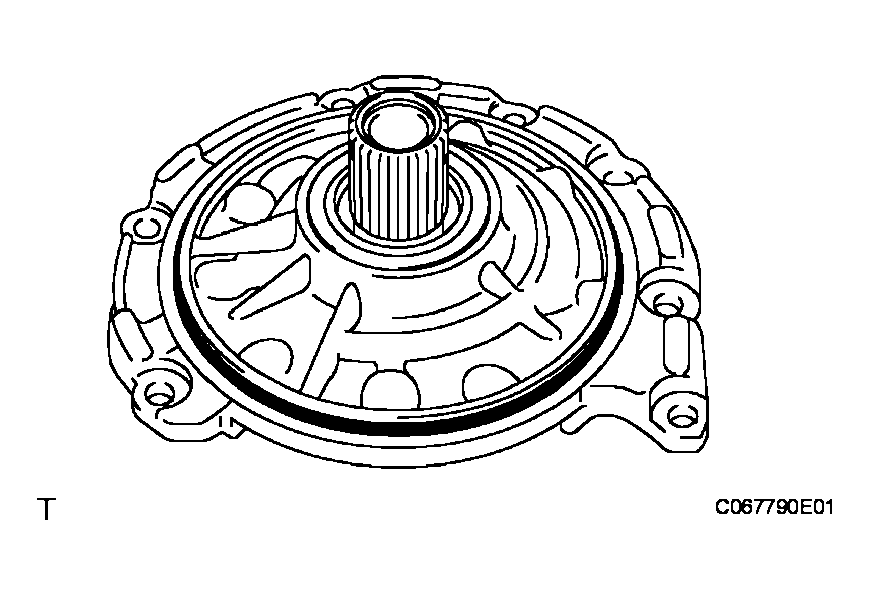

Fig 1: Removing O-Ring From Oil Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STATOR SHAFT ASSEMBLY
1. Using a T30 "torx" socket wrench, remove the 10 screws.
INSPECT CLEARANCE OF OIL PUMP ASSEMBLY (See INSPECTION )

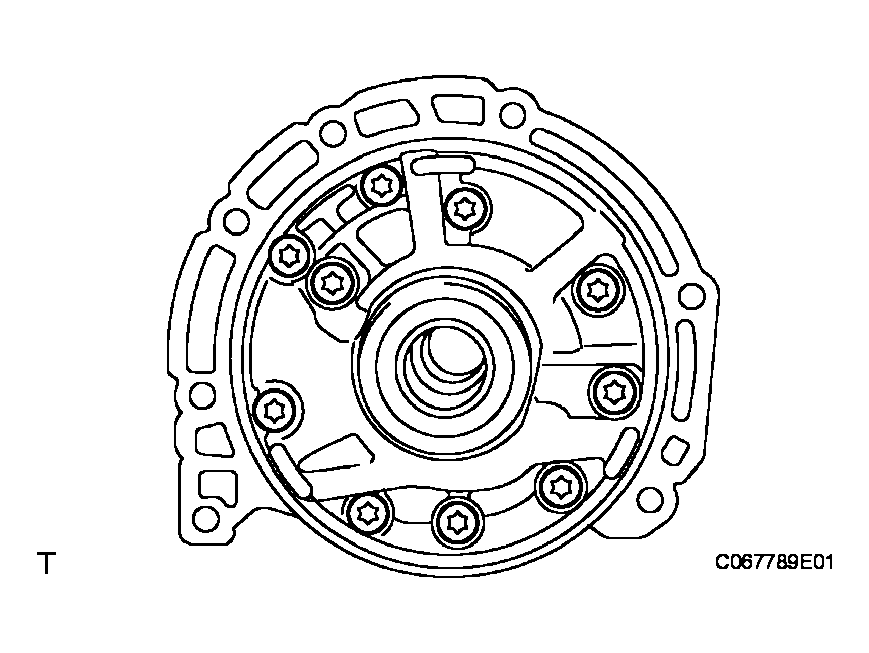

Fig 2: Removing Stator Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVE GEAR
1. Remove the front oil pump drive gear from the oil pump body.

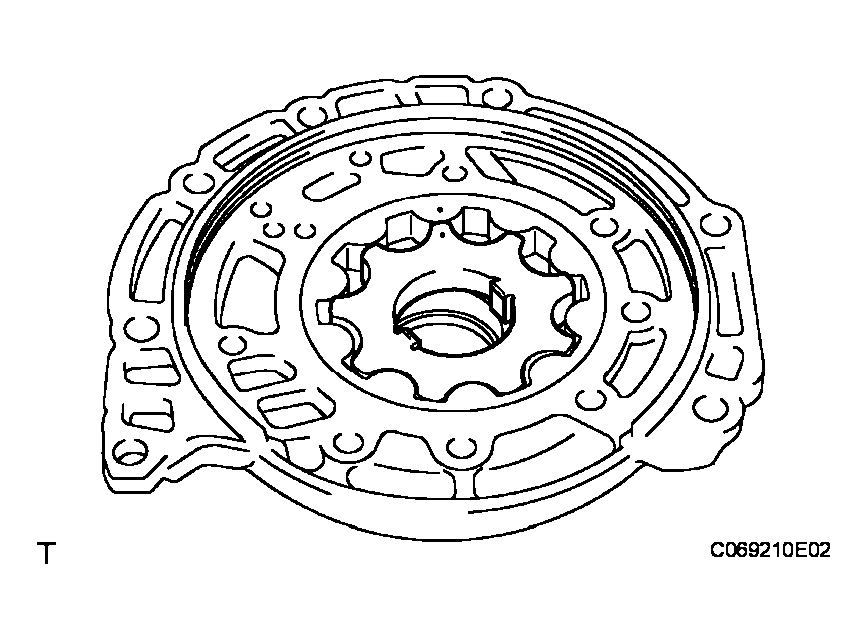

  Fig 3: Removing Front Oil Pump Drive Gear From Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVEN GEAR
1. Remove the front oil pump driven gear from the oil pump body.

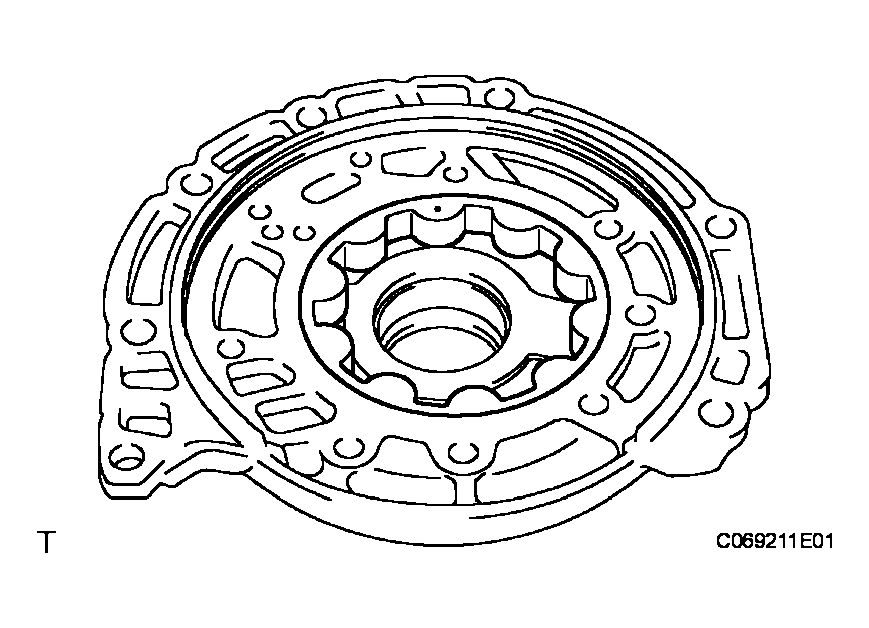

  Fig 4: Removing Front Oil Pump Driven Gear From Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP OIL SEAL
1. Using SST, tap out the oil seal from the oil pump body.
  SST 09308-00010
INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY (See REASSEMBLY )

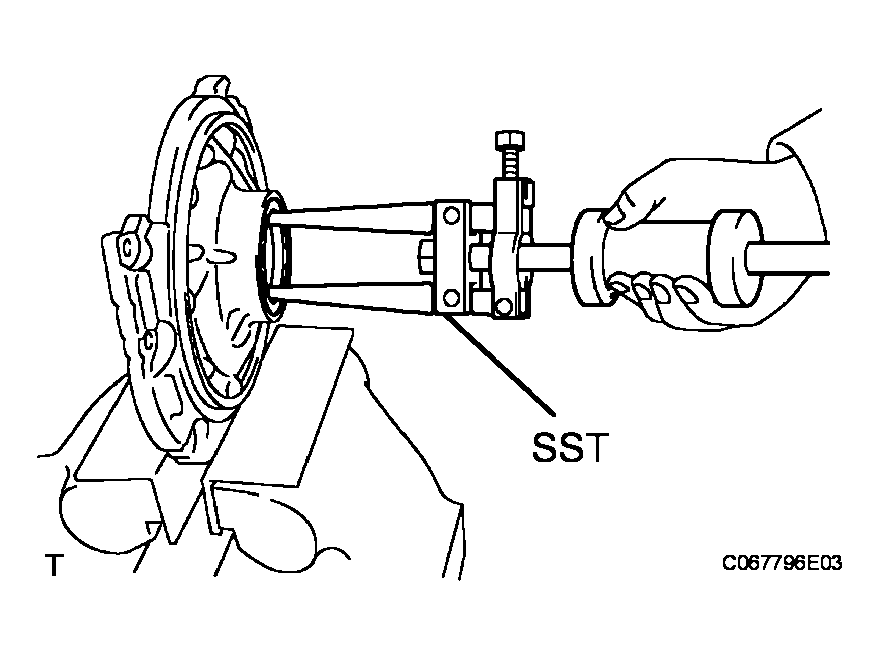

Fig 5: Removing Front Oil Pump Oil Seal Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLUTCH DRUM OIL SEAL RING
1. Using a screwdriver, remove the 2 oil seals from the stator shaft.

  Fig 6: Removing Oil Seals From Stator Shaft
