Floor Shift Assembly: Reassembly

INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease on the shift lock release button and spring.
2. Install the shift lock release button and spring to the floor shift.

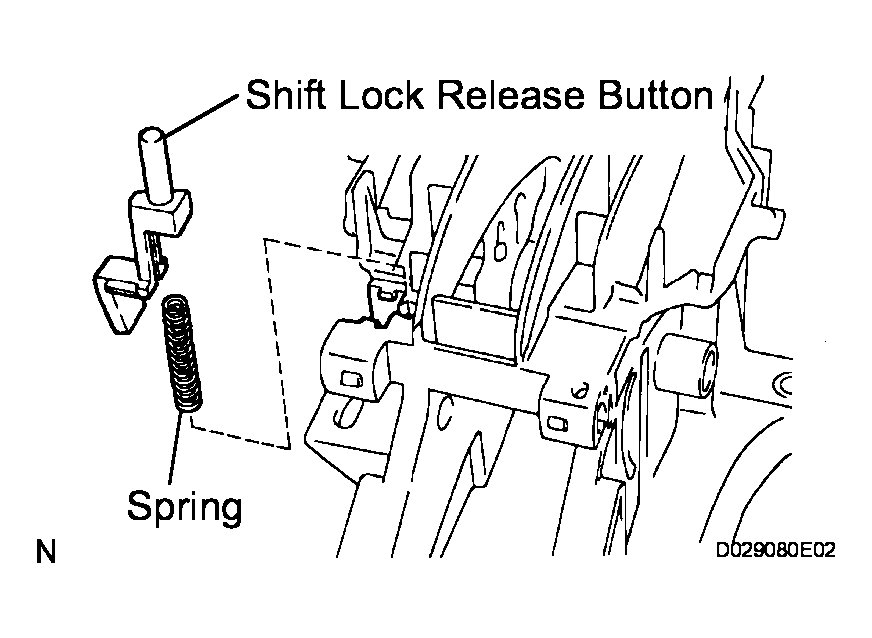

  Fig 1: Installing Shift Lock Release Button And Spring To Floor Shift
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Ensure that the claws fit tightly.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the indicator light wire to the floor shift assembly.

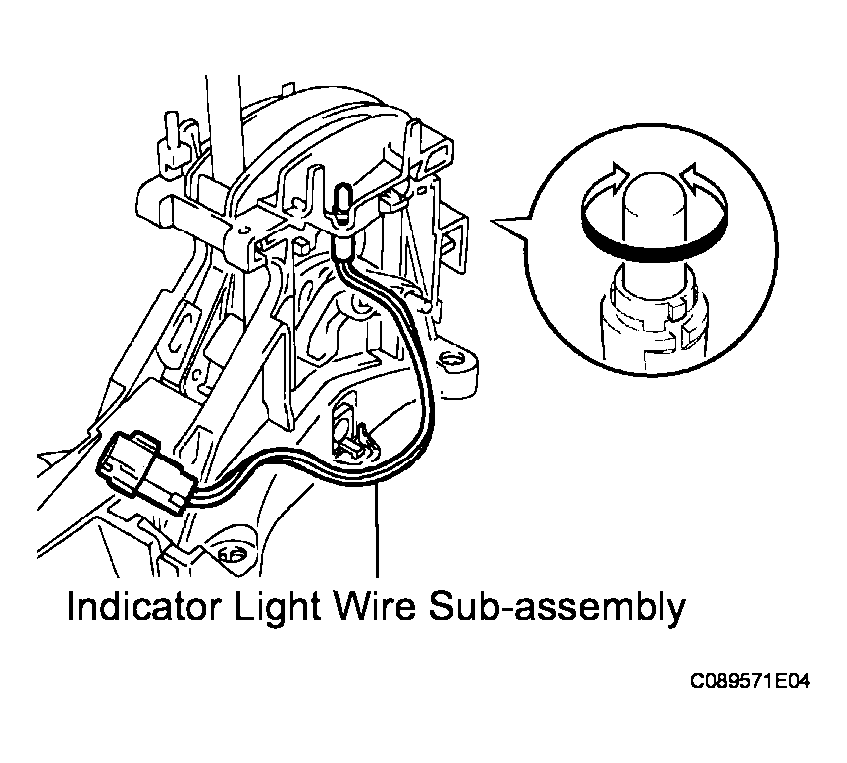

  Fig 2: Installing Indicator Light Wire To Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK SOLENOID
1. Install the shift lock solenoid to the floor shift.

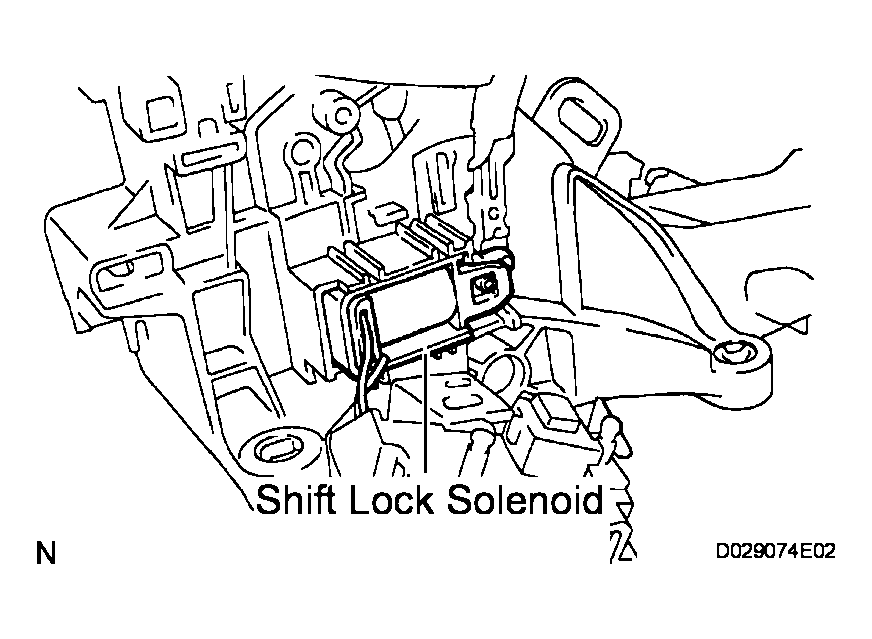

  Fig 3: Installing Shift Lock Solenoid To Floor Shift
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL SWITCH
1. Install the shift lock control switch to the floor shift with the screw.
  Torque: 2.2 N*m (22 kgf*cm, 19 in.*lbf)

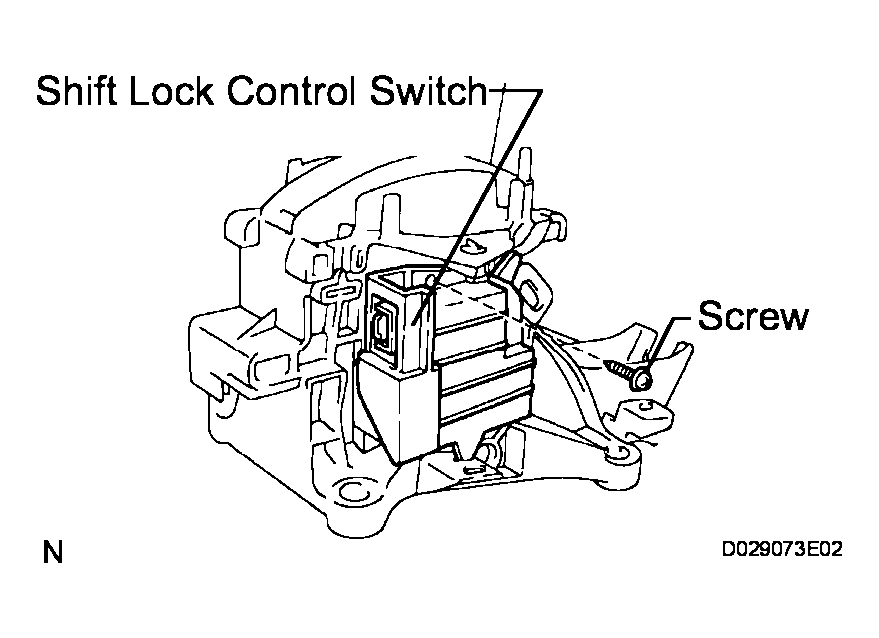

  Fig 4: Installing Shift Lock Control Switch To Floor Shift With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR UPPER HOUSING
1. Install the position indicator plate on the position indicator upper housing.
2. Install the position indicator slide cover on the shift lever plate.
3. Install the position indicator upper housing on the shift lever.
4. Install the shift lock release button cover on the position indicator upper housing.
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Apply MP grease to the shift lever knob button and spring.
2. Install the shift lever knob button and spring to the shift lever knob.
3. Install the transmission control switch to the shift lever knob.
  NOTE: Ensure that the claws fit tightly.
4. Install the shift lever knob cover to the shift lever knob with the 2 screws.
  HINT:

  Coat the threads of the screws with sealant.

  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  NOTE: Be careful that the transmission control switch wire harness is not caught between the shift lever knob cover and shift lever knob.

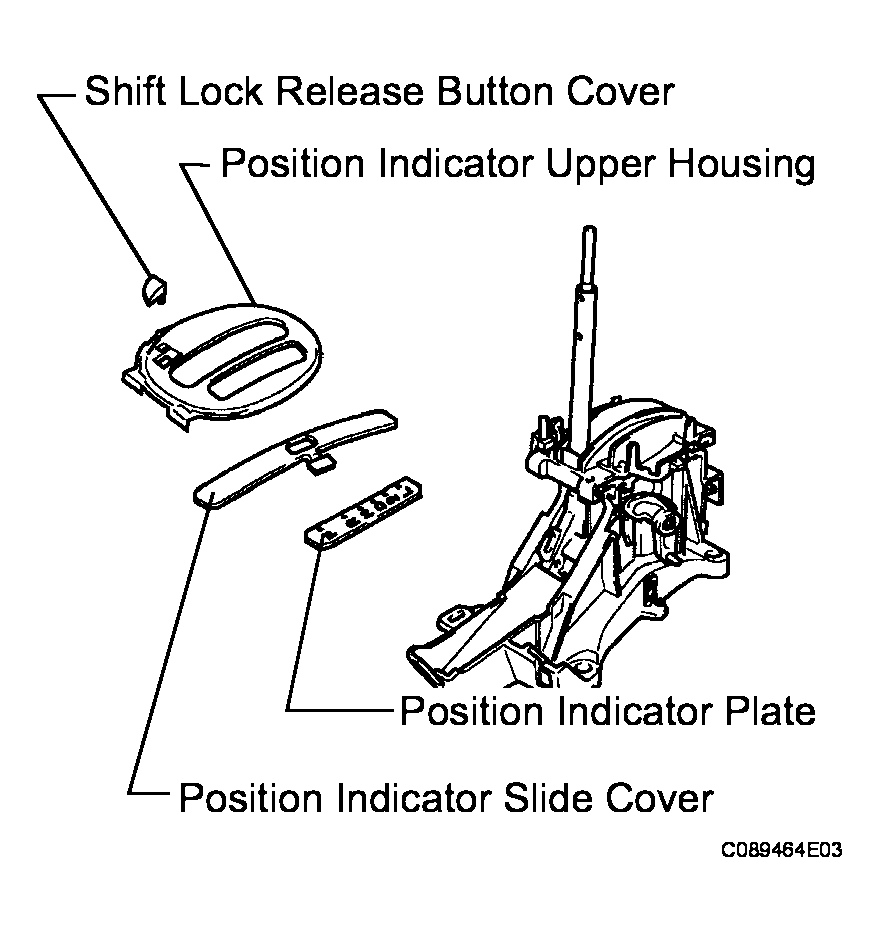

  Fig 5: Installing Position Indicator Plate On Position Indicator Upper Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

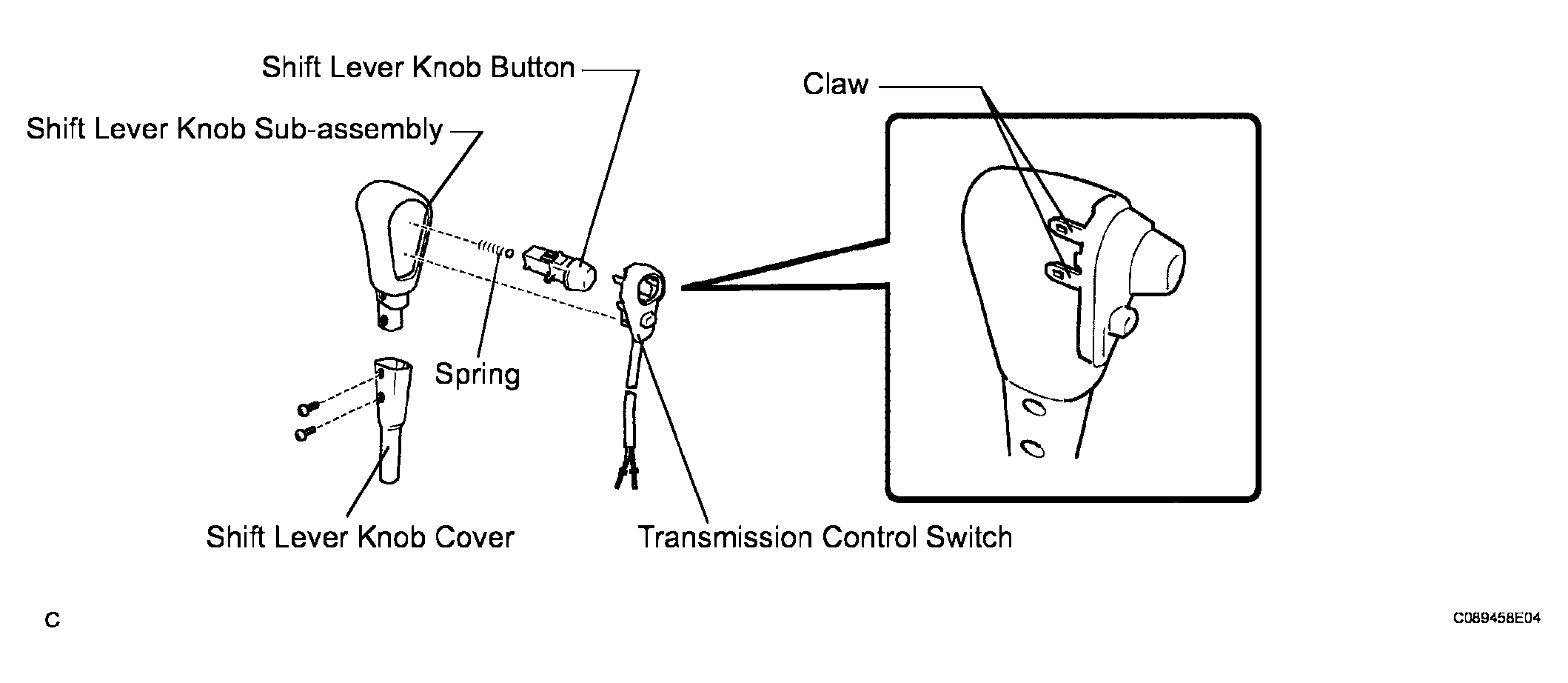

  Fig 6: Installing Shift Lever Knob Button And Spring To Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL SWITCH
1. Install the 2 terminals into the indicator light wire connector.

  Fig 7: Installing Terminals Into Indicator Light Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clamp the wire harness onto the shift lever plate. Then connect the connector to the shift lever plate.

  Fig 8: Connecting Connector To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
