Parts Location

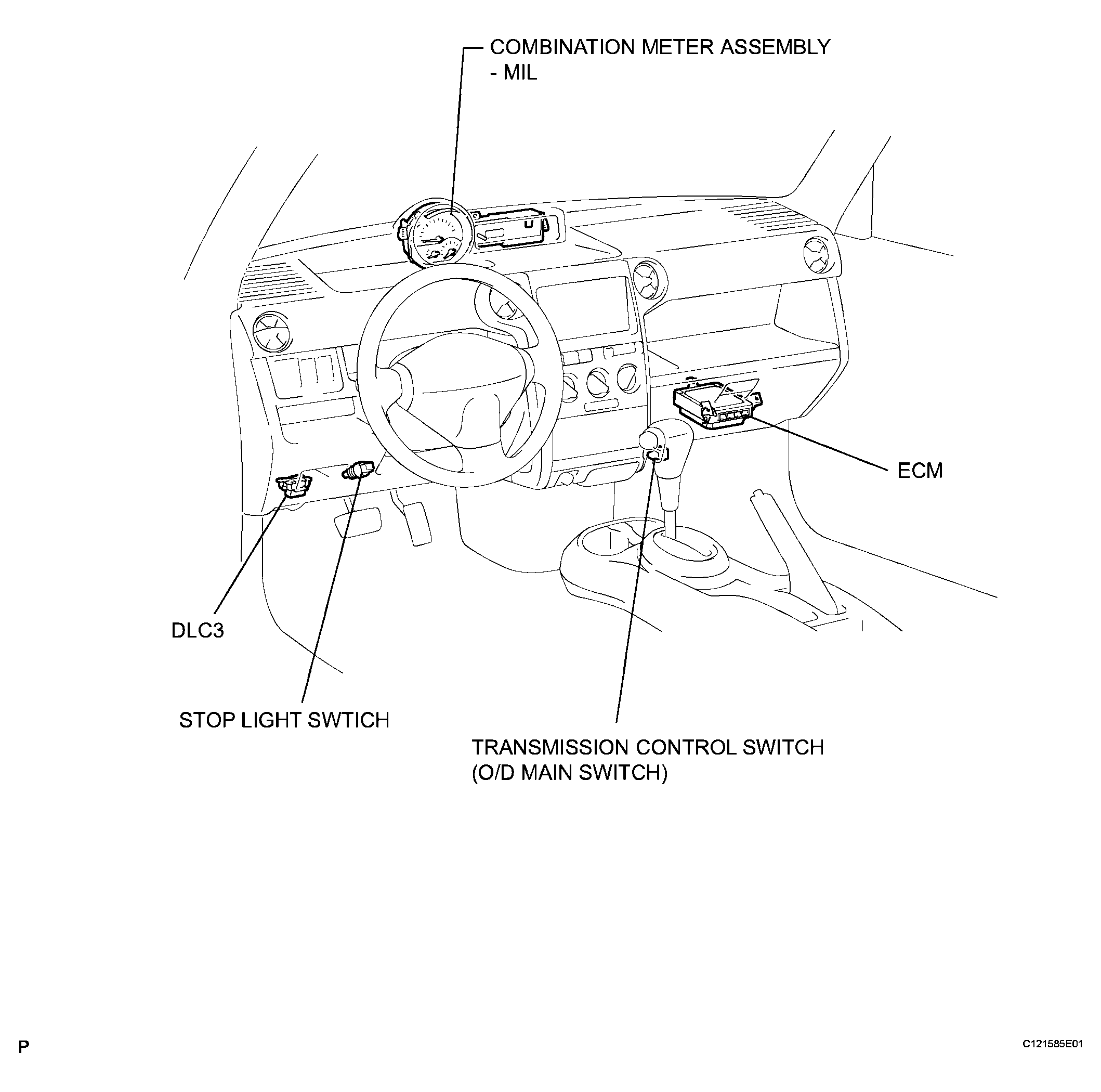

Fig 1: Identifying Automatic Transaxle System Location (1 Of 2)
G04227408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

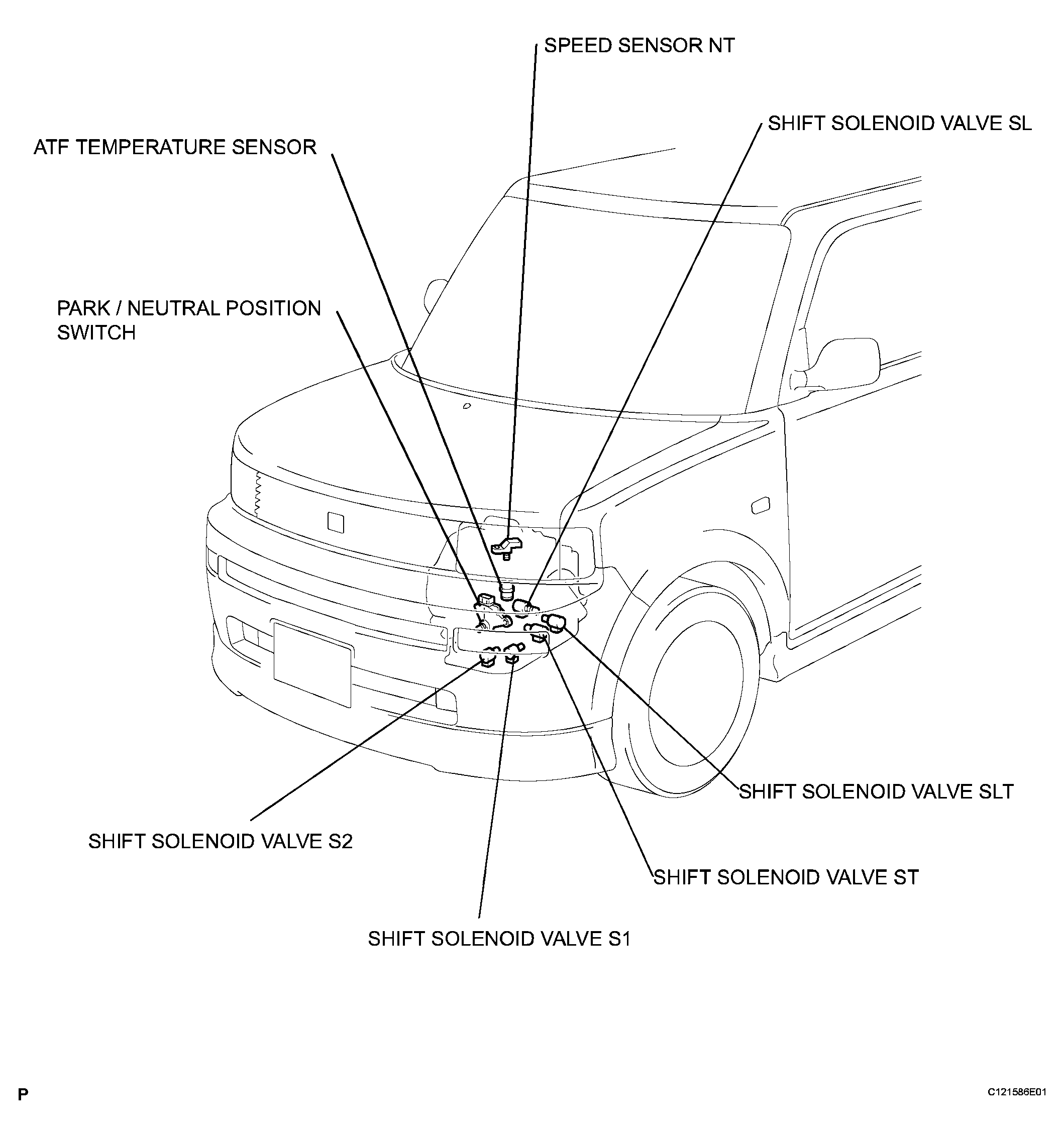

Fig 2: Identifying Automatic Transaxle System Location (2 Of 2)
G04227409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
