Vane Pump: Components

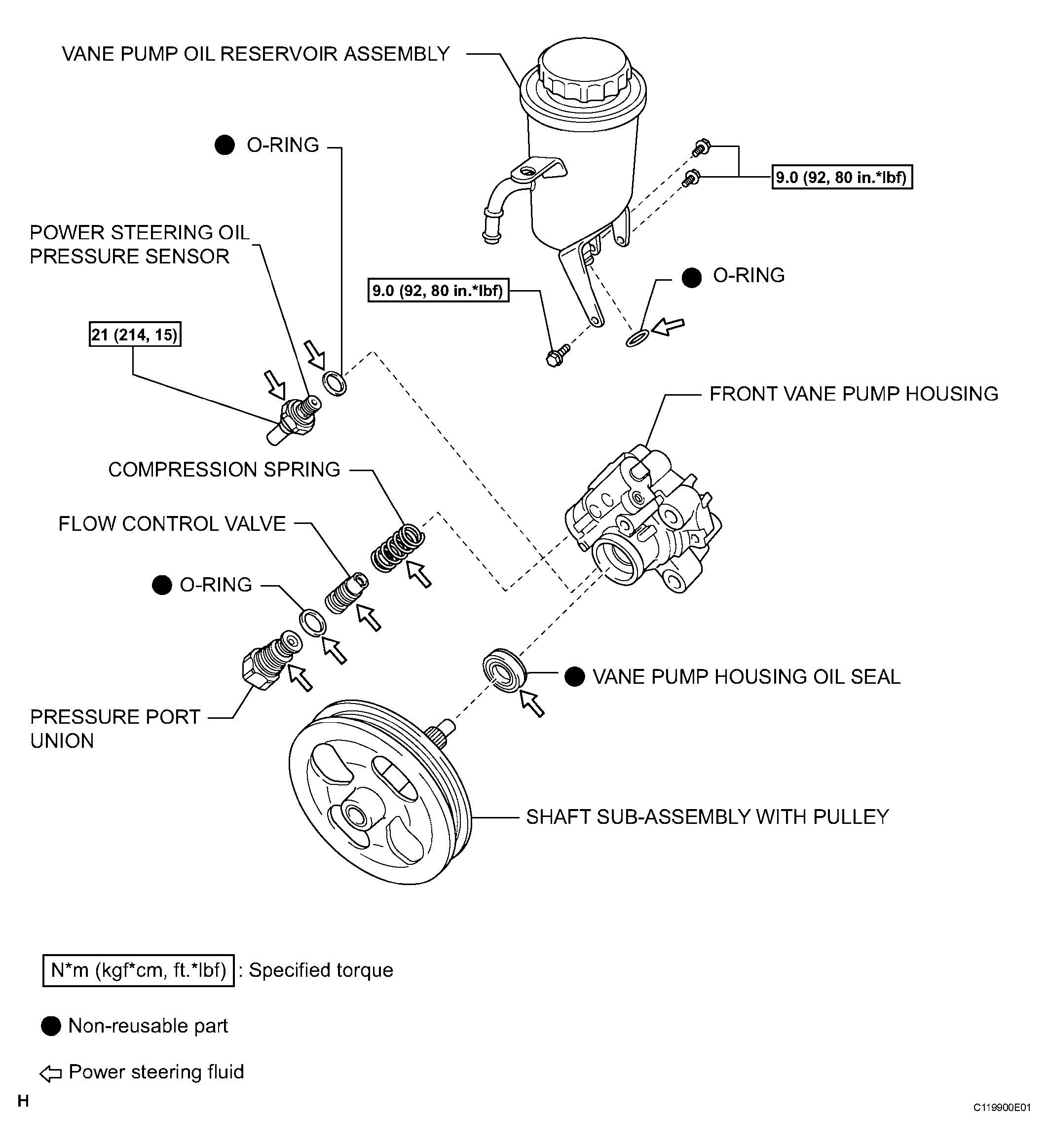

Fig 1: Identifying Vane Pump Components (1 Of 2)
G04226221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

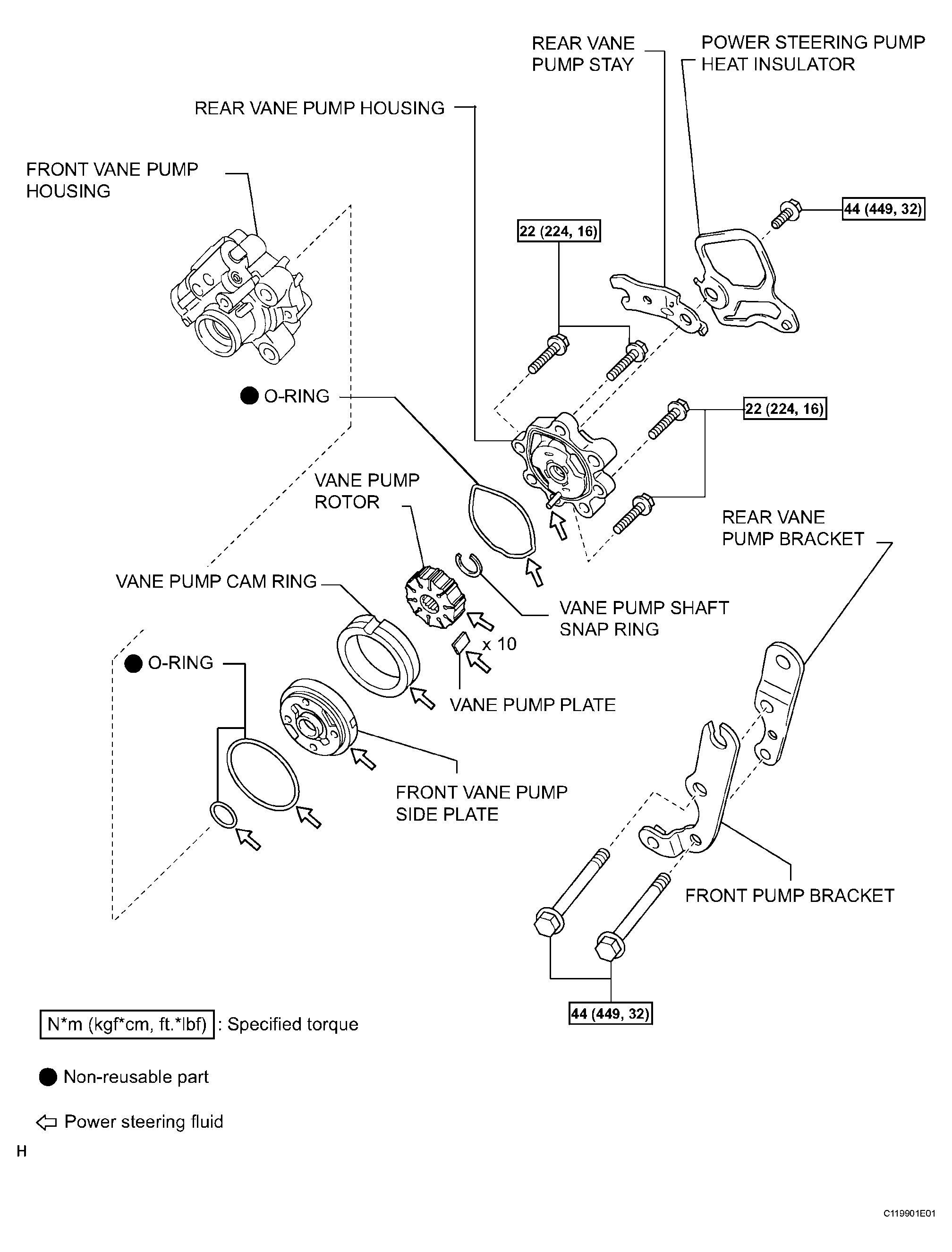

Fig 2: Identifying Vane Pump Components (2 Of 2)
G04226222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
