Rear Seat Inner Belt Assembly: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET SUB-ASSEMBLY
   1. Install the anchor bracket with the 4 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
3. INSTALL REAR SEATBACK ASSEMBLY RH (See  INSTALLATION  )
4. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
   1. Install the floor anchor and belt with the bolt, as shown in the illustration.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.

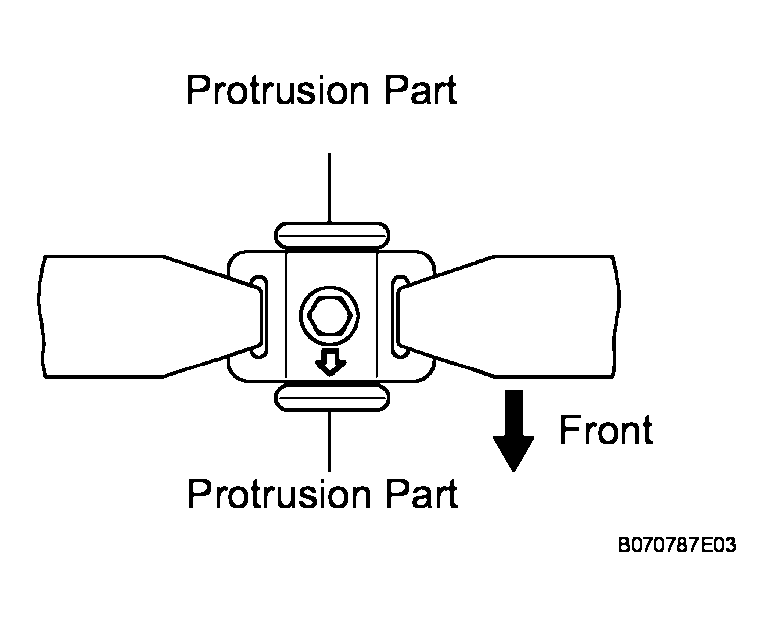

      Fig 1: Installing Rear Seat Inner With Center Belt Assembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
   1. Install the floor anchor and belt with the bolt, as shown in the illustration.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.
6. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY (See  INSTALLATION  )
   Fig 2: Installing Rear Seat Inner With Center Belt Assembly RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
