How To Determine Bolt Strength

Bolt Type

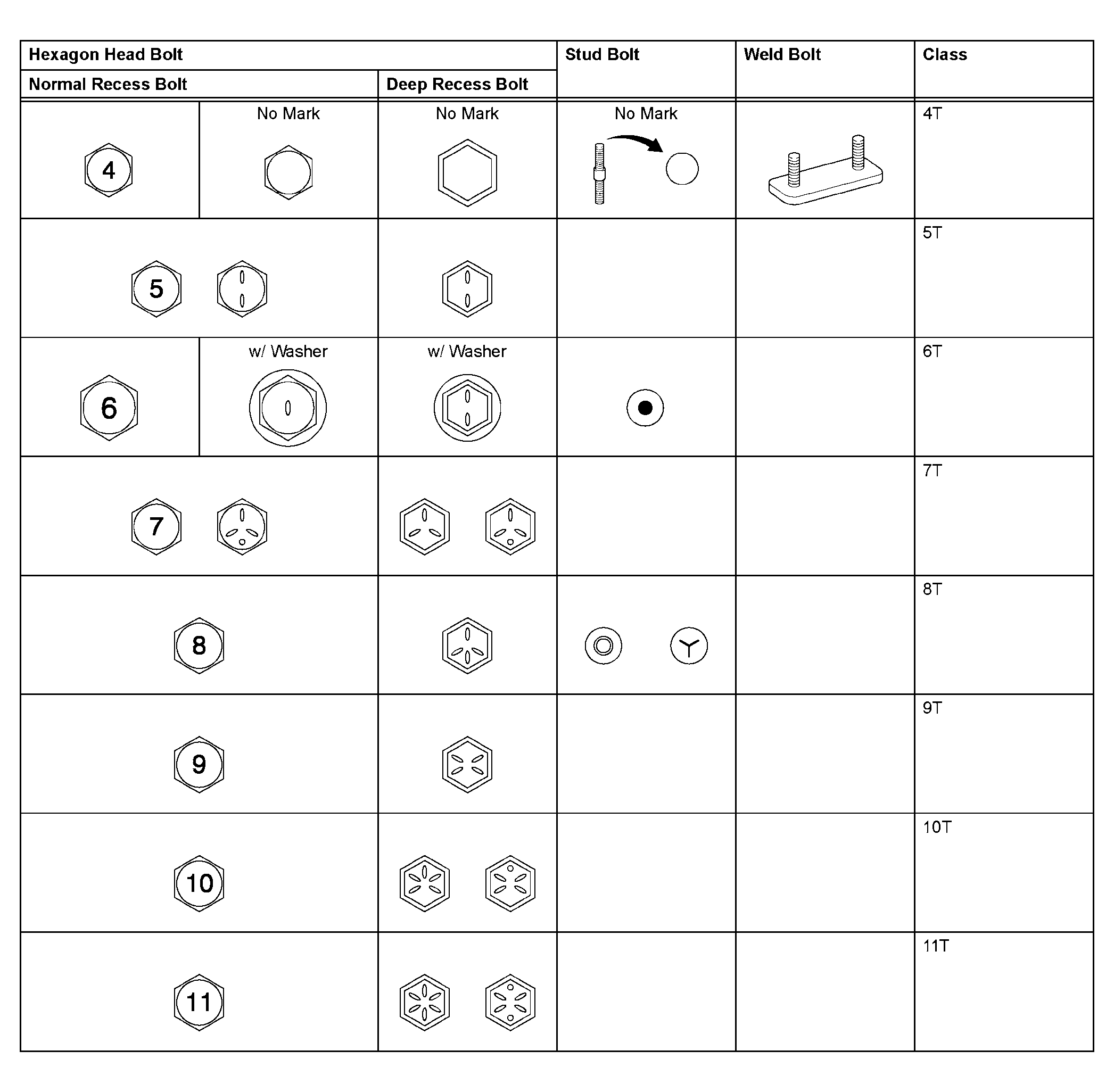

Fig 1: Bolt Type Chart
G04225343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
