Ignition Coil: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 2 CYLINDER HEAD COVER
    1. Remove the 4 cap nuts and head cover.
  3. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil connectors.
    2. Remove the 4 bolts and pull out the 4 ignition coils.

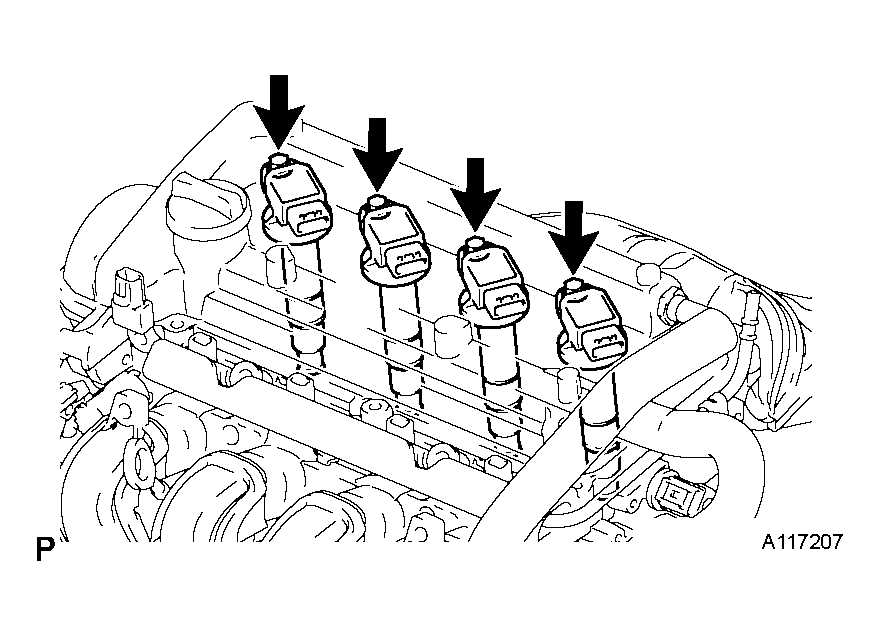

      Fig 1: Removing Ignition Coils
      G04227315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
