xB Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel (1NZ-FE)
>>
Fuel System
>>
System Diagram
System Diagram

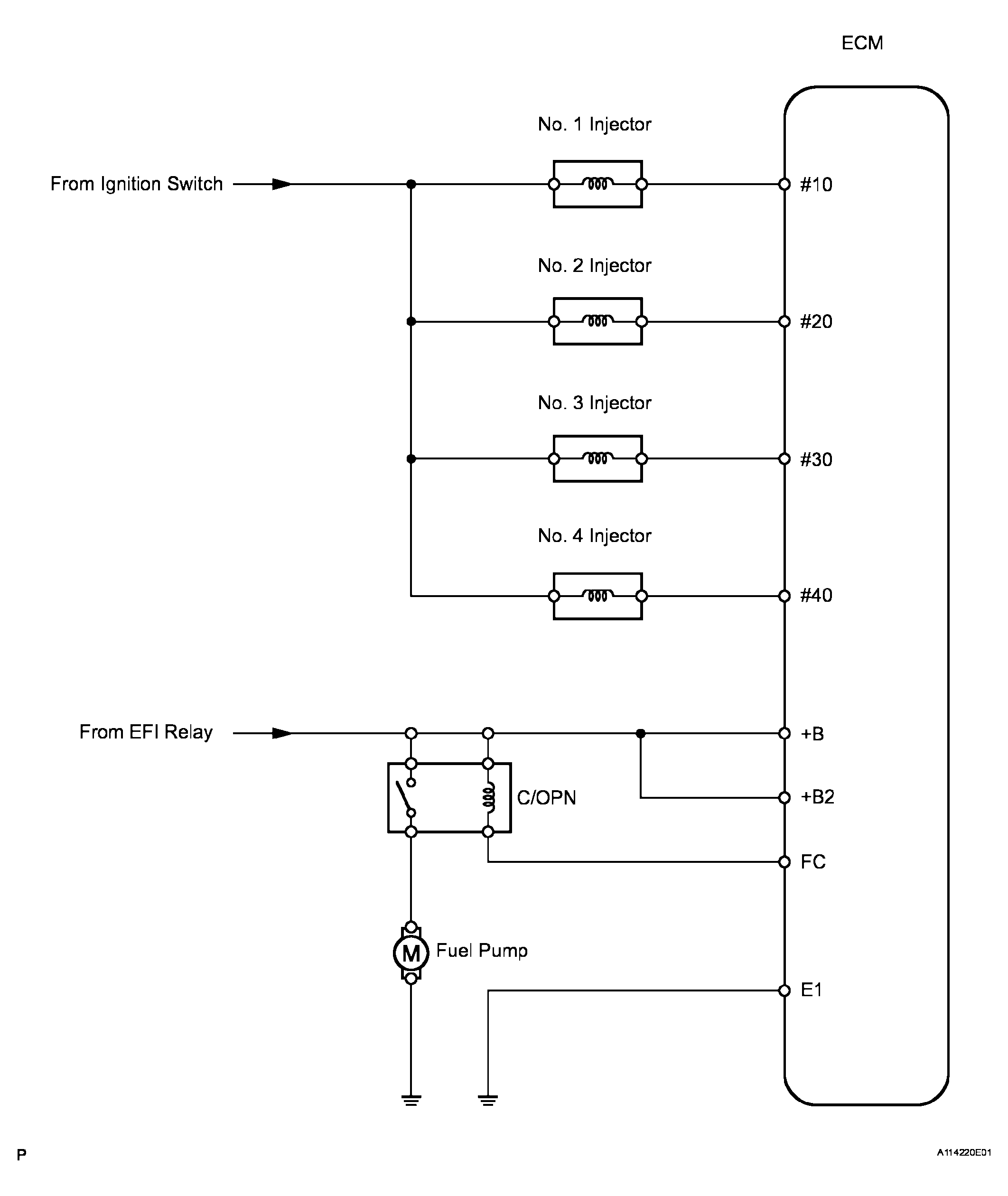

Fig 1: Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
