Upper Instrument Panel: Disassembly

REMOVE NO. 1 HEATER TO REGISTER DUCT
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 1 heater to register duct from the instrument panel.

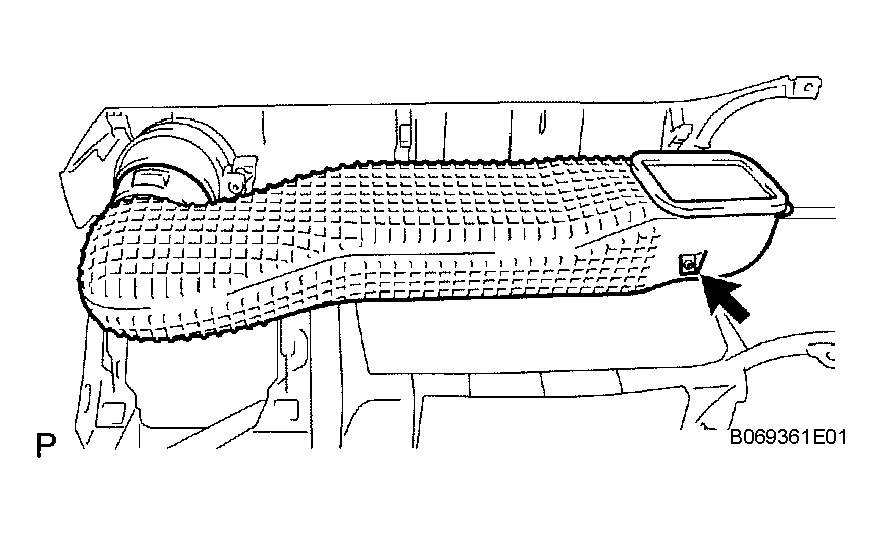

  Fig 1: Removing No. 1 Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Cutting Off Ultrasonic Welding Portion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 HEATER TO REGISTER DUCT
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 3 heater to register duct from the instrument panel.

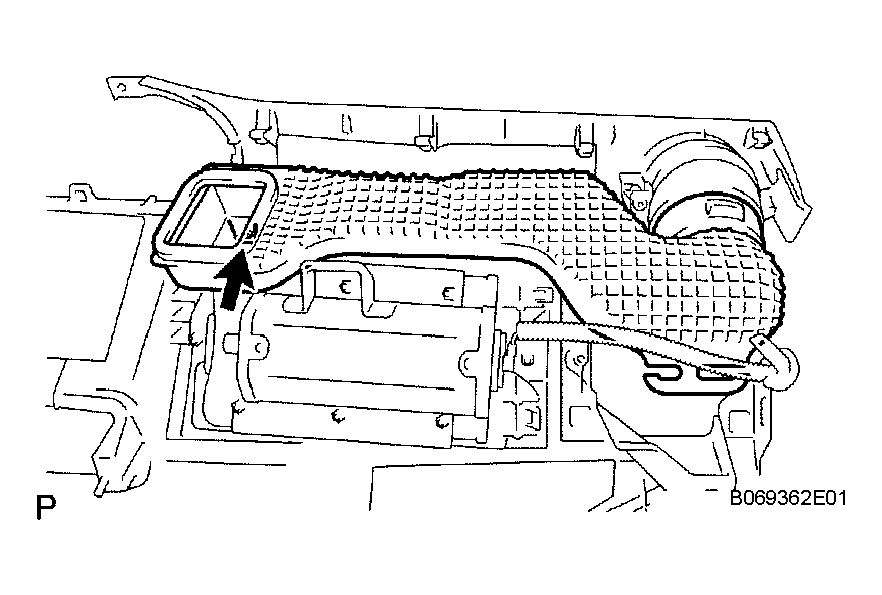

  Fig 3: Removing No. 3 Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Cutting Off Ultrasonic Welding Portion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 1 instrument panel register from the instrument panel.

  Fig 5: Removing No. 1 Instrument Panel Register Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Cutting Off Ultrasonic Welding Portion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL END
1. Remove the screw.
2. Disengage the 2 claws and remove the instrument cluster finish panel end.
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See REMOVAL )
REMOVE NO. 1 INSTRUMENT PANEL CUSHION
1. Remove the No. 1 instrument panel cushion from the instrument panel sub-assembly.

  Fig 7: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
