Lower Instrument Panel: Disassembly

REMOVE INSTRUMENT PANEL REINFORCEMENT
1. Using a clip remover, remove the 2 clips.

  Fig 1: Removing Clips Using Clip Remover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw.

  Fig 2: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and instrument panel lower pad insert LH.

  Fig 3: Removing Bolts And Instrument Panel Lower Pad Insert LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut and No. 1 instrument panel brace.
REMOVE FUSE BOX OPENING COVER

Fig 4: Removing Nut And No. 1 Instrument Panel Brace
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 HEATER TO REGISTER DUCT
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 2 heater to register duct from the instrument panel.

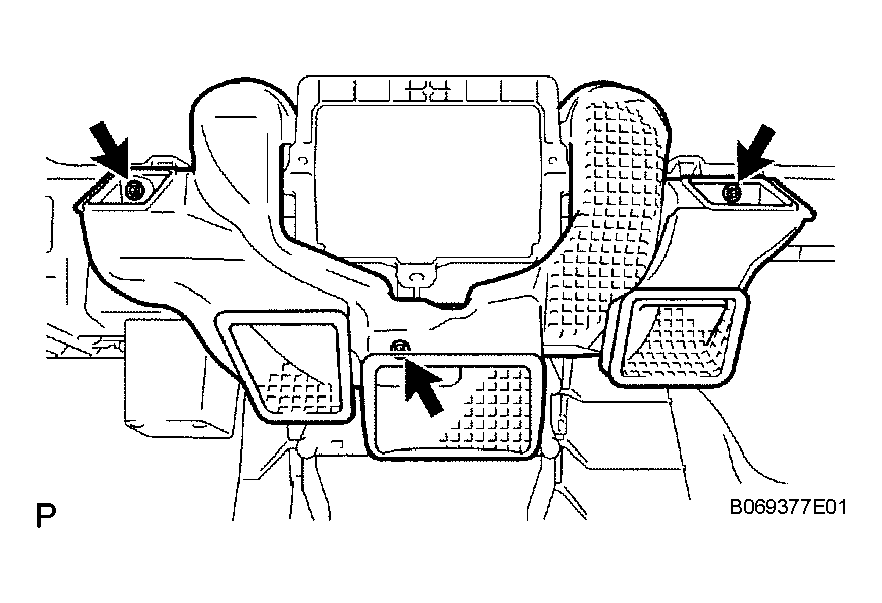

  Fig 5: Locating Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Identifying Ultrasonic Welding Portion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL BRACKET SUBASSEMBLY CENTER
1. Remove the screw and instrument panel bracket.
REMOVE INSTRUMENT PANEL HOLE COVER

Fig 7: Removing Screw And Instrument Panel Bracket Subassembly Center
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
