Rear Axle Hub: Components

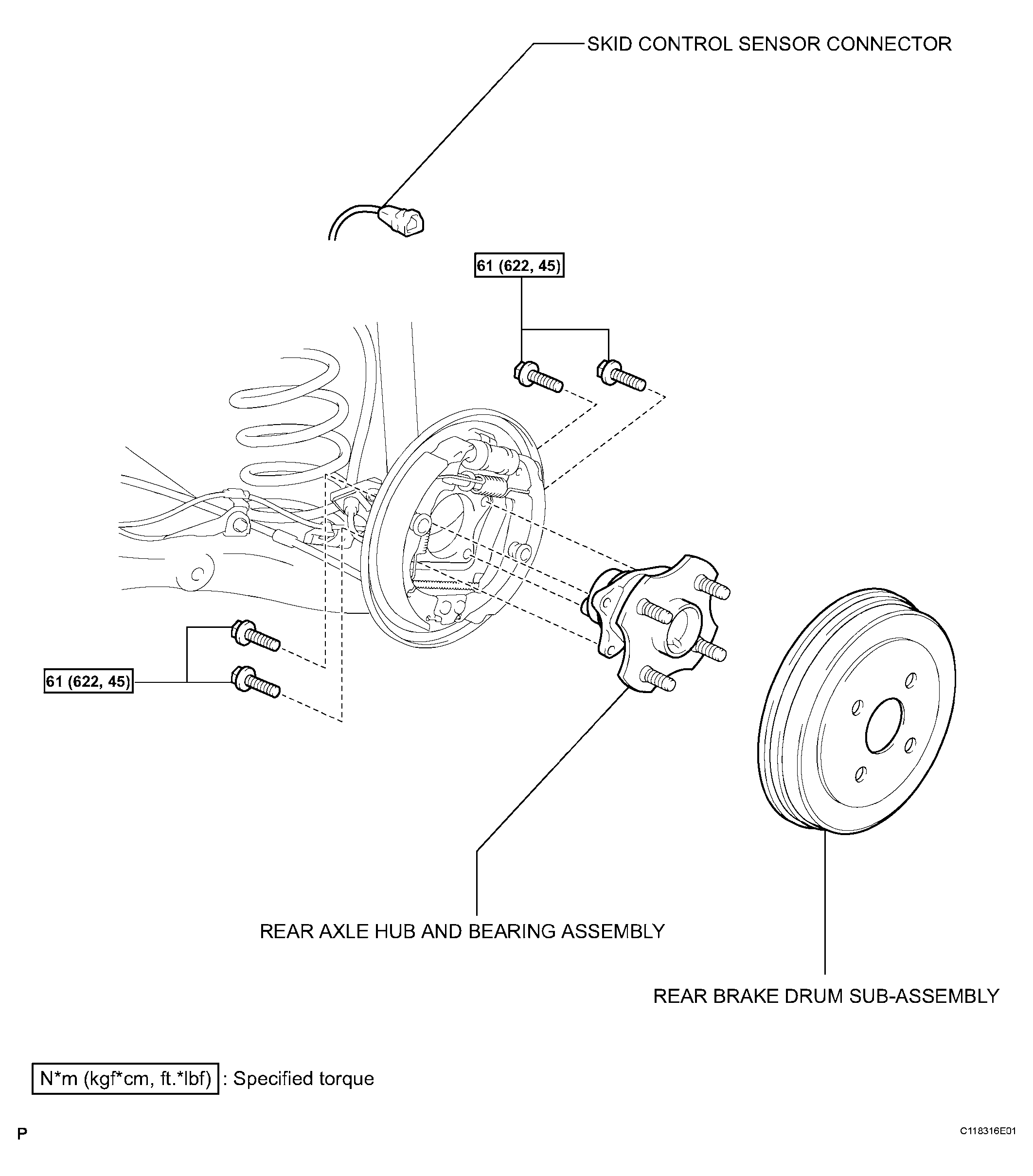

Fig 1: Identifying Rear Axle Hub Components

G04225840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
