System Diagram

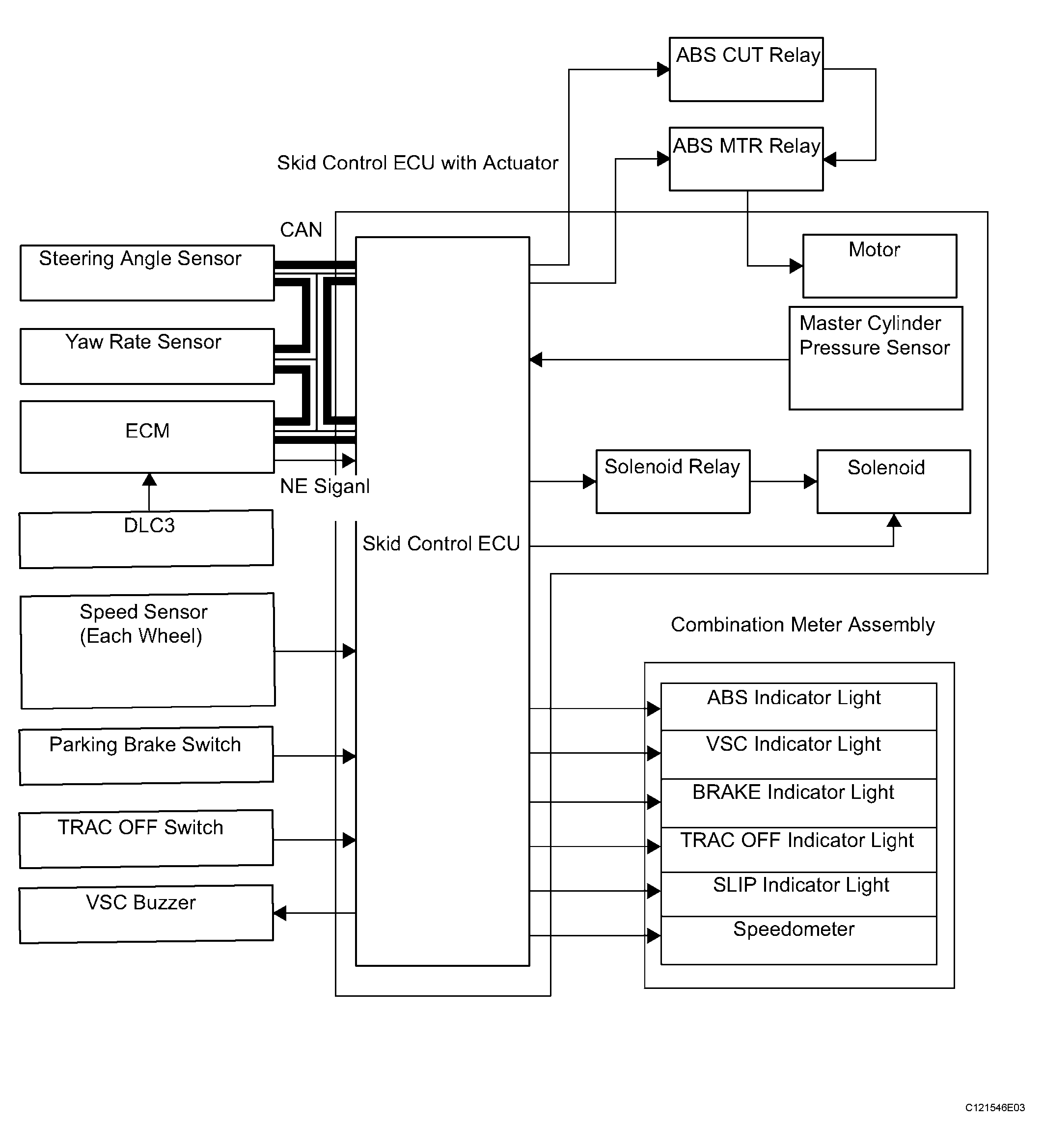

Fig 1: Brake Control System Diagram

G04225926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
