Inspection Procedure

1. Choose the diagnosis method.

   Method

   METHOD REFERENCE



   Method	Proceed to
   Using intelligent tester	A
   Not using intelligent tester	B

B: Go to step   3

A: Go to next step

1. Select the ACTIVE TEST, generate a control command, and then check that the skid control buzzer sounds.

   Skid control ECU with actuator

   ITEM VEHICLE CONDITION DIAGNOSTIC CHART



   Item	Vehicle Condition / Test Details	Diagnostic Note
   VSC / BR WARN BUZ	Turns VSC / BRAKE warning buzzer ON / OFF	Buzzer can be heard

   OK: Normal operation.

   HINT:

   When replacing the skid control ECU with actuator, perform the zero point calibration (see CALIBRATION  ).

OK: REPLACE BRAKE ACTUATOR ASEMBLY

NG: Go to Next Step

1. Disconnect the skid control buzzer connector.
2. Apply positive (+) battery voltage to terminals 1 and 2 of the skid control buzzer connector. Check that the buzzer sounds.

   OK: Skid control buzzer sound is heard.

NG: REPLACE SKID CONTROL BUZZER ASSEMBLY

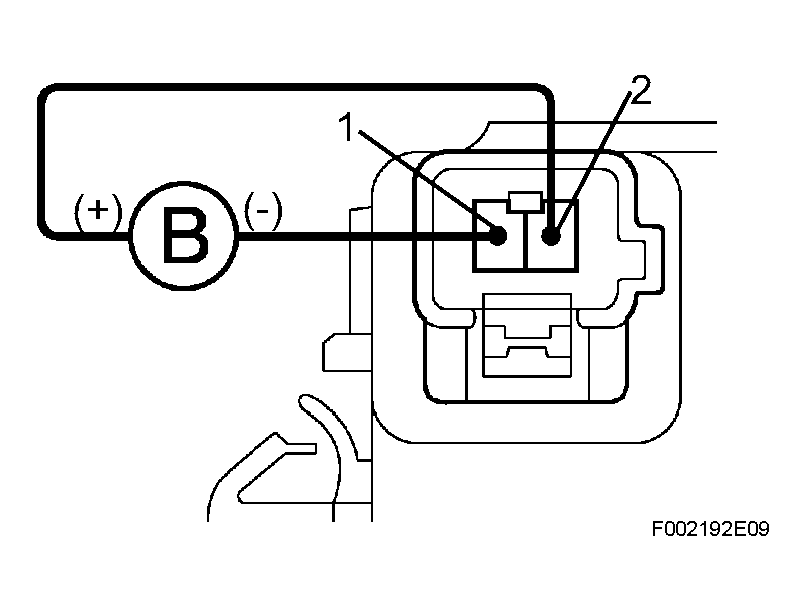

Fig 1: Inspecting Skid Control Buzzer Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. Disconnect the V2 buzzer connector.
2. Disconnect the S3 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   V2-1 - S3-30 (BZ)	Below 1 Ω

4. Measure the voltage of the wire harness side connectors.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   V2-2 - Body ground	10 to 14 V

   HINT:

   When replacing the skid control ECU with actuator, perform the zero point calibration (see CALIBRATION  ).

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

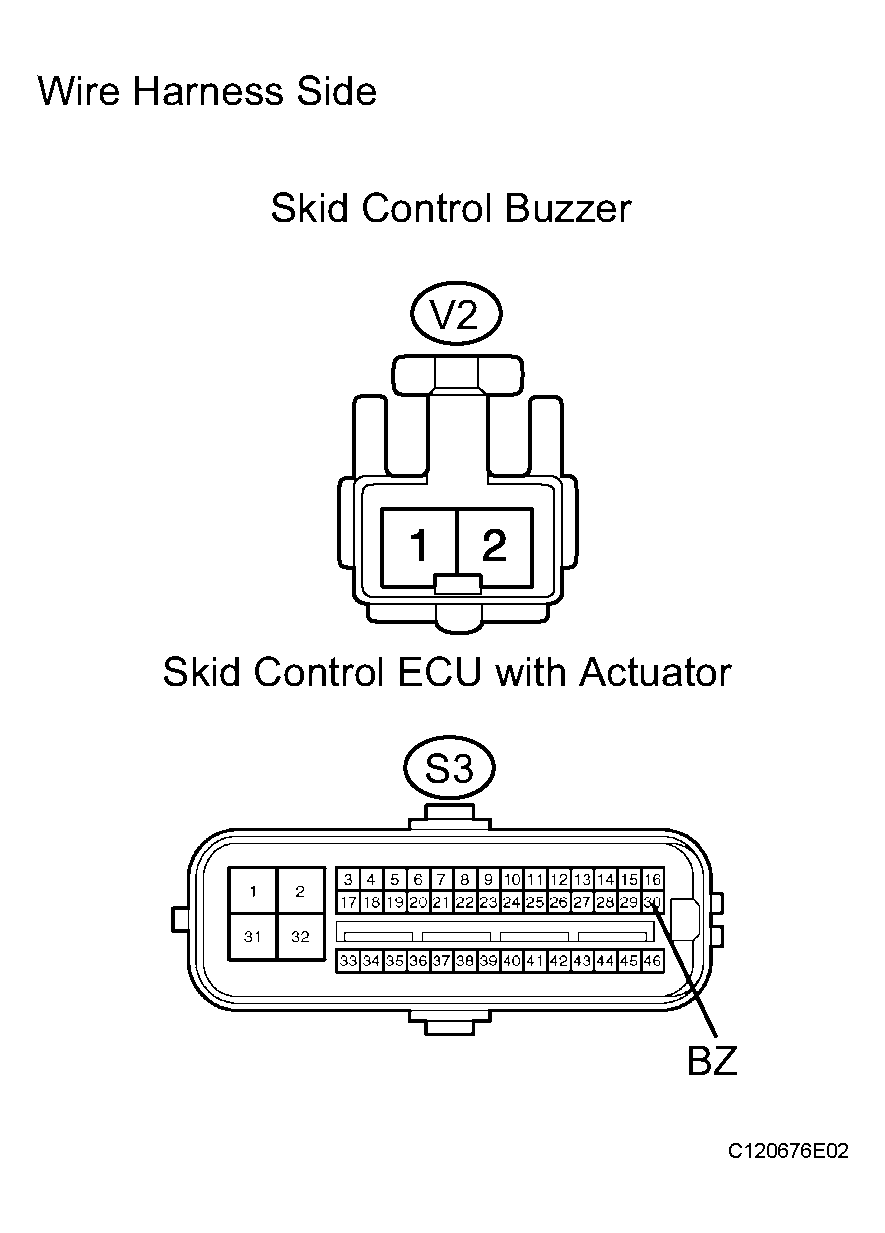

Fig 2: Measuring Resistance Of Wire Harness Side Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE BRAKE ACTUATOR ASSEMBLY
