Rear Seat Assembly: Components

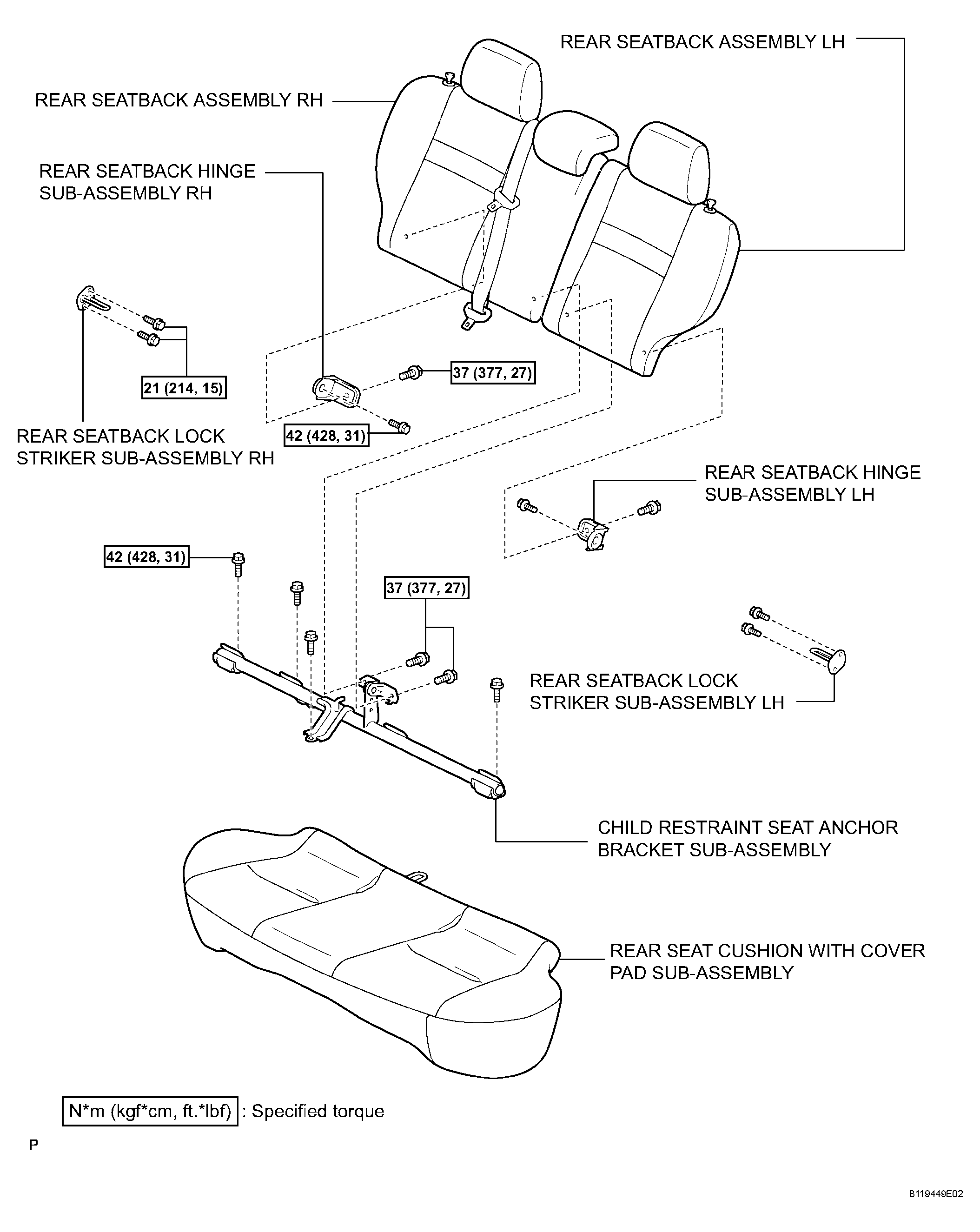

Fig 1: Locating Rear Seat Assembly Components (1 Of 2)
G04229666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

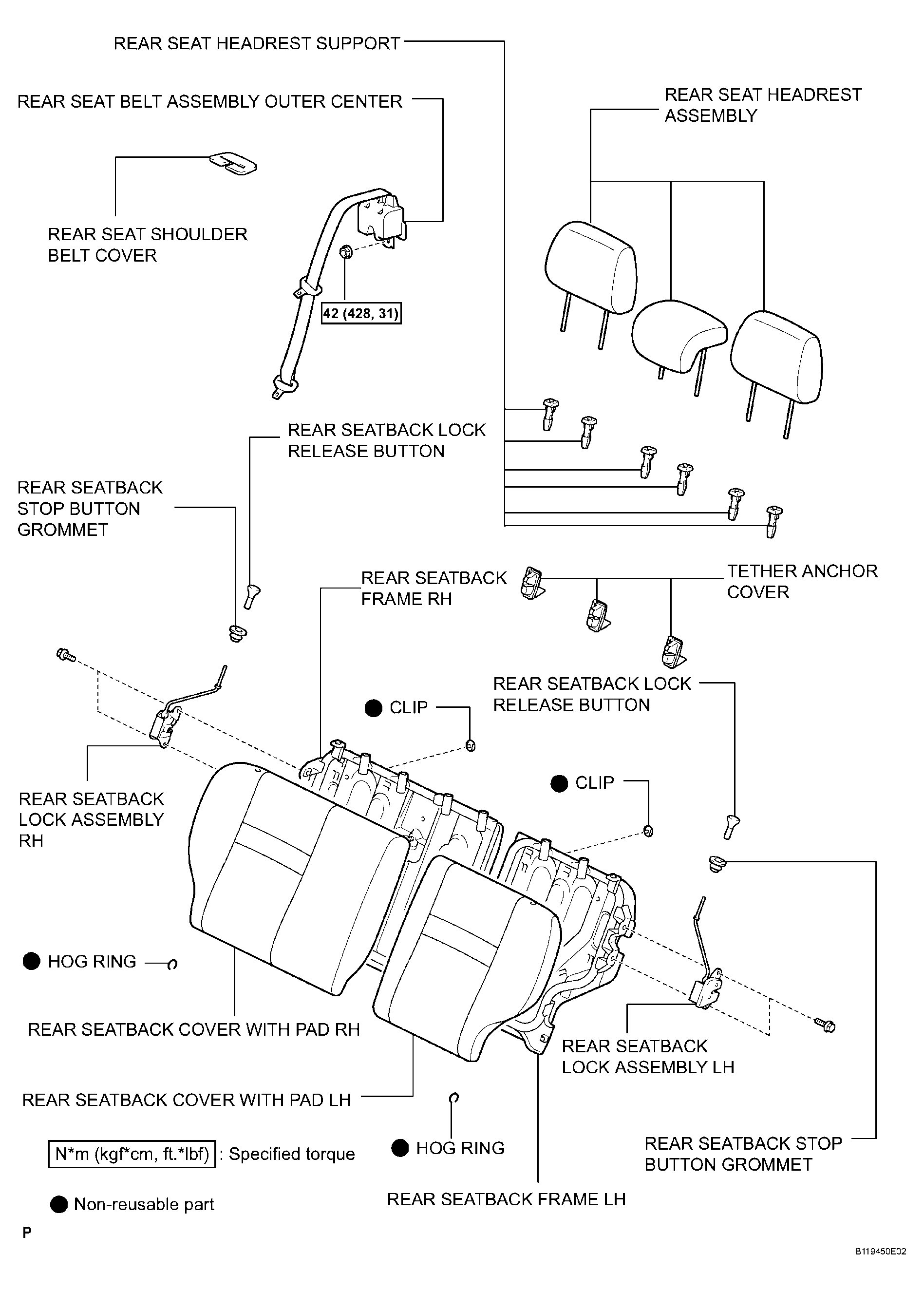

Fig 2: Locating Rear Seat Assembly Components (2 Of 2)
G04229667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
