xB Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door Lock
>>
Power Door Lock Control System
>>
System Diagram
System Diagram

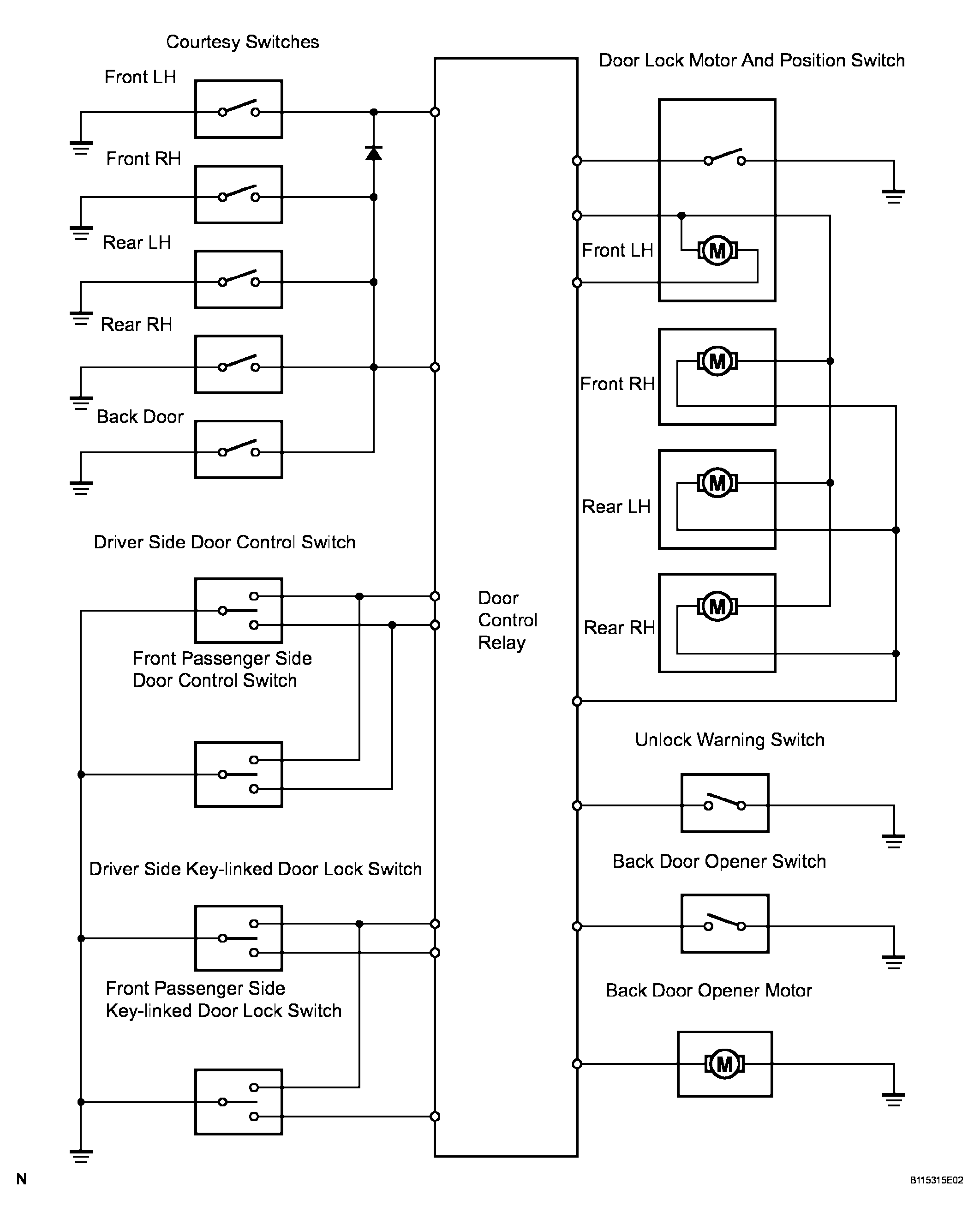

Fig 1: Identifying Power Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
