Stop Light Switch Circuit: Wiring Diagram

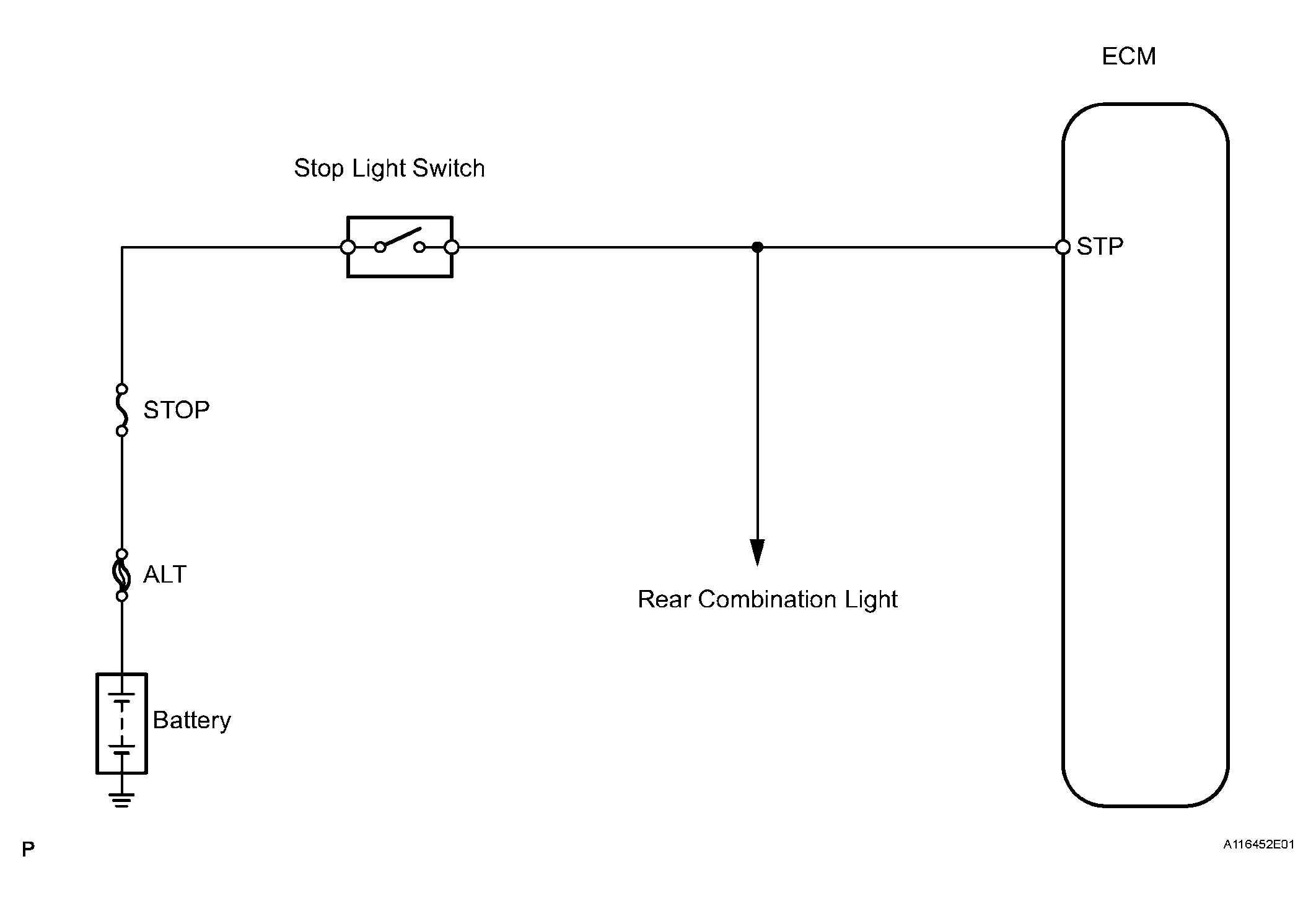

Fig 1: Identifying Stop Light Switch Circuit Wiring Diagram

G04225706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
