How To Determine Bolt: Strength

Bolt Type

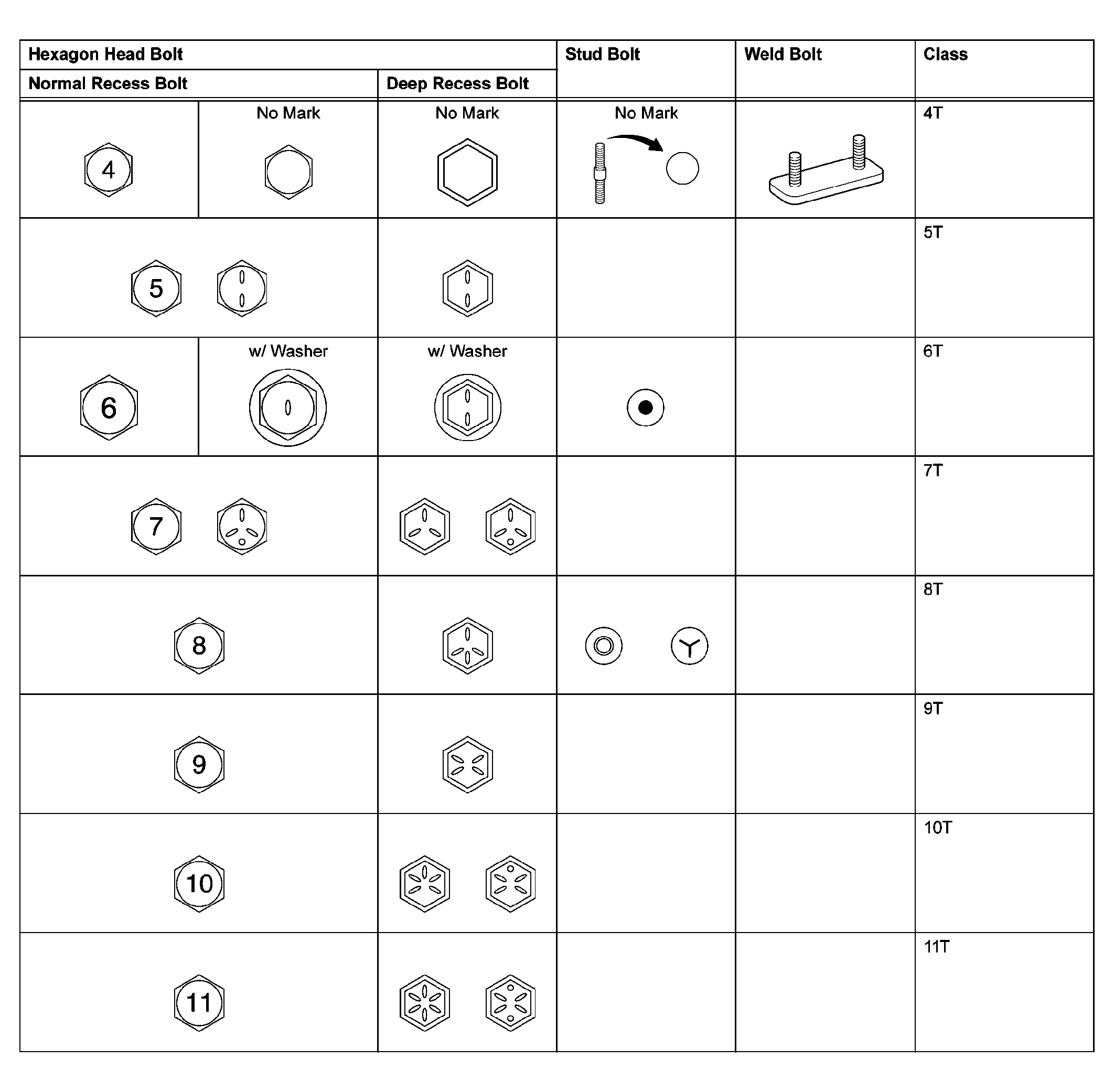

Fig 1: Bolt Type Reference Chart
G04152804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
