Section 1 (U340E Automatic Transaxle)
>>
Valve Body Assembly
>>
Components
Valve Body Assembly: Components
WARNING:
This page is about a different variant/trim than selected.

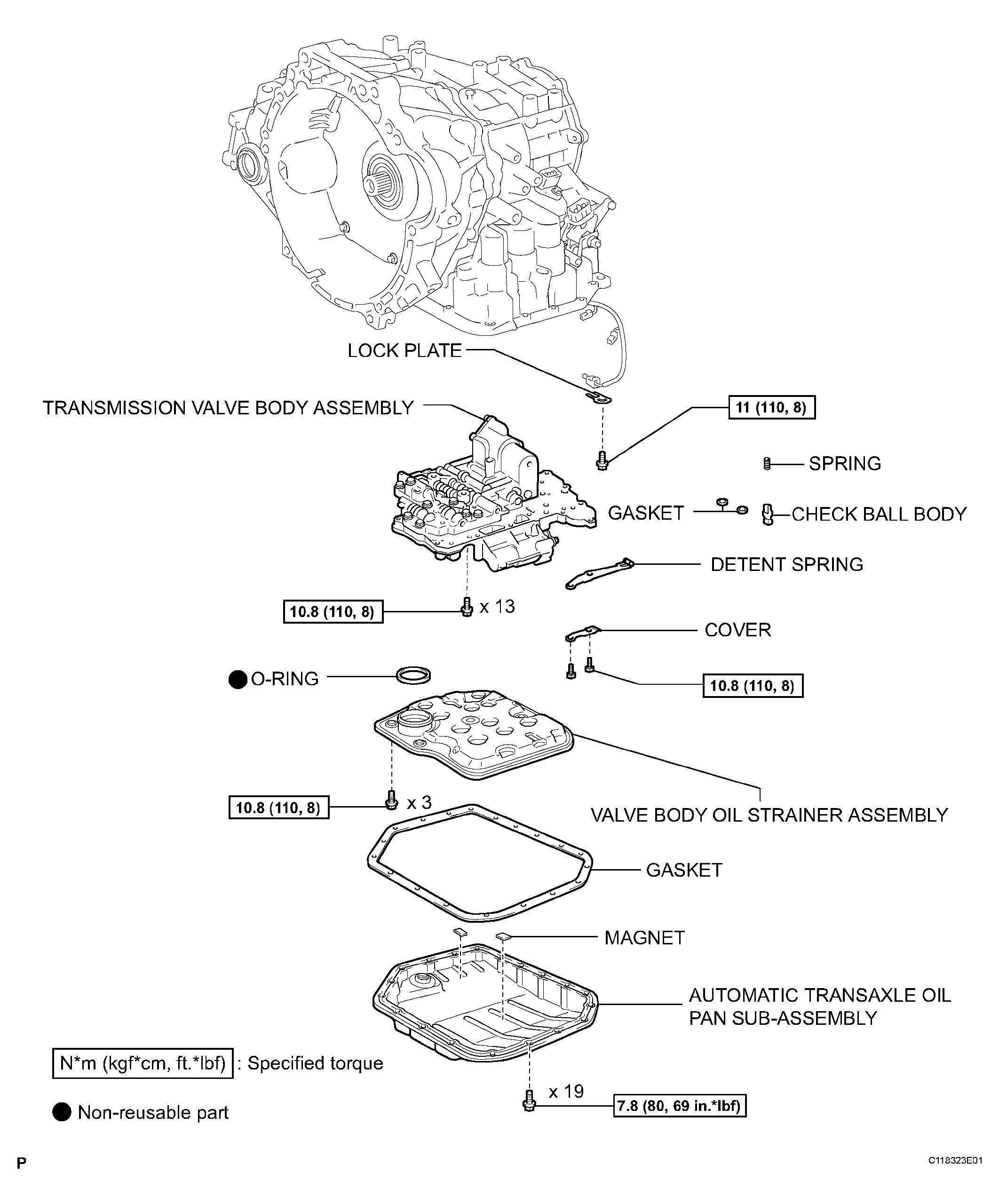

Fig 1: Identifying Valve Body Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
