Transmission Revolution Sensor: Components

WARNING: This page is about a different variant/trim than selected.

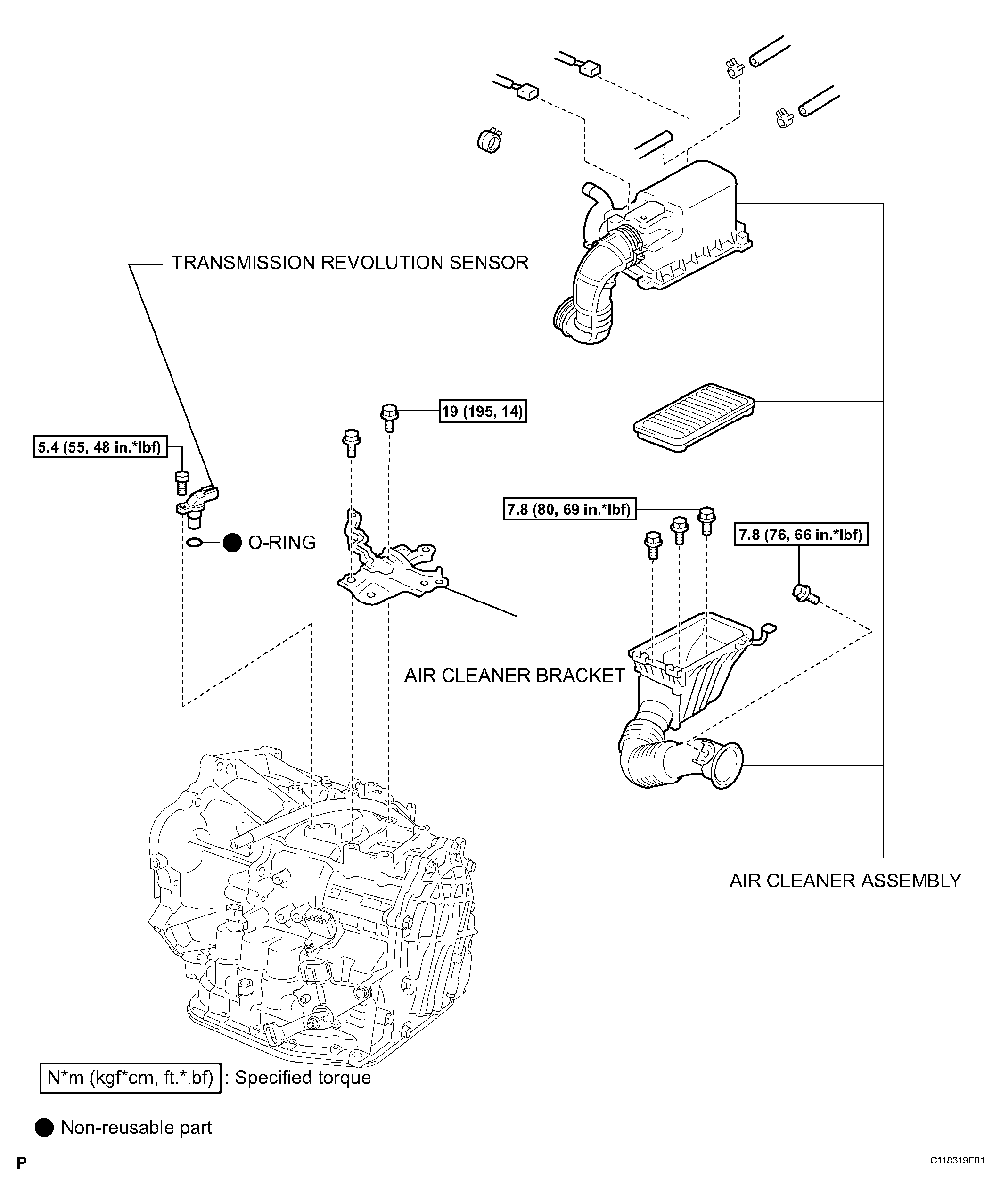

Fig 1: Identifying Transmission Revolution Sensor Components
G04153963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
