Fuel Pump: Components

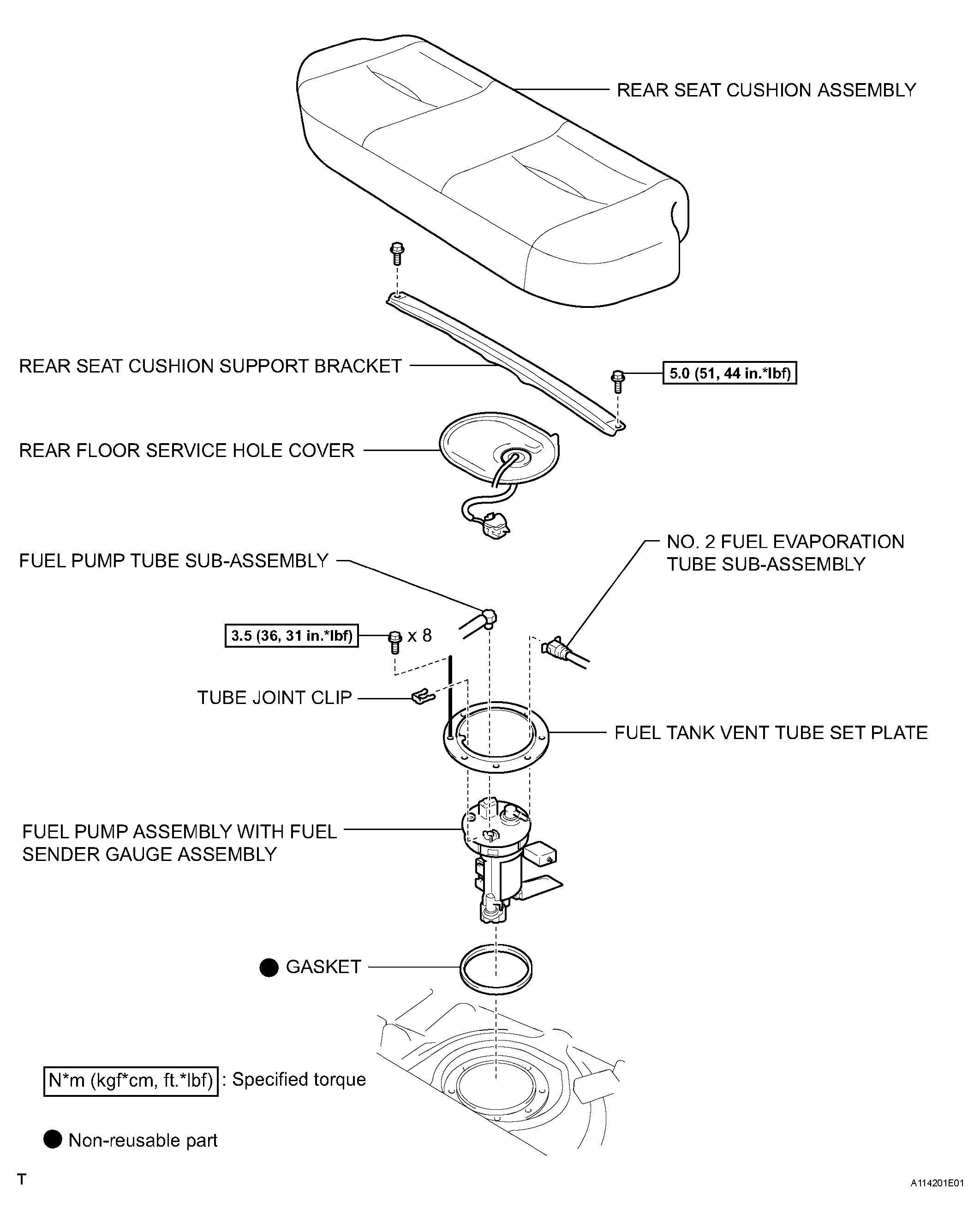

Fig 1: Identifying Fuel Pump Replacement Components
G04153610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

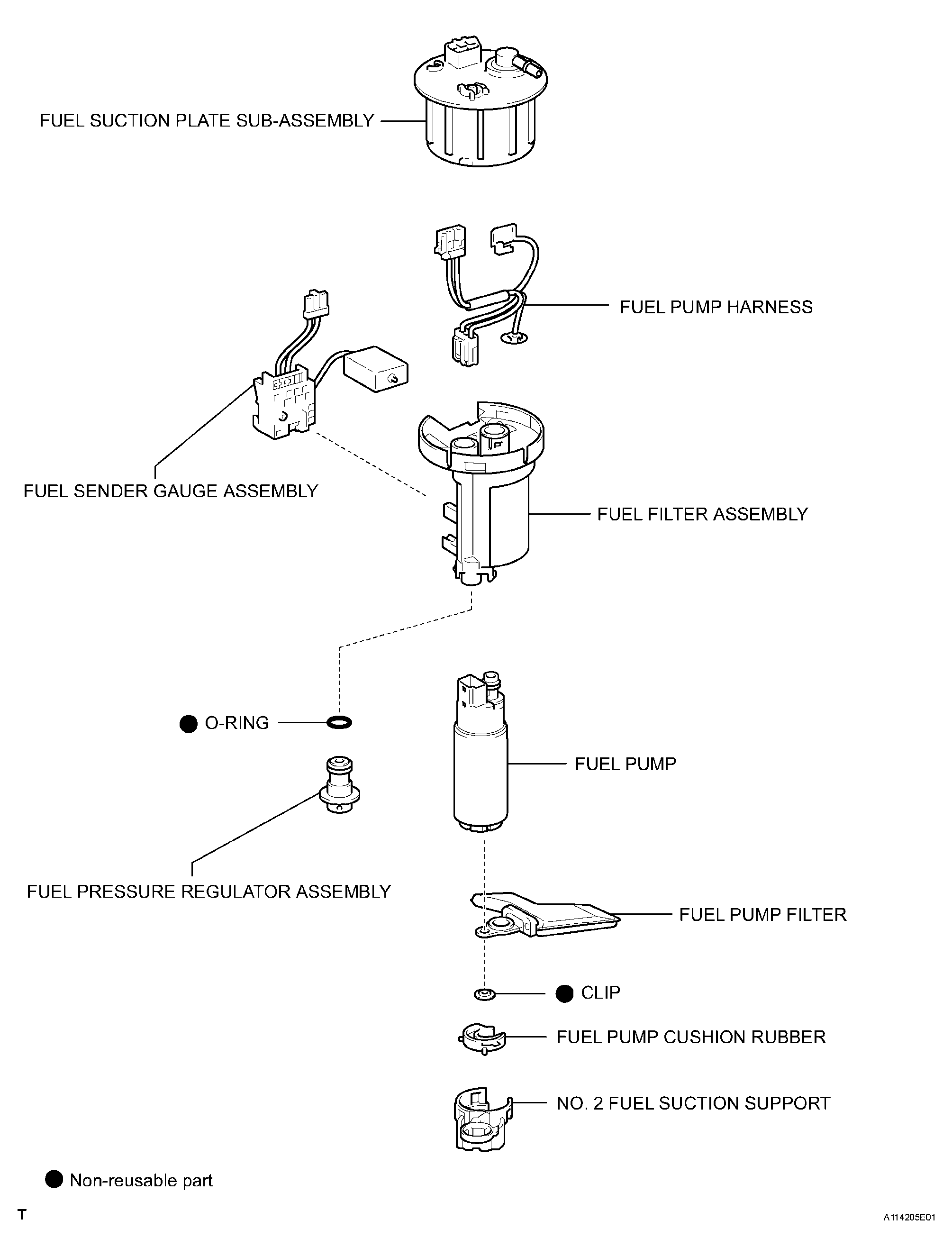

Fig 2: Exploded View Of Fuel Pump Components
G04153611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
