Stop Light Switch Circuit: Wiring Diagram

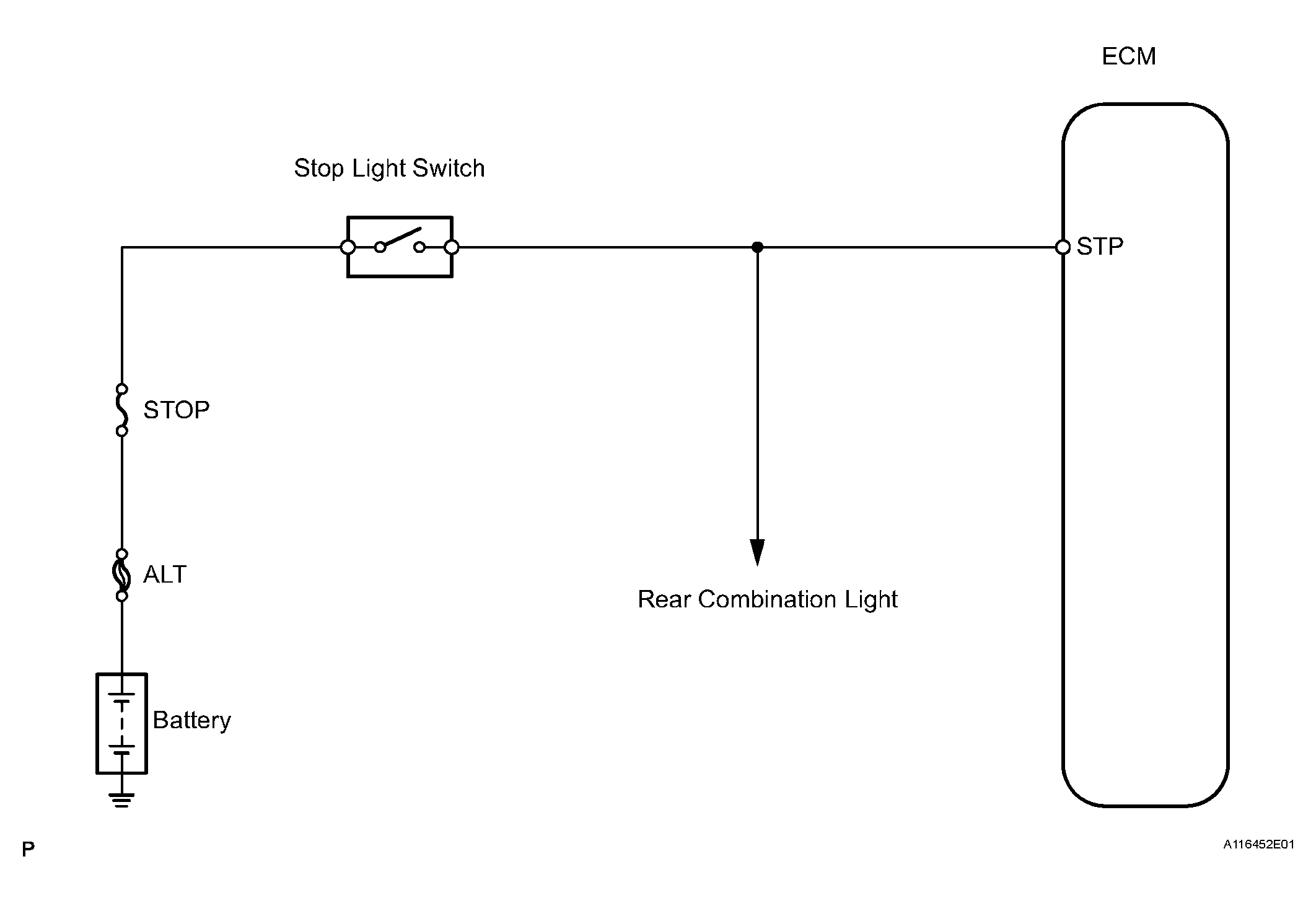

Fig 1: Wiring Diagram - Stop Light Switch

G04153166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
