Upper Instrument Panel: Disassembly

REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See REMOVAL )
REMOVE NO. 1 HEATER TO REGISTER DUCT
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 1 heater to register duct from the instrument panel.
REMOVE NO. 3 HEATER TO REGISTER DUCT
HINT:

Use the same procedures described for the No. 1 heater to register duct.

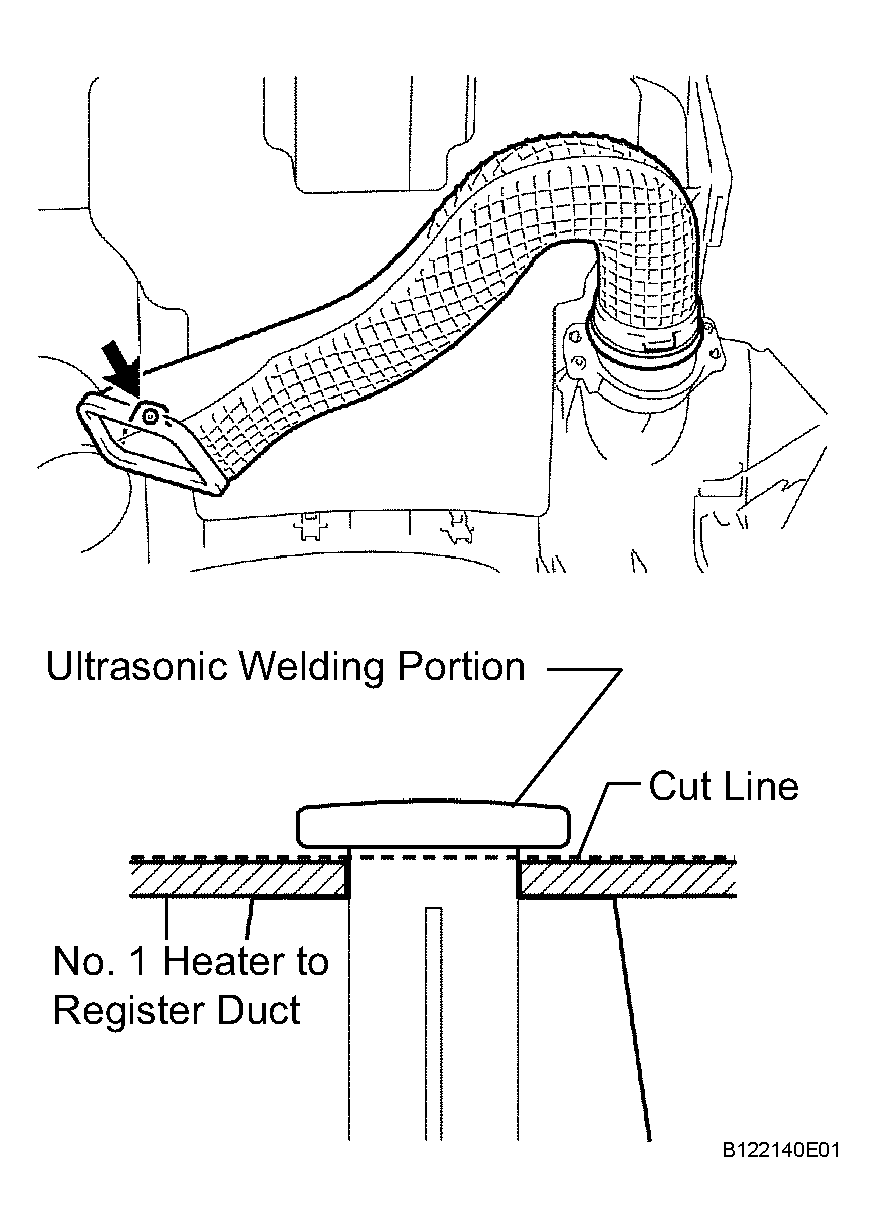

Fig 1: Identifying Ultrasonic Welding Portion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 1 instrument panel register assembly from the instrument panel.

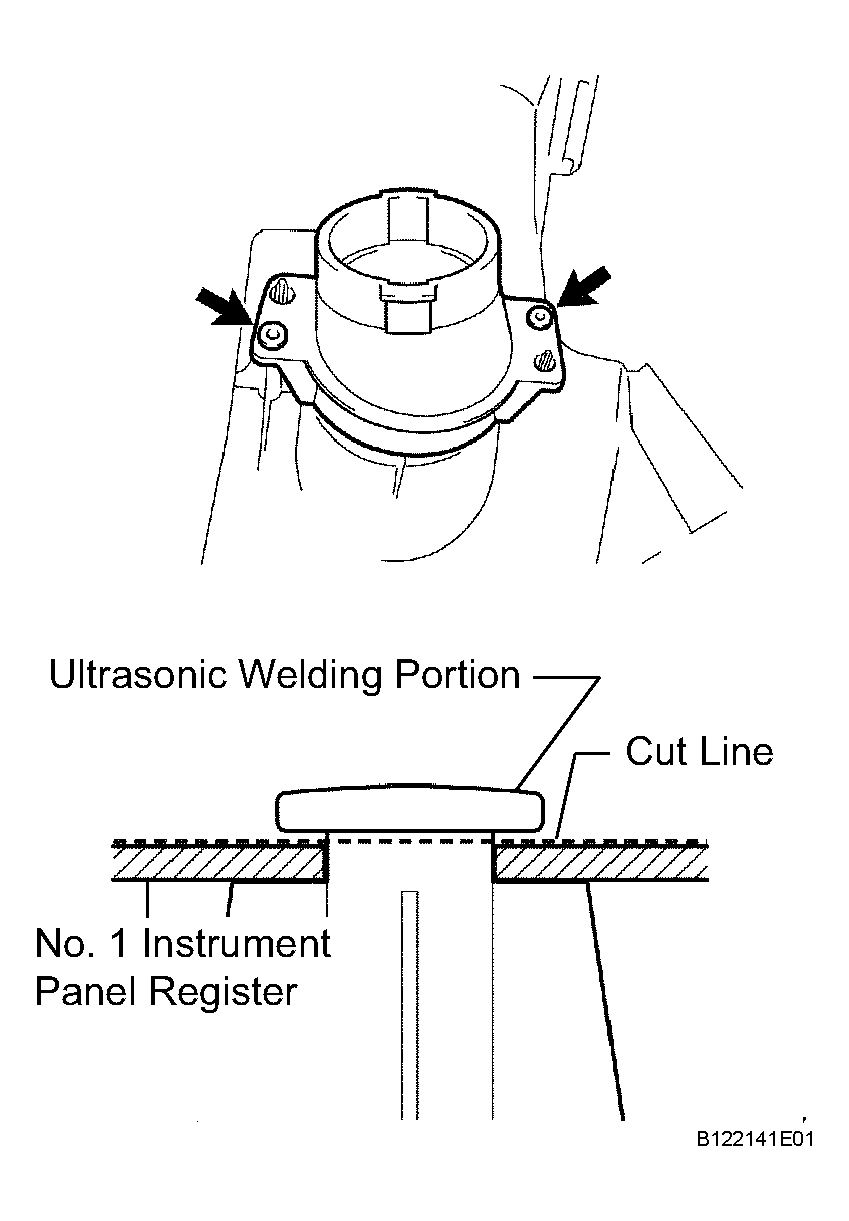

  Fig 2: Removing Instrument Panel Register Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL CUSHION
1. Remove the No. 1 instrument panel cushion from the instrument panel.

  Fig 3: Removing Instrument Panel Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
