Lower Instrument Panel: Installation

INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
1. Install the instrument panel.
2. Install the instrument panel junction block assembly with the 2 screws and bolt.
3. Install the 2 bolts, 2 nuts and 2 screws.
4. Install the 2 clips.
5. Connect the hood lock control cable.

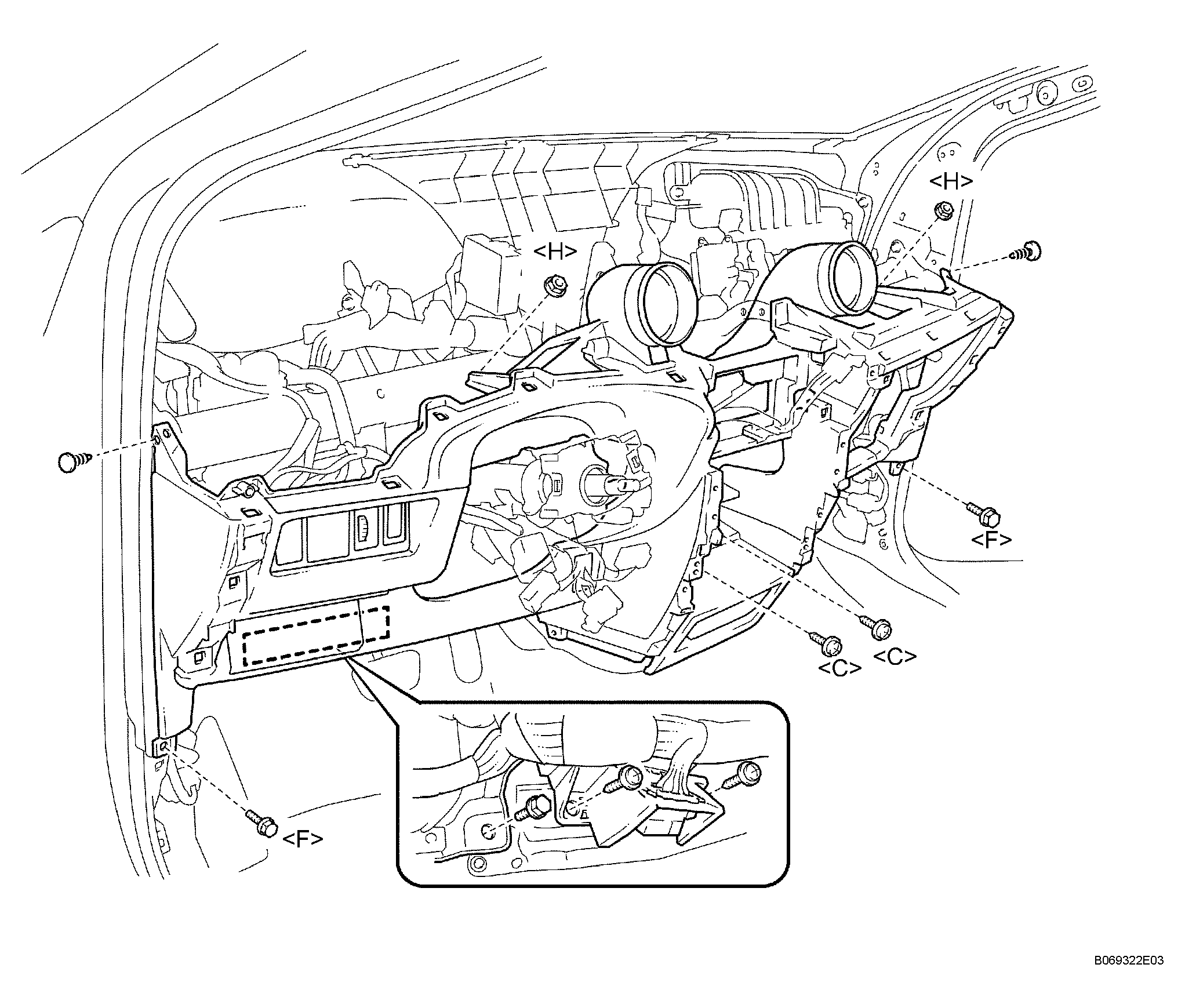

  Fig 1: Installing Lower Instrument Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUSE BOX OPENING COVER
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER
1. Attach the 3 claws to install the instrument panel finish panel lower center.
2. Install the 2 clips.

  Fig 2: Installing Instrument Panel Finish Panel Lower Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT COVER LOWER CENTER
1. Attach the 5 claws to install the instrument cover lower center.

  Fig 3: Installing Instrument Cover Lower Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ASH RECEPTACLE ASSEMBLY
1. Connect the connectors.
2. Install the front ash receptacle with the 2 screws.

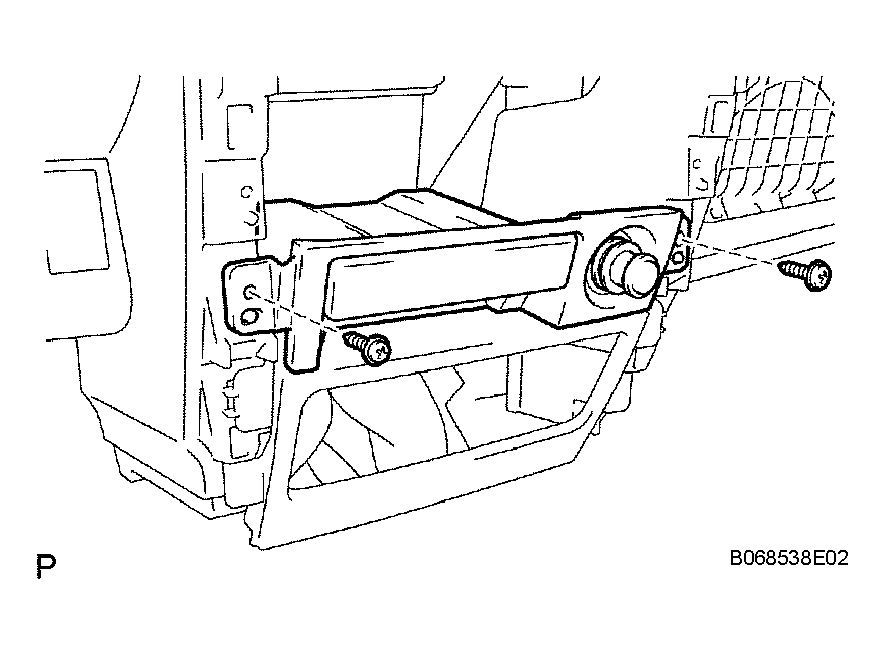

  Fig 4: Installing Front Ash Receptacle With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
1. Connect the connectors.
2. Install the instrument cluster finish panel assembly center with the 4 screws.
INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY (See INSTALLATION )

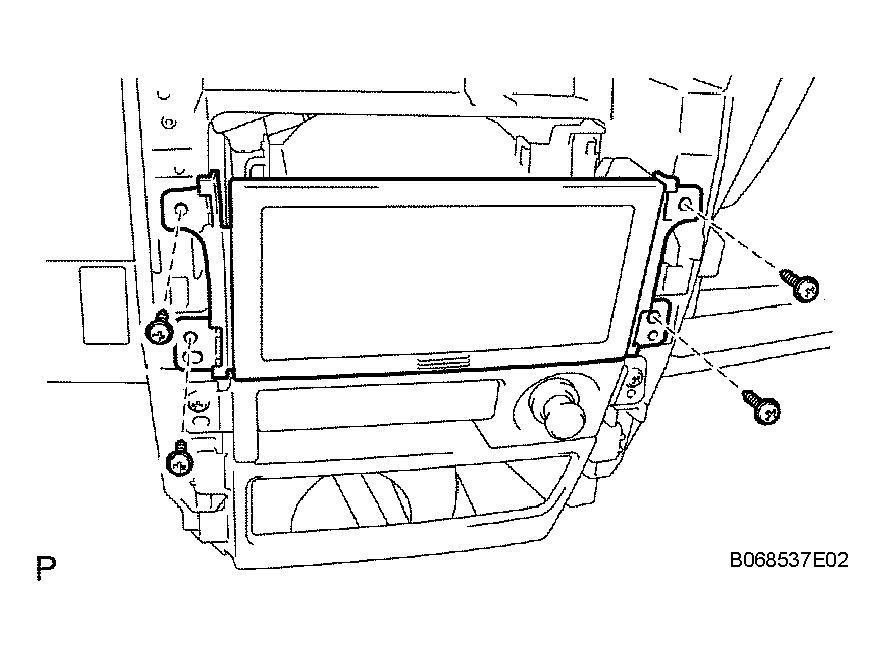

Fig 5: Installing Instrument Cluster Finish Panel Assembly Center
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM BOARD LH
1. Attach the clip to install the cowl side trim board.
2. Install the clip.
INSTALL COWL SIDE TRIM BOARD RH

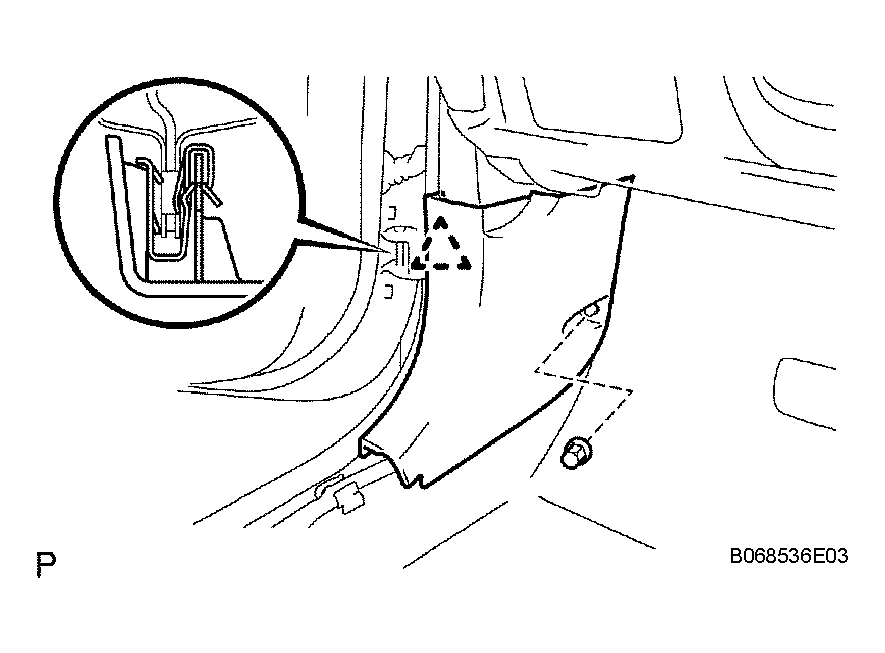

Fig 6: Installing Cowl Side Trim Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
INSTALL FRONT DOOR SCUFF PLATE LH
1. Attach the 7 claws to install the front door scuff plate.
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedures for the RH side and LH side.
INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See INSTALLATION )

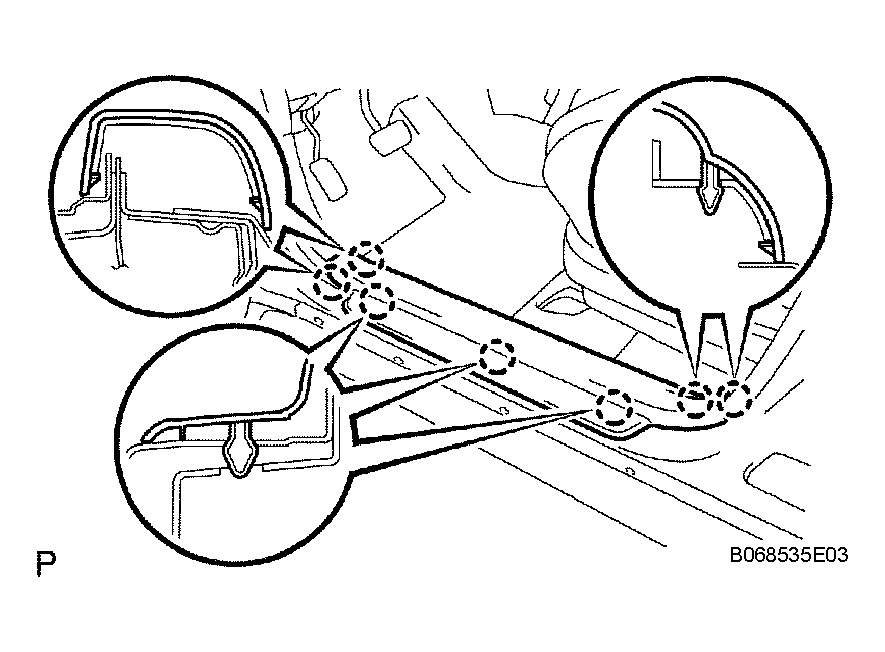

Fig 7: Installing Front Door Scuff Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY (See INSTALLATION )
INSTALL STEERING COLUMN COVER (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSTALL STEERING PAD ASSEMBLY (See REMOVAL )
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
1. Install the instrument panel (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
