Lower Instrument Panel: Disassembly

  1. REMOVE NO. 2 HEATER TO REGISTER DUCT

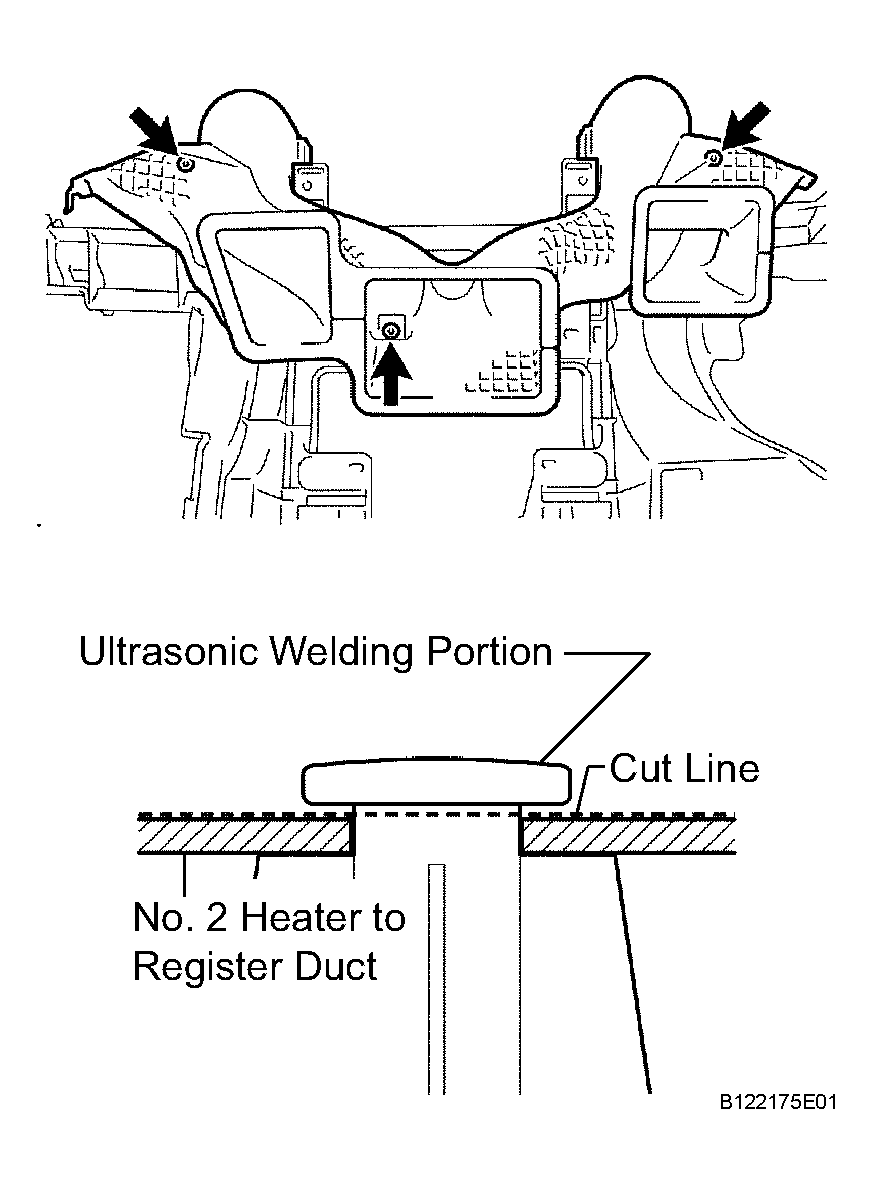

    1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 2 heater to register duct from the instrument panel sub-assembly.
      Fig 1: Removing Heater To Register Duct
      G04159106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE GLOVE COMPARTMENT DOOR LOCK MOUNTING BRACKET
    1. Remove the screw and glove compartment door lock mounting bracket.
      Fig 2: Removing Screw And Glove Compartment Door Lock Mounting Bracket
      G04159107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
