Starting and Ignition

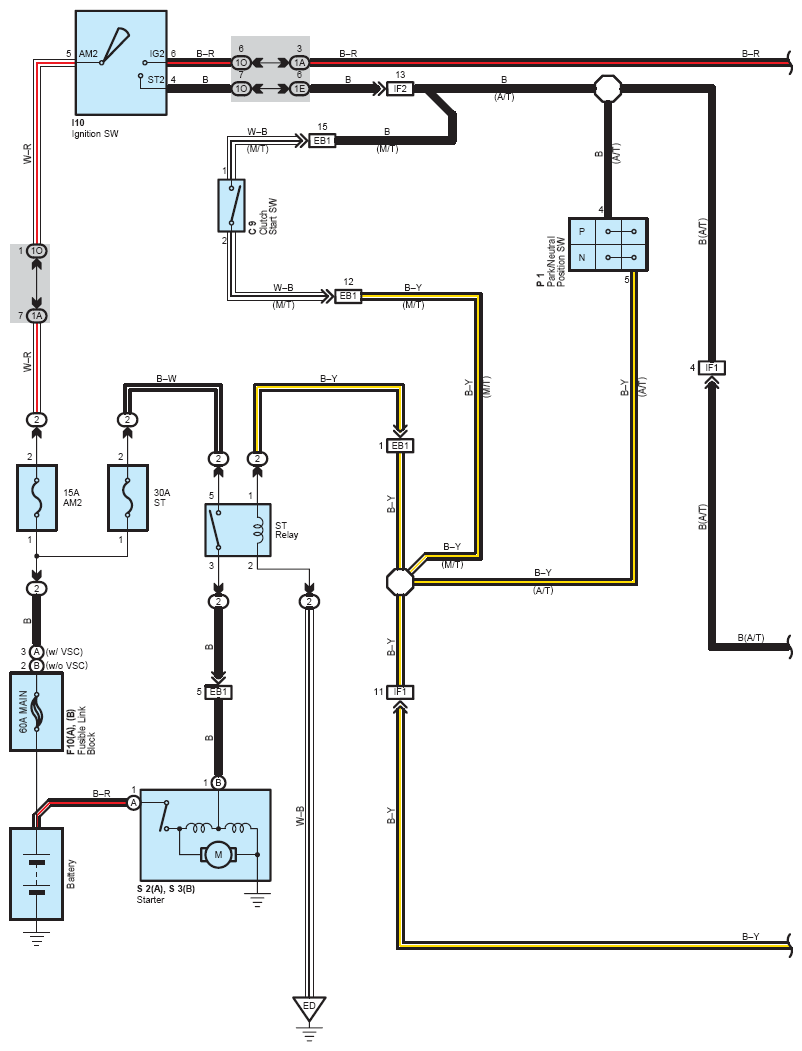

Fig 1: Starting And Ignition System Wiring Diagram (1 Of 2)
G08758649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

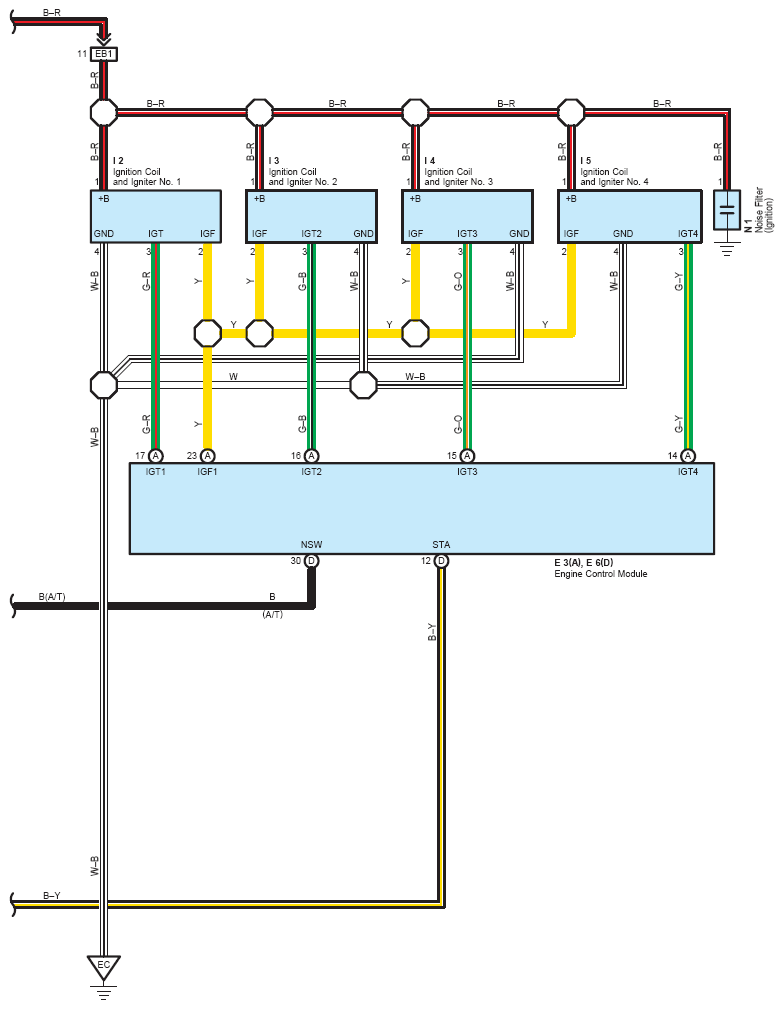

Fig 2: Starting And Ignition System Wiring Diagram (2 Of 2)
G08758650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
