Ground Point: Notes

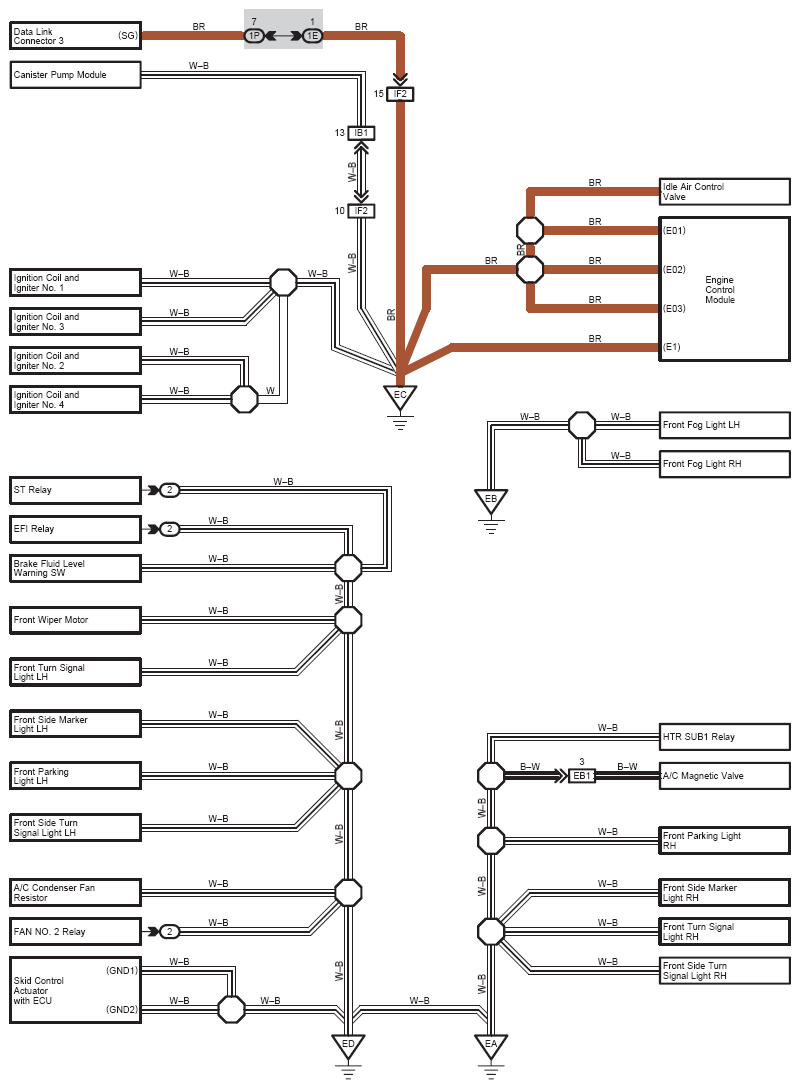

Fig 1: Ground Point System Wiring Diagram (1 Of 3)
G08758713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

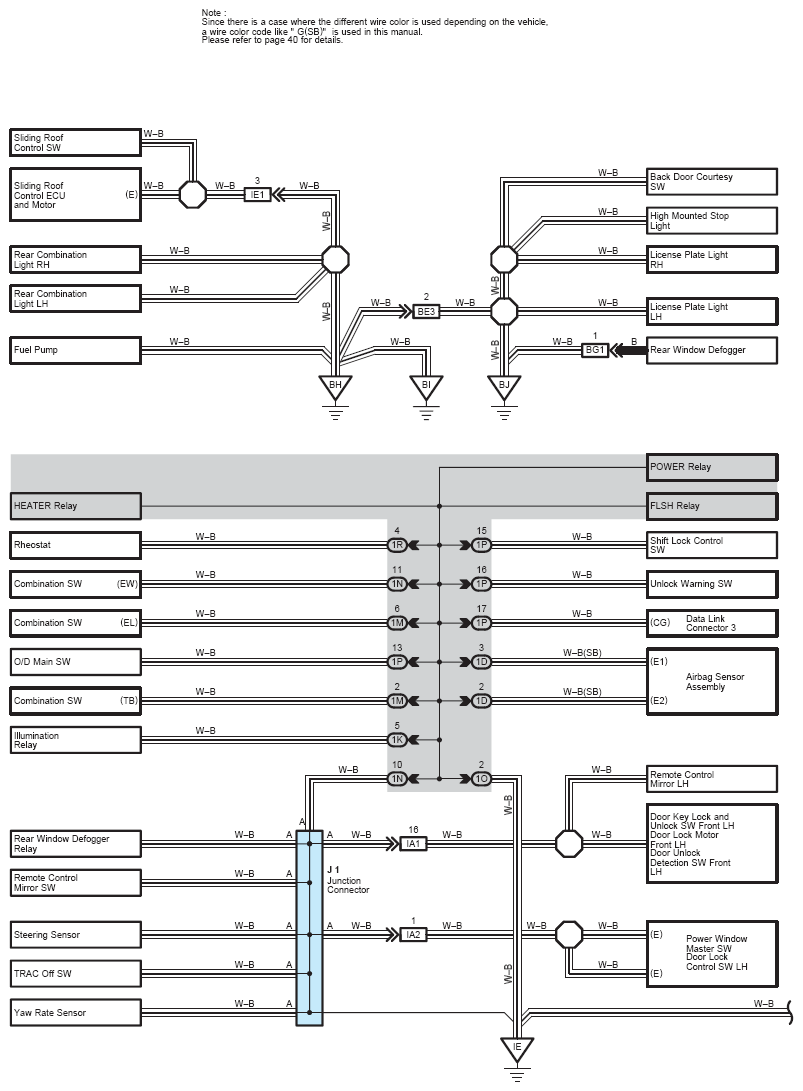

Fig 2: Ground Point System Wiring Diagram (2 Of 3)
G08758714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

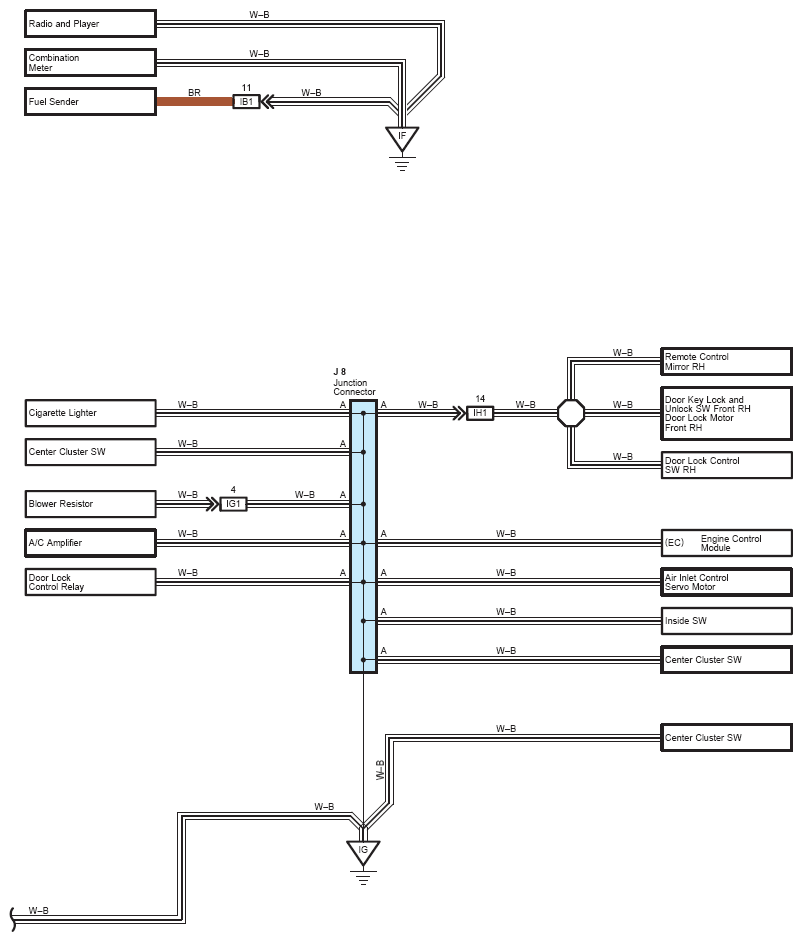

Fig 3: Ground Point System Wiring Diagram (3 Of 3)
G08758715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
