Front Seat Assembly: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SEAT ASSEMBLY
   1. Place the seat on the cabin.
      NOTE: Be careful not to damage the vehicle body.
   2. Connect the connectors under the seat.
   3. Tighten the 4 bolts.

      Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

2. INSTALL SEAT TRACK OUTER COVER LH
   1. Attach the 4 claws to install the seat track outer cover.

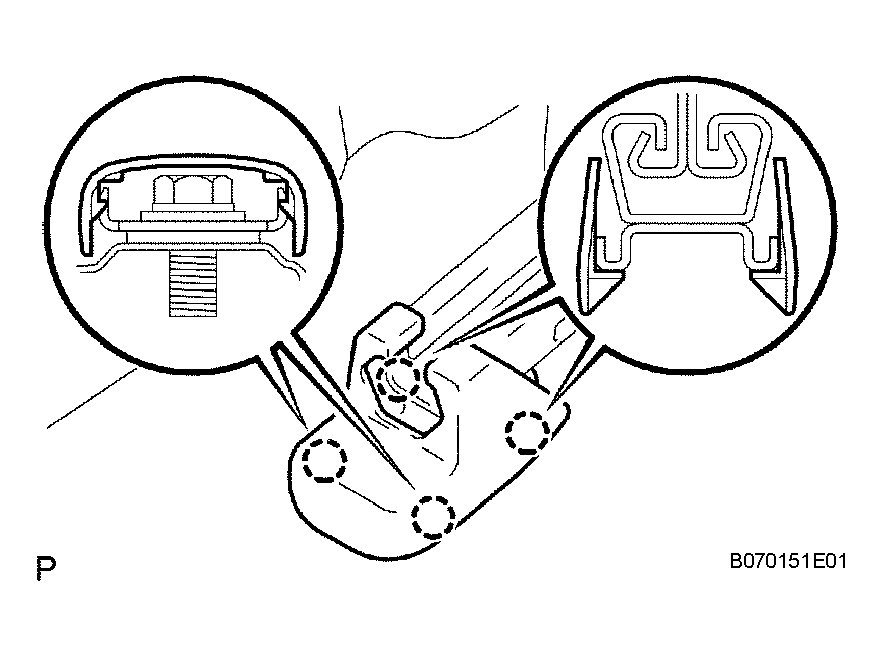

      Fig 1: Installing Seat Track Outer Cover LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL SEAT TRACK BRACKET COVER INNER LH
   1. Attach the 2 claws to install the seat track bracket cover.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
      Fig 2: Installing Seat Track Bracket Cover Inner LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. INSPECT SRS WARNING LIGHT
   1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
